Reinforced party tent | 4x6 m

Download PDF offer

article 780187
4x6 m Reinforced party tent

Name: Reinforced party tent
Brand: Das Company
SKU: 1B06A36104120221221212121
Price: 1538.81 EUR
Availability: OutOfStock

4x6m side 2m

see dimensions

Color of the plating:

more >

1 538,81 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The seasonal structure SUMMER PLUS is made of galvanized steel. This is the strongest summer frame, equipped with a lower frame and upper reinforcements.

The cover with transparent sides is made of high-weight PVC. The tarpaulin is waterproof and resistant to UV radiation, so it guarantees a dry and shaded space when organizing family events and business receptions. Transparent side walls provide excellent lighting for tables and buffets. It is also an excellent commercial tent and tent gazebo. The tarpaulin has a quick length change system Multi-size.

Delivery and collection

Assembly and instructions

Configuration

Reinforced party tent

This tent will accommodate:

approx. 48 standing places

approx. 36 chair seats

approx. 32 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 3-4 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

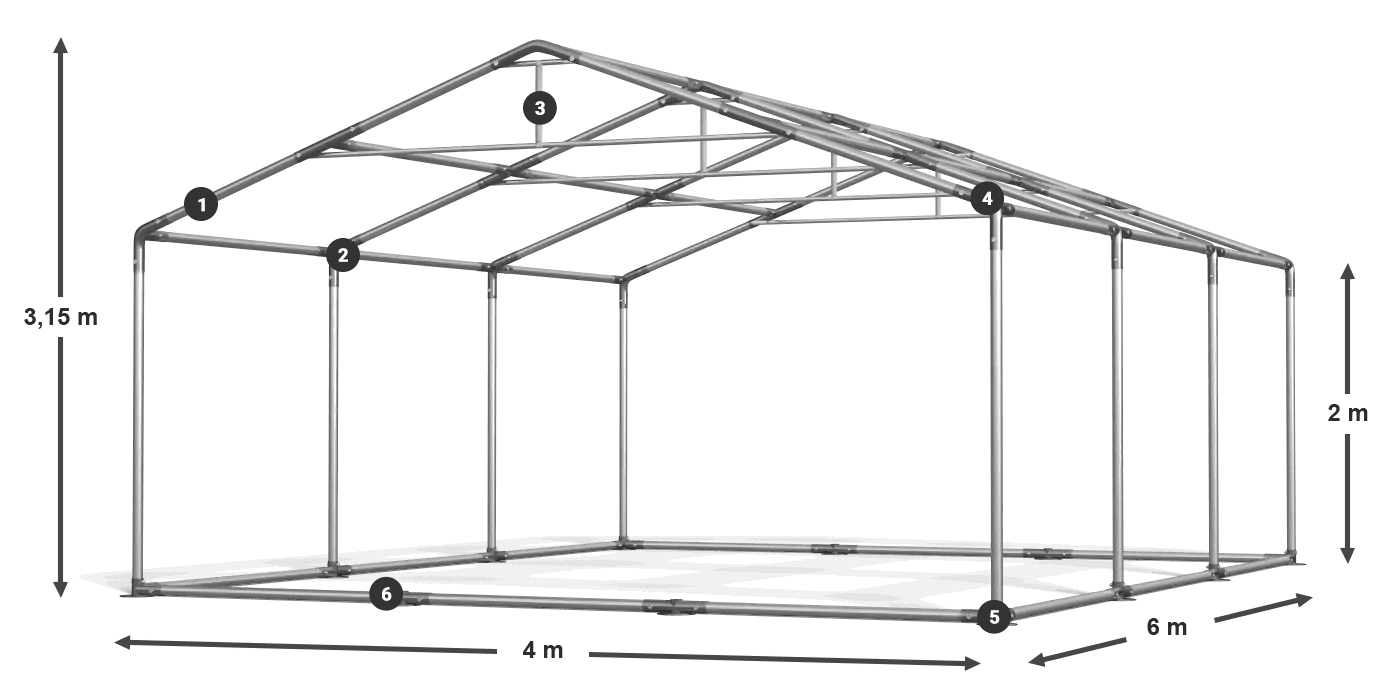

CONSTRUCTION

SUMMER PLUS

Pipes

Steel ca. fi 38 mm

Connectors

Steel ca. fi 42 mm

Rates

Steel fi 9 cm

Construction isdurable and easy to install.That way, except fast.folding,The tent can be easily moved where it is currently needed.

Construction pipes approx. fi 38 mm
Structure connectors approx. fi 42 mm
Reinforced roof structure
Strong screws, that go through
Rate fi 9 cm
Reinforced Floor construction

Increased durability

The additional structure consists of a lower frame and upper reinforcements. This solution provides greater load-bearing capacity and structure stiffness.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Stable construction

Stable feet with a diameter of 9 cm were installed in the lower part of the structure. Thanks to them, anchoring the tent is much more durable, regardless of the type of ground.

expand section

TARPAULIN

Roof: FR 620 PVC Walls: MS 580 PVC

Roof

Full okay. 620 g

Sides

Transparent approx. 580 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

The single wall is equipped with a large, completely transparent window. Such a window shines very well inside the tent. This is therefore the right choice when we want our products or goods to be visible from the outside.

Fireproof modular roof FR PVC (polyvinyl chloride) c. 620 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
ExchangeableMaskers with sealing turnips
Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m² - Transparent windows144 x 148 cm
Additional Retention apron

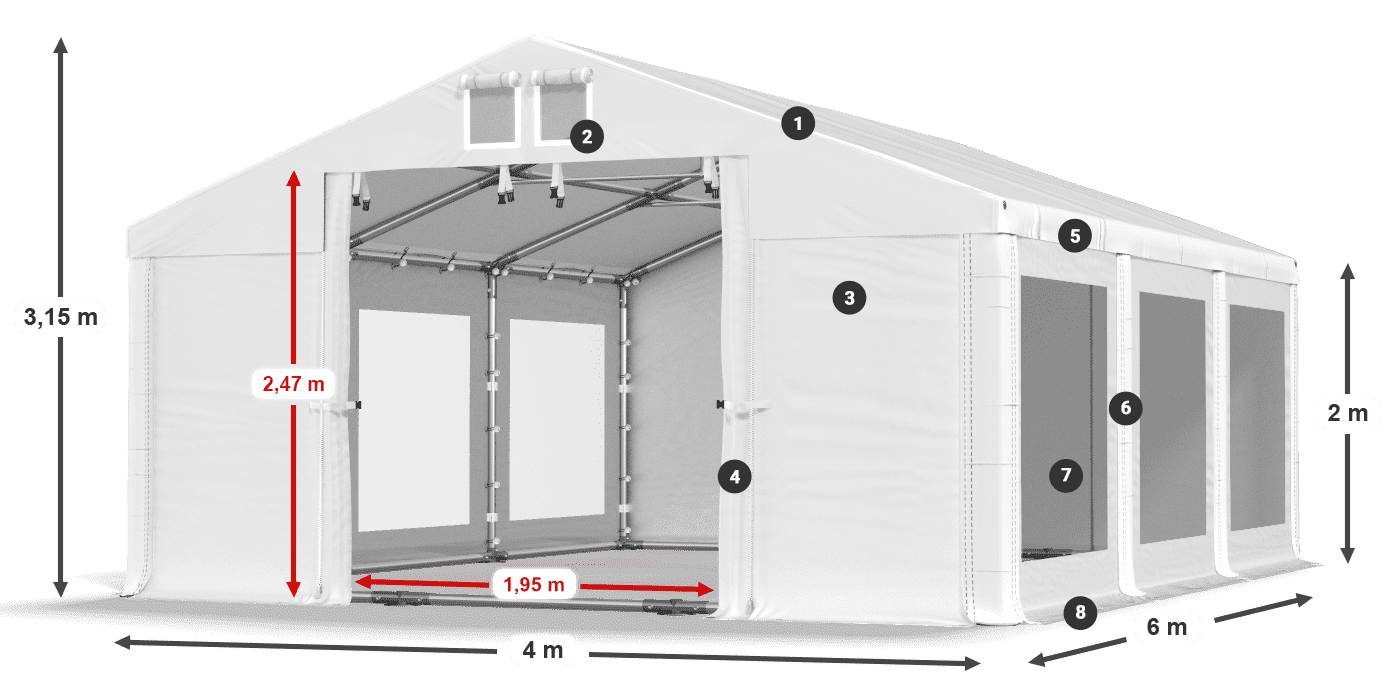

Roof: FR 620 PVC Walls: MS 580 PVC 2m legend

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Adjust the tent to your needs

You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Full illumination

The side wall is made of thick tarpaulin PVC approx. 580 g/m². Thanks to the transparent side wall, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent

Any color selection

The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Width

4 m

Lenght

6 m

Side height

2 m

Apex height

3,15 m

Surface

24 m²

Gate A

2,08 m x 2,47 m

Gate B

2,08 m x 2,47 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

61,86 m³

Number of packages

Weigh

156,35 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 620 g/m²

Sides density

~ 580 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 38 mm

Diameter of fasteners

~ 42 mm

Feet

9 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Roof tensioners

Side pulls

Roof supports

Side supports

Package

55.00cm × 65.00cm × 15.00cm - 15.30kg

Package

15.00cm × 195.00cm × 11.50cm - 17.10kg

Package

15.00cm × 195.00cm × 11.50cm - 17.20kg

Package

19.00cm × 115.00cm × 12.50cm - 13.10kg

Package

59.00cm × 68.00cm × 20.00cm - 19.15kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 17.75kg

Package

45.00cm × 55.00cm × 9.00cm - 10.00kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

43.00cm × 53.00cm × 13.00cm - 8.60kg

Package

8.00cm × 216.00cm × 8.00cm - 4.90kg

Package

11.00cm × 222.00cm × 9.00cm - 9.45kg

Package

45.00cm × 55.00cm × 15.00cm - 15.50kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 14 packs on a pallet with a total weight of 156,35 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.

ASSEMBLY AND INSTRUCTIONS
