Year-round sales tent | 4x6 m

Download PDF offer

article 771810
4x6 m Year-round sales tent

Name: Year-round sales tent
Brand: Das Company
SKU: 1B06A53203230222222222222
Price: 1506.07 EUR
Availability: InStock

4x6m side 2m

see dimensions

Color of the plating:

more >

1 506,07 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

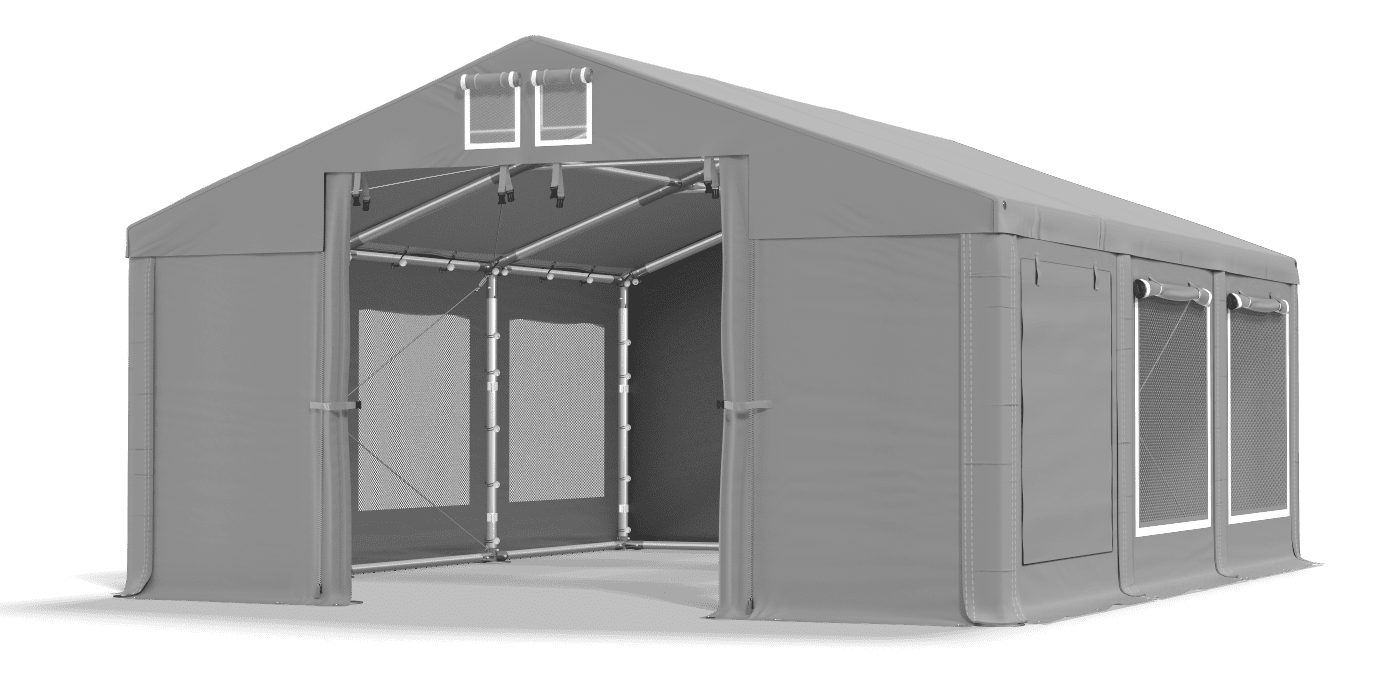

The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.

A tarpaulin with windows equipped with mosquito nets ensures the flow of fresh air on hot days. The cover is resistant to moisture and UV radiation, so it can be used when organizing outdoor family and corporate parties. Mosquito nets are extremely airy and at the same time protect tables and buffets against flying insects. If it gets cold, we can cover the windows with blinds to seal the party tent.

Delivery and collection

Assembly and instructions

Configuration

Year-round sales tent

This tent will accommodate:

approx. 48 standing places

approx. 36 chair seats

approx. 32 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 3-4 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

CONSTRUCTION

WINTER PLUS

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

Strings

Roof and side

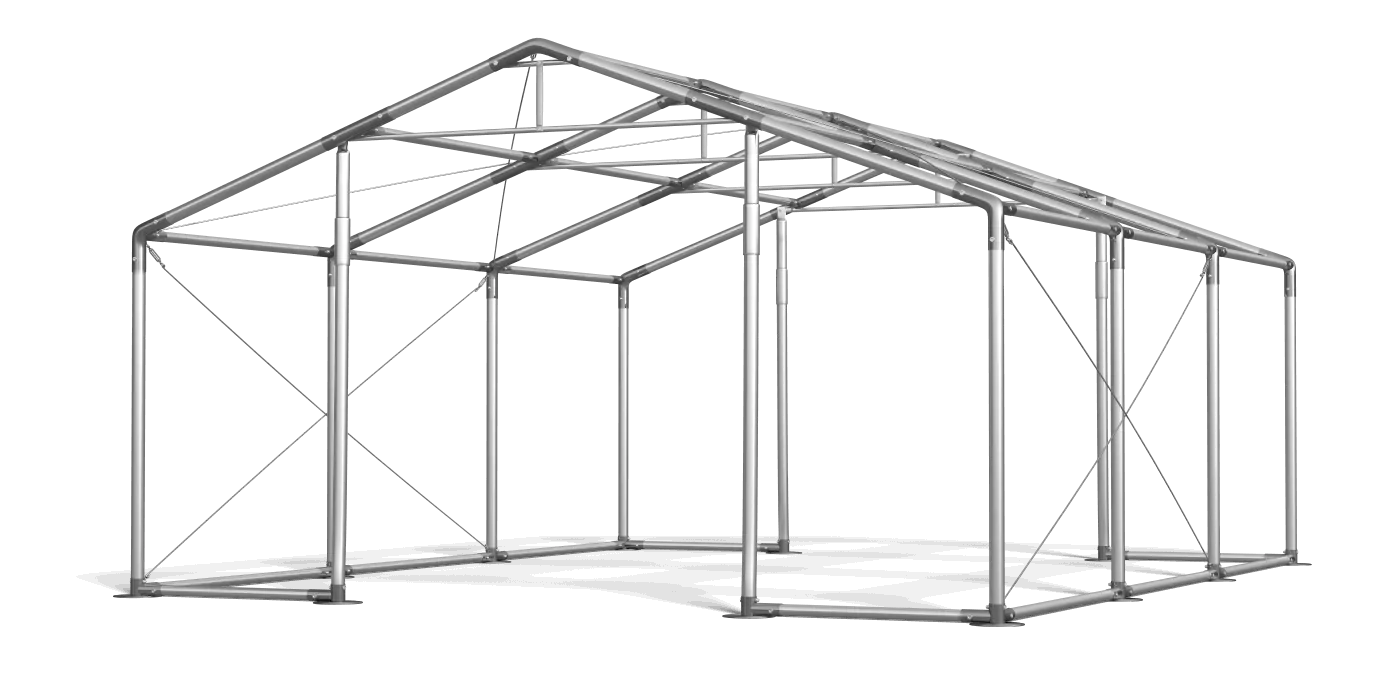

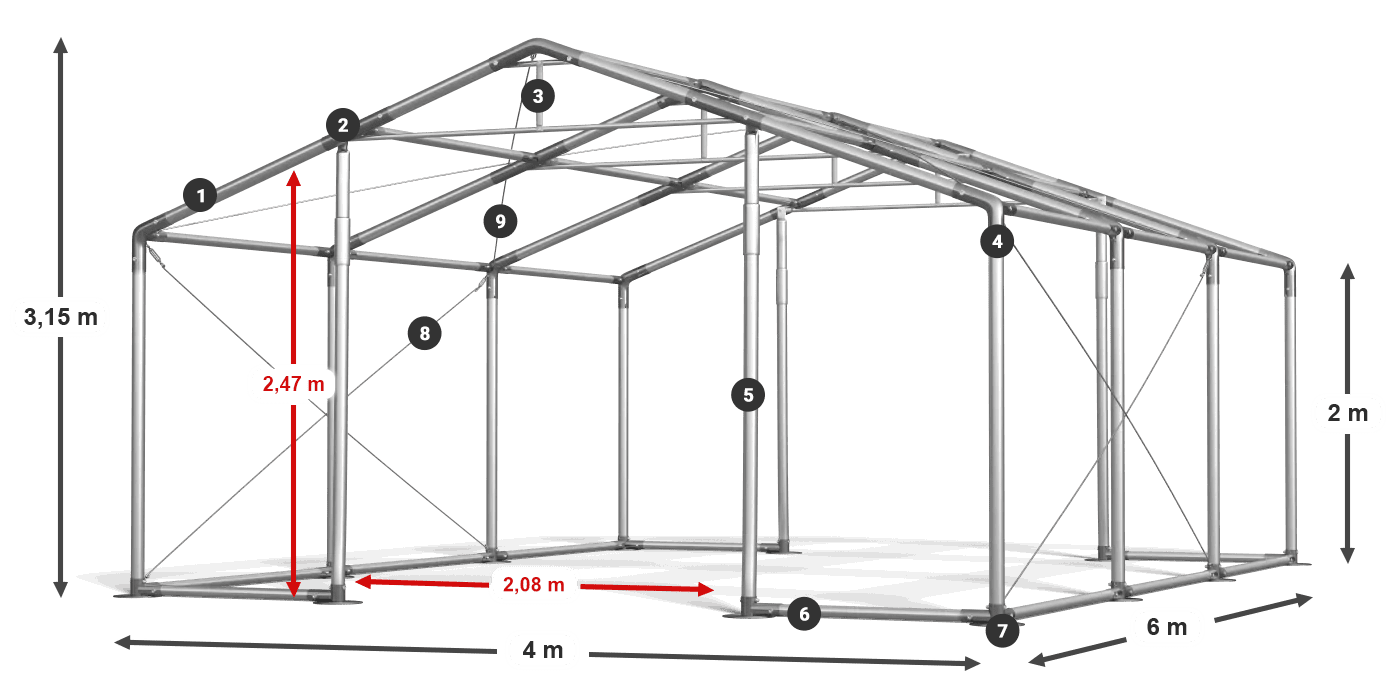

The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Strong screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm
Strings side
Strings roofing

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

Increased immunity

The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.

expand section

TARPAULIN

PRO R

Roof

Full okay. 560 g

Sides

The blinds are ok. 500 g

Air-control

Yes.

Hermetic

Yes.

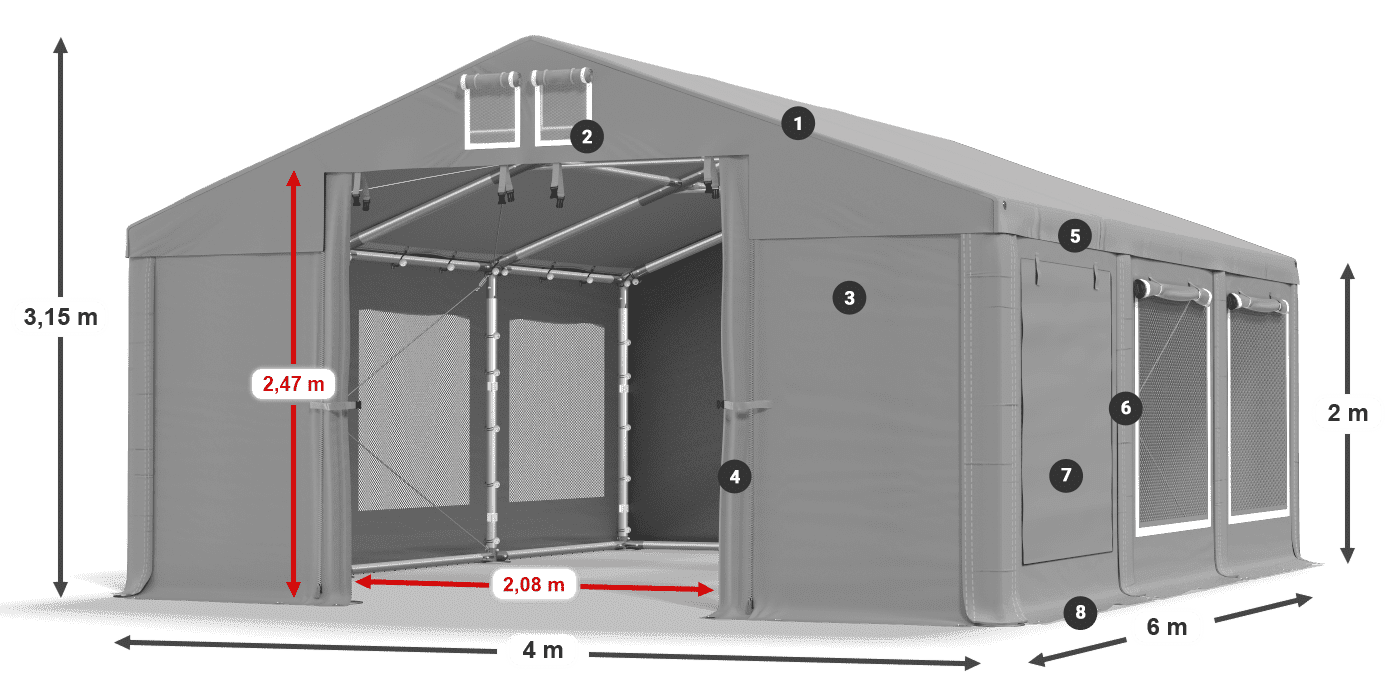

The hull is made of tarp PVC. The roof is approximately 560 g/m² and the side walls are about 500g/m². Each side wall has a window built of a mosquito net allowing air. There is a blind above each window, which can be rolled and closed tightly, which protects the interior of the tent from rain, snow or dust.

Roof SD PVC (polyvinyl chloride) c. 560g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Exchangeable Maskers with sealing turnips
Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m² - Moscow. 140 x 130 cm
Additional Retention apron

Modern tent connections

It is possible to connect tents using a special gutter.

You can combine tents at your convenience

Any arrangement

The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Universal side walls

NOVELTY! The latest solution on the market. Now you can adjust the tent according to your needs. Aesthetically designed with attention to detail, the side walls with mosquito net are equipped with roll-up blinds, masking panels and Velcro fasteners. Perfect protection against insects, sun, wind and rain.

Any color selection

The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

expand section

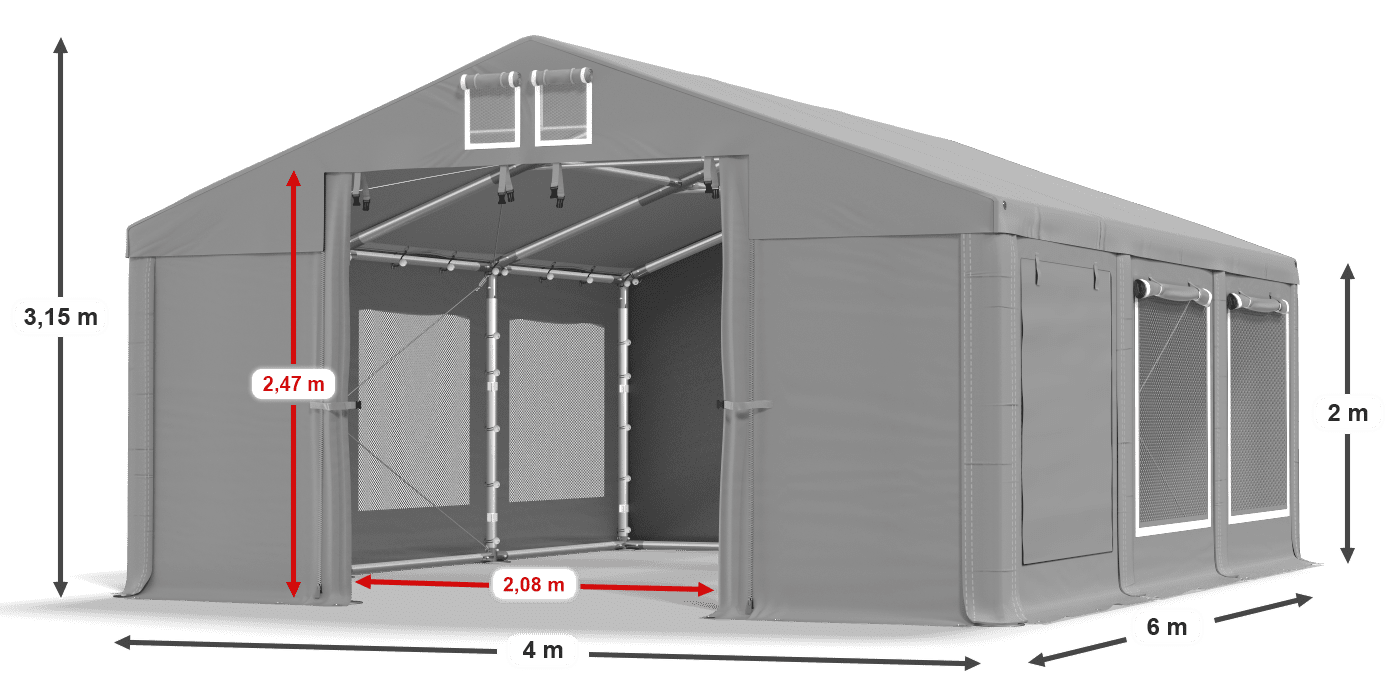

Technical data

General

Tarpaulins

Constructions

Packages

Width

4 m

Lenght

6 m

Side height

2 m

Apex height

3,15 m

Surface

24 m²

Gate A

2,08 m x 2,47 m

Gate B

2,08 m x 2,47 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

61,86 m³

Number of packages

Weigh

178,55 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 560 g/m²

Sides density

~ 500 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

approx. 2 mm (diameter of steel ropes)

Side pulls

approx. 2 mm (diameter of steel ropes)

Roof supports

Side supports

Package

60.00cm × 67.00cm × 26.00cm - 31.35kg

Package

35.00cm × 101.00cm × 20.00cm - 33.30kg

Package

27.00cm × 194.00cm × 15.00cm - 34.20kg

Package

20.00cm × 191.00cm × 16.50cm - 36.40kg

Package

55.00cm × 65.00cm × 14.00cm - 18.65kg

Package

45.00cm × 55.00cm × 9.00cm - 10.00kg

Package

37.00cm × 73.00cm × 22.00cm - 1.20kg

Package

35.00cm × 70.00cm × 20.00cm - 1.25kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

45.00cm × 55.00cm × 12.00cm - 9.40kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 11 packs on a pallet with a total weight of 178,55 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.

ASSEMBLY AND INSTRUCTIONS
