4x22 m Solid Banquet Tent

Name: Solid Banquet Tent
Brand: Das Company
SKU: 1B22A41101110611611111111
Price: 3588.00 EUR
Availability: InStock

4x22m side 2m

see dimensions

Color of the plating:

more >

3 588,00 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The WINTER design is intended for year-round use. The frame is made of the highest quality steel. Additional reinforcements make the structure durable and stable.

Elegant roofing equipped with large, stained glass windows is perfect for organizing family parties, corporate events, festivals and municipal events. A tarpaulin made of waterproof PE can be used in spring and summer. The roof provides a dry and shaded space for tables and buffets. The stained glass tent will work well as a comfortable garden gazebo or a mobile sales stand. It is also a perfect catering tent.

Delivery and collection

Assembly and instructions

Configuration

Solid Banquet Tent

This tent will accommodate:

approx. 176 standing places

approx. 135 chair seats

approx. 112 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 5-6 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

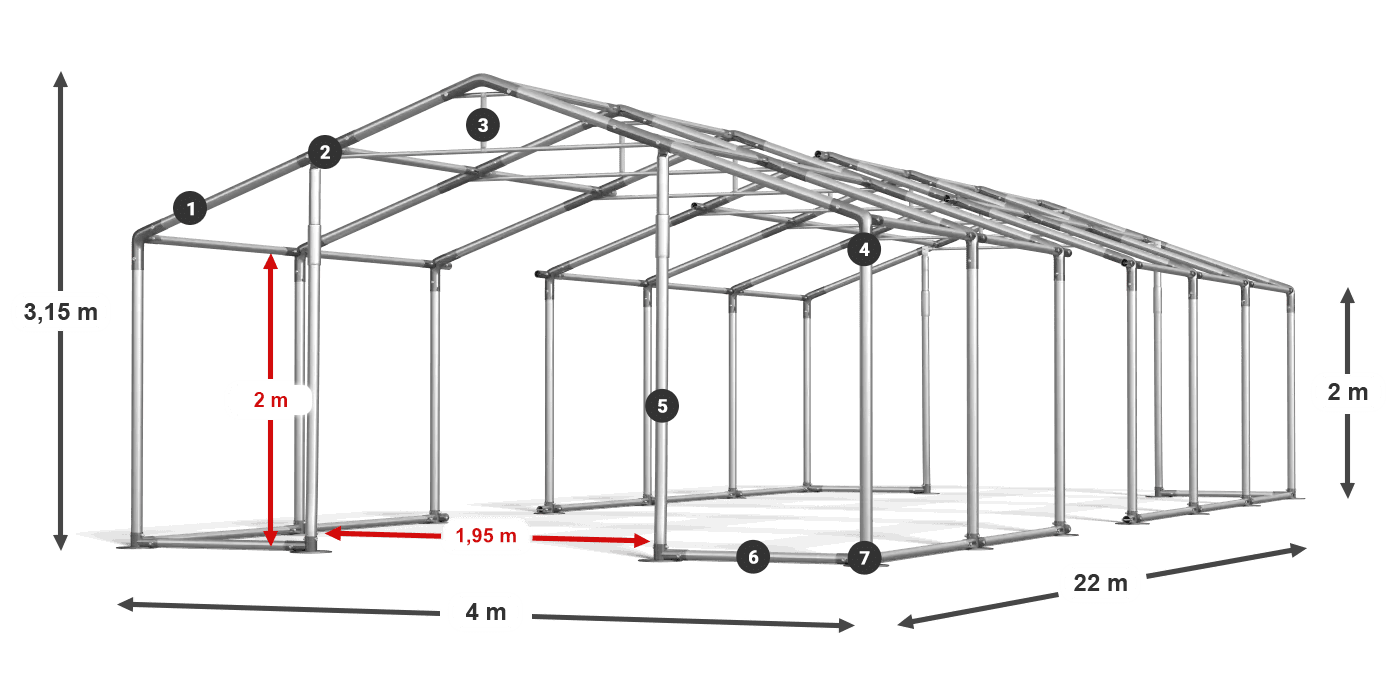

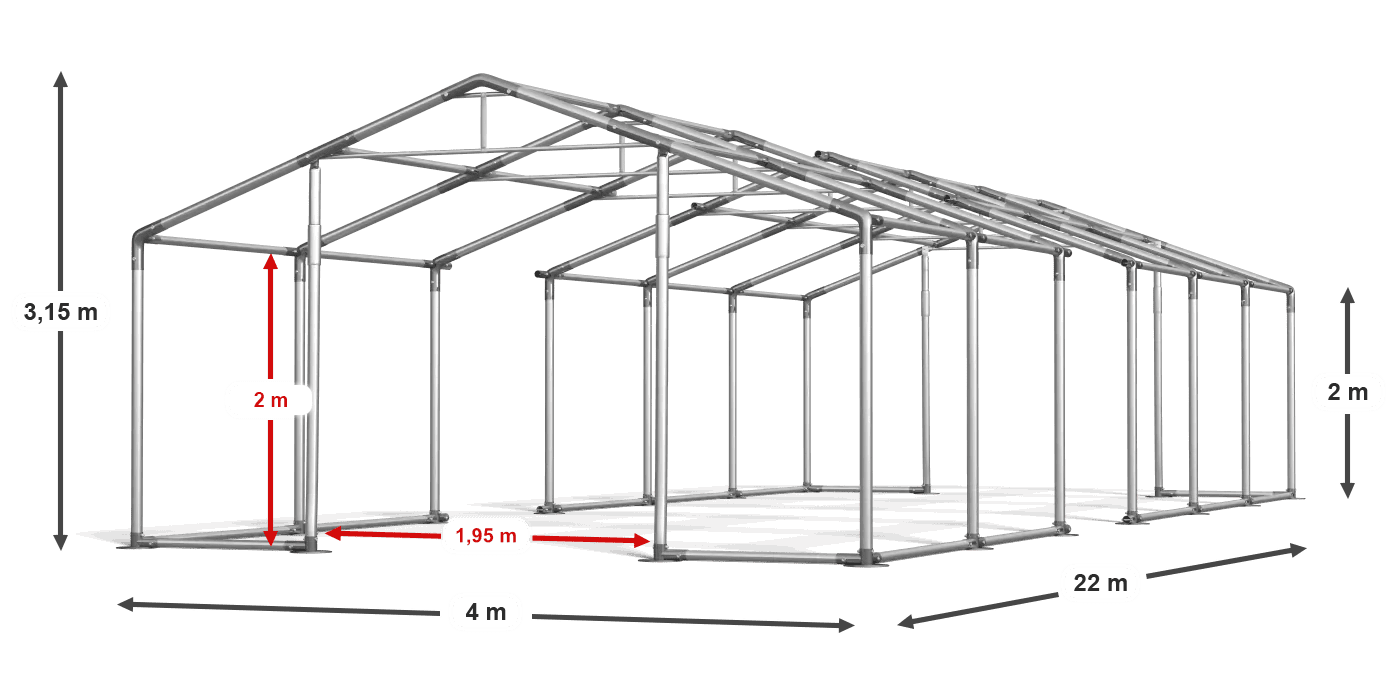

CONSTRUCTION

WINTER

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,the tent can be moved very quickly where it is needed

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Solid screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

expand section

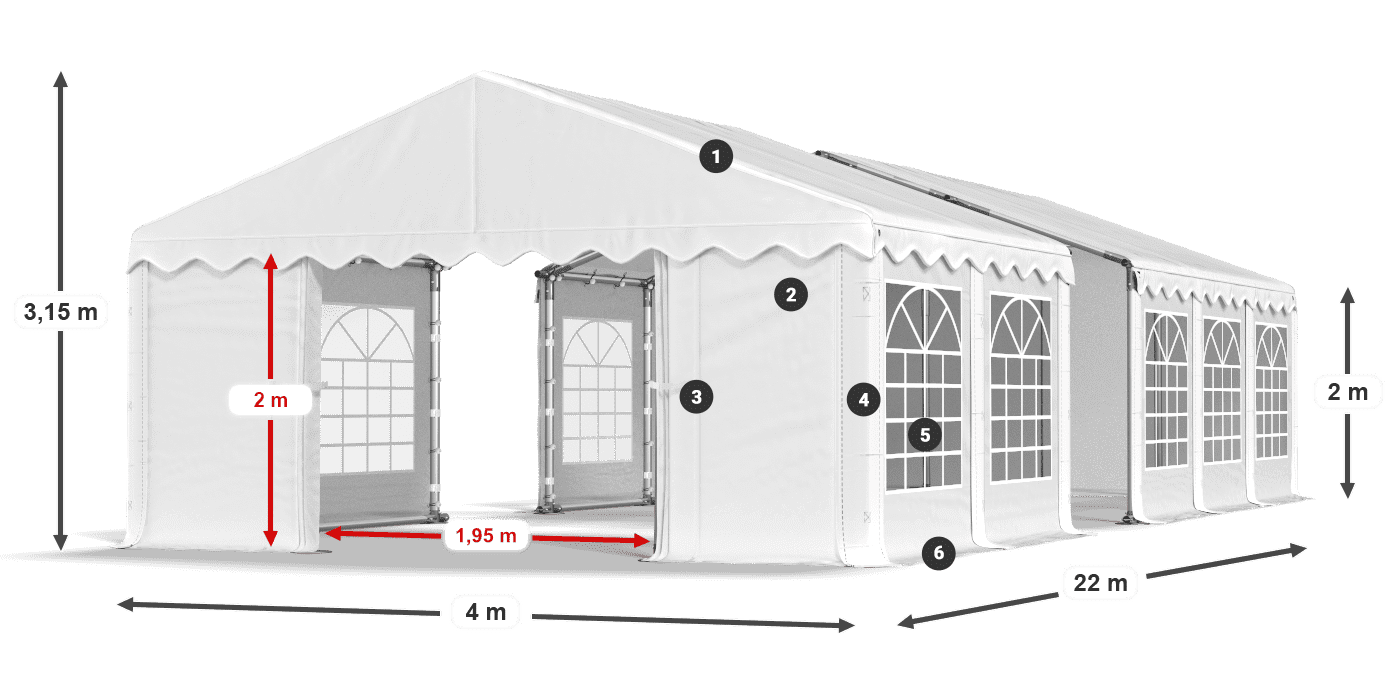

TARPAULIN

ECO I

Roof

Full okay. 240 g

Sides

The stained glass is ok. 240 g

Thanks to the stained glass window, daylight falls inside the tent, allowing for comfortable use during various celebrations or rest in the open air.

Roof PE(polyethylene) c. 240 g/m²
Type gate curtain
Strong YKK locks at entrances
Exchangeable masks
Side walls PE 2 x 2 m (polyethylene) c. 240 g/m² - stained glass windows 140 x 130 cm
Mounting meshes tarpaulin

Connecting tents

The 4m x22m 2m tent is composed of tents with dimensions: 4x10m, 4x6m.

You can combine tents at your convenience

Attractive appearance

The side wall is made of thick tarpaulin PE approx. 240g/m² and large stained glass windows. The height of the basic wall is 2m. Thanks to the windows placed on each two-meter segment, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent.

Change colors

The tent has covers. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

Adjust the tent to your needs

It is possible to order individual cladding elements in various variants, such as walls with windows or solid walls. This will personalize the tent and adapt it to your individual needs.

Any arrangement

The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.

expand section

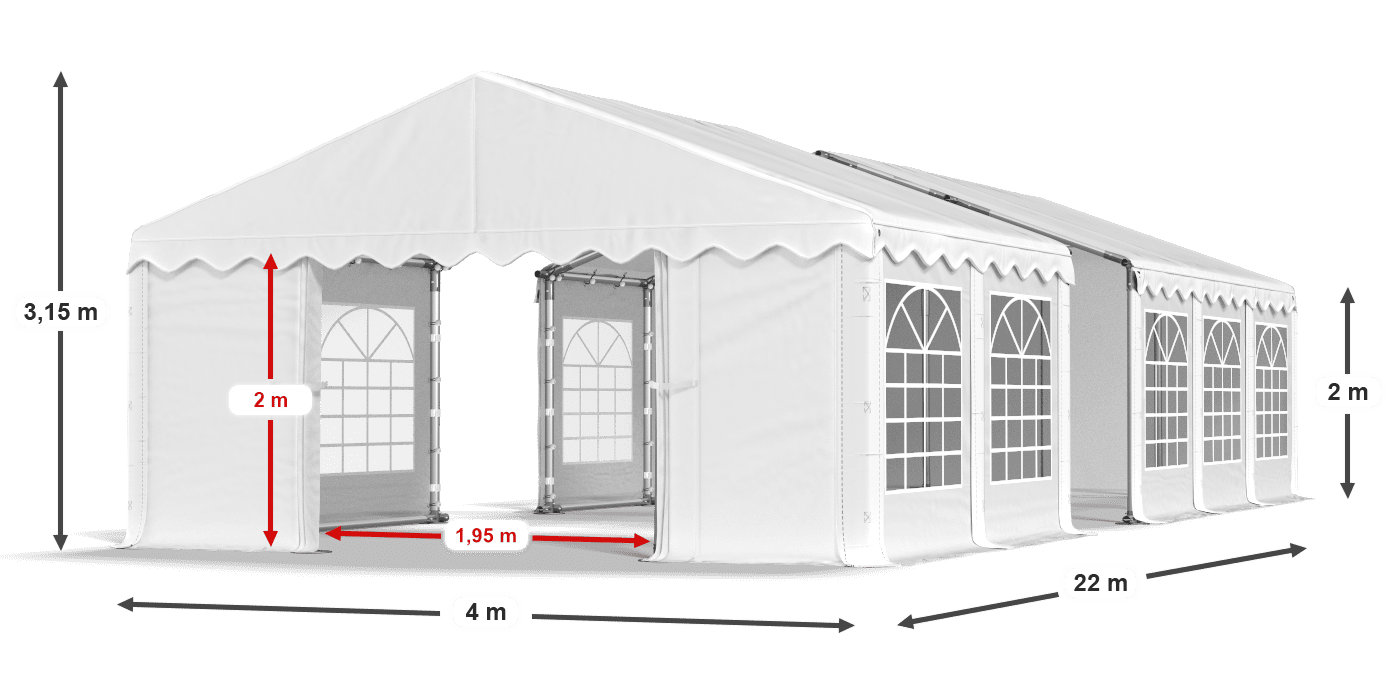

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05902426926184

Width

4 m

Lenght

22 m

Side height

2 m

Apex height

3,15 m

Surface

88 m²

Gate A

1,95 m x 2 m

Gate B

1,95 m x 2 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

226,81 m³

Number of packages

Weigh

545,98 kg

Spare parts

Yes

Material

(polyethylene)

Roof densityt

~ 240 g/m²

Sides density

~ 240 g/m²

Temperature range

from -5^o to +40^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Overlap System

System Hermetic

System Air-control

System Multi-size

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

Side pulls

Roof supports

Side supports

Package

60.00cm × 67.00cm × 26.00cm - 31.35kg

Package

35.00cm × 101.00cm × 20.00cm - 33.30kg

Package

27.00cm × 194.00cm × 15.00cm - 34.20kg

Package

20.00cm × 191.00cm × 16.50cm - 36.40kg

Package

60.00cm × 67.00cm × 26.00cm - 31.35kg

Package

35.00cm × 101.00cm × 20.00cm - 33.30kg

Package

27.00cm × 194.00cm × 15.00cm - 34.20kg

Package

20.00cm × 191.00cm × 16.50cm - 36.40kg

Package

60.00cm × 67.00cm × 26.00cm - 31.35kg

Package

35.00cm × 101.00cm × 20.00cm - 33.30kg

Package

27.00cm × 194.00cm × 15.00cm - 34.20kg

Package

20.00cm × 191.00cm × 16.50cm - 36.40kg

Package

55.00cm × 65.00cm × 18.00cm - 25.33kg

Package

55.00cm × 65.00cm × 14.00cm - 11.90kg

Package

55.00cm × 65.00cm × 14.00cm - 11.90kg

Package

35.00cm × 43.00cm × 8.00cm - 1.70kg

Package

35.00cm × 43.00cm × 8.00cm - 1.70kg

Package

50.00cm × 50.00cm × 15.00cm - 8.15kg

Package

26.50cm × 200.00cm × 10.50cm - 24.00kg

Package

50.00cm × 50.00cm × 15.00cm - 8.15kg

Package

26.50cm × 200.00cm × 10.50cm - 24.00kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 18.00cm × 5.00cm - 0.60kg

Package

40.00cm × 50.00cm × 8.00cm - 5.25kg

Package

40.00cm × 50.00cm × 8.00cm - 5.25kg

Package

40.00cm × 50.00cm × 8.00cm - 5.25kg

Package

40.00cm × 50.00cm × 6.00cm - 3.65kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 30 packs on a pallet with a total weight of 545,98 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
