5x6 m Year-round Catering Tent

Name: Year-round Catering Tent
Brand: Das Company
SKU: 1C06C46203230502502222222
Price: 7334.16 EUR
Availability: OutOfStock

5x6m side 3m

see dimensions

Color of the plating:

more >

7 334,16 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The WINTER design is intended for year-round use. The frame is made of the highest quality steel. Additional reinforcements make the structure durable and stable.

Durable PVC tarpaulin, equipped with windows with mosquito nets. This is a very airy covering that protects tables and buffets against flying insects. The tarpaulin is waterproof and resistant to UV radiation. This is a perfect party tent that can be sealed with roll-up blinds if the weather deteriorates. The roof will also work well for trade or as a tent gazebo. The tarpaulin is equipped with an easy length change system Multi-size.

Delivery and collection

Assembly and instructions

Configuration

Year-round Catering Tent

This tent will accommodate:

approx. 60 standing places

approx. 46 chair seats

approx. 40 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 4-5 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

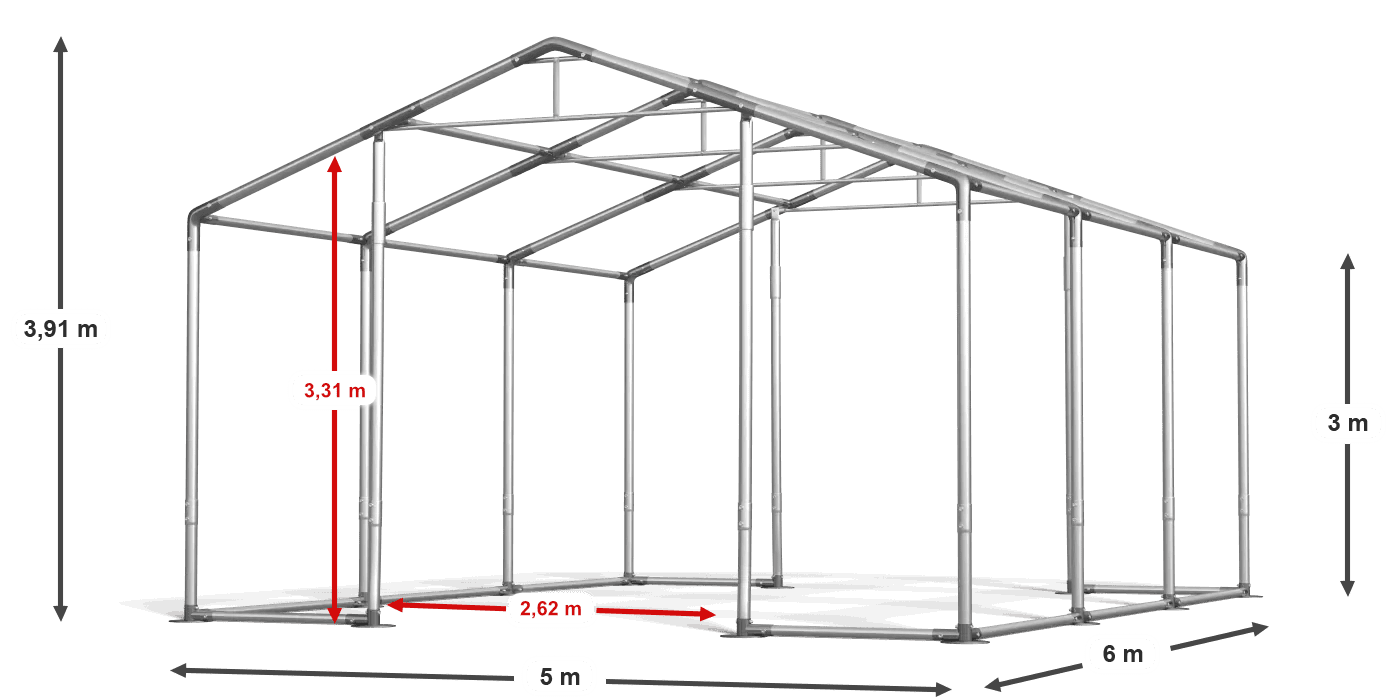

CONSTRUCTION

WINTER

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,the tent can be moved very quickly where it is needed

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Solid screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

expand section

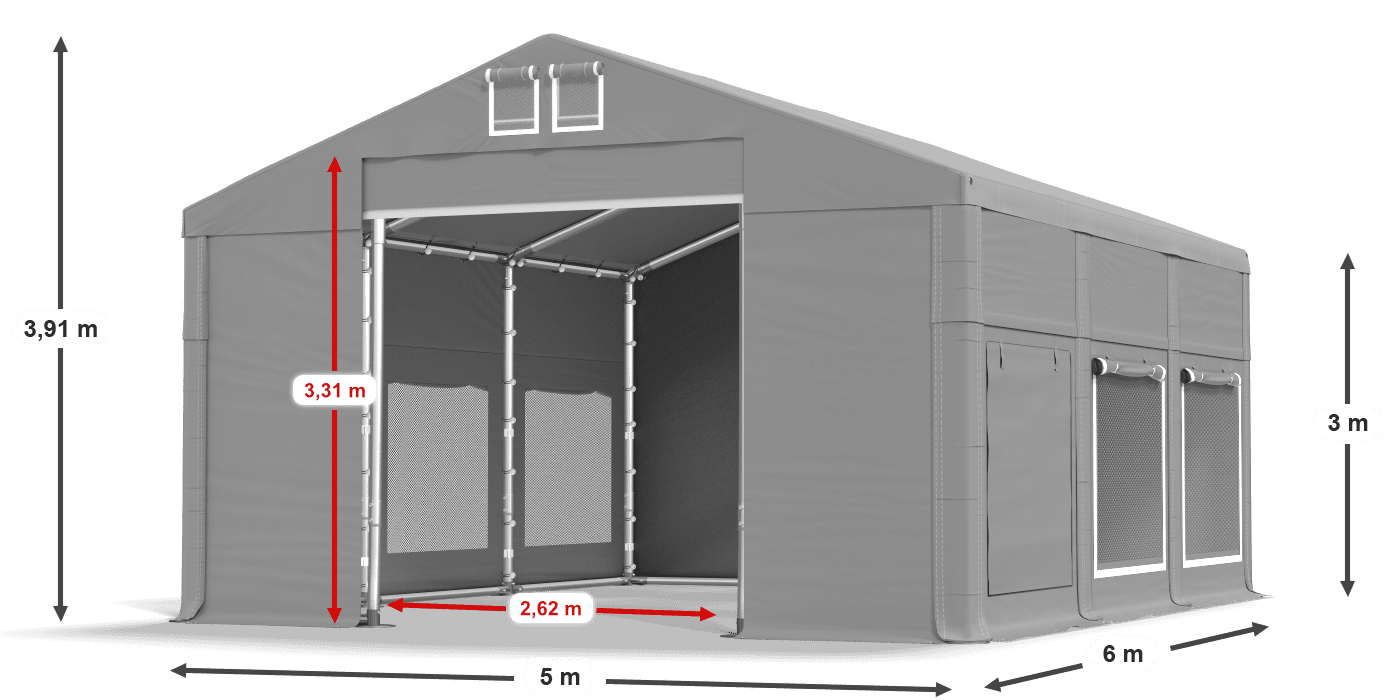

TARPAULIN

Roof: FR 620 PVC Walls: SD 500 PVC

Roof

Full okay. 620 g

Sides

The blinds are ok. 500 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

Each wall is equipped with a built-in air-permeable grid. There is a blind over each of these mesh windows, which has Velcro over its entire length. These turnips, when developed, perfectly adhere to the wall, forming a closed whole. Therefore, tents with such walls can be used in two ways - and as party or garden tents, setting tables and chairs inside, and as storage facilities.

Fireproof modular roof FR PVC (polyvinyl chloride) c. 620 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Robust and comfortable entry
Sealing turnips
Lifting the side wall SD PVC Okay. 2 x 1 m(polyvinyl chloride) c. 500 g/m²
ExchangeableMaskers with sealing turnips
Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m² - I'm sorry. Mosquito net 140 x 130 cm
Additional Retention apron

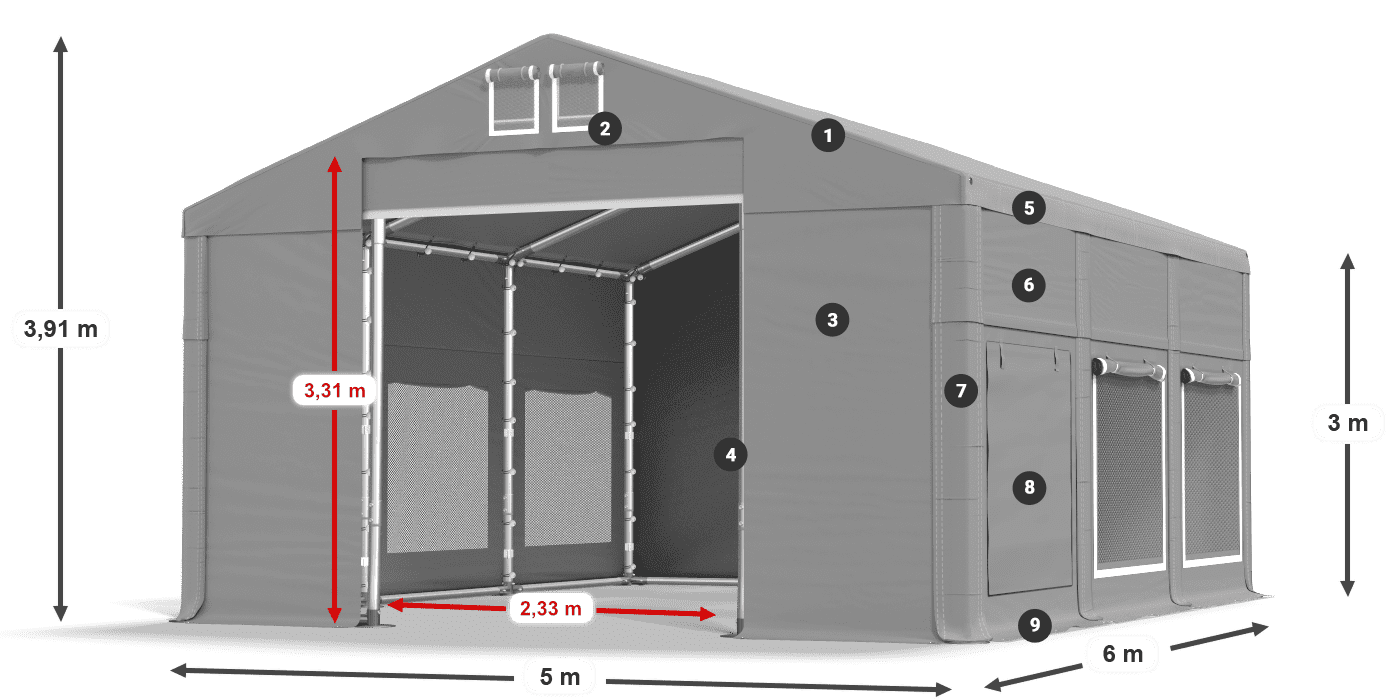

Roof: FR 620 PVC Walls: SD 500 PVC 3m legend

Any arrangement

The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Width

5 m

Lenght

6 m

Side height

3 m

Apex height

3,91 m

Surface

30 m²

Gate A

2,23 m x 2,9 m

Gate B

2,23 m x 2,9 m

Side entrance

Yes (approx. 2 m x 3 m)

Volume

103,65 m³

Number of packages

Weigh

251,70 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 620 g/m²

Sides density

~ 500 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

Side pulls

Roof supports

Side supports

Package

80.00cm × 200.00cm × 25.00cm - 147.70kg

Package

59.00cm × 68.00cm × 22.00cm - 27.80kg

Package

16.50cm × 122.00cm × 11.00cm - 12.50kg

Package

16.50cm × 122.00cm × 11.00cm - 12.50kg

Package

30.00cm × 50.00cm × 7.00cm - 4.45kg

Package

30.00cm × 50.00cm × 7.00cm - 4.45kg

Package

27.00cm × 33.00cm × 11.00cm - 3.70kg

Package

27.00cm × 33.00cm × 11.00cm - 3.70kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

8.00cm × 216.00cm × 8.00cm - 4.90kg

Package

11.00cm × 222.00cm × 9.00cm - 9.45kg

Package

45.00cm × 55.00cm × 12.00cm - 9.40kg

Package

45.00cm × 55.00cm × 6.00cm - 6.60kg

Package

25.00cm × 30.00cm × 5.00cm - 0.80kg

Package

30.00cm × 30.00cm × 5.00cm - 0.95kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 16 packs on a pallet with a total weight of 251,70 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
