Year-round Industrial Tent |
5x12 m
article 2207690
5x12 m Year-round Industrial Tent
5x12m side 2,5m
see dimensions
Color of the plating:
more >
SPECIAL OFFER
6 930,10 €
Includes 23% VAT
Lowest price 30 days before the promotion: 8 153,06 €
Catalouge price: 8 153,06 €
Need help choosing?
Call us: info.ie@dascompany.com
Description
POLAR PLUS construction is an exceptionally durable all-season structure that consists of strong steel elements. The frame has reinforcements, tensions and double braces.
A durable, flame-retardant PVC tarpaulin provides safe conditions for storing construction materials, commercial goods, vehicles and agricultural machinery. Full sheathing without windows is extremely tight, waterproof and does not let in daylight. The interior of the storage tent is invisible to outsiders. It is a perfect garage tent and industrial hall. The tarpaulin has a quick length change system Multi-size.
Year-round Industrial Tent
This tent will accommodate:
Number of EURO pallets approx. 60
Number of industrial pallets approx. 50
Number of custom palettes approx. 36
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
22 June already with you
Simple assembly:
ok 6-7 hours / 4-5 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

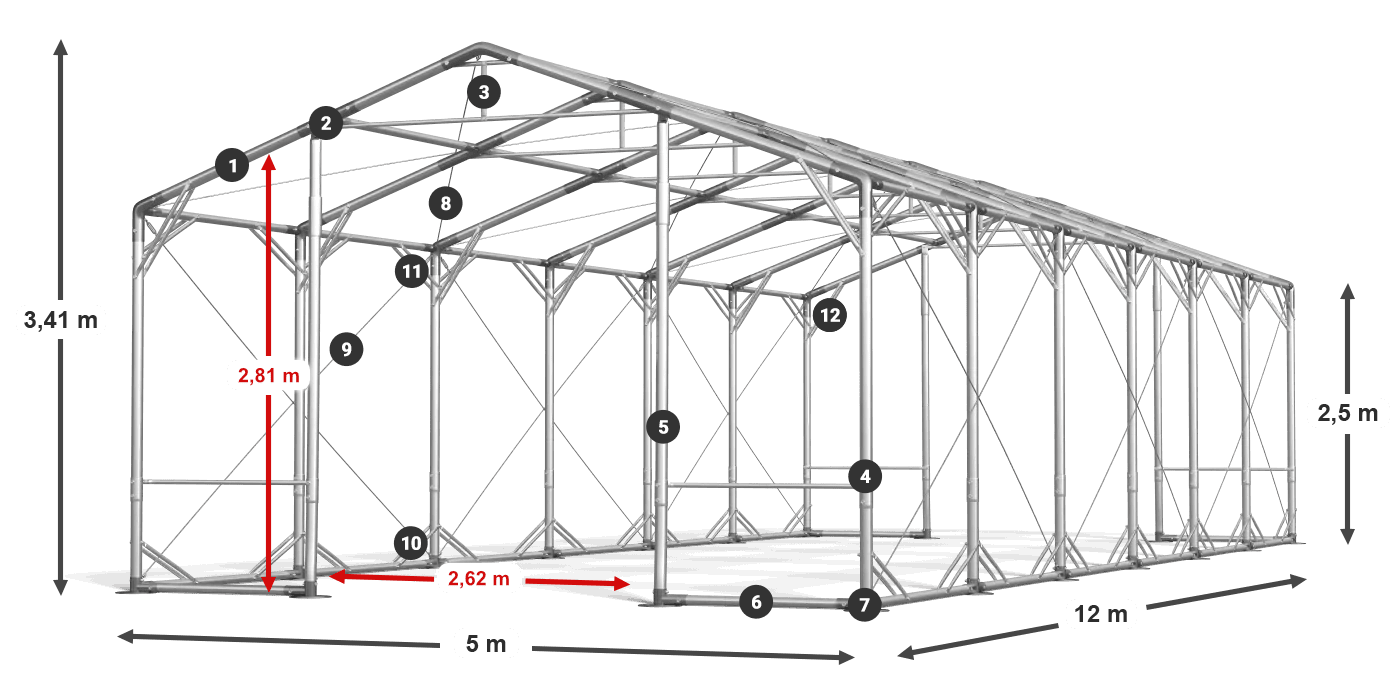

CONSTRUCTION
POLAR PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
Shots
Double roof and side

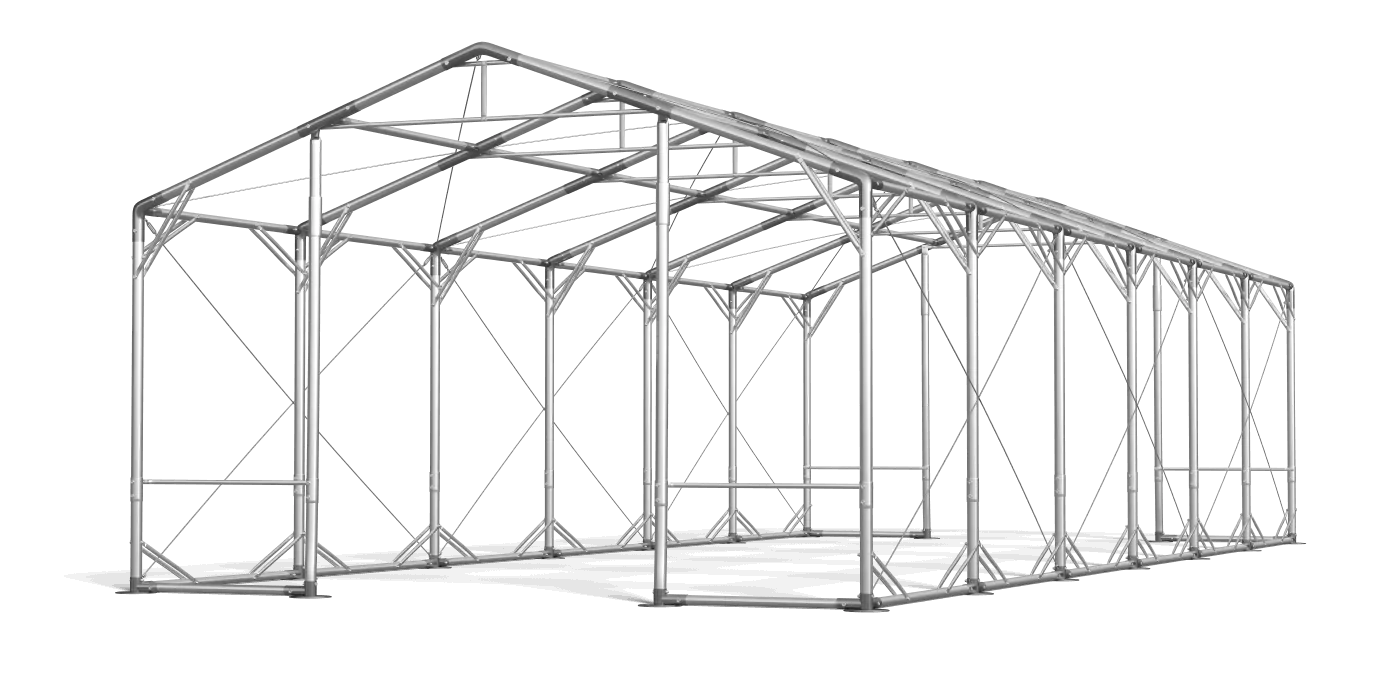

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,The tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings roofing
- Strings side
- Double shots lower side
- Double shots upper side
- Double shots roofing
Maximum snow resistance
The roof structure is equipped with additional corner supports that relieve the main structure and take part of the weight of the snow. This is the best and most innovative system that currently exists on the market.
Maximum durability
Additional transverse upper and lower brackets were used on all side walls. Thanks to them, the tent is maximally resistant to strong and gusty gusts of wind. This is the most effective way to protect against this type of weather conditions.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section

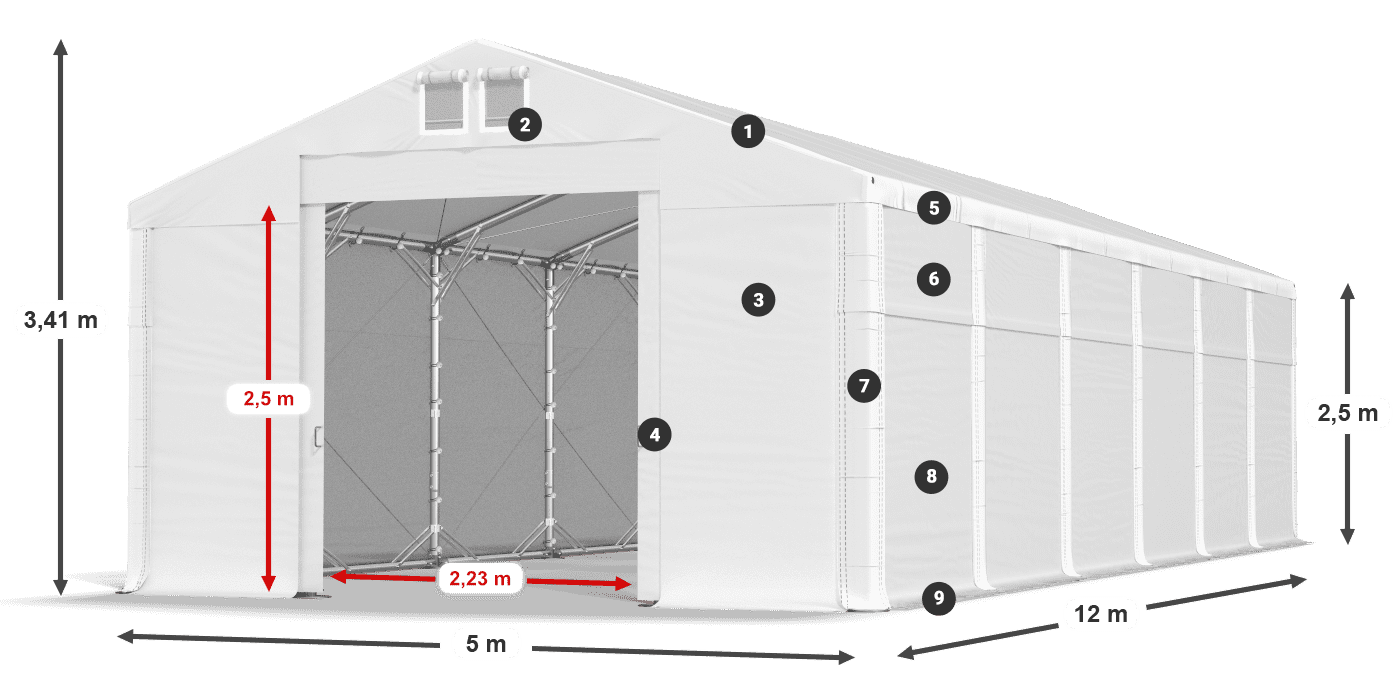

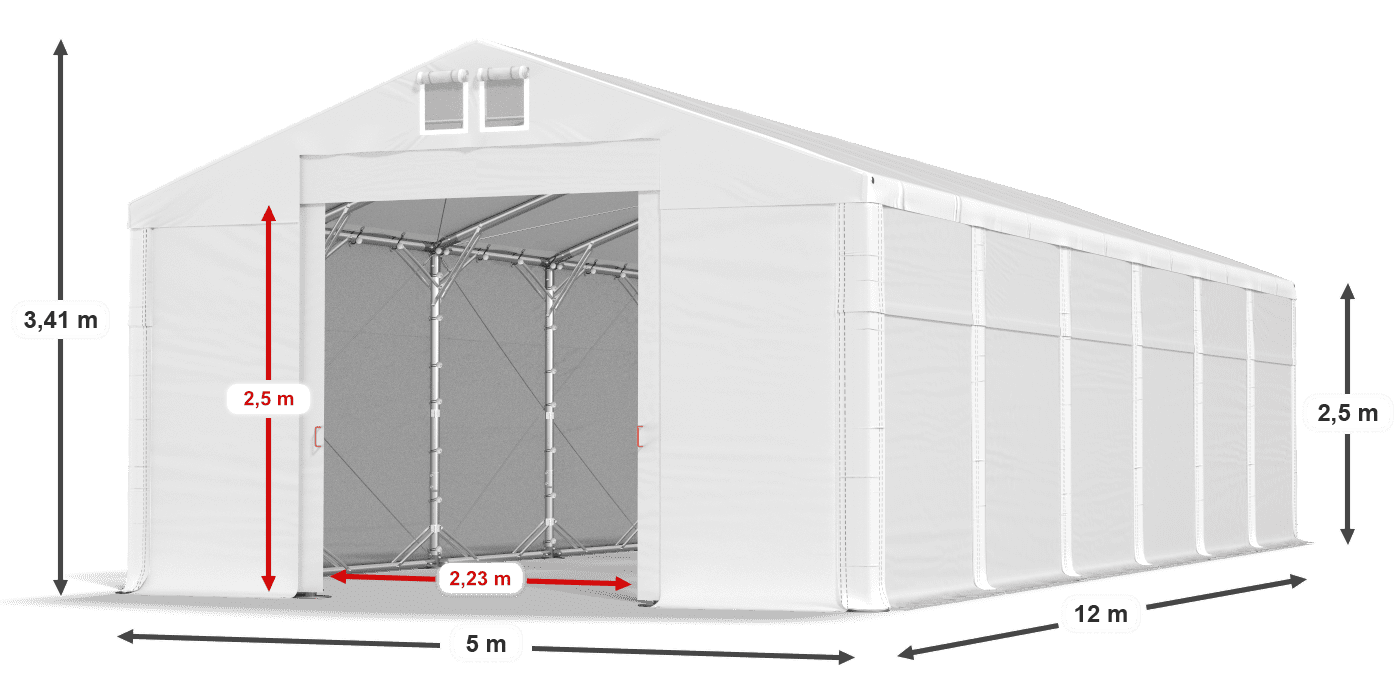

TARPAULIN
LUX M
Roof
Full okay. 620 g
Sides
Full ok. 620 g
Air-control
Yes.
Hermetic
Yes.
Multi-size
Yes.
Flammable
Yes.
The hull will be perfect when storing various types of materials. It can be used as a parking lot, garage, storage place for machines or boats, as a car wash and paint room. When near a storage place where you want to set up a tent there are sources of fire, think about a fireproof storage tent where you can safely store your materials.
- Fireproof roof FR PVC (polyvinyl chloride) c. 620 g/m²
- Double ventilationon both sides
- Type-ins Slide & Roll
- Durable YKK locks at entrances
- Sealing turnips
- Fireproof side wall lifting FR PVC Okay. 2 x 0.5 m(polyvinyl chloride) c. 620 g/m²
- Exchangeable Maskers with sealing turnips
- Fireproof side walls FR PVC 2 x 2 m (polyvinyl chloride) c. 620 g/m²
- Additional Retention apron
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
Safety of use
The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.
expand section

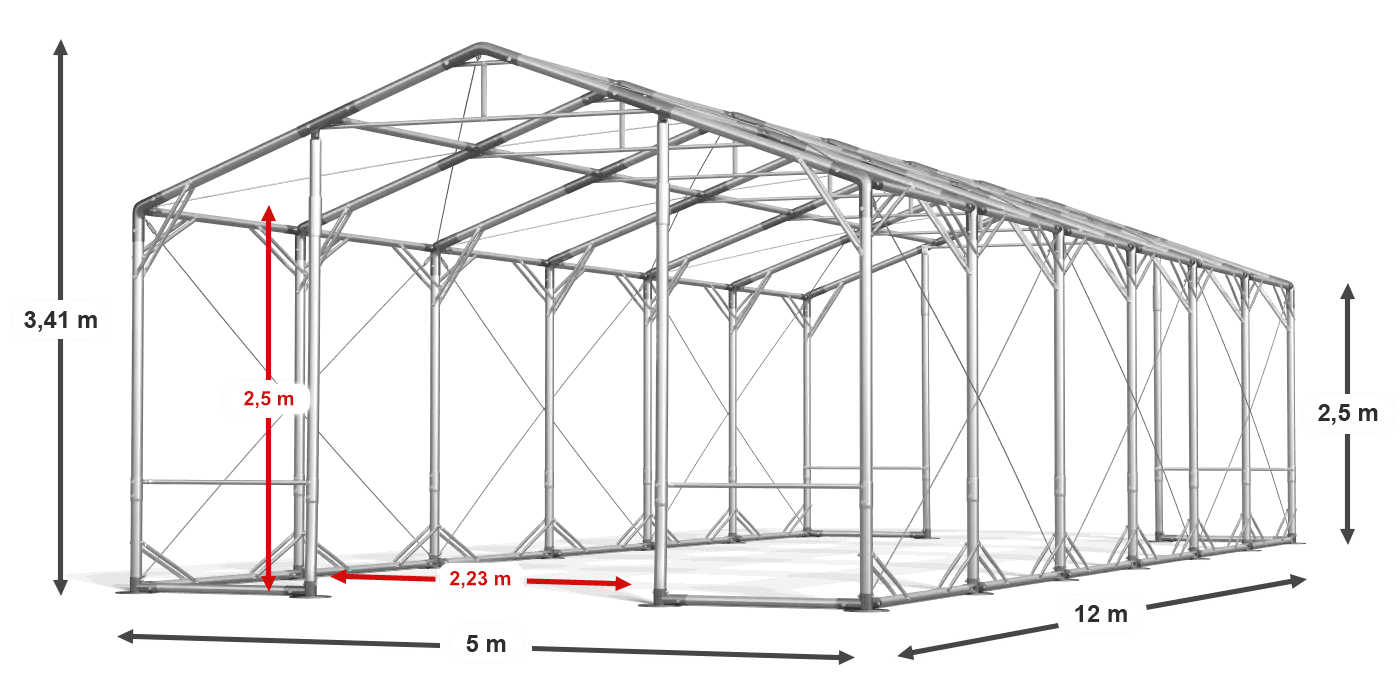

Technical data
General
Tarpaulins
Constructions
Packages
Width
5 m
Lenght
12 m
Side height
2,5 m
Apex height
3,41 m
Surface
60 m2
Gate A
2,23 m x 2,5 m
Gate B
2,23 m x 2,4 m
Side entrance
Yes (approx. 2 m x 2,5 m)
Volume
147,30 m3
Number of packages
60
Weigh
532,20 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 620 g/m2
Sides density
~ 620 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
Yes
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
approx. 25 mm
Side supports
No
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
59.00cm × 68.00cm × 22.00cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
55.00cm × 65.00cm × 11.00cm - 9.65kg
Package
43.00cm × 243.00cm × 11.00cm - 61.00kg
Package
30.00cm × 50.00cm × 6.00cm - 3.80kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
7.00cm × 115.00cm × 7.00cm - 2.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
7.00cm × 66.00cm × 7.00cm - 1.50kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
8.00cm × 216.00cm × 8.00cm - 4.90kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
7.00cm × 224.00cm × 9.00cm - 5.10kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
38.00cm × 38.00cm × 12.00cm - 4.80kg
Package
38.00cm × 38.00cm × 12.00cm - 4.80kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
20.00cm × 25.00cm × 5.00cm - 0.50kg
Package
24.00cm × 30.00cm × 5.00cm - 0.65kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 60 packs on a pallet with a total weight of 532,20 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 4-5 people.
On average in 6-7 hours.
