5x16 m Reinforced Garden Pavilion

Name: Reinforced Garden Pavilion
Brand: Das Company
SKU: 1C16A31101130611611111111
Price: 2509.14 EUR
Availability: InStock

5x16m side 2m

see dimensions

Color of the plating:

more >

2 509,14 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The seasonal structure SUMMER PLUS is made of galvanized steel. This is the strongest summer frame, equipped with a lower frame and upper reinforcements.

The airy PE tarpaulin is equipped with large windows with mosquito nets. The roof is perfect for the summer because it will provide fresh air flow and at the same time protect tables and buffets against flying insects. Okna posiadają rozwijane rolety, którymi możemy uszczelnić moskitiery w razie ochłodzenia. We can use a tent with mosquito nets to organize outdoor events, family picnics and business parties.

Delivery and collection

Assembly and instructions

Configuration

Reinforced Garden Pavilion

This tent will accommodate:

approx. 160 standing places

approx. 123 chair seats

approx. 104 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 5-6 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

CONSTRUCTION

SUMMER PLUS

Pipes

Steel ca. fi 38 mm

Connectors

Steel ca. fi 42 mm

Rates

Steel fi 9 cm

Construction isdurable and easy to install.That way, except fast.folding,The tent can be easily moved where it is currently needed.

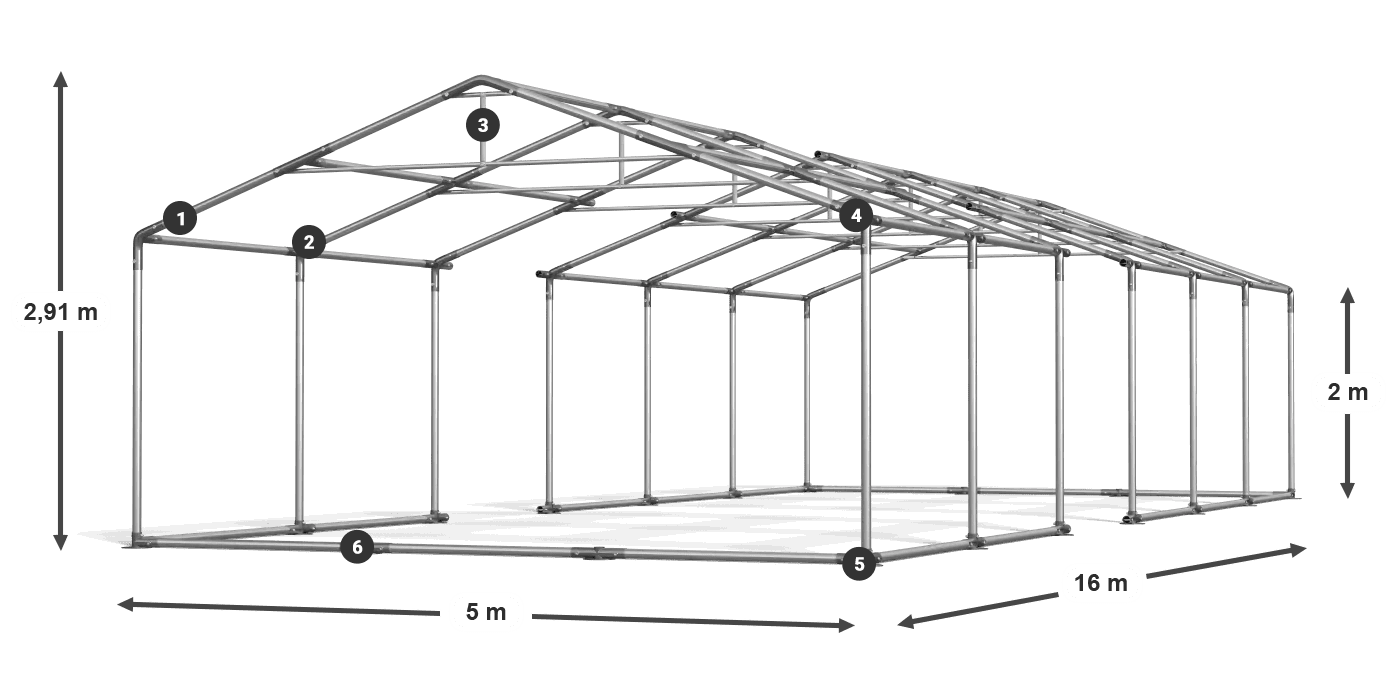

Construction pipes approx. fi 38 mm
Structure connectors approx. fi 42 mm
Reinforced roof structure
Strong screws, that go through
Rate fi 9 cm
Reinforced Floor construction

Increased durability

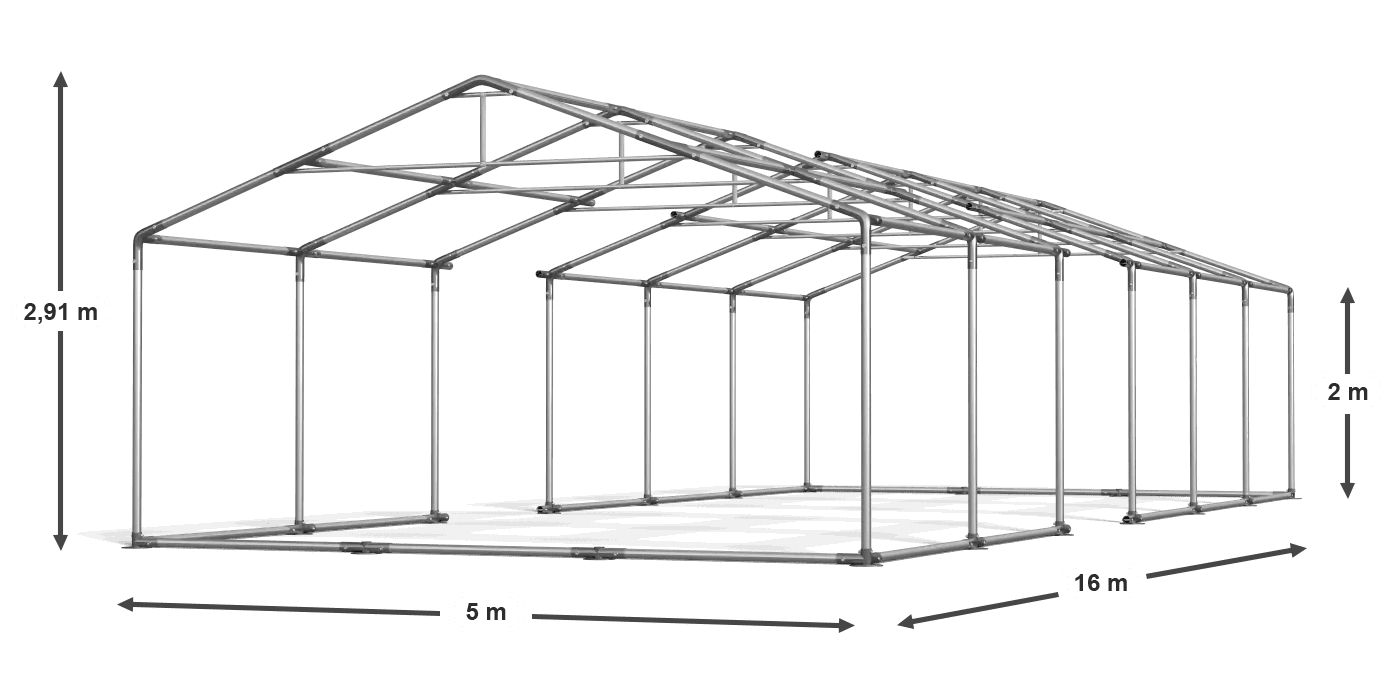

The additional structure consists of a lower frame and upper reinforcements. This solution provides greater load-bearing capacity and structure stiffness.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Stable construction

Stable feet with a diameter of 9 cm were installed in the lower part of the structure. Thanks to them, anchoring the tent is much more durable, regardless of the type of ground.

expand section

TARPAULIN

ECO R

Roof

Full okay. 240 g

Sides

The blinds are ok. 240 g

Side walls have grid windows that let air through. There is a Velcro blind at each of these windows, which can be developed at any time and covered with it, for example during rain or when you want to cover the interior of the tent.

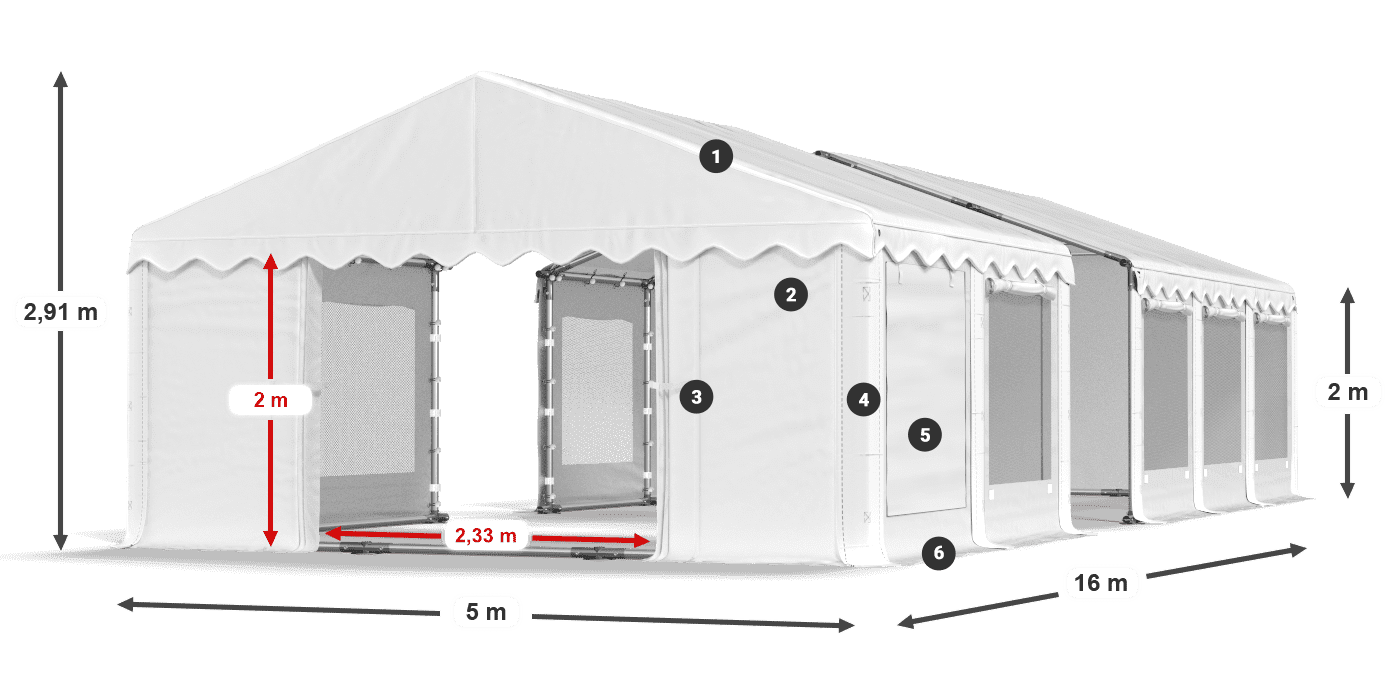

Roof PE (polyethylene) c. 240 g/m²
Type gate curtain
Strong YKK locks at entrances
Exchangeable masks
Side walls PE 2 x 2 m (polyethylene) c. 240 g/m²- Moscow.140 x 130 cm
Mounting meshes tarpaulin

Universal side walls

NOVELTY! The latest solution on the market. Now you can adjust the tent according to your needs. Aesthetically designed with attention to detail, the side walls with mosquito net are equipped with roll-up blinds, masking panels and Velcro fasteners. Perfect protection against insects, sun, wind and rain.

Change Colors

The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

Connecting tents

The 5m x16m 2m tent is composed of tents with dimensions: 5x10m, 5x6m.

You can combine tents at your convenience

Any arrangement

The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.

expand section

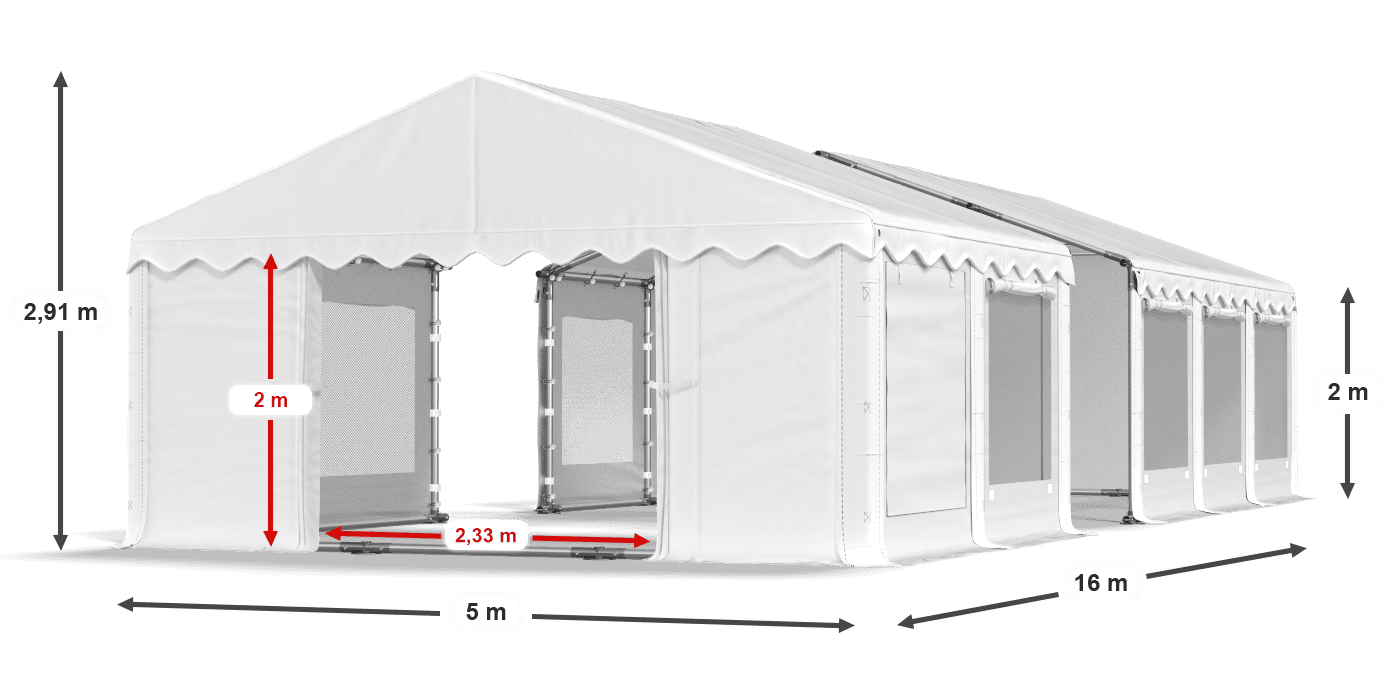

Technical data

General

Tarpaulins

Constructions

Packages

Width

5 m

Lenght

16 m

Side height

2 m

Apex height

2,91 m

Surface

80 m²

Gate A

2,33 m x 2 m

Gate B

2,33 m x 2 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

196,40 m³

Number of packages

Weigh

277,90 kg

Spare parts

Yes

Material

(polyethylene)

Roof densityt

~ 240 g/m²

Sides density

~ 240 g/m²

Temperature range

from -5^o to +40^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Overlap System

System Hermetic

System Air-control

System Multi-size

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 38 mm

Diameter of fasteners

~ 42 mm

Feet

9 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Roof tensioners

Side pulls

Roof supports

Side supports

Package

55.00cm × 65.00cm × 17.00cm - 20.75kg

Package

22.50cm × 140.00cm × 13.00cm - 19.90kg

Package

22.50cm × 195.00cm × 10.50cm - 24.40kg

Package

22.50cm × 195.00cm × 11.50cm - 24.10kg

Package

55.00cm × 65.00cm × 17.00cm - 20.75kg

Package

22.50cm × 140.00cm × 13.00cm - 19.90kg

Package

22.50cm × 195.00cm × 10.50cm - 24.40kg

Package

22.50cm × 195.00cm × 11.50cm - 24.10kg

Package

55.00cm × 65.00cm × 20.00cm - 18.35kg

Package

55.00cm × 65.00cm × 15.00cm - 14.45kg

Package

35.00cm × 43.00cm × 8.00cm - 1.75kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 18.50kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 18.50kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 18.00cm × 5.00cm - 0.60kg

Package

24.00cm × 18.00cm × 5.00cm - 0.60kg

Package

40.00cm × 50.00cm × 8.00cm - 5.25kg

Package

40.00cm × 50.00cm × 8.00cm - 5.25kg

Package

40.00cm × 50.00cm × 6.00cm - 3.65kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 22 packs on a pallet with a total weight of 277,90 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
