5x16 m Year-round tent hall

Name: Year-round tent hall
Brand: Das Company
SKU: 1C16C43106101501261212121
Price: 7613.74 EUR
Availability: OutOfStock

5x16m side 3m

see dimensions

Color of the plating:

more >

7 613,74 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The WINTER design is intended for year-round use. The frame is made of the highest quality steel. Additional reinforcements make the structure durable and stable.

The plank with round lighting windows provides natural light to the interior of the tent. It is made from PVC High weight. The hull is resistant to moisture and UV radiation, so it provides dry and shaded space for storing goods, yields, feed and building materials. It is also an excellent garage tent for vehicles, agricultural machinery and sports equipment. The interior of the storage tent is not visible to outsiders, as the windows are located at the top of the side walls.

Delivery and collection

Assembly and instructions

Configuration

Year-round tent hall

This tent will accommodate:

Number of EURO pallets approx. 80

Number of industrial pallets approx. 65

Number of custom palettes approx. 48

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 6-7 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

CONSTRUCTION

WINTER

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

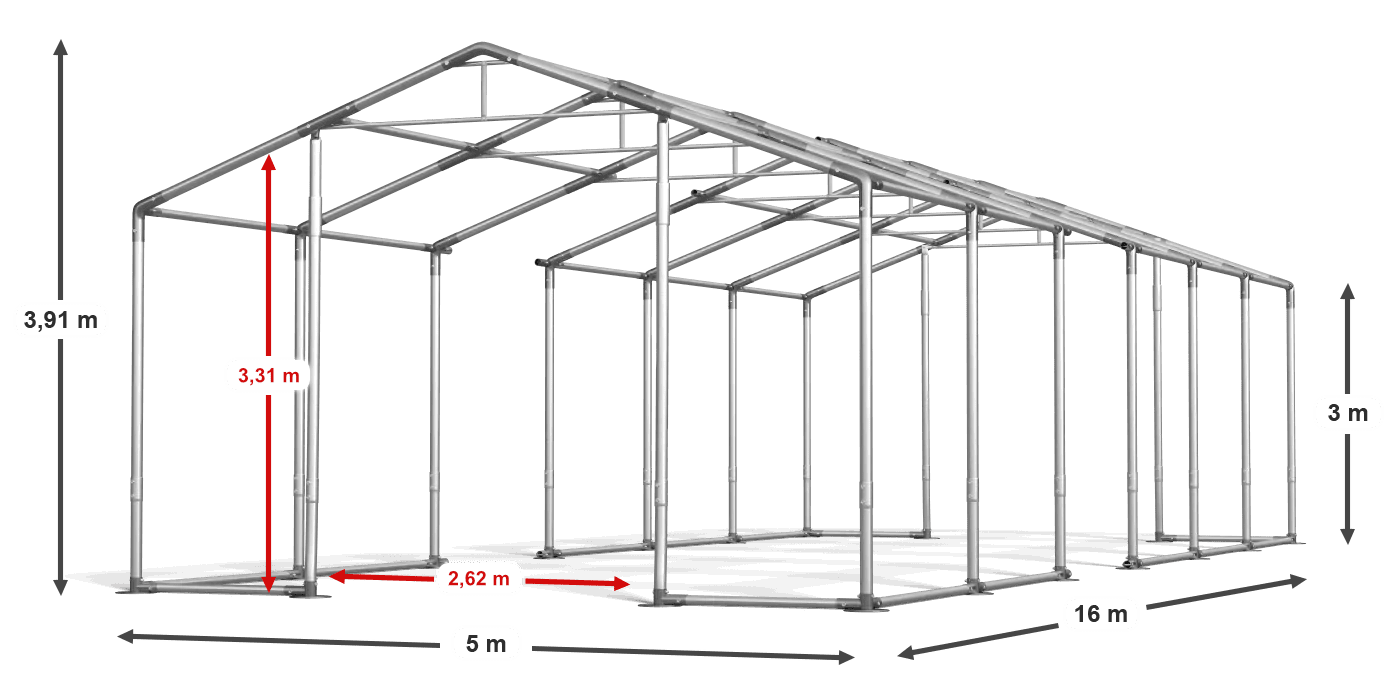

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,the tent can be moved very quickly where it is needed

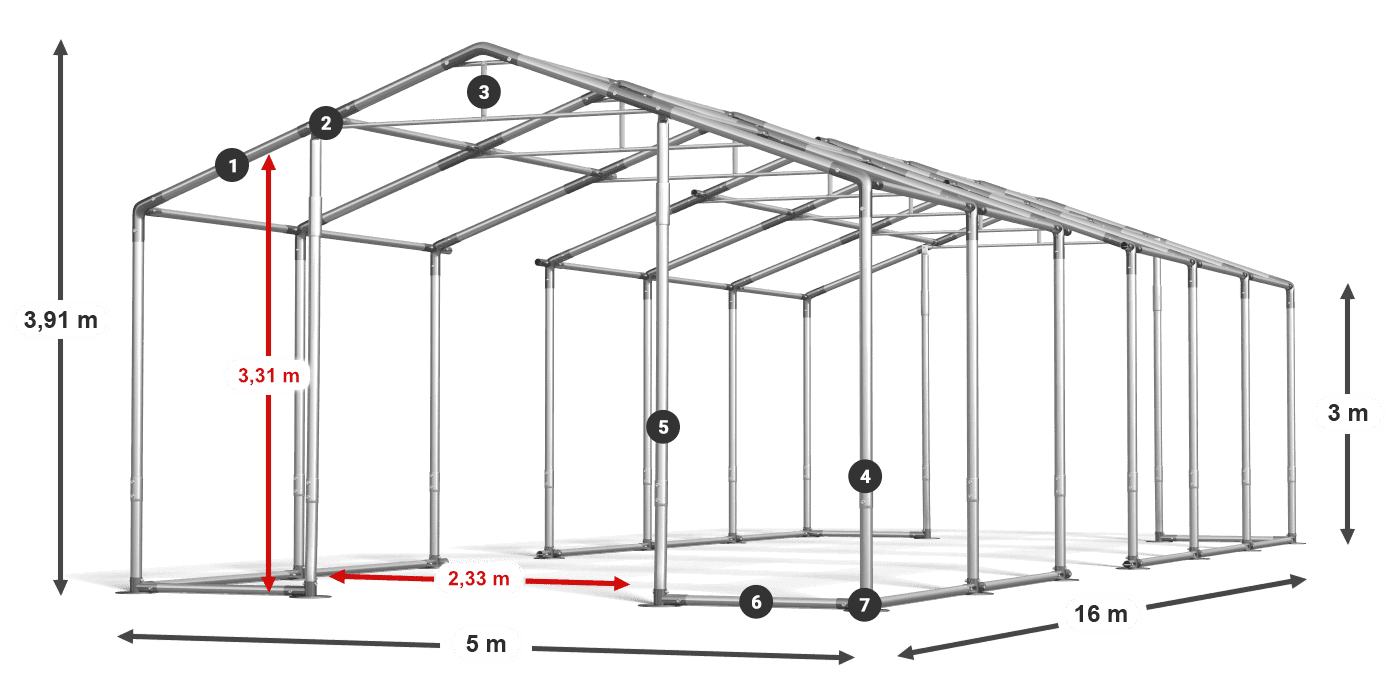

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Solid screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

expand section

TARPAULIN

Roof: SD 560 PVC Walls: FR 620 PVC

Roof

Full okay. 560 g

Sides

With lighting approx. 620 g

Air-control

Yes.

Hermetic

Yes.

Roof SD PVC (polyvinyl chloride) c. 560g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Fireproof side wall lifting FR PVC Okay. 2 x 1 m (polyvinyl chloride) c. 620 g/m² - lighting windows 39 cm diameter
Exchangeable Maskers with sealing turnips
Fireproof side walls FR PVC 2 x 2 m (polyvinyl chloride) c. 620 g/m²
Additional Retention apron

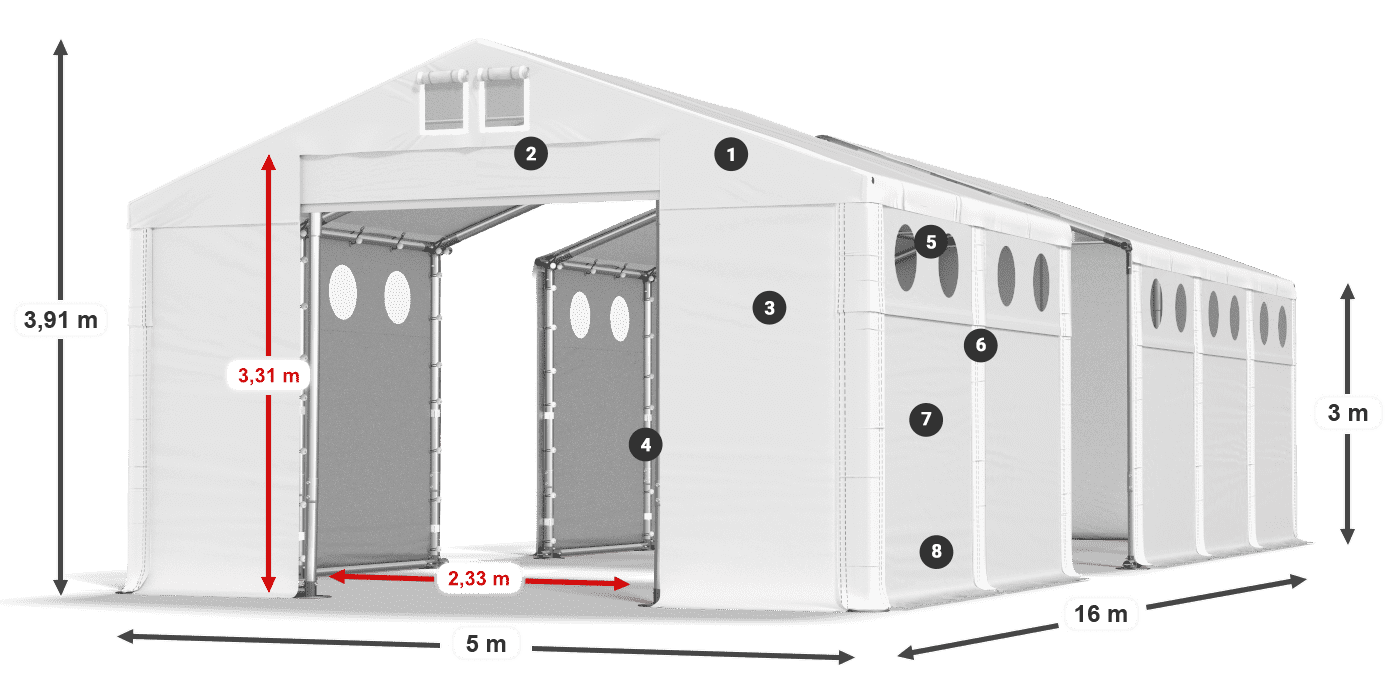

Roof: SD 560 PVC Walls: FR O 620 PVC legend 3m

Connecting tents

The 5m x16m 3m tent is composed of tents with dimensions: 5x10m, 5x6m.

You can combine tents at your convenience

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

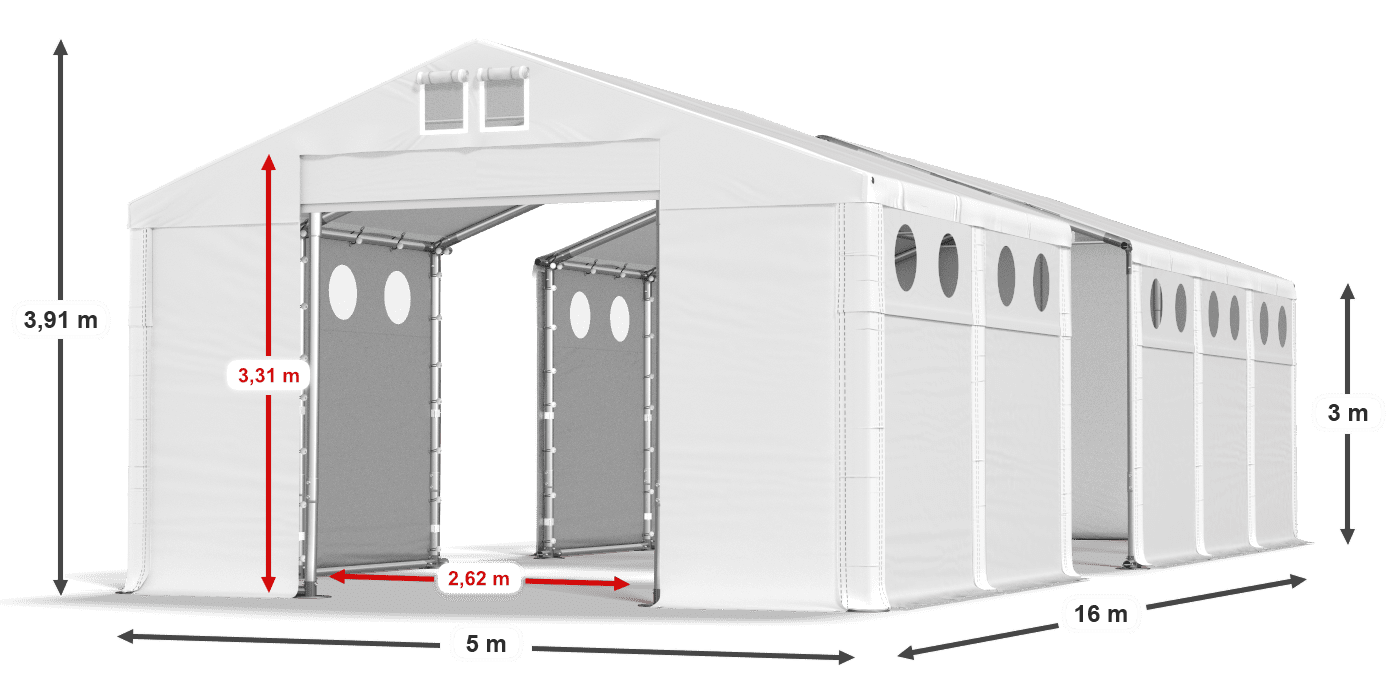

This type of hull is available from a height of 2.5 m. Round windows are placed at the top of the tent. This is a great solution for workshop tents, where lighting is needed, but we do not want what we do to be visible to outsiders.

Safety of use

The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Width

5 m

Lenght

16 m

Side height

3 m

Apex height

3,91 m

Surface

80 m²

Gate A

2,23 m x 2,9 m

Gate B

2,62 m x 3,31 m

Side entrance

Yes (approx. 2 m x 3 m)

Volume

276,40 m³

Number of packages

Weigh

561,80 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 560 g/m²

Sides density

~ 620 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

Side pulls

Roof supports

Side supports

Package

80.00cm × 200.00cm × 25.00cm - 147.70kg

Package

80.00cm × 200.00cm × 25.00cm - 147.70kg

Package

55.00cm × 65.00cm × 18.00cm - 32.50kg

Package

55.00cm × 65.00cm × 13.00cm - 21.30kg

Package

33.00cm × 43.00cm × 7.50cm - 2.60kg

Package

33.00cm × 43.00cm × 7.00cm - 1.10kg

Package

23.00cm × 33.00cm × 7.00cm - 0.70kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

21.00cm × 194.00cm × 13.00cm - 24.90kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

21.00cm × 194.00cm × 13.00cm - 24.90kg

Package

16.50cm × 122.00cm × 11.00cm - 12.50kg

Package

16.50cm × 122.00cm × 11.00cm - 12.50kg

Package

16.50cm × 122.00cm × 11.00cm - 12.50kg

Package

16.50cm × 122.00cm × 11.00cm - 12.50kg

Package

11.00cm × 122.00cm × 11.00cm - 8.50kg

Package

30.00cm × 50.00cm × 7.00cm - 4.35kg

Package

27.00cm × 33.00cm × 11.00cm - 3.70kg

Package

50.00cm × 60.00cm × 8.00cm - 8.00kg

Package

25.00cm × 30.00cm × 11.00cm - 1.85kg

Package

25.00cm × 30.00cm × 11.00cm - 1.85kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

50.00cm × 59.00cm × 12.00cm - 14.20kg

Package

50.00cm × 59.00cm × 12.00cm - 14.20kg

Package

50.00cm × 59.00cm × 10.00cm - 9.50kg

Package

48.00cm × 59.00cm × 10.00cm - 7.50kg

Package

48.00cm × 59.00cm × 10.00cm - 7.50kg

Package

48.00cm × 59.00cm × 9.00cm - 6.20kg

Package

25.00cm × 30.00cm × 6.00cm - 1.10kg

Package

25.00cm × 30.00cm × 6.00cm - 1.10kg

Package

30.00cm × 30.00cm × 5.00cm - 0.95kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 31 packs on a pallet with a total weight of 561,80 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
