Year-round shopping pavilion |
5x21 m
article 1753538
5x21 m Year-round shopping pavilion
5x21m side 3m
see dimensions
Color of the plating:
more >
9 476,12 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The POLAR design can be used regardless of the season. It is made of solid steel elements. Additional reinforcements, tensions and struts ensure the strength of the frame.
The cover is equipped with transparent sides and a roof. Thanks to this, it guarantees full illumination of the event tent. The roof can be used in trade because it allows for aesthetic display of goods. The tarpaulin is made of high-weight PVC. Thanks to this, it protects tables and buffets against wind, moisture and external pollution. It is a perfect garden tent and exhibition tent. The cover is equipped with an easy length change system Multi-size.
Year-round shopping pavilion
This tent will accommodate:
approx. 210 standing places
approx. 161 chair seats
approx. 136 seats on the benches
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
22 June already with you
Simple assembly:
ok 7-9 hours / 5-6 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

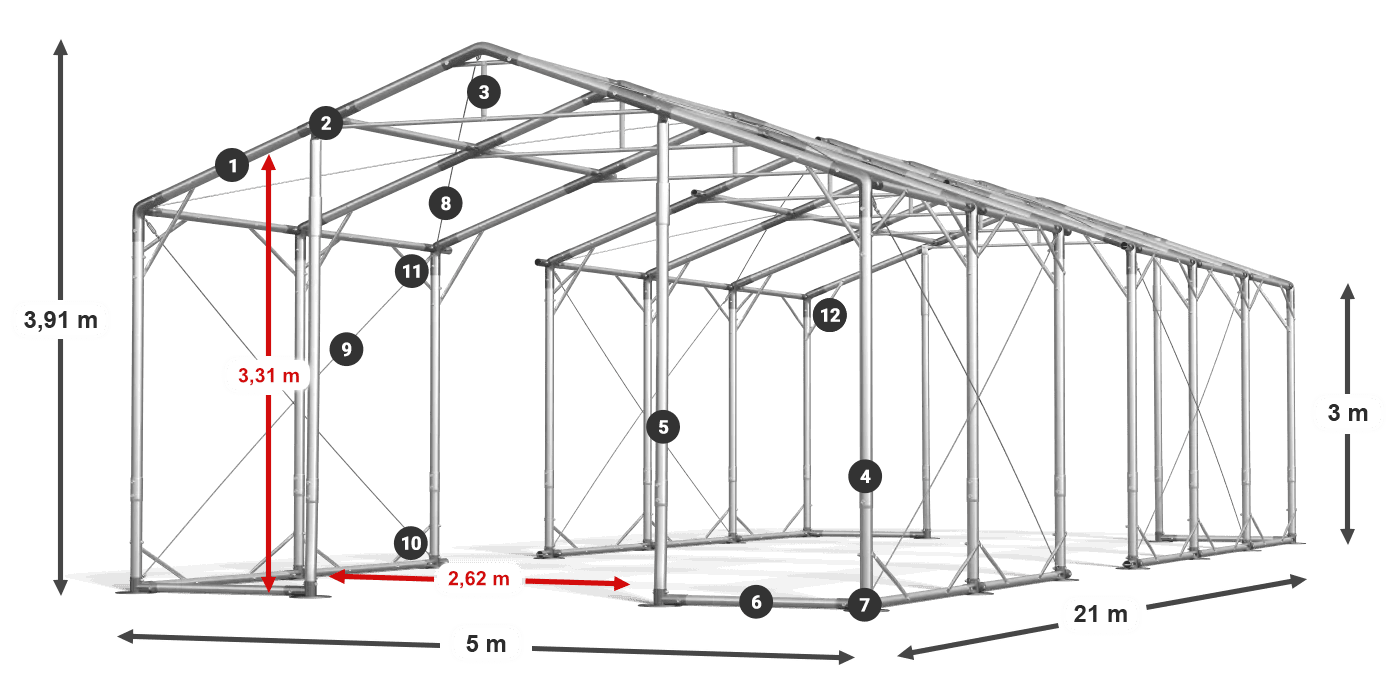

CONSTRUCTION
POLAR
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
Shots
Single roof and side

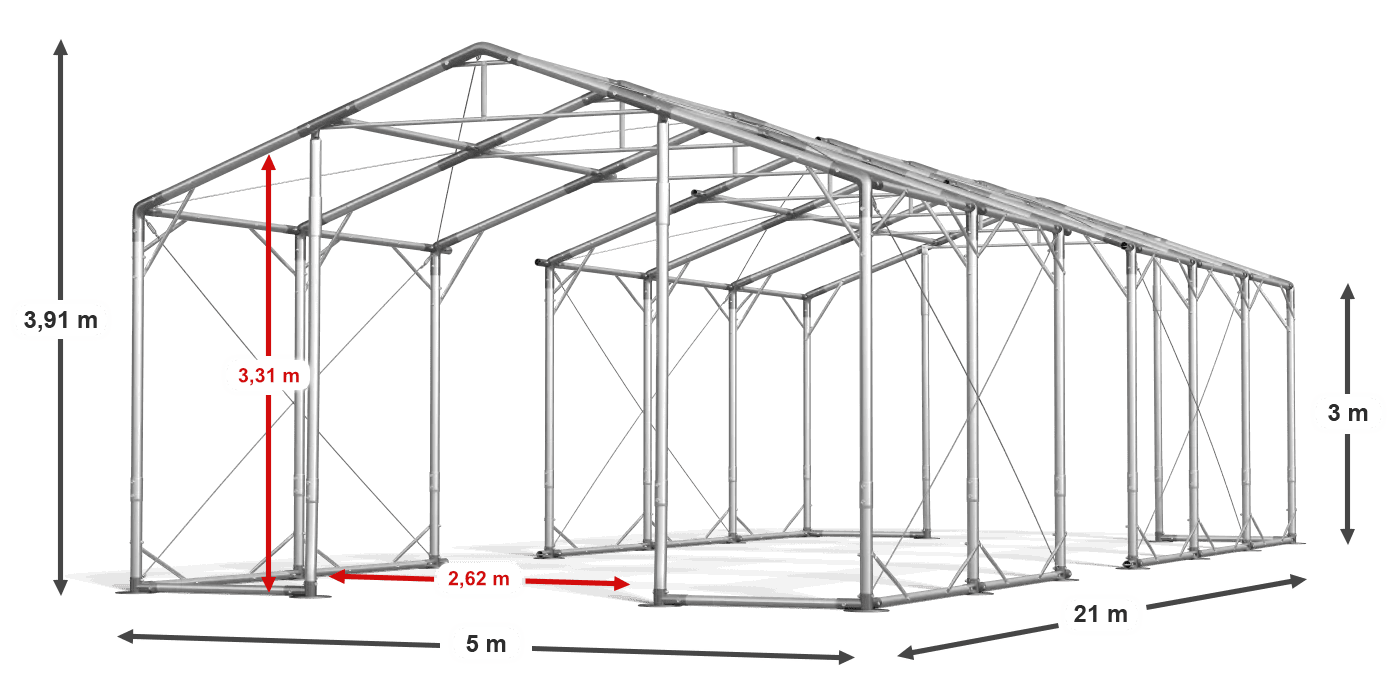

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,The tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings roofing
- Strings side
- Shots lower side
- Shots upper side
- Shots roofing
Greater snow resistance
Corner supports placed at the corners of the tent strengthen the structure and support the weight of snow on the roof.
Increased durability
Additional transverse upper and lower brackets were used on all side walls. Thanks to them, the tent is protected against stronger gusts of wind.
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section

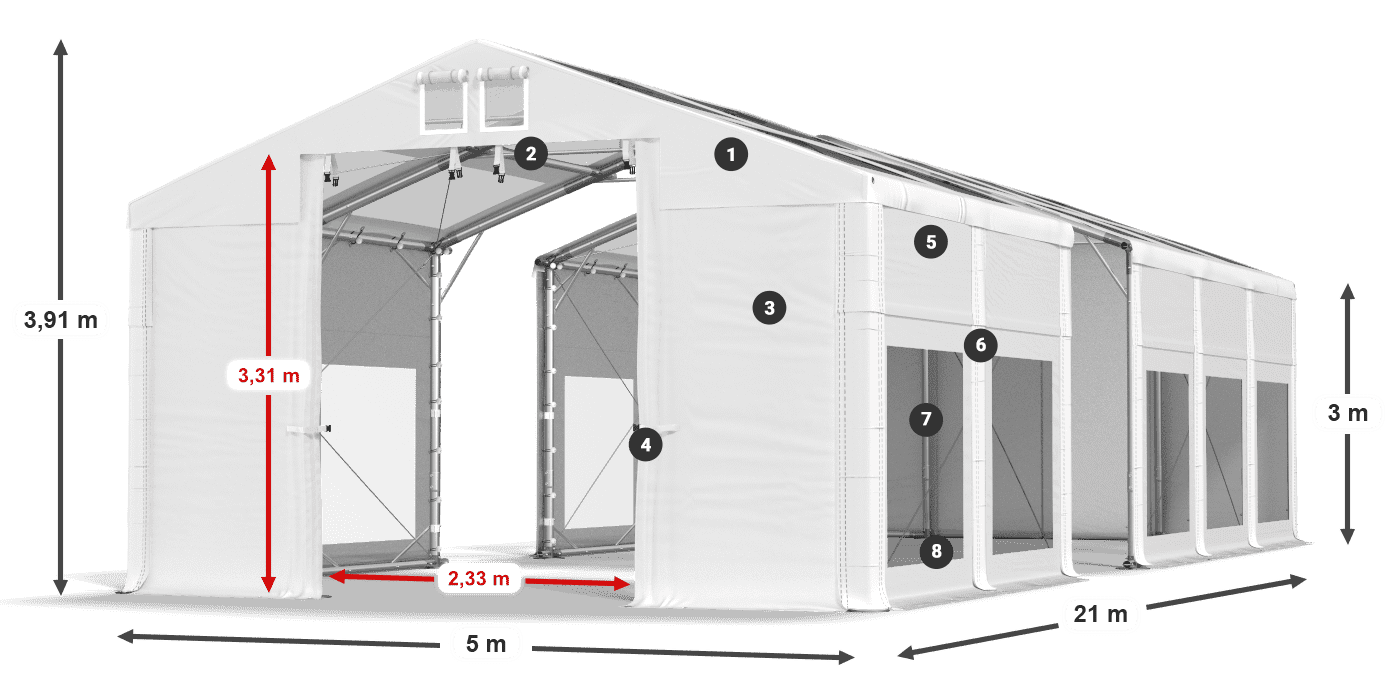

TARPAULIN
FLEX T
Roof
Transparent approx. 580 g
Sides
Transparent approx. 580 g
Air-control
Yes.
Hermetic
Yes.
Multi-size
Yes.
This model guarantees maximum interior lighting. In the roof, as well as on the sides, there are large transparent windows through which sunlight falls. This tent looks original and attracts guests to the gardens created by cafes and restaurants.
- System roof transparent MS PVC (polyvinyl chloride) c. 580 g/m²
- Double ventilation placed on both sides of the tent
- Type-ins Slide & Roll
- Strong YKK locks at entrances
- Sealing turnips
- Lifting the side wall MS PVC Okay. 2 x 0.5 m(polyvinyl chloride) c. 580 g/m²
- Exchangeable Maskers with sealing turnips
- Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m² - Transparent windows 144 x 148 cm
- Additional Retention apron
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
Full illumination
The side wall is made of thick tarpaulin PVC approx. 580 g/m². Thanks to the transparent side wall, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent
Maximum interior lighting
This is the most effective way to get as much daylight inside the tent as possible.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Width
5 m
Lenght
21 m
Side height
3 m
Apex height
3,91 m
Surface
105 m2
Gate A
2,62 m x 3,31 m
Gate B
2,23 m x 2,9 m
Side entrance
Yes (approx. 2 m x 3 m)
Volume
362,77 m3
Number of packages
83
Weigh
724,55 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 580 g/m2
Sides density
~ 580 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
approx. 25 mm
Side supports
No
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
55.00cm × 65.00cm × 18.00cm - 26.00kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
25.00cm × 194.00cm × 10.00cm - 20.60kg
Package
16.50cm × 122.00cm × 11.00cm - 12.50kg
Package
16.50cm × 122.00cm × 11.00cm - 12.50kg
Package
16.50cm × 122.00cm × 11.00cm - 12.50kg
Package
16.50cm × 122.00cm × 11.00cm - 12.50kg
Package
11.00cm × 122.00cm × 11.00cm - 8.50kg
Package
45.00cm × 55.00cm × 8.00cm - 9.05kg
Package
30.00cm × 50.00cm × 7.00cm - 4.35kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
7.00cm × 66.00cm × 7.00cm - 1.50kg
Package
7.00cm × 66.00cm × 7.00cm - 1.50kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 10.00cm - 5.85kg
Package
45.00cm × 55.00cm × 10.00cm - 10.50kg
Package
45.00cm × 55.00cm × 10.00cm - 10.50kg
Package
45.00cm × 55.00cm × 10.00cm - 10.50kg
Package
45.00cm × 55.00cm × 10.00cm - 10.50kg
Package
45.00cm × 55.00cm × 10.00cm - 10.50kg
Package
30.00cm × 45.00cm × 8.00cm - 3.20kg
Package
45.00cm × 55.00cm × 9.00cm - 8.30kg
Package
45.00cm × 55.00cm × 9.00cm - 8.30kg
Package
45.00cm × 55.00cm × 7.00cm - 5.80kg
Package
45.00cm × 55.00cm × 7.00cm - 5.80kg
Package
30.00cm × 45.00cm × 8.00cm - 1.95kg
Package
25.00cm × 30.00cm × 6.00cm - 1.10kg
Package
25.00cm × 30.00cm × 6.00cm - 1.10kg
Package
25.00cm × 30.00cm × 5.00cm - 0.80kg
Package
25.00cm × 30.00cm × 5.00cm - 0.80kg
Package
30.00cm × 30.00cm × 5.00cm - 0.95kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 83 packs on a pallet with a total weight of 724,55 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 5-6 people.
On average in 7-9 hours.
