Reinforced Storage and Garage Tent |
5x28 m
article 526
5x28 m Reinforced Storage and Garage Tent
5x28m side 2m
see dimensions
Color of the plating:
more >
5 479,49 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.
Canopies equipped with a full tarpaulin with PE are perfect seasonal storage tents. The waterproof and UV-resistant cover has no windows. Therefore, the contents of the garage tent are invisible from the outside to outsiders. The roof can also be used for periodic parking of the vehicle, storage of furniture and garden tools, or as a commercial space.
Reinforced Storage and Garage Tent
This tent will accommodate:
Number of EURO pallets approx. 140
Number of industrial pallets approx. 115
Number of custom palettes approx. 84
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
TO SHOPPING CART
Delivery time:
22 June already with you
Simple assembly:
ok 6-7 hours / 5-6 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe
CONSTRUCTION
WINTER PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side

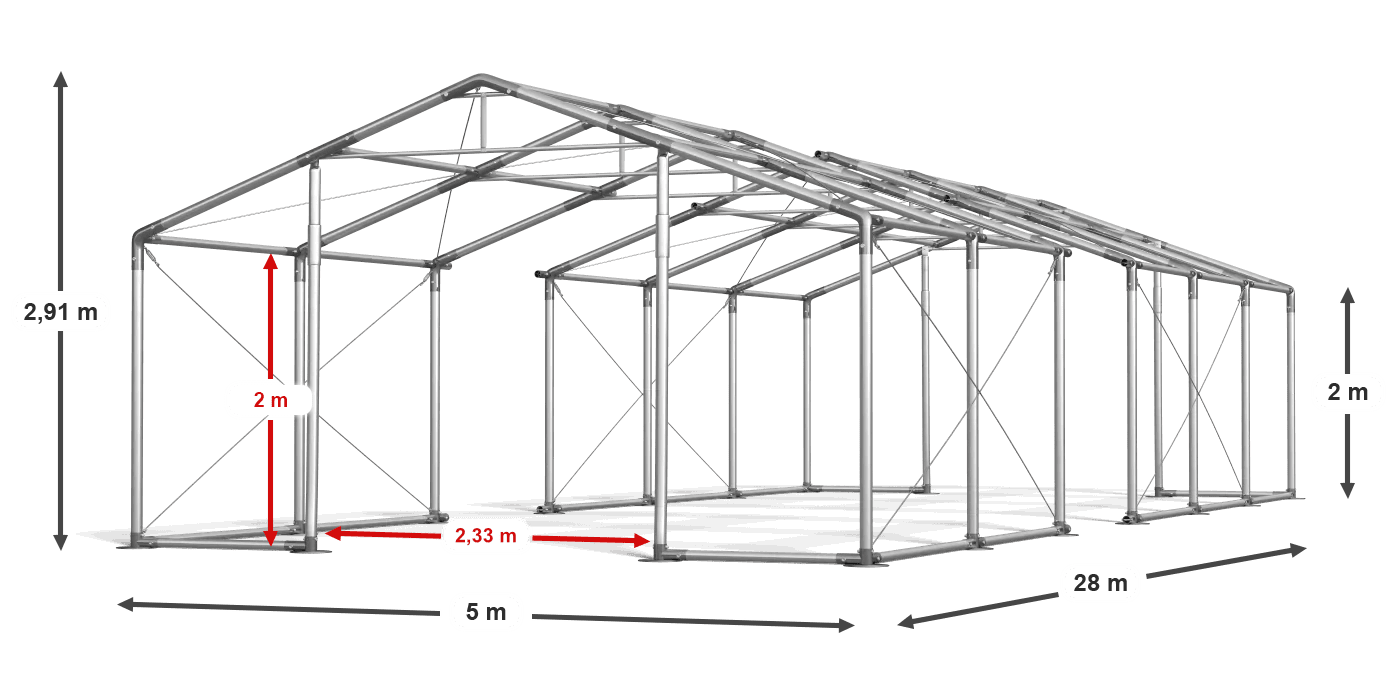

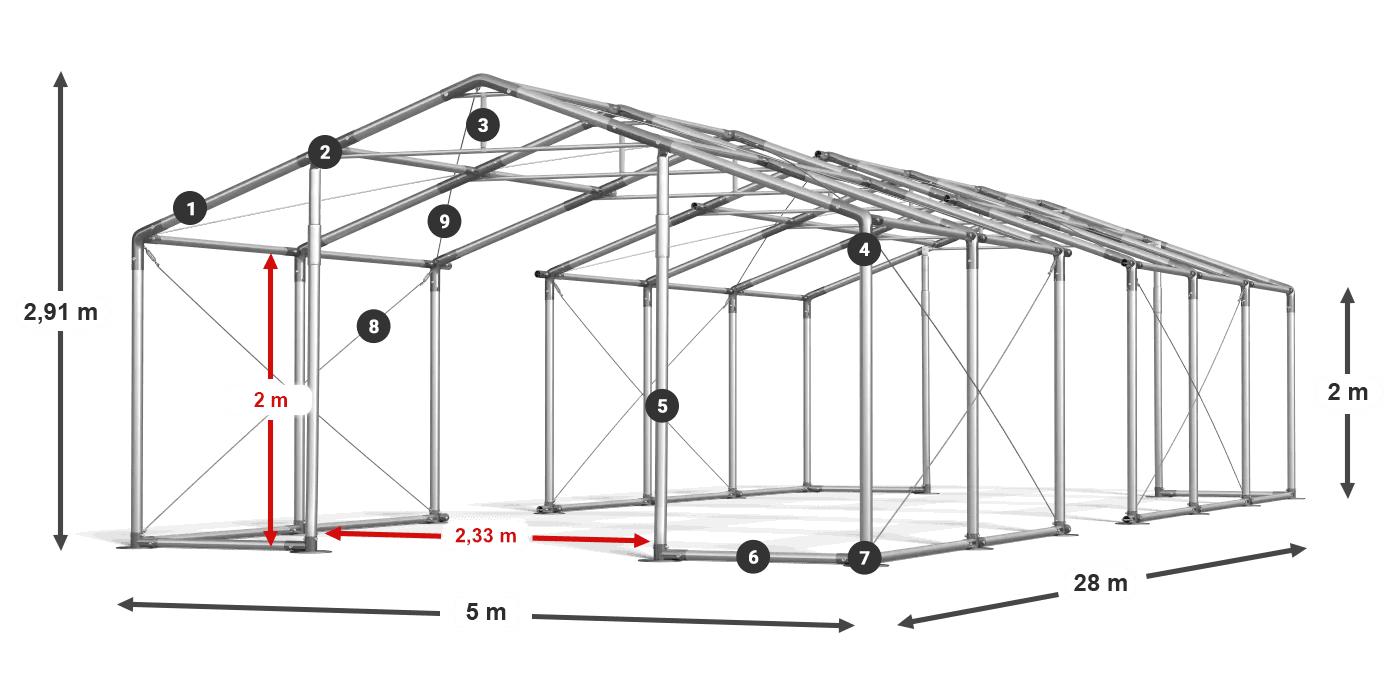

The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings side
- Strings roofing
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section
TARPAULIN
ECO M
Roof
Full okay. 240 g
Sides
Full ok. 240 g

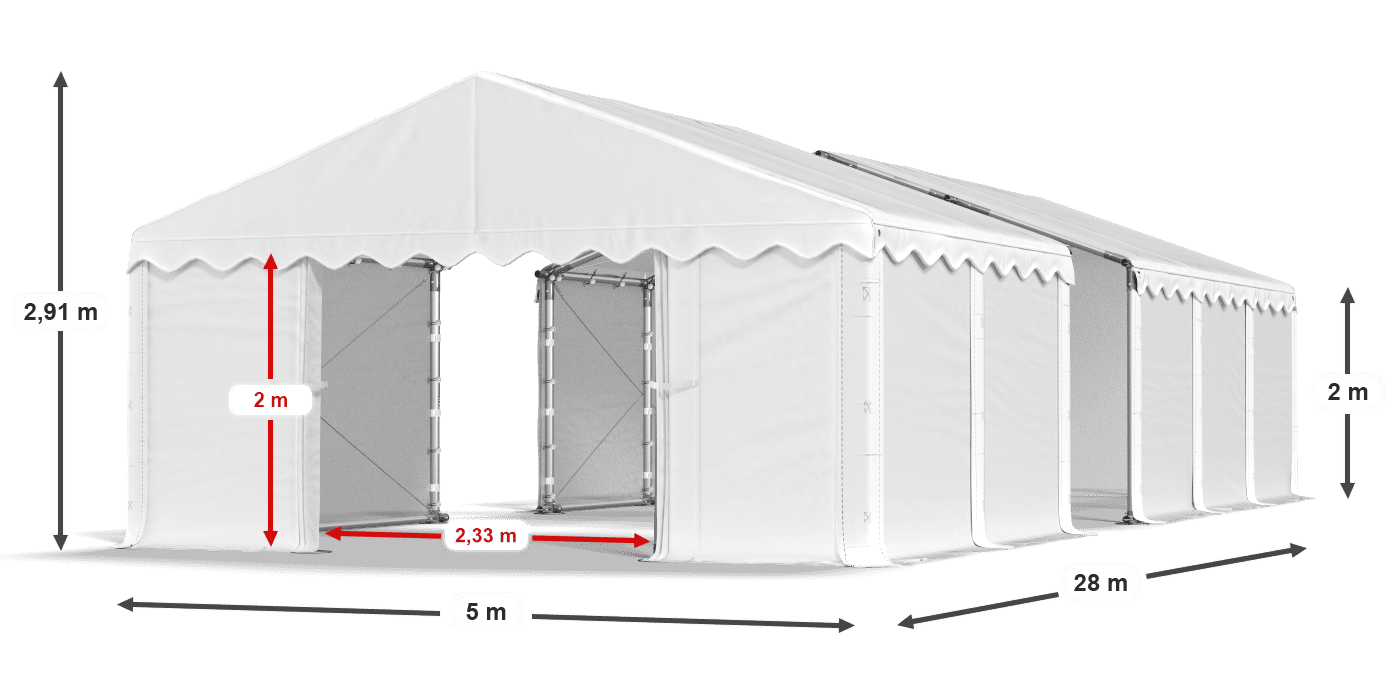

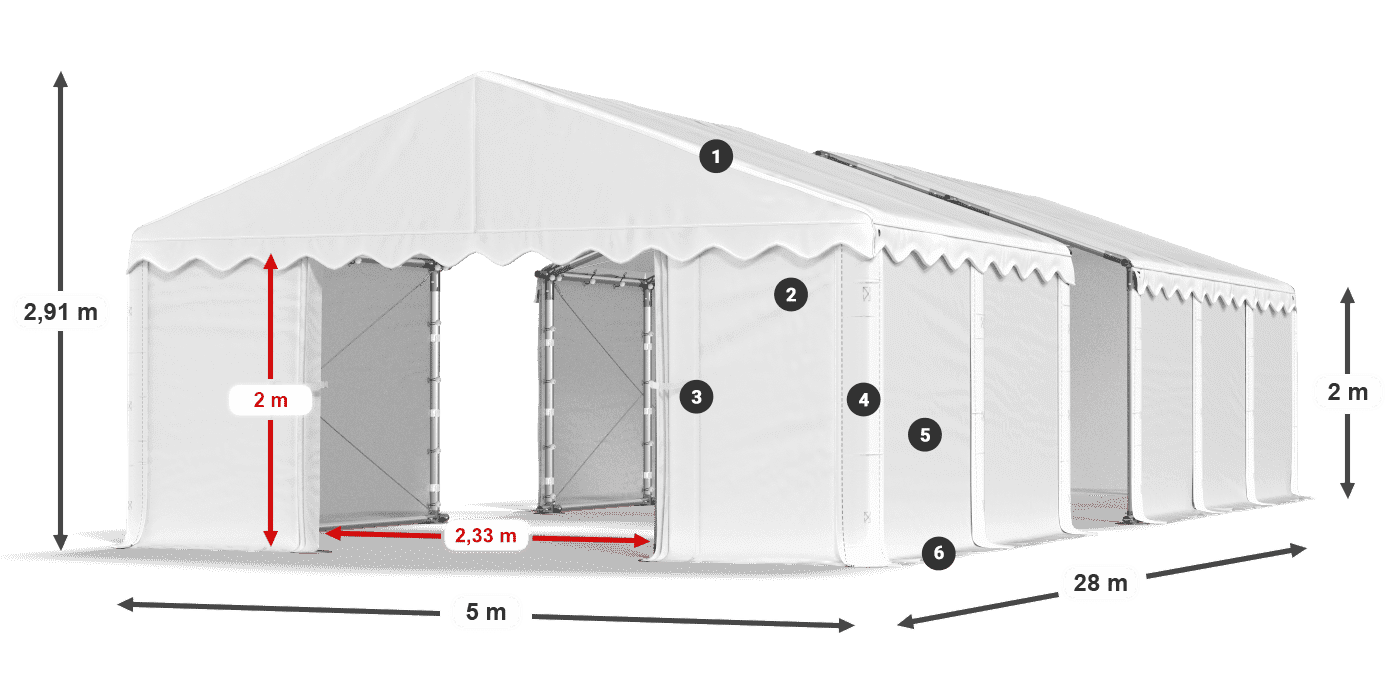

Tents with full walls PE They will work as storage facilities or temporary storage facilities. Thanks to them, everything inside the tent is completely obscured and protected from rain or dust.
- Roof PE(polyethylene) c. 240 g/m²
- Type gate curtain
- Strong YKK locks at entrances
- Exchangeable masks
- Side walls PE 2 x 2 m (polyethylene) c. 240 g/m² - Full walls
- Mounting meshes tarpaulin
Connecting tents
The 5m x28m 2m tent is composed of tents with dimensions: 5x10m, 5x8m.
Change Colors
The tent has sealing covers. They are available in various color variants. This allows you to quickly and easily change the color of the tent.
The perfect warehouse
The side walls of the tent are made of PE approx. 240g/m². Tents with this type of walls work well as a warehouse, car wash or workshop. The height of the basic wall is 2m.
Adjust the tent to your needs
It is possible to order individual cladding elements in various variants, such as walls with windows or solid walls. This will personalize the tent and adapt it to your individual needs.
Any arrangement
The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Item number
05902426924449
Width
5 m
Lenght
28 m
Side height
2 m
Apex height
2,91 m
Surface
140 m2
Gate A
2,33 m x 2 m
Gate B
2,33 m x 2 m
Side entrance
Yes (approx. 2 m x 2 m)
Volume
343,69 m3
Number of packages
41
Weigh
711,45 kg
Spare parts
Yes
Material
(polyethylene)
Roof densityt
~ 240 g/m2
Sides density
~ 240 g/m2
Temperature range
from -5o to +40o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
No
Overlap System
No
System Hermetic
No
System Air-control
No
System Multi-size
No
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
No
Side supports
No
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
55.00cm × 65.00cm × 20.00cm - 18.35kg
Package
55.00cm × 65.00cm × 20.00cm - 18.35kg
Package
55.00cm × 65.00cm × 17.00cm - 15.55kg
Package
35.00cm × 43.00cm × 8.00cm - 1.75kg
Package
35.00cm × 43.00cm × 8.00cm - 1.75kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 18.00cm × 5.00cm - 0.60kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 6.00cm - 4.15kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 41 packs on a pallet with a total weight of 711,45 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 5-6 people.
On average in 6-7 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
Assembly instructions for connecting the sheathing
DOWNLOAD PDF FILE
