Year-round tent hall |
5x28 m
article 1951631
5x28 m Year-round tent hall
5x28m side 2m
see dimensions
Color of the plating:
more >
10 095,42 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.
Full plating made of PVC high weight guarantees excellent storage space for commercial goods, construction materials, crops and agricultural machinery. The lid without windows is very tight and does not allow daylight to pass. Therefore, the interior of the garage tent is invisible to outsiders. Double air vents regulate air exchange and provide comfortable working conditions. The hull is waterproof and UV-resistant. In addition, it has a system Multi-size, which allows to quickly change the length of the storage tent.
Year-round tent hall
This tent will accommodate:
Number of EURO pallets approx. 140
Number of industrial pallets approx. 115
Number of custom palettes approx. 84
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
22 June already with you
Simple assembly:
ok 6-7 hours / 5-6 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

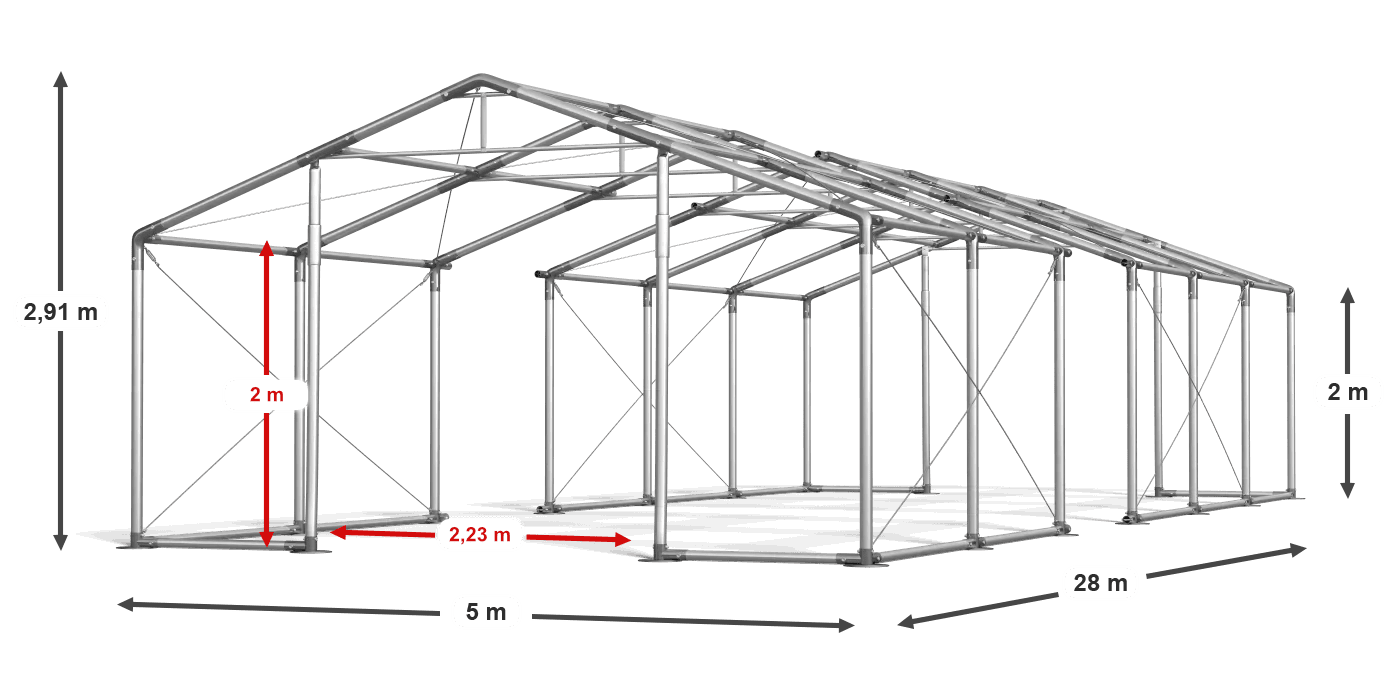

CONSTRUCTION
WINTER PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings side
- Strings roofing
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section

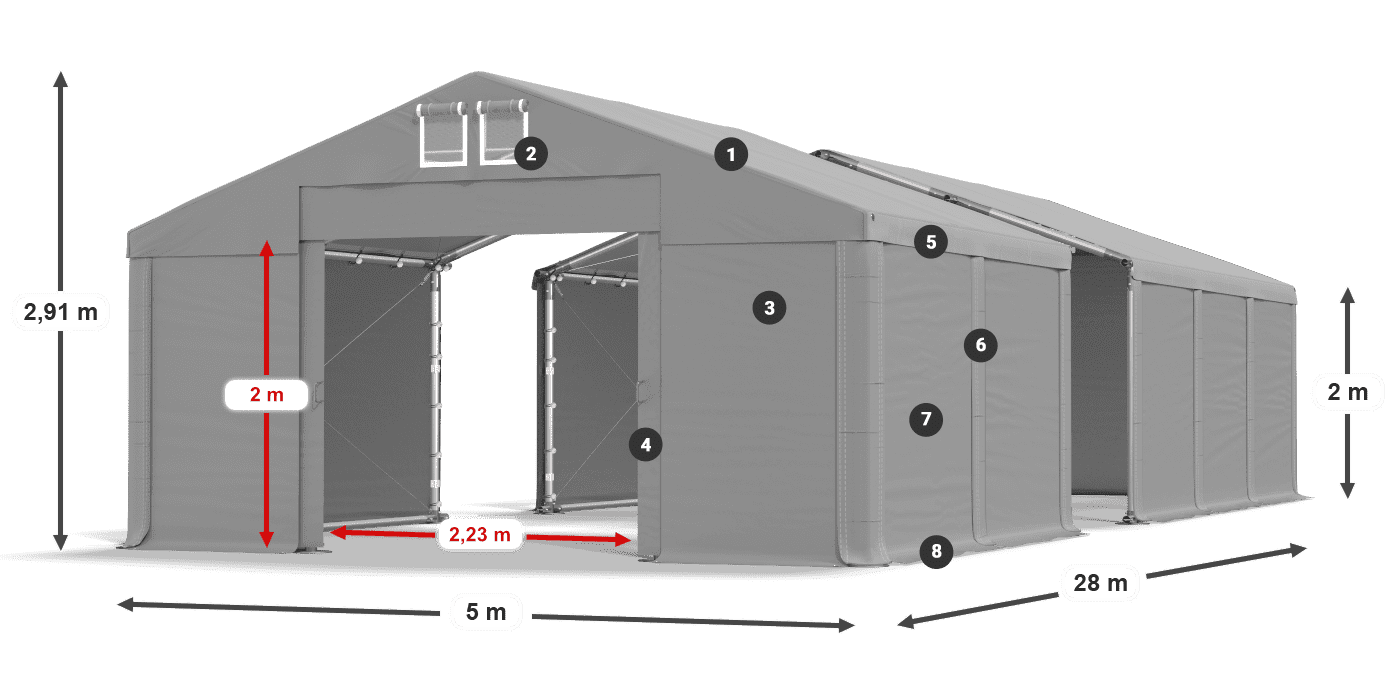

TARPAULIN
Roof: FR 620 PVC Walls: SD 500 PVC
Roof
Full okay. 620 g
Sides
Full ok. 500 g
Air-contro
Yes.
Hermetic
Yes.
Multi-size
Yes.
Each wall is built of uniform, thick material. Tents with full walls SD are great magazines both during summer and winter. They are sealed on each side, so one can be sure that not only rain or snow will fall inside but also dust and other pollutants.
- Fireproof modular roof FR PVC (polyvinyl chloride) c. 620 g/m²
- Double ventilation placed on both sides of the tent
- Type-ins Slide & Roll
- Robust and comfortable entry
- Sealing turnips
- ExchangeableMaskers with sealing turnips
- Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m²
- Additional Retention apron
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Adjust the tent to your needs
You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
The perfect warehouse
The side walls of the tent are made of PVC approx. 500 g/m². Tents with this type of walls work well as a warehouse, car wash or workshop. The height of the basic wall is 2m. Thanks to the unique design, it is possible to easily raise the side wall by 0.5 m or 1 m.
Change colors
The covers that connect the side walls and seal the tent are available in many colors. Thanks to the fact that they are mounted with Velcro, you can quickly change them and give the tents a new color.
expand section

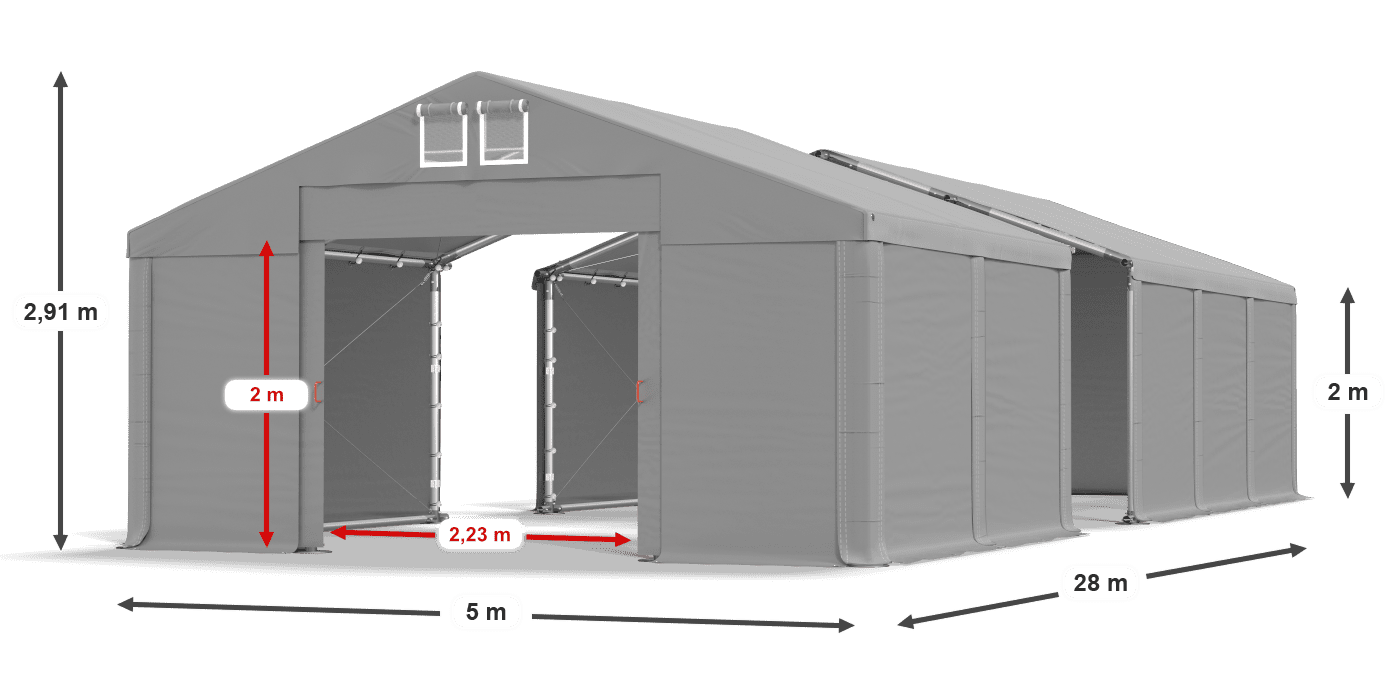

Technical data
General
Tarpaulins
Constructions
Packages
Width
5 m
Lenght
28 m
Side height
2 m
Apex height
2,91 m
Surface
140 m2
Gate A
2,23 m x 2 m
Gate B
2,23 m x 1,9 m
Side entrance
Yes (approx. 2 m x 2 m)
Volume
343,69 m3
Number of packages
72
Weigh
874,25 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 620 g/m2
Sides density
~ 500 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
No
Side supports
No
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
59.00cm × 68.00cm × 22.00cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
55.00cm × 65.00cm × 11.00cm - 8.30kg
Package
40.00cm × 250.00cm × 11.00cm - 57.00kg
Package
30.00cm × 50.00cm × 5.00cm - 3.40kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
43.00cm × 53.00cm × 15.00cm - 10.15kg
Package
8.00cm × 216.00cm × 8.00cm - 4.90kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
11.00cm × 222.00cm × 9.00cm - 9.45kg
Package
7.00cm × 224.00cm × 9.00cm - 5.10kg
Package
45.00cm × 55.00cm × 12.00cm - 12.20kg
Package
45.00cm × 55.00cm × 12.00cm - 12.20kg
Package
45.00cm × 55.00cm × 12.00cm - 12.20kg
Package
45.00cm × 55.00cm × 12.00cm - 12.20kg
Package
45.00cm × 55.00cm × 8.00cm - 8.30kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 72 packs on a pallet with a total weight of 874,25 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 5-6 people.
On average in 6-7 hours.
