Year-round sales tent | 5x30 m
pobierz pdf
Download PDF offer

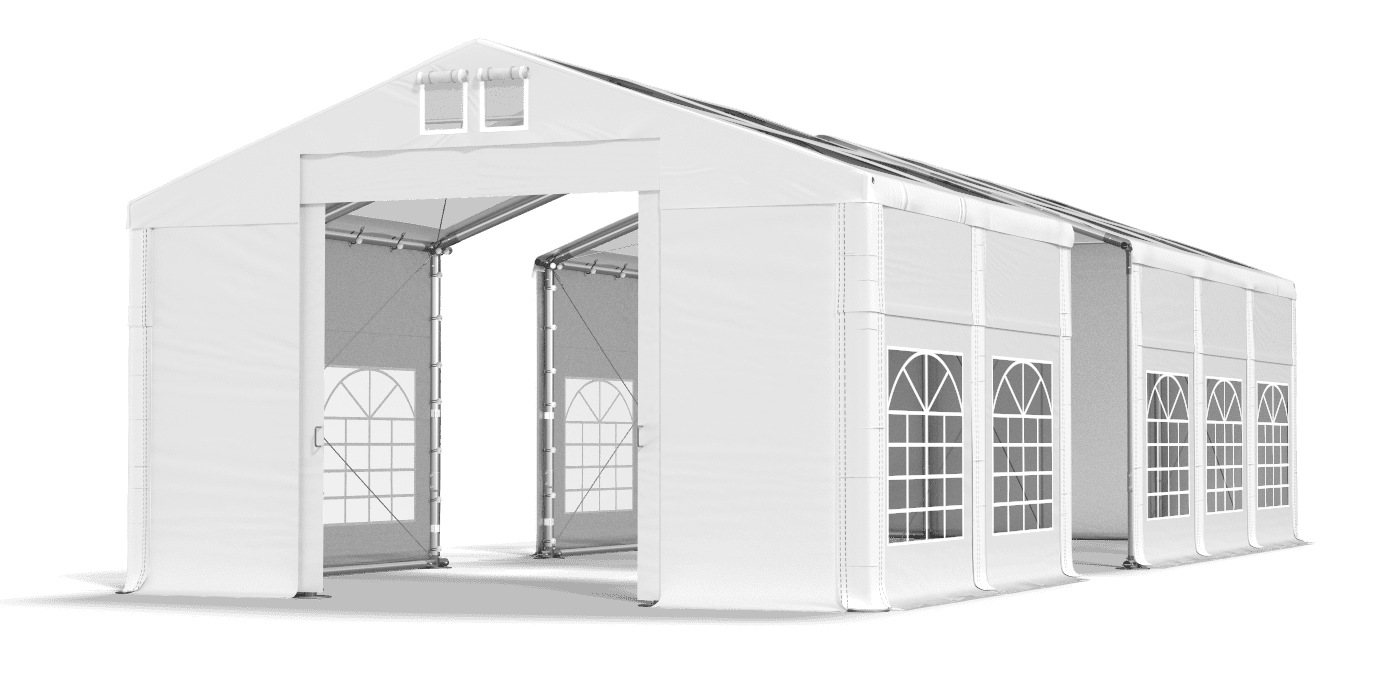

Open entrance tent

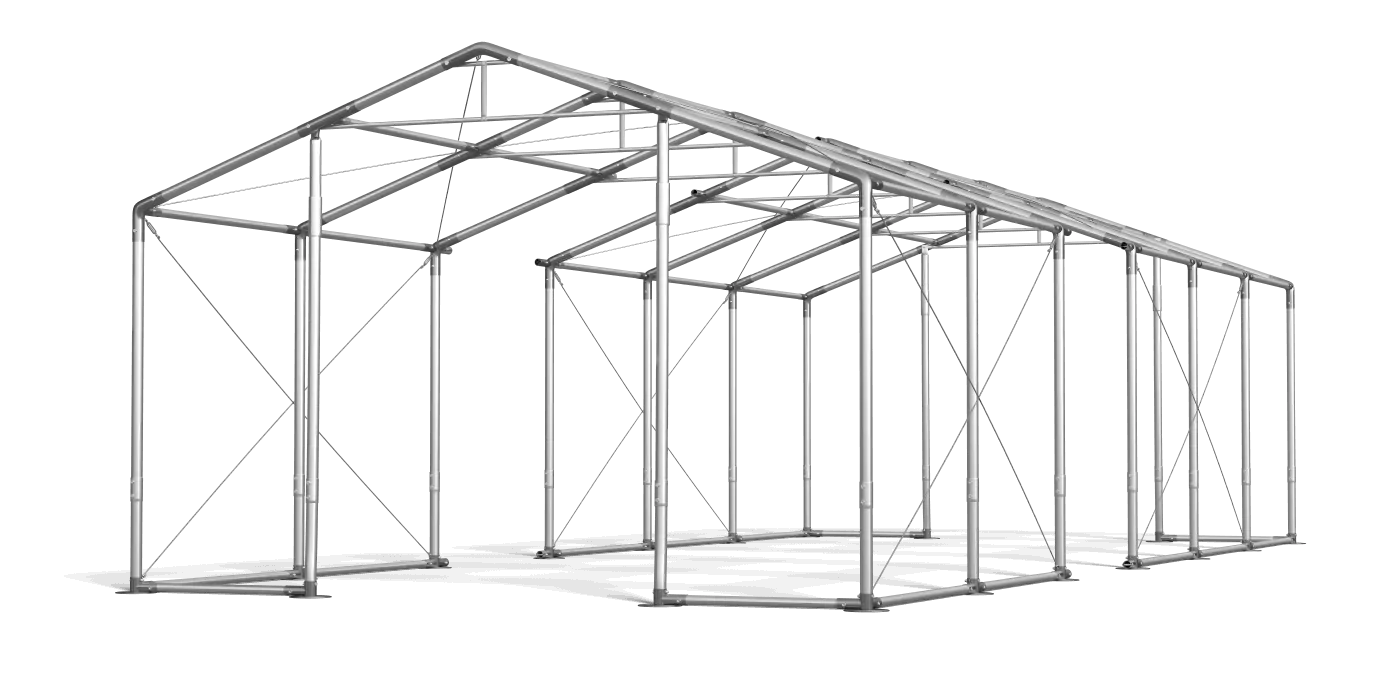

tent construction

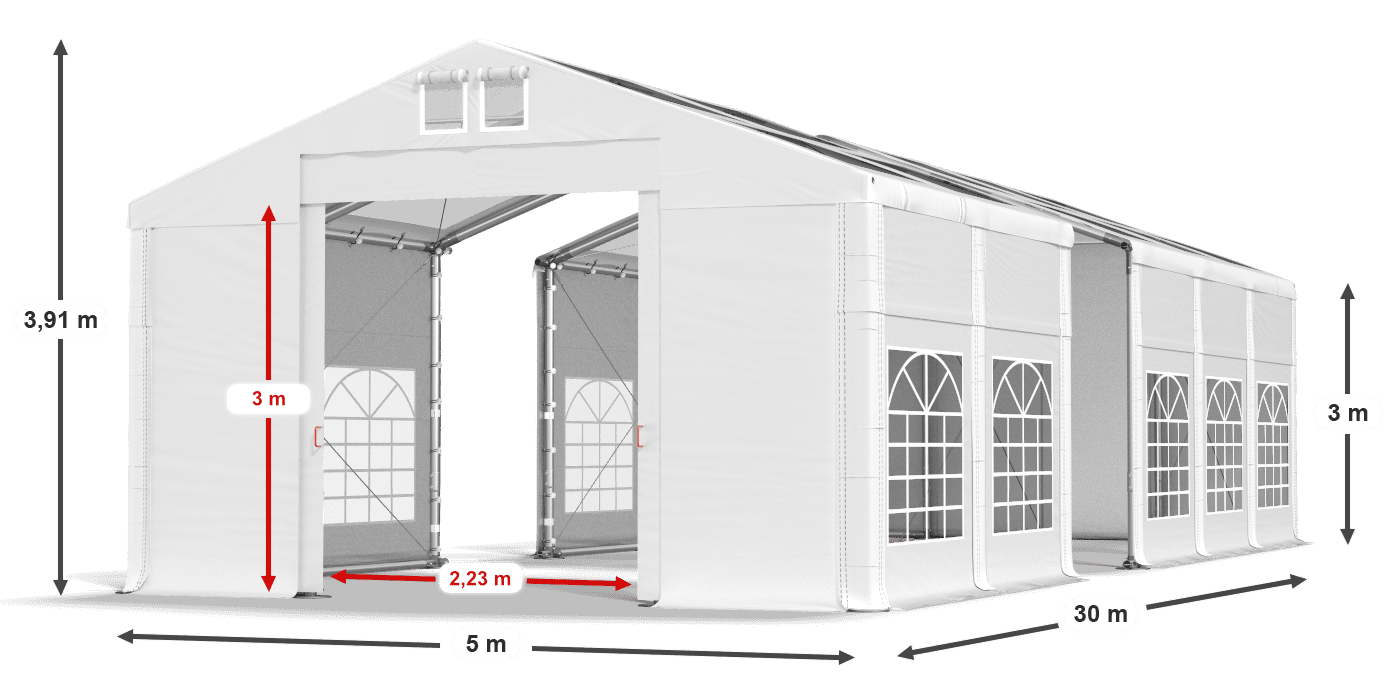

sheathing legend

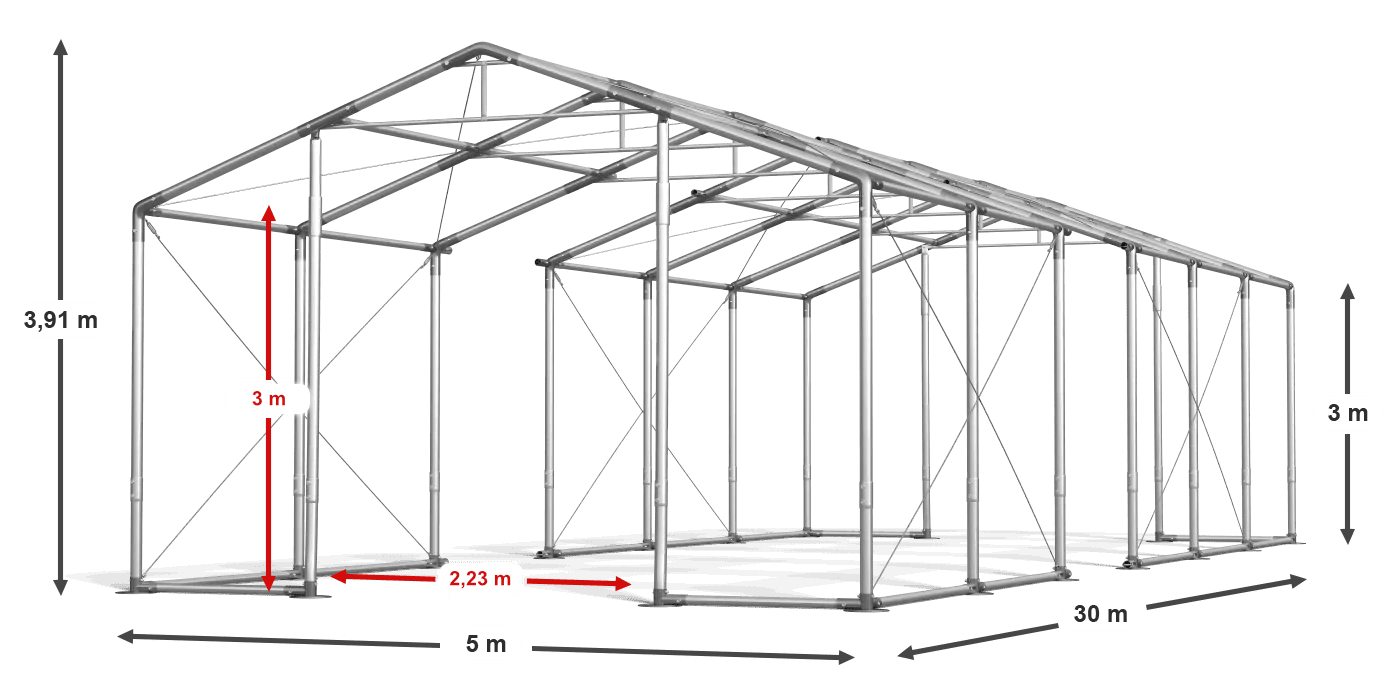

legend construction
front gate
Construction rates

article 1369259
5x30 m Year-round sales tent

5x30m side 3m
see dimensions
Color of the plating:
more >
10 679,30 €

Includes 23% VAT

Need help choosing?
Call us: info.ie@dascompany.com
FREE CONSULTATION
Description

The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.

A tarpaulin equipped with stained glass windows and a transparent roof ensures optimal illumination of tables and buffets during receptions in the party tent. Strong PVC covering protects against moisture, wind and UV radiation. The event tent can be used to organize family celebrations, corporate banquets, festivals and exhibitions. It is also an excellent garden tent and commercial tent. The cover is equipped with an easy length change system Multi-size.

About the product
Construction
Tarpaulin
Technical data
Delivery and collection
Assembly and instructions
Configuration
Year-round sales tent
This tent will accommodate:
standing places

approx. 300 standing places

space for chairs

approx. 230 chair seats

places on the benches

approx. 200 seats on the benches

available configurations

Over 30,000 configurations

parts available

Access to parts for expansion and service

warranty on parts availability

10 years warranty for the availability of substitute elements

Order now
TO SHOPPING CART
Delivery time:
Delivery time: 22 June already with you
Simple assembly:
Simple assembly: ok 7-9 hours / 6-8 people
Das Company - Party and storage tents
medal
We have been operating since
2012
advising
We advise on configuration, assembly and service
supply
We deliver to 10 countries in Europe

CONSTRUCTION

WINTER PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.
  1. Construction pipes approx. fi 50 mm
  2. Structure connectors approx. fi 54 mm
  3. Reinforced roof structure
  4. Strong screws passing through
  5. Reinforcements entries
  6. Reinforced Floor construction
  7. Zoomed feet fi 14 cm
  8. Strings roofing
  9. Strings side

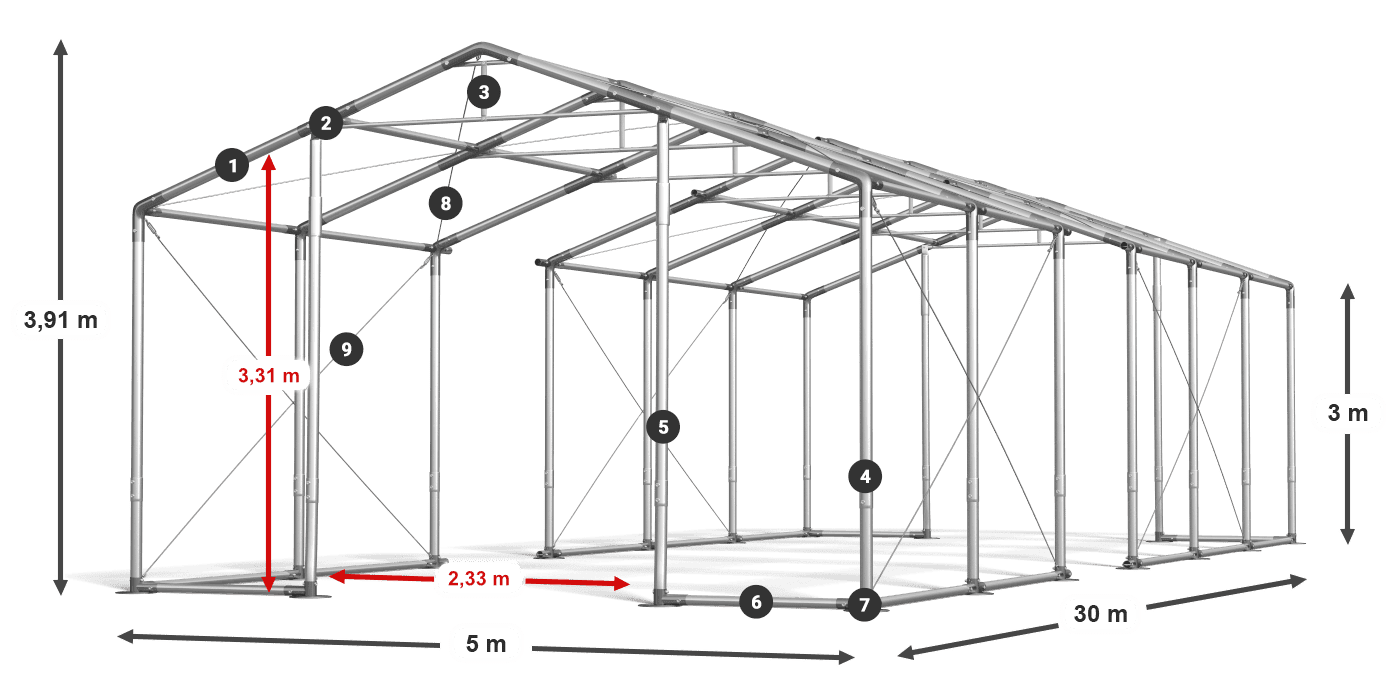

WINTER PLUS legend 2.5m-4m
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Additional reinforcements of entrances
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Roof and floor structure
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
A new way of connecting structures
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Thick pipes, diameter 50 mm
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Enlarged feet, diameter 14 cm
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Easy Up & Down system
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
Roof and side tensions
expand section

TARPAULIN

Roof: MS 580 PVC Walls: FR 620 PVC
Roof
Transparent approx. 580 g
Sides
The stained glass is ok. 620 g
Air-control Double vents
Yes.
Hermetic Greater tightness
Yes.
Multi-size Easy to change length
Yes.
  1. Transparent modular roof MS PVC (polyvinyl chloride) c. 580 g/m²
  2. Double ventilation placed on both sides of the tent
  3. Type-ins Slide & Roll
  4. Strong YKK locks at entrances
  5. Sealing turnips
  6. Fireproof side wall lifting FR PVC Okay. 2 x 1 m(polyvinyl chloride) c. 620 g/m²
  7. ExchangeableMaskers with sealing turnips
  8. Fireproof side walls FR PVC 2 x 2 m (polyvinyl chloride) c. 620 g/m² - stained glass windows140 x 130 cm
  9. Additional Retention apron

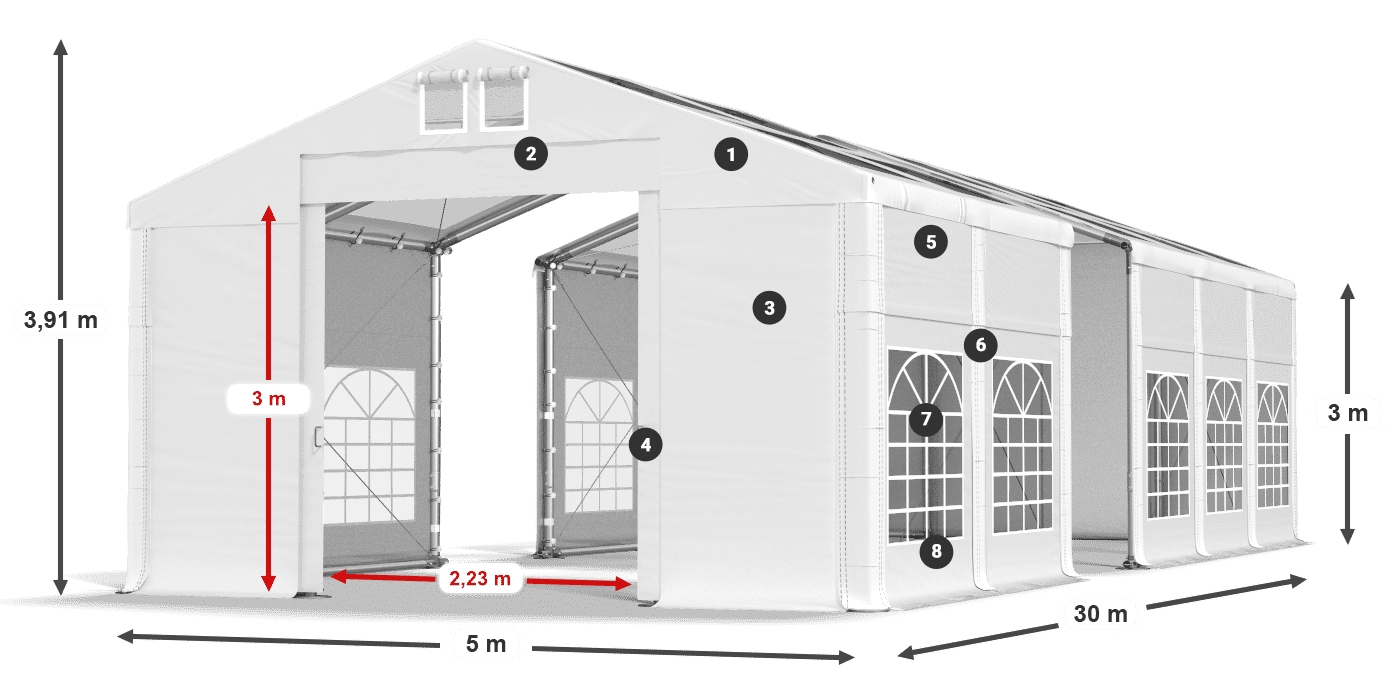

Roof: MS T 580 PVC Walls: FR 620 PVC 3m legend
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Roof system Multi-size
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
System Hermetic
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Retention Apron
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
System Air Control
Maximum interior lighting
This is the most effective way to get as much daylight inside the tent as possible.
Transparent roof
Safety of use
The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Material
(polyvinyl chloride)
Roof densityt
~ 580 g/m2
Sides density
~ 620 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
No
DELIVERY AND COLLECTION
Packages
Packages
Your order will be packed in 84 packs on a pallet with a total weight of 1 034,90 kg.
Delivery
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Person assembly
Editing with 6-8 people.
Assembly time
On average in 7-9 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
