Year-round Catering Tent | 5x34 m
pobierz pdf
Download PDF offer
Open entrance tent
tent construction
sheathing legend
legend construction
front gate
Construction rates

article 1832853
5x34 m Year-round Catering Tent

5x34m side 2m
see dimensions
Color of the plating:
more >
9 273,94 €

Includes 23% VAT

contact info
Out of stock. Check the available offer or contact us.
Need help choosing?
Call us: info.ie@dascompany.com
FREE CONSULTATION
Description

The WINTER design is intended for year-round use. The frame is made of the highest quality steel. Additional reinforcements make the structure durable and stable.

A waterproof tarpaulin with large stained glass windows is perfect for organizing outdoor weddings, family parties and business events. Tight PVC covering protects tables and buffets against moisture, wind and dirt. It is also an elegant garden tent and catering tent. Stained glass covering allows for aesthetic display of goods, which is why it is used in commercial and exhibition tents.

About the product
Construction
Tarpaulin
Technical data
Delivery and collection
Assembly and instructions
Configuration
Year-round Catering Tent
This tent will accommodate:
standing places

approx. 340 standing places

space for chairs

approx. 261 chair seats

places on the benches

approx. 224 seats on the benches

available configurations

Over 30,000 configurations

parts available

Access to parts for expansion and service

warranty on parts availability

10 years warranty for the availability of substitute elements

Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
Delivery time: 22 June already with you
Simple assembly:
Simple assembly: ok 7-9 hours / 6-8 people
Das Company - Party and storage tents
medal
We have been operating since
2012
advising
We advise on configuration, assembly and service
supply
We deliver to 10 countries in Europe

CONSTRUCTION

WINTER
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,the tent can be moved very quickly where it is needed
  1. Construction pipes approx. fi 50 mm
  2. Structure connectors approx. fi 54 mm
  3. Reinforced roof structure
  4. Solid screws passing through
  5. Reinforcements entries
  6. Reinforced Floor construction
  7. Zoomed feet fi 14 cm
WINTER legend
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Additional reinforcements of entrances
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Roof and floor structure
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
A new way of connecting structures
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.
Through-hole screws
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Thick pipes, diameter 50 mm
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Enlarged feet, diameter 14 cm
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Easy Up & Down system
expand section

TARPAULIN

PRO I
Roof
Full okay. 560 g
Sides
The stained glass is ok. 500 g
Air-control Double vents
Yes.
Hermetic Greater tightness
Yes.
The windows provide a supply of daylight, so tents with this tarp are used for restaurants as an additional place for guests or as a fan zone. This type of hull makes the use of the tent convenient and possible even with the tent completely closed.

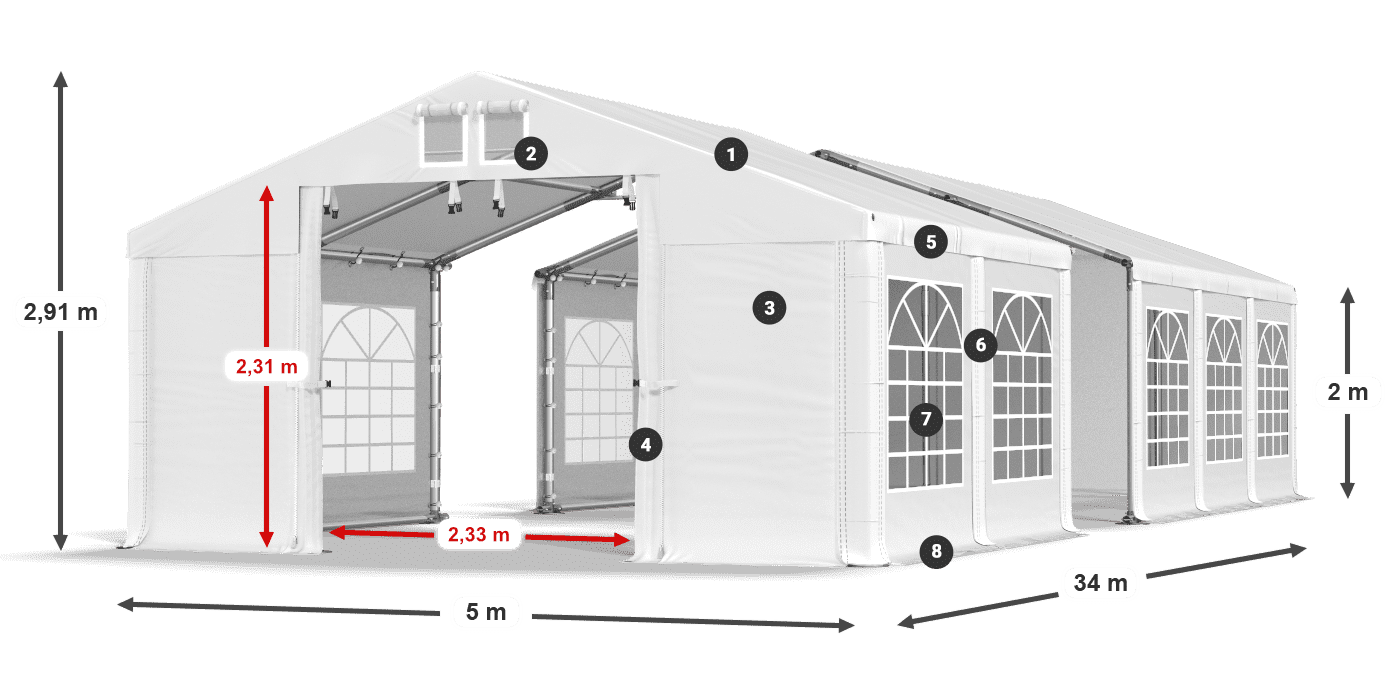

  1. Roof SD PVC (polyvinyl chloride) c. 560 g/m²
  2. Double ventilation placed on both sides of the tent
  3. Type-ins Slide & Roll
  4. Strong YKK locks at entrances
  5. Sealing turnips
  6. Exchangeable Maskers with sealing turnips
  7. Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m² - stained glass windows 140 x 130 cm
  8. Additional Retention apron
ISD 560 PVC legend 2m
Connecting tents
The 5m x34m 2m tent is composed of tents with dimensions: 5x10m, 5x8m, 5x6m.
You can combine tents at your convenience
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
System Hermetic
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Retention Apron
Adjust the tent to your needs
You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.
Any combination of walls
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
System Air Control
Attractive appearance
The side wall is made of thick tarpaulin PVC approx. 500 g/m² and large stained glass windows. The height of the basic wall is 2m. Thanks to the unique design, it is possible to easily raise the side wall by 0.5 m or 1 m. Thanks to the windows placed on each two-meter segment, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent.
Stained glass windows
Any color selection
The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.
Color Mix system
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Material
(polyvinyl chloride)
Roof densityt
~ 560 g/m2
Sides density
~ 500 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
No
Fire retardant
No
DELIVERY AND COLLECTION
Packages
Packages
Your order will be packed in 39 packs on a pallet with a total weight of 957,05 kg.
Delivery
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Person assembly
Editing with 6-8 people.
Assembly time
On average in 7-9 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
Assembly instructions for connecting the sheathing
DOWNLOAD PDF FILE
