Year-round tent hall |
5x35 m
article 1841600
5x35 m Year-round tent hall
5x35m side 2,5m
see dimensions
Color of the plating:
more >
13 791,77 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.
The hull is equipped with a transparent roof and small lighting windows. The round windows are located at the top of the side walls of the garage tent. Thanks to this, you get a lot of daylight into the interior, but the roofing content is invisible to outsiders. The hull is made of PVC High weight. It is UV-resistant and damp, so in the storage tent we can store vehicles, sports equipment, furniture and commercial goods. The hull is equipped with a system of easy length change Multi-size.
Year-round tent hall
This tent will accommodate:
Number of EURO pallets approx. 174
Number of industrial pallets approx. 145
Number of custom palettes approx. 102
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
22 June already with you
Simple assembly:
ok 8-10 hours / 6-8 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

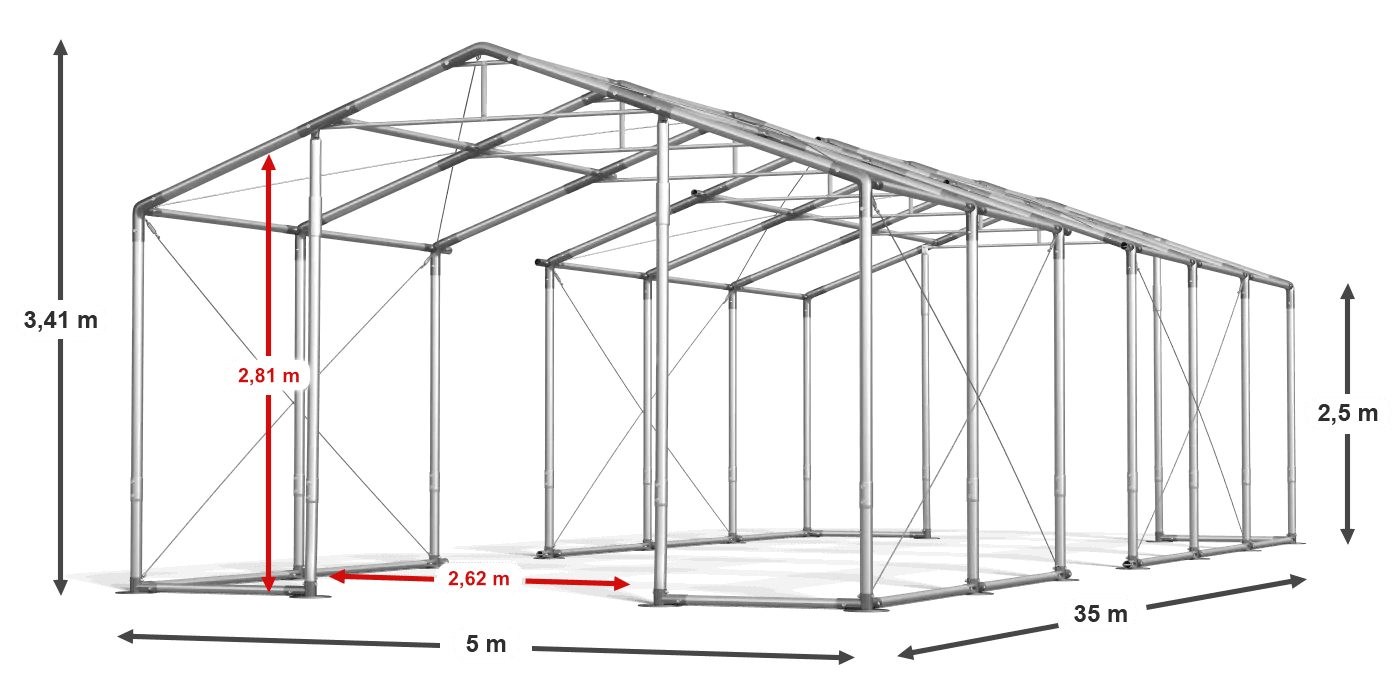

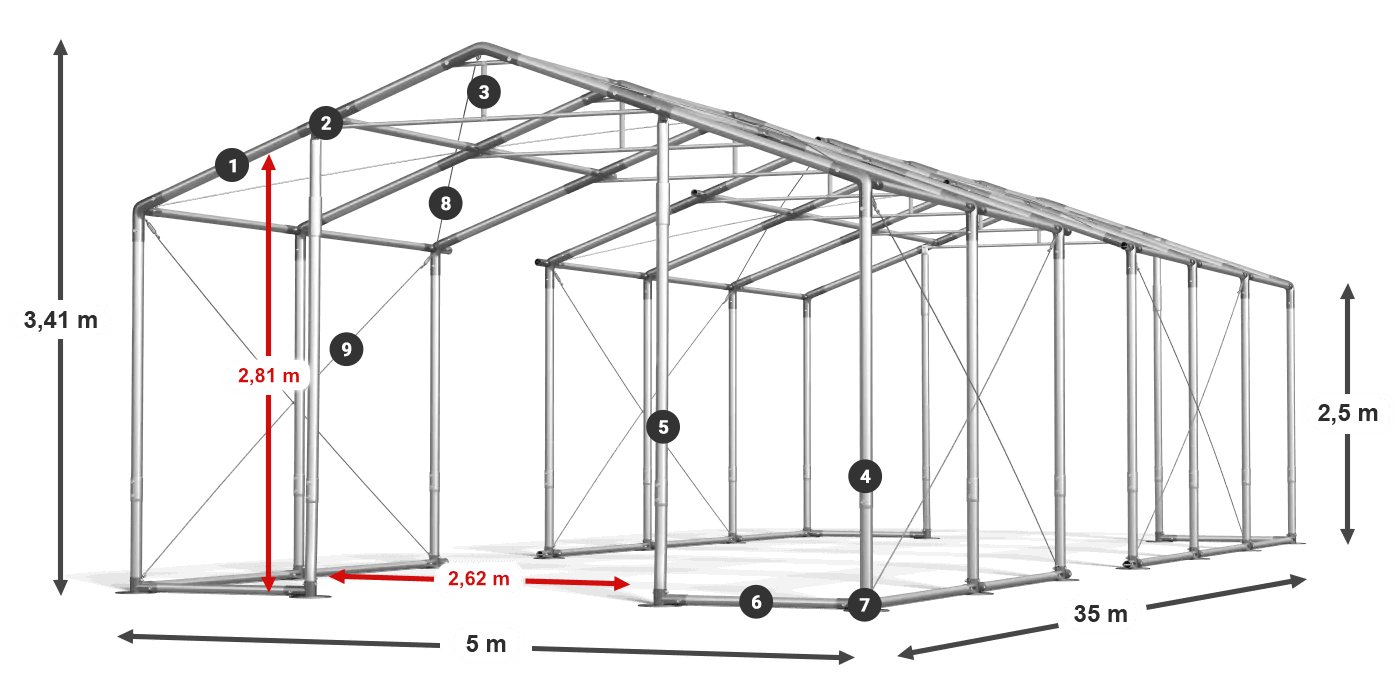

CONSTRUCTION
WINTER PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings roofing
- Strings side
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section

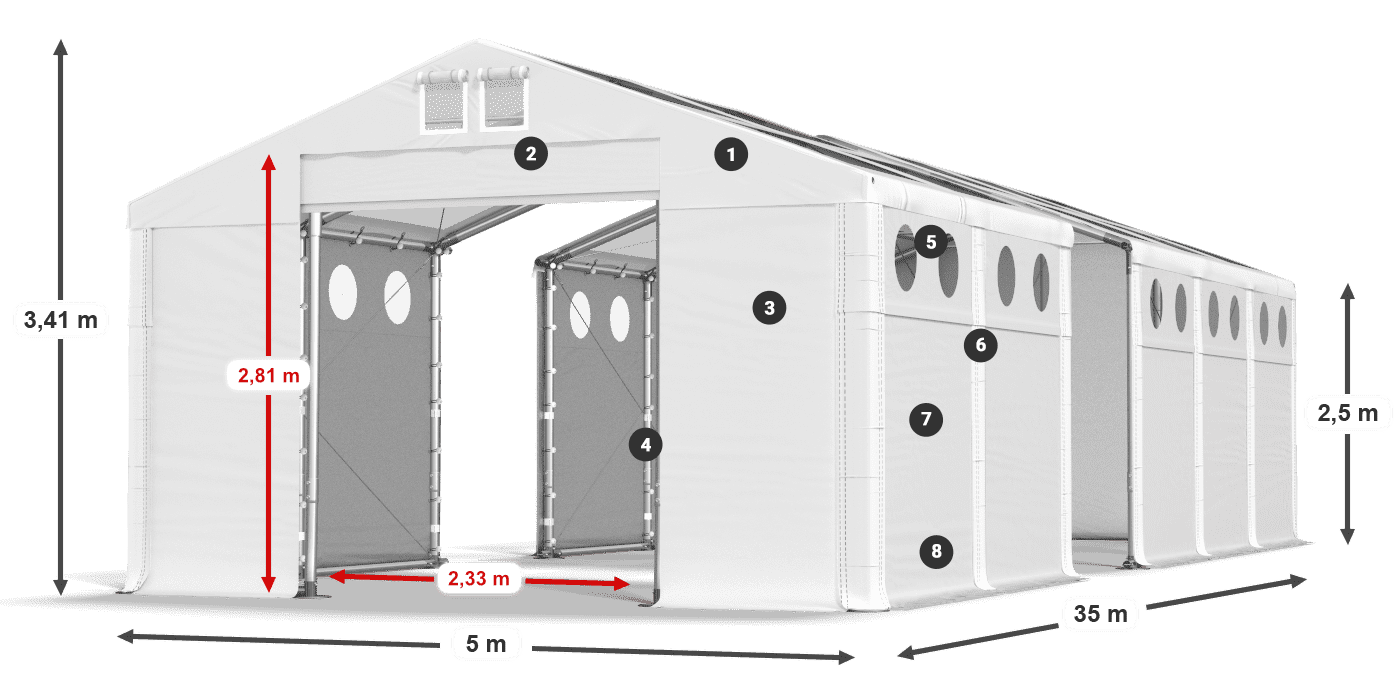

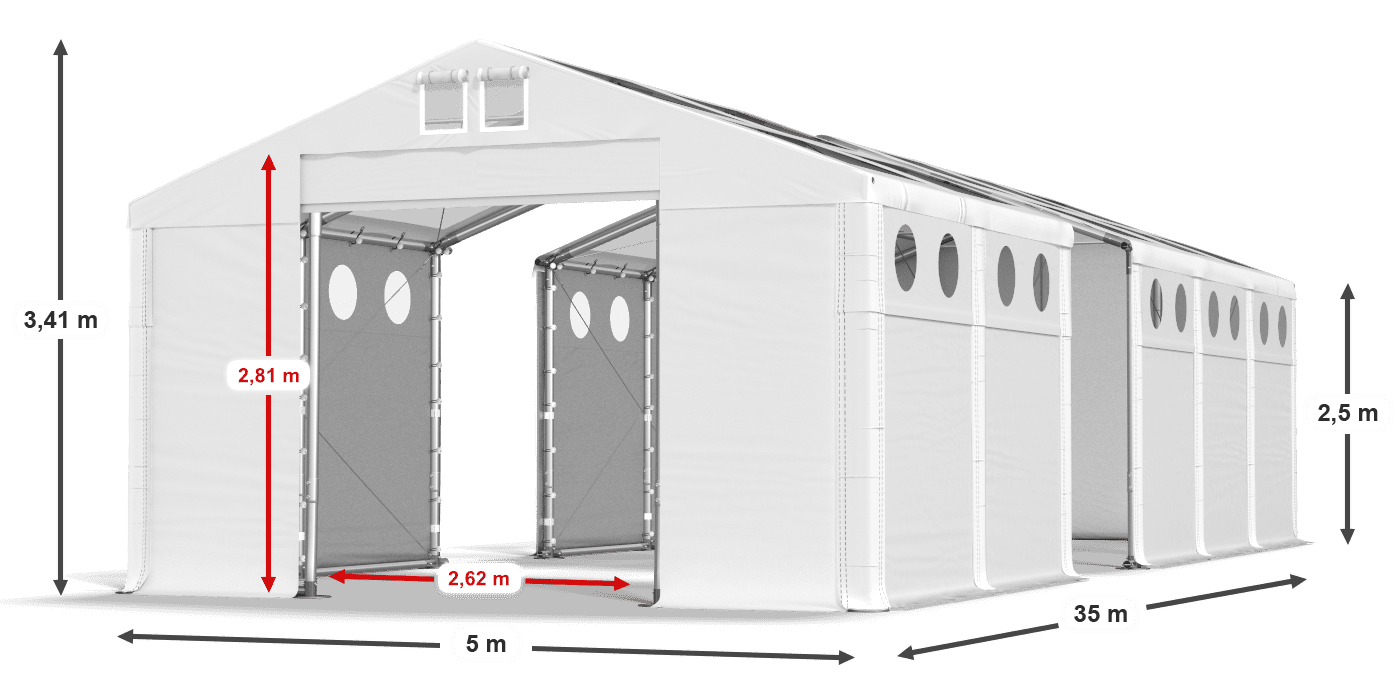

TARPAULIN
Roof: MS 580 PVC Walls: MS 580 PVC
Roof
Transparent approx. 580 g
Sides
With lighting approx. 580 g
Air-control
Yes.
Hermetic
Yes.
Multi-size
Yes.
This type of hull is available from a height of 2.5 m. Round windows are placed at the top of the tent. Additionally, there are very large, completely transparent windows in the roof. This is a great solution for workshop tents, where lighting is needed, but we do not want what we do to be visible to outsiders.
- Transparent modular roof MS PVC (polyvinyl chloride) c. 580 g/m²
- Double ventilation placed on both sides of the tent
- Type-ins Slide & Roll
- Strong YKK locks at entrances
- Sealing turnips
- Lifting the side wall MS PVC Okay. 2 x 0.5 m(polyvinyl chloride) c. 580 g/m² - Lighting windows 39 cm diameter
- ExchangeableMaskers with sealing turnips
- Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m²
- Additional Retention apron
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
Maximum interior lighting
This is the most effective way to get as much daylight inside the tent as possible.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Width
5 m
Lenght
35 m
Side height
2,5 m
Apex height
3,41 m
Surface
175 m2
Gate A
2,23 m x 2,4 m
Gate B
2,23 m x 2,4 m
Side entrance
Yes (approx. 2 m x 2,5 m)
Volume
429,62 m3
Number of packages
102
Weigh
1 024,65 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 580 g/m2
Sides density
~ 580 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
No
Side supports
No
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
55.00cm × 65.00cm × 18.00cm - 26.00kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
25.00cm × 194.00cm × 10.00cm - 20.60kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
30.00cm × 50.00cm × 6.00cm - 3.80kg
Package
30.00cm × 50.00cm × 6.00cm - 3.80kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
37.00cm × 73.00cm × 22.00cm - 1.20kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 10.00cm - 5.85kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
45.00cm × 55.00cm × 10.00cm - 10.50kg
Package
30.00cm × 45.00cm × 8.00cm - 3.20kg
Package
35.00cm × 35.00cm × 16.00cm - 4.70kg
Package
35.00cm × 35.00cm × 16.00cm - 4.70kg
Package
35.00cm × 35.00cm × 16.00cm - 4.70kg
Package
35.00cm × 35.00cm × 16.00cm - 4.70kg
Package
35.00cm × 35.00cm × 16.00cm - 4.70kg
Package
35.00cm × 35.00cm × 11.00cm - 3.20kg
Package
35.00cm × 35.00cm × 7.00cm - 1.30kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
20.00cm × 25.00cm × 5.00cm - 0.50kg
Package
24.00cm × 30.00cm × 5.00cm - 0.65kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 102 packs on a pallet with a total weight of 1 024,65 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 6-8 people.
On average in 8-10 hours.
