5x36 m Year-round tent hall
5x36m side 2,5m
see dimensions
Color of the plating:
more >
13 888,80 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The WINTER design is intended for year-round use. The frame is made of the highest quality steel. Additional reinforcements make the structure durable and stable.
The plating with lighting windows guarantees a daily supply of light to the interior of the storage tent. Solid plank PVC is resistant to moisture and UV radiation. Under the roof you can store goods, perform repairs, perform production and segregation work. The hull is equipped with a system of easy length change Multi-size. Small, round windows are located in the upper side of the side walls, so the interior of the garage tent is not visible to outsiders.
Year-round tent hall
This tent will accommodate:
Number of EURO pallets approx. 180
Number of industrial pallets approx. 150
Number of custom palettes approx. 108
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
22 June already with you
Simple assembly:
ok 8-10 hours / 6-8 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

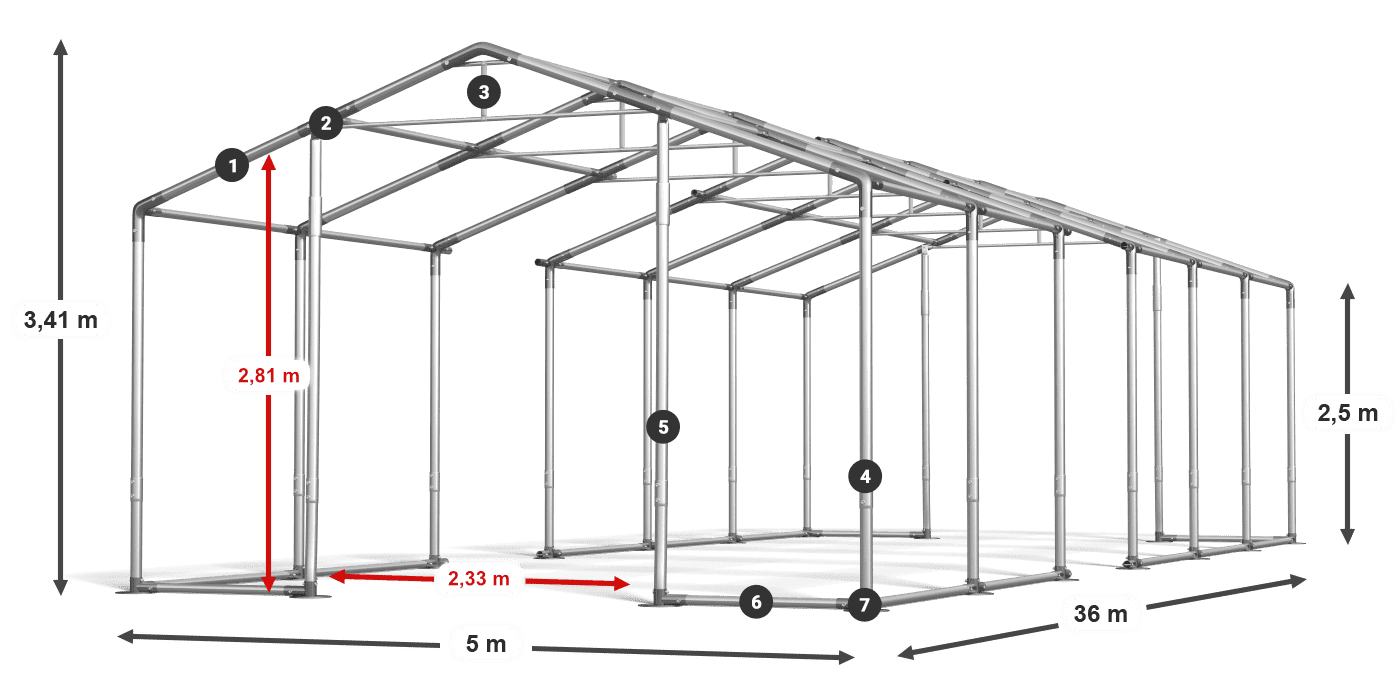

CONSTRUCTION
WINTER
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,the tent can be moved very quickly where it is needed
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Solid screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
expand section

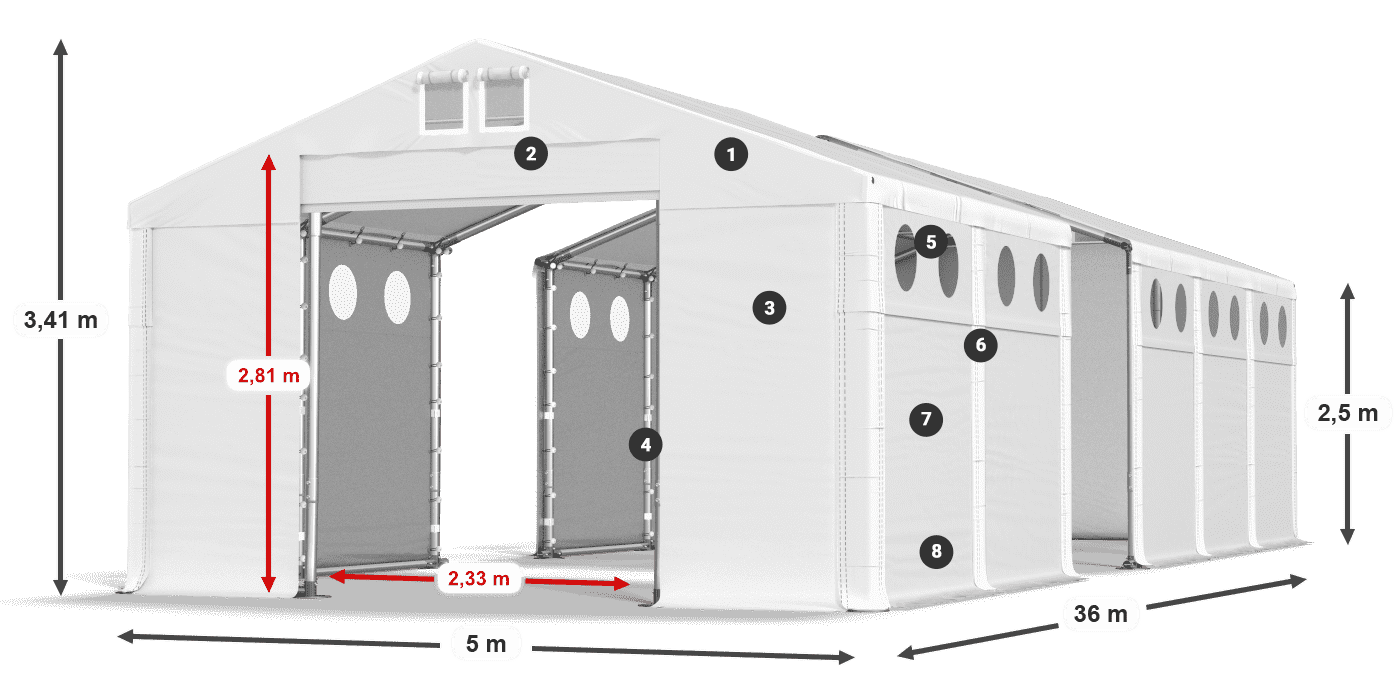

TARPAULIN
Roof: MS 580 PVC Walls: FR 620 PVC
Roof
Full okay. 580 g
Sides
With lighting approx. 620 g
Air-control
Yes.
Hermetic
Yes.
Multi-size
Yes.
- Modular roof MS PVC (polyvinyl chloride) c. 580 g/m²
- Double ventilation placed on both sides of the tent
- Type-ins Slide & Roll
- Strong YKK locks at entrances
- Sealing turnips
- Fireproof side wall lifting FR PVC Okay. 2 x 0.5 m(polyvinyl chloride) c. 620 g/m² - Lighting windows 39 cm diameter
- ExchangeableMaskers with sealing turnips
- Fireproof side walls FR PVC 2 x 2 m (polyvinyl chloride) c. 620 g/m²
- Additional Retention apron
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
This type of hull is available from a height of 2.5 m. Round windows are placed at the top of the tent. This is a great solution for workshop tents, where lighting is needed, but we do not want what we do to be visible to outsiders.
Safety of use
The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.
expand section

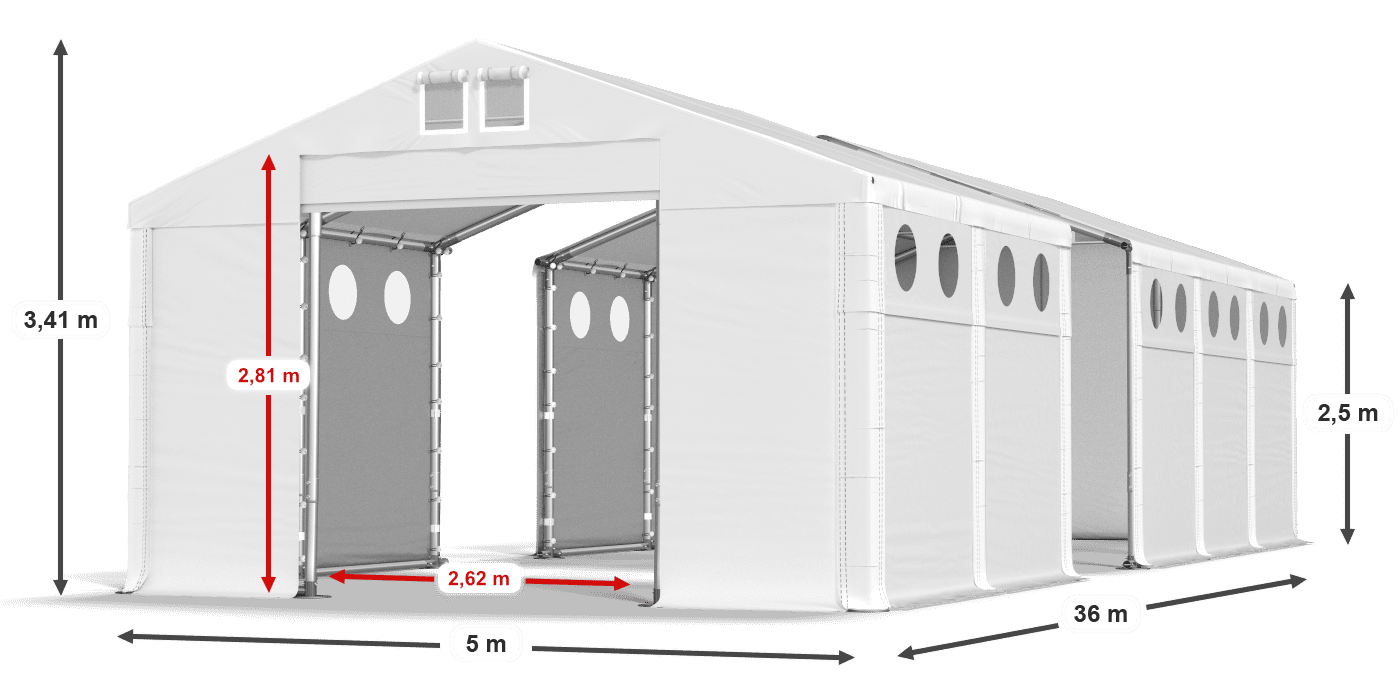

Technical data
General
Tarpaulins
Constructions
Packages
Width
5 m
Lenght
36 m
Side height
2,5 m
Apex height
3,41 m
Surface
180 m2
Gate A
2,23 m x 2,4 m
Gate B
2,23 m x 2,4 m
Side entrance
Yes (approx. 2 m x 2,5 m)
Volume
441,89 m3
Number of packages
84
Weigh
1 009,90 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 580 g/m2
Sides density
~ 620 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
No
Side pulls
No
Roof supports
No
Side supports
No
Package
80.00cm × 200.00cm × 25.00cm - 147.70kg
Package
55.00cm × 65.00cm × 18.00cm - 26.00kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
21.00cm × 194.00cm × 13.00cm - 24.90kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
30.00cm × 50.00cm × 6.00cm - 3.80kg
Package
30.00cm × 50.00cm × 6.00cm - 3.80kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
40.00cm × 50.00cm × 13.00cm - 9.00kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
50.00cm × 59.00cm × 12.00cm - 14.20kg
Package
38.00cm × 38.00cm × 13.00cm - 5.30kg
Package
38.00cm × 38.00cm × 13.00cm - 5.30kg
Package
38.00cm × 38.00cm × 13.00cm - 5.30kg
Package
38.00cm × 38.00cm × 13.00cm - 5.30kg
Package
38.00cm × 38.00cm × 13.00cm - 5.30kg
Package
38.00cm × 38.00cm × 13.00cm - 5.30kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
20.00cm × 25.00cm × 5.00cm - 0.50kg
Package
24.00cm × 30.00cm × 5.00cm - 0.65kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 84 packs on a pallet with a total weight of 1 009,90 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 6-8 people.
On average in 8-10 hours.
