Year-round tent hall | 6x10 m

Download PDF offer

article 581984
6x10 m Year-round tent hall

Name: Year-round tent hall
Brand: Das Company
SKU: 1D10B54106101261261212121
Price: 3325.79 EUR
Availability: OutOfStock

6x10m side 2,5m

see dimensions

Color of the plating:

more >

3 325,79 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.

The plating with lighting windows guarantees a daily supply of light to the interior of the storage tent. Solid plank PVC is resistant to moisture and UV radiation. Under the roof you can store goods, perform repairs, perform production and segregation work. The hull is equipped with a system of easy length change Multi-size. Small, round windows are located in the upper side of the side walls, so the interior of the garage tent is not visible to outsiders.

Delivery and collection

Assembly and instructions

Configuration

Year-round tent hall

This tent will accommodate:

Number of EURO pallets approx. 60

Number of industrial pallets approx. 50

Number of custom palettes approx. 36

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 5-6 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

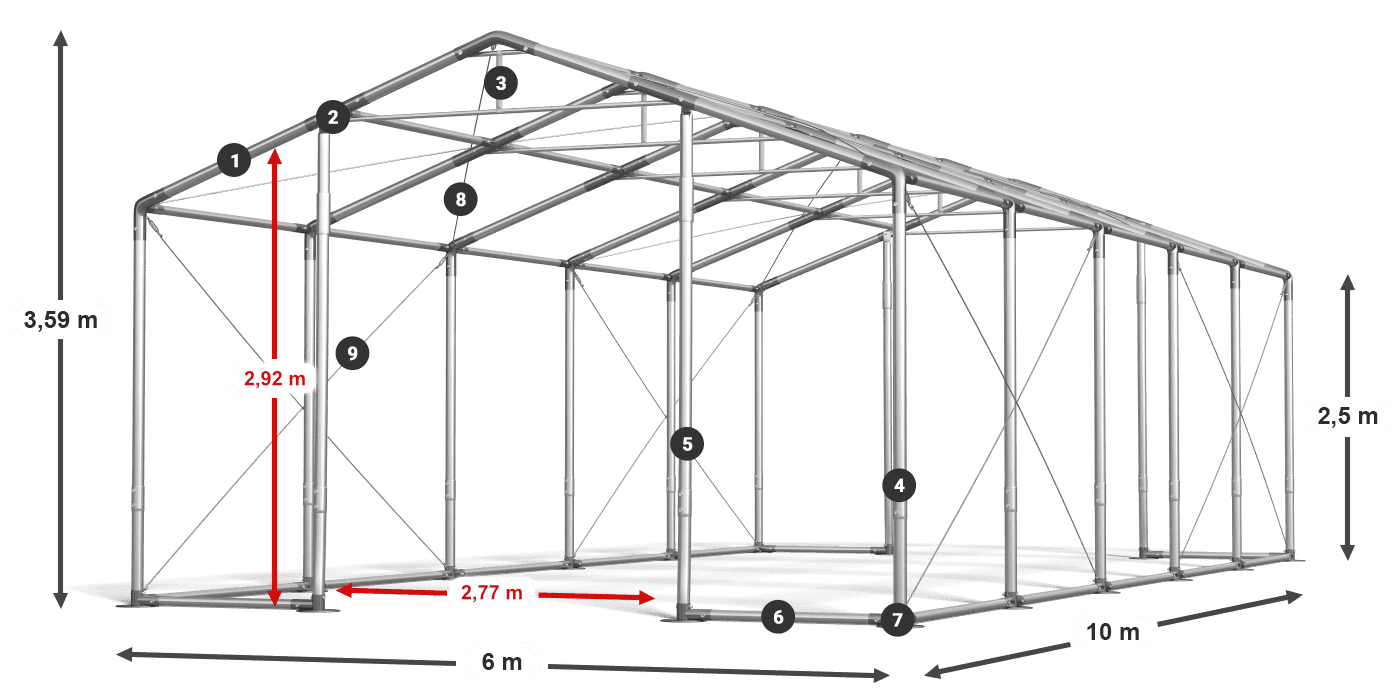

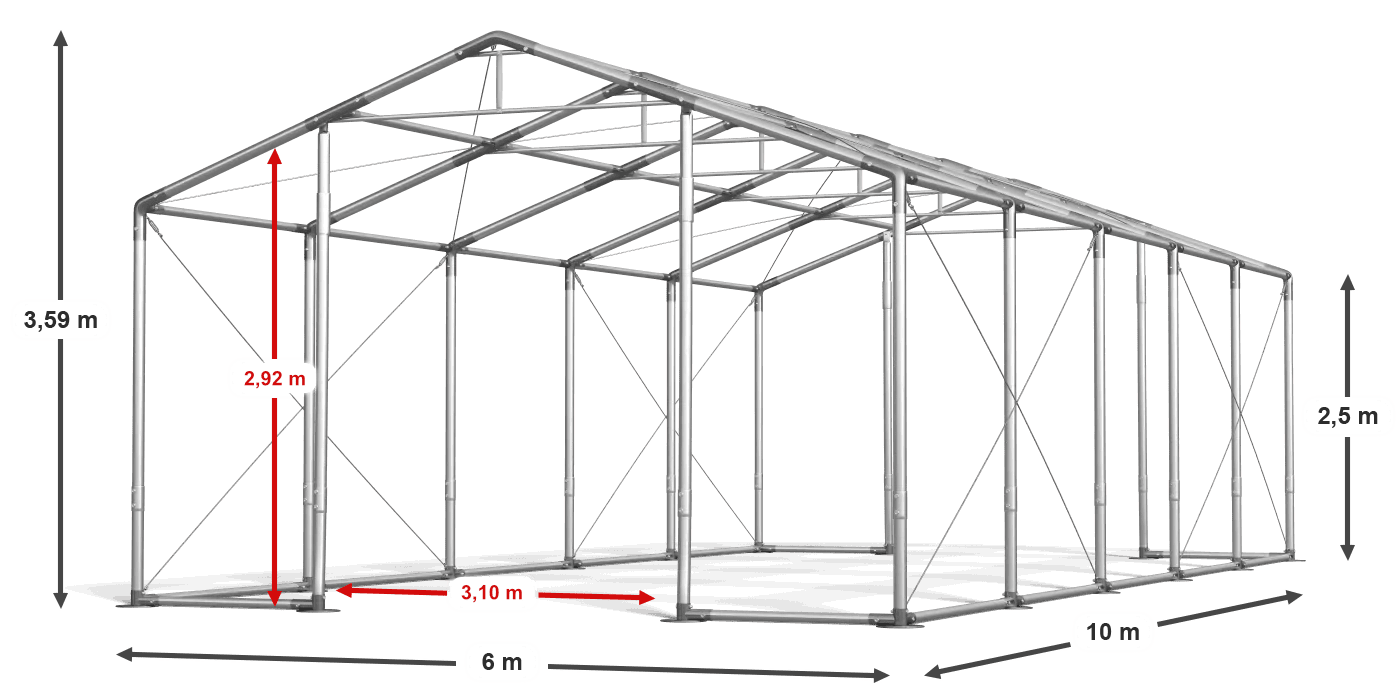

CONSTRUCTION

WINTER PLUS

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

Strings

Roof and side

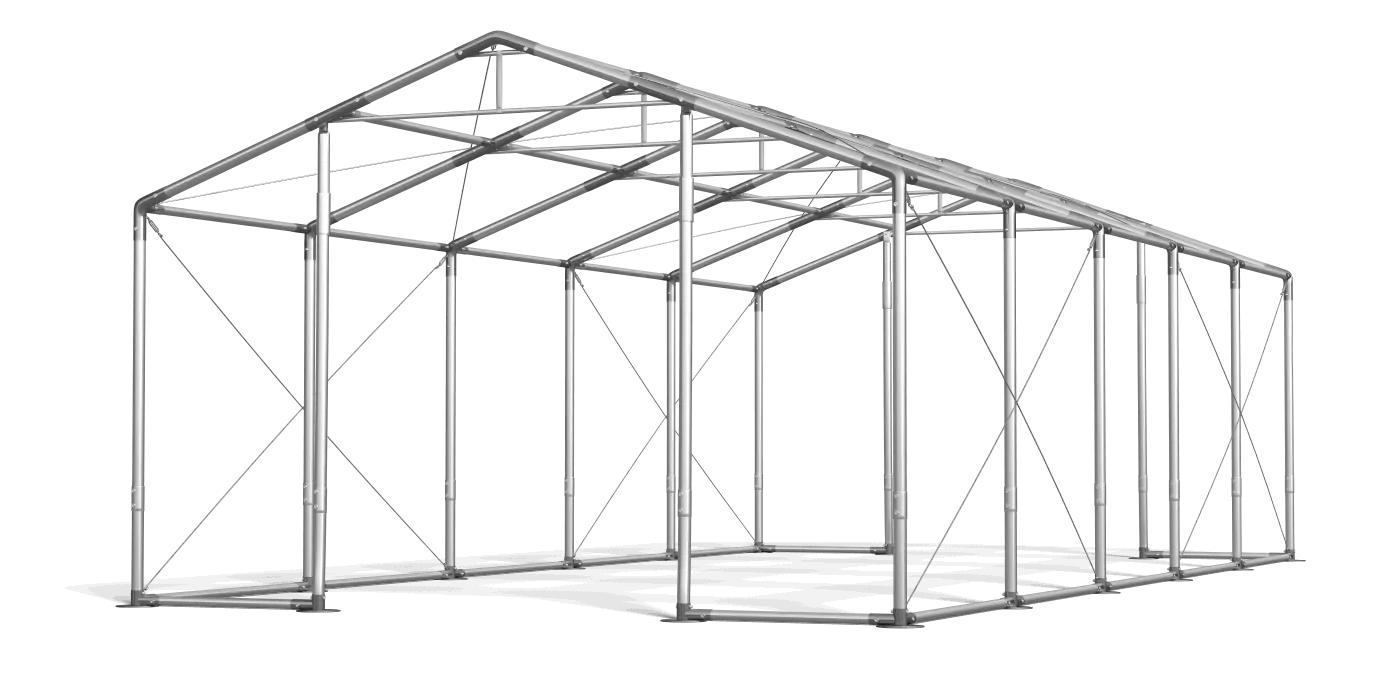

The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Strong screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm
Strings roofing
Strings side

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

Increased immunity

The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.

expand section

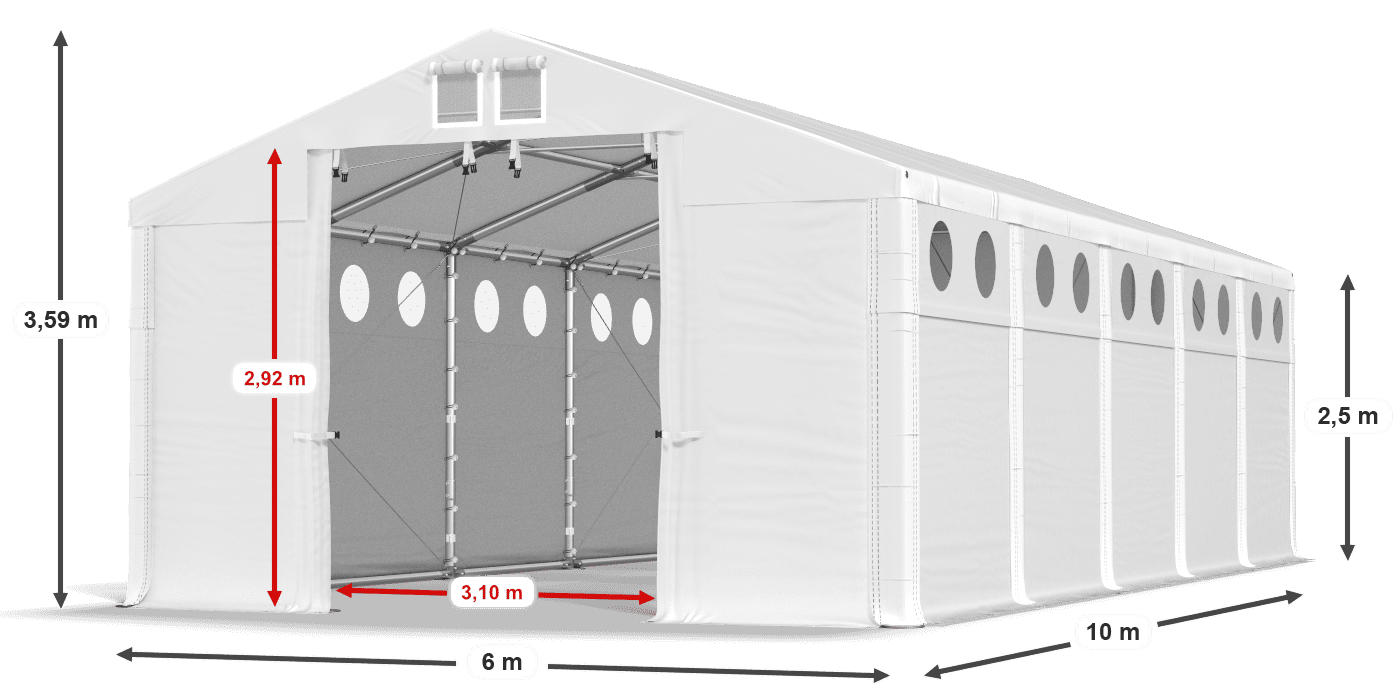

TARPAULIN

Roof: MS 580 PVC Walls: FR 620 PVC

Roof

Full okay. 580 g

Sides

With lighting approx. 620 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

Modular roof MS PVC (polyvinyl chloride) c. 580 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Fireproof side wall lifting FR PVC Okay. 2 x 0.5 m(polyvinyl chloride) c. 620 g/m² - Lighting windows 39 cm diameter
ExchangeableMaskers with sealing turnips
Fireproof side walls FR PVC 2 x 2 m (polyvinyl chloride) c. 620 g/m²
Additional Retention apron

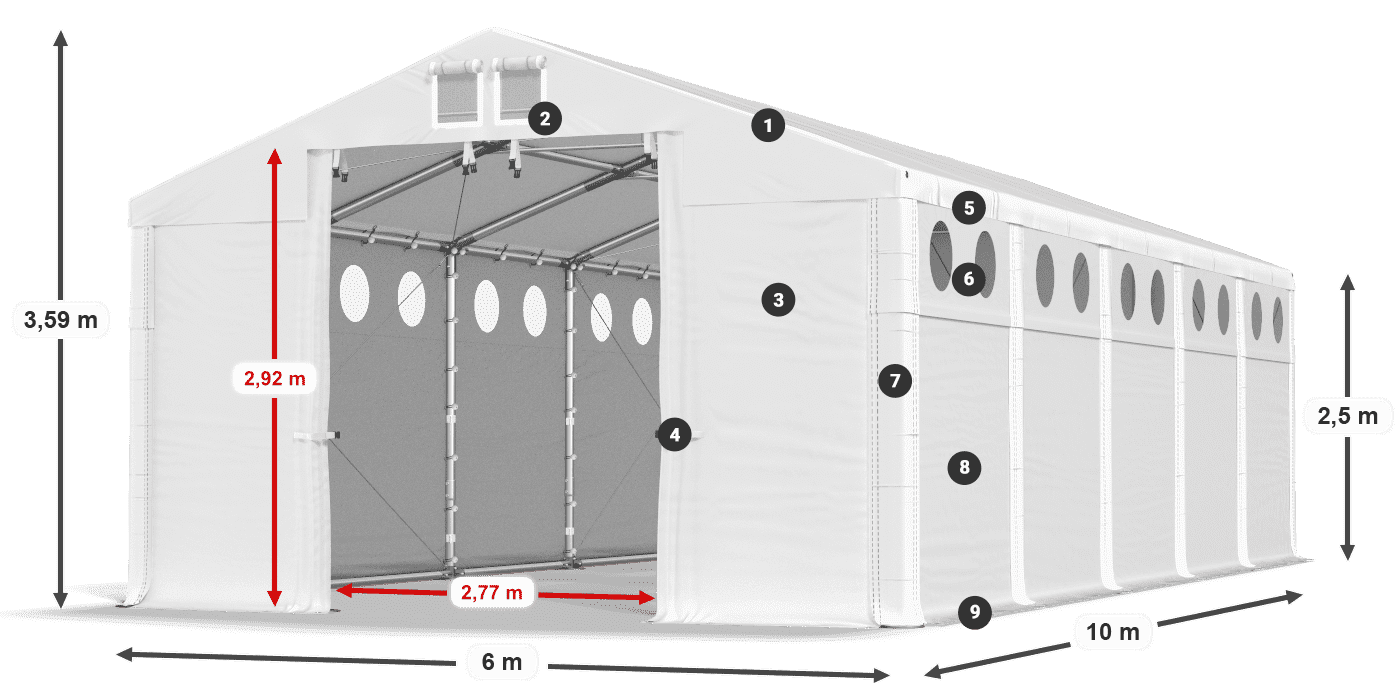

Roof: MS 580 PVC Walls: FR O 620 PVC 2.5m legend

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

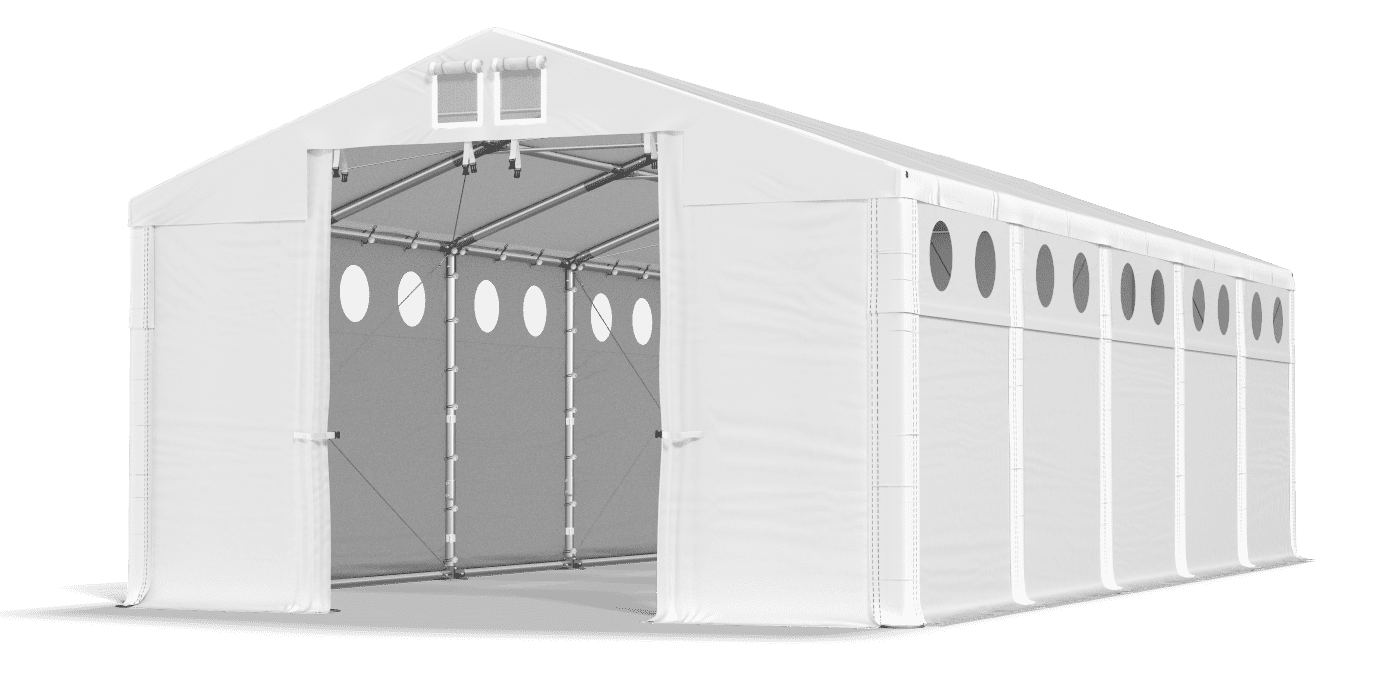

This type of hull is available from a height of 2.5 m. Round windows are placed at the top of the tent. This is a great solution for workshop tents, where lighting is needed, but we do not want what we do to be visible to outsiders.

Safety of use

The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Width

6 m

Lenght

10 m

Side height

2,5 m

Apex height

3,59 m

Surface

60 m²

Gate A

3,1 m x 2,92 m

Gate B

3,1 m x 2,92 m

Side entrance

Yes (approx. 2 m x 2,5 m)

Volume

152,76 m³

Number of packages

Weigh

363,30 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 580 g/m²

Sides density

~ 620 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

approx. 2 mm (diameter of steel ropes)

Side pulls

approx. 2 mm (diameter of steel ropes)

Roof supports

Side supports

Package

80.00cm × 200.00cm × 30.00cm - 187.45kg

Package

55.00cm × 65.00cm × 22.00cm - 38.00kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

20.00cm × 194.00cm × 13.50cm - 27.80kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

11.00cm × 72.00cm × 11.00cm - 5.00kg

Package

53.00cm × 63.00cm × 18.00cm - 26.35kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

35.00cm × 70.00cm × 20.00cm - 1.30kg

Package

35.00cm × 70.00cm × 20.00cm - 1.30kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

55.00cm × 65.00cm × 10.00cm - 11.00kg

Package

50.00cm × 59.00cm × 12.00cm - 14.20kg

Package

50.00cm × 59.00cm × 10.00cm - 9.50kg

Package

38.00cm × 38.00cm × 13.00cm - 5.30kg

Package

38.00cm × 38.00cm × 10.00cm - 3.55kg

Package

20.00cm × 25.00cm × 5.00cm - 0.50kg

Package

20.00cm × 25.00cm × 5.00cm - 0.50kg

Package

24.00cm × 30.00cm × 5.00cm - 0.65kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 23 packs on a pallet with a total weight of 363,30 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
