Year-round Industrial Tent | 6x11 m

Download PDF offer

article 257509

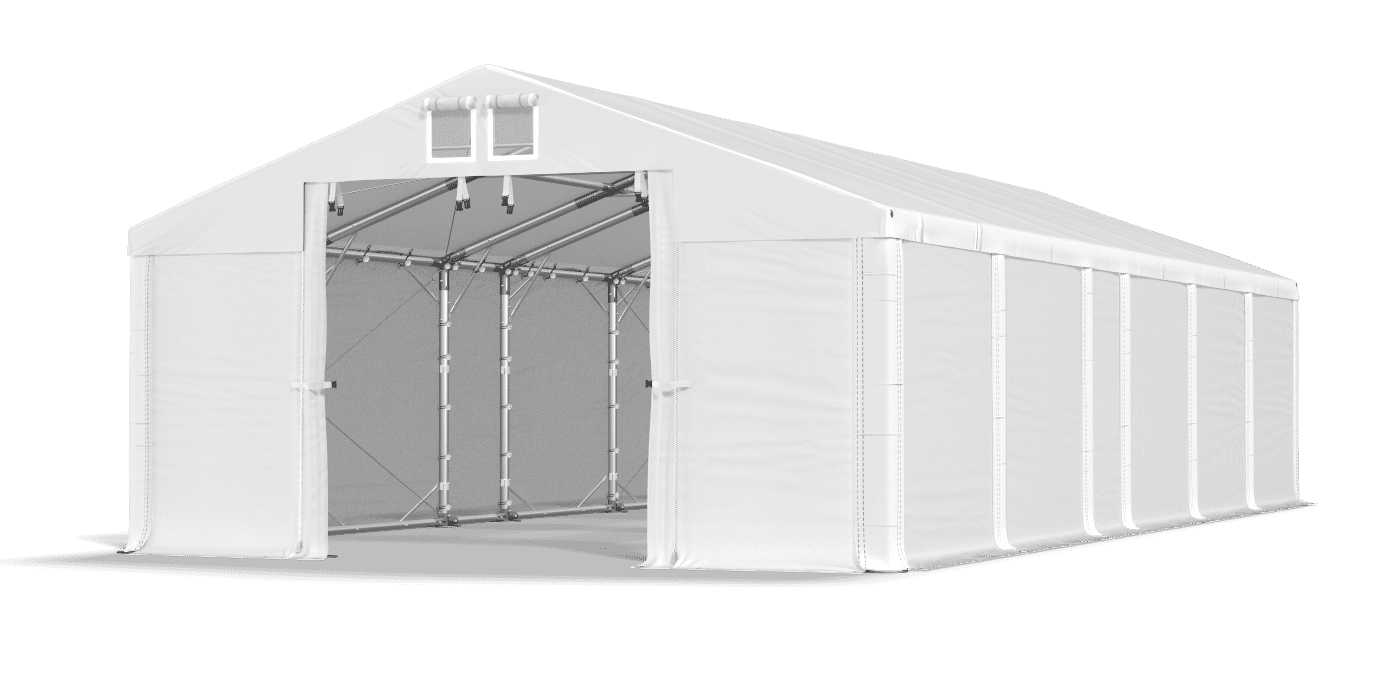

6x11 m Year-round Industrial Tent

Name: Year-round Industrial Tent
Brand: Das Company
SKU: 1D11A64104100221221212121
Price: 3258.95 EUR
Availability: OutOfStock

6x11m side 2m

see dimensions

Color of the plating:

more >

3 258,95 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The POLAR design can be used regardless of the season. It is made of solid steel elements. Additional reinforcements, tensions and struts ensure the strength of the frame.

Full, extremely tight covering protects goods, crops and vehicles stored in the warehouse tent. The tarpaulin is made of solid, high-weight PVC material. The cover is equipped with an easy length change system Multi-size. The tarpaulin isolates the contents of the storage tent from atmospheric factors such as wind, moisture, UV radiation, and pollution. Full covering without windows prevents unauthorized persons from seeing into the tent.

Delivery and collection

Assembly and instructions

Configuration

Year-round Industrial Tent

This tent will accommodate:

Number of EURO pallets approx. 65

Number of industrial pallets approx. 55

Number of custom palettes approx. 39

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 6-7 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

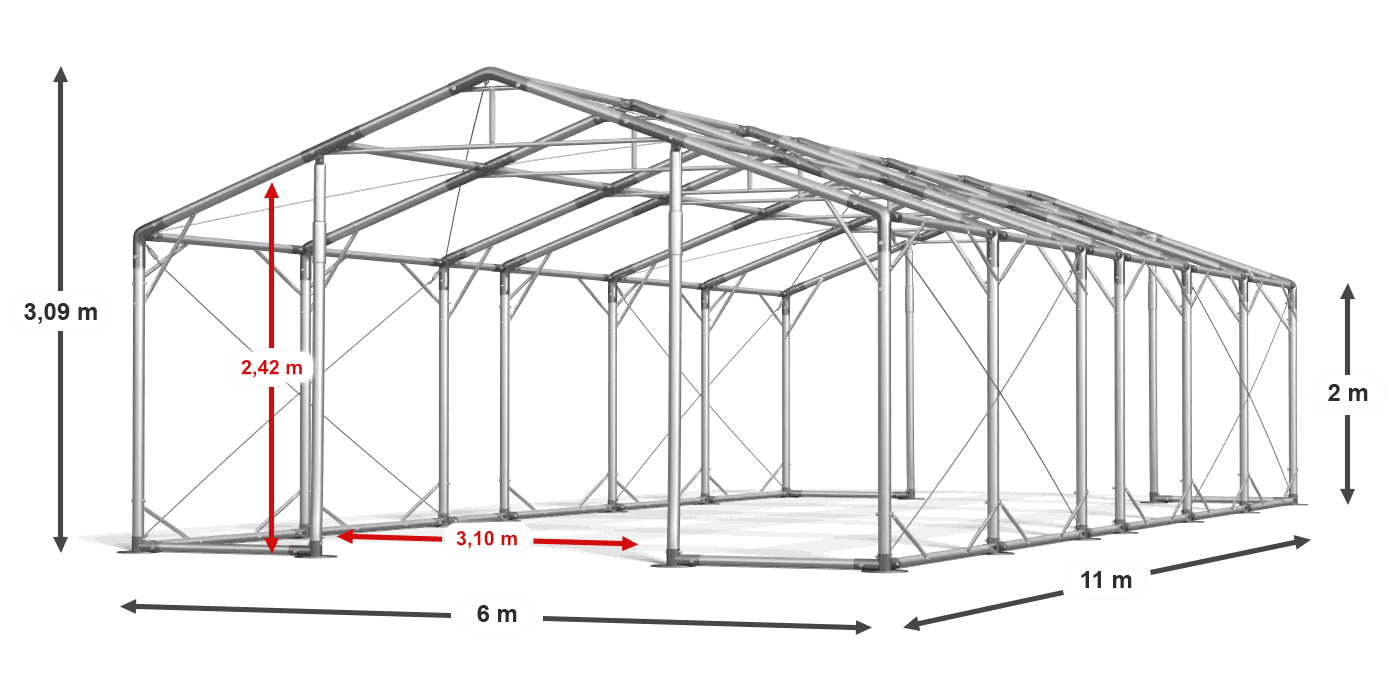

CONSTRUCTION

POLAR

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

Strings

Roof and side

Shots

Single roof and side

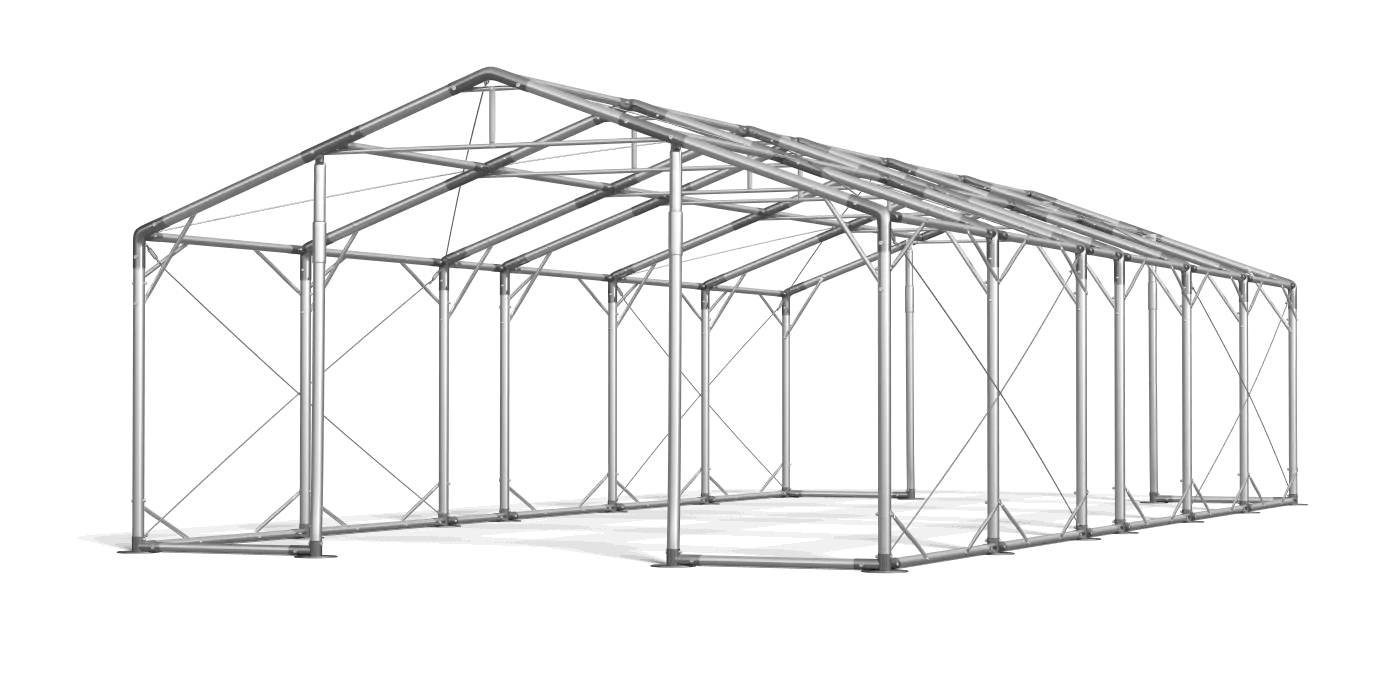

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,The tent can be moved very quickly where it is needed.

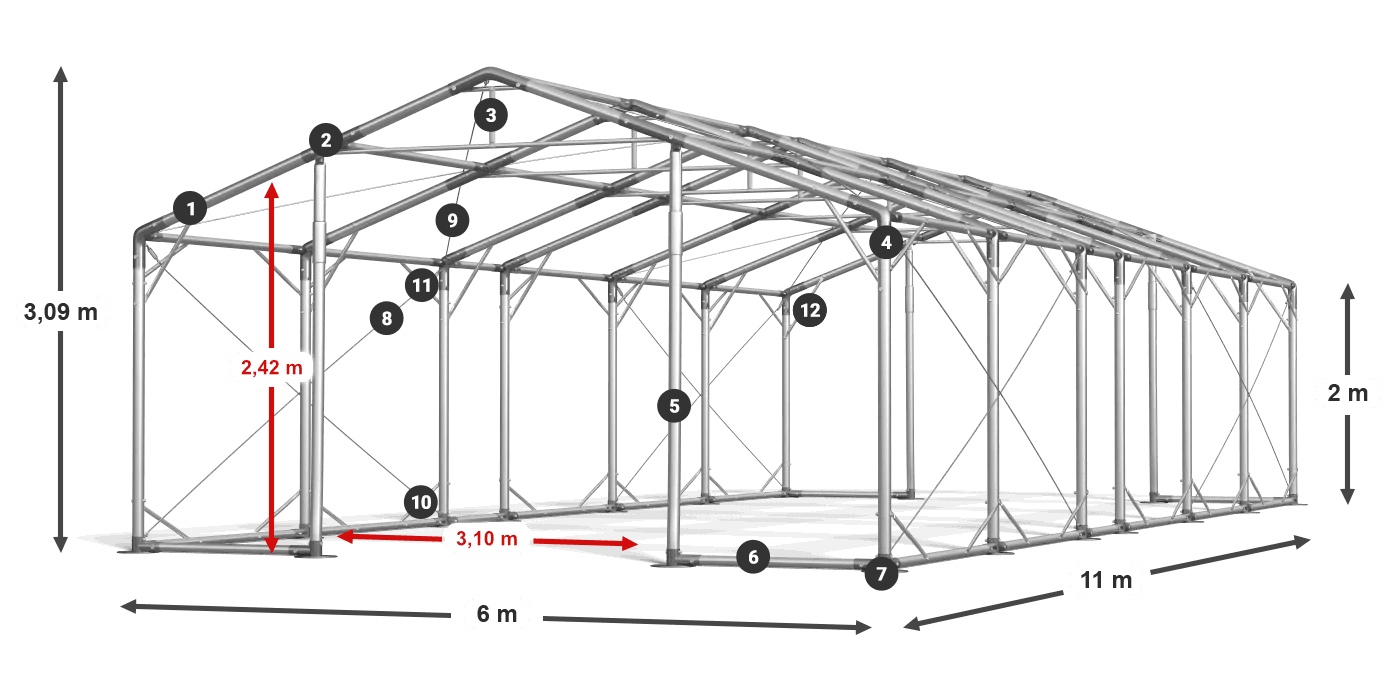

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Strong screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm
Strings side
Stringand roofing
Shots lower side
Shots upper side
Shots roofing

Greater snow resistance

Corner supports placed at the corners of the tent strengthen the structure and support the weight of snow on the roof.

Increased durability

Additional transverse upper and lower brackets were used on all side walls. Thanks to them, the tent is protected against stronger gusts of wind.

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

Increased immunity

The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.

expand section

TARPAULIN

FLEX M

Roof

Full okay. 580 g

Sides

Full ok. 580 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

The roof and side walls in this type of hull are approximately 580 g/m². It is resistant to strong gusts of wind or greater snowfall. The planks of this type can be used in year-round garage tents as well as as as long-term storage tents.

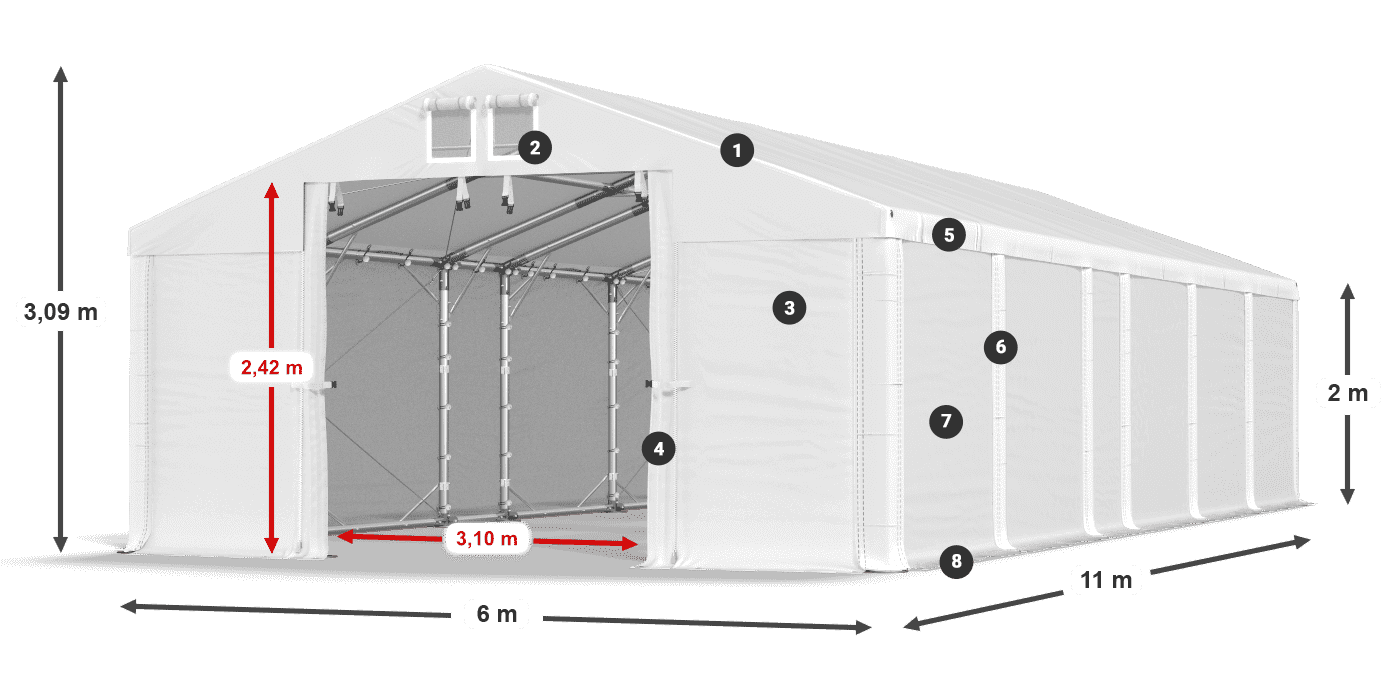

System roof MS PVC (polyvinyl chloride) c. 580 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Solid YKK locks at entrances
Sealing turnips
ExchangeableMaskers with sealing turnips
Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m²
Additional Retention apron

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Adjust the tent to your needs

You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Change colors

The covers that connect the side walls and seal the tent are available in many colors. Thanks to the fact that they are mounted with Velcro, you can quickly change them and give the tents a new color.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05902613401333

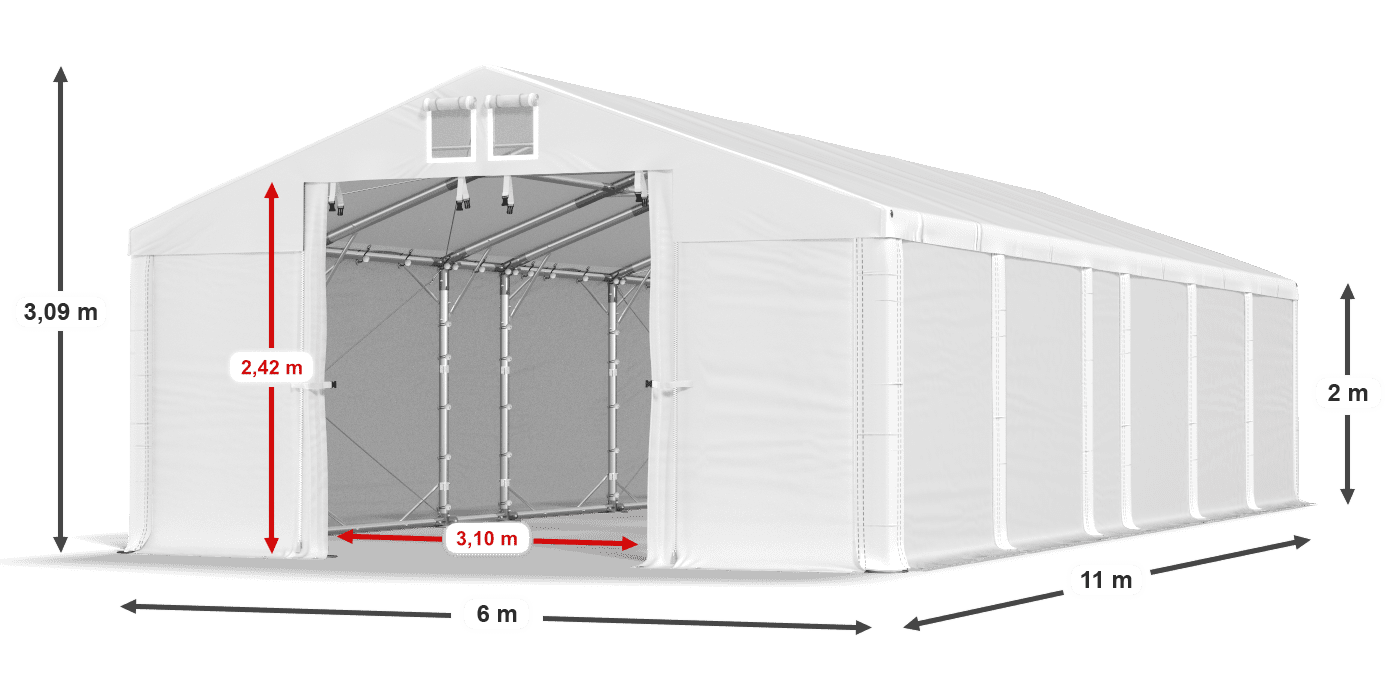

Width

6 m

Lenght

11 m

Side height

2 m

Apex height

3,09 m

Surface

66 m²

Gate A

3,1 m x 2,42 m

Gate B

3,1 m x 2,42 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

168,03 m³

Number of packages

Weigh

380,05 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 580 g/m²

Sides density

~ 580 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

approx. 2 mm (diameter of steel ropes)

Side pulls

approx. 2 mm (diameter of steel ropes)

Roof supports

approx. 25 mm

Side supports

Package

80.00cm × 200.00cm × 30.00cm - 187.45kg

Package

55.00cm × 65.00cm × 22.00cm - 38.00kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

20.00cm × 194.00cm × 13.50cm - 27.80kg

Package

50.00cm × 50.00cm × 15.00cm - 8.25kg

Package

20.00cm × 191.00cm × 12.50cm - 22.00kg

Package

45.00cm × 55.00cm × 12.00cm - 13.40kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package
