6x12 m Year-round Industrial Tent

Name: Year-round Industrial Tent
Brand: Das Company
SKU: 1D12B74103101221221212121
Price: 4527.89 EUR
Availability: OutOfStock

6x12m side 2,5m

see dimensions

Color of the plating:

more >

4 527,89 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

POLAR PLUS construction is an exceptionally durable all-season structure that consists of strong steel elements. The frame has reinforcements, tensions and double braces.

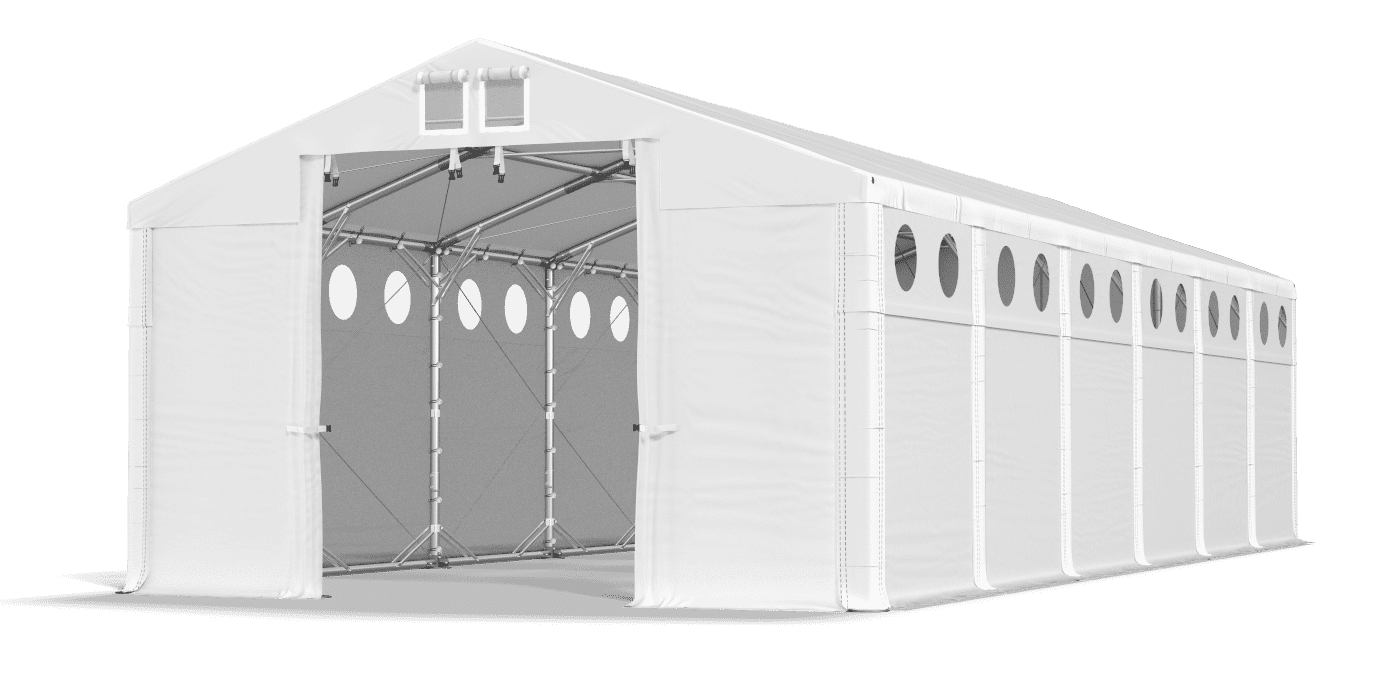

A tarpaulin with small, round windows provides natural light into the interior of the storage tent. Small windows providing light are placed in the upper part of the side walls. Thanks to this, the interior of the storage tent is invisible to outsiders. The tight and durable cover is made of strong, waterproof PVC. Thanks to this, we can store building materials, tools, crops, sports equipment, as well as raw materials and trade goods under it.

Delivery and collection

Assembly and instructions

Configuration

Year-round Industrial Tent

This tent will accommodate:

Number of EURO pallets approx. 75

Number of industrial pallets approx. 60

Number of custom palettes approx. 45

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 7-8 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

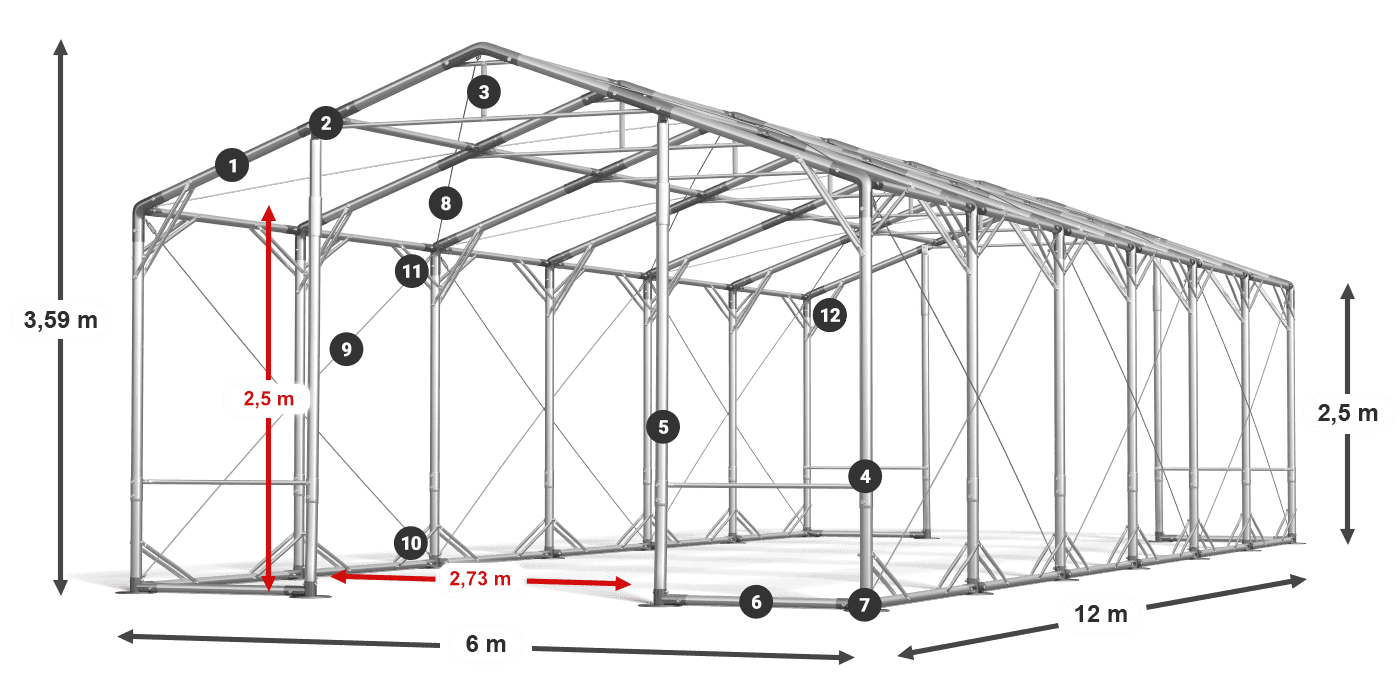

CONSTRUCTION

POLAR PLUS

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

Strings

Roof and side

Shots

Double roof and side

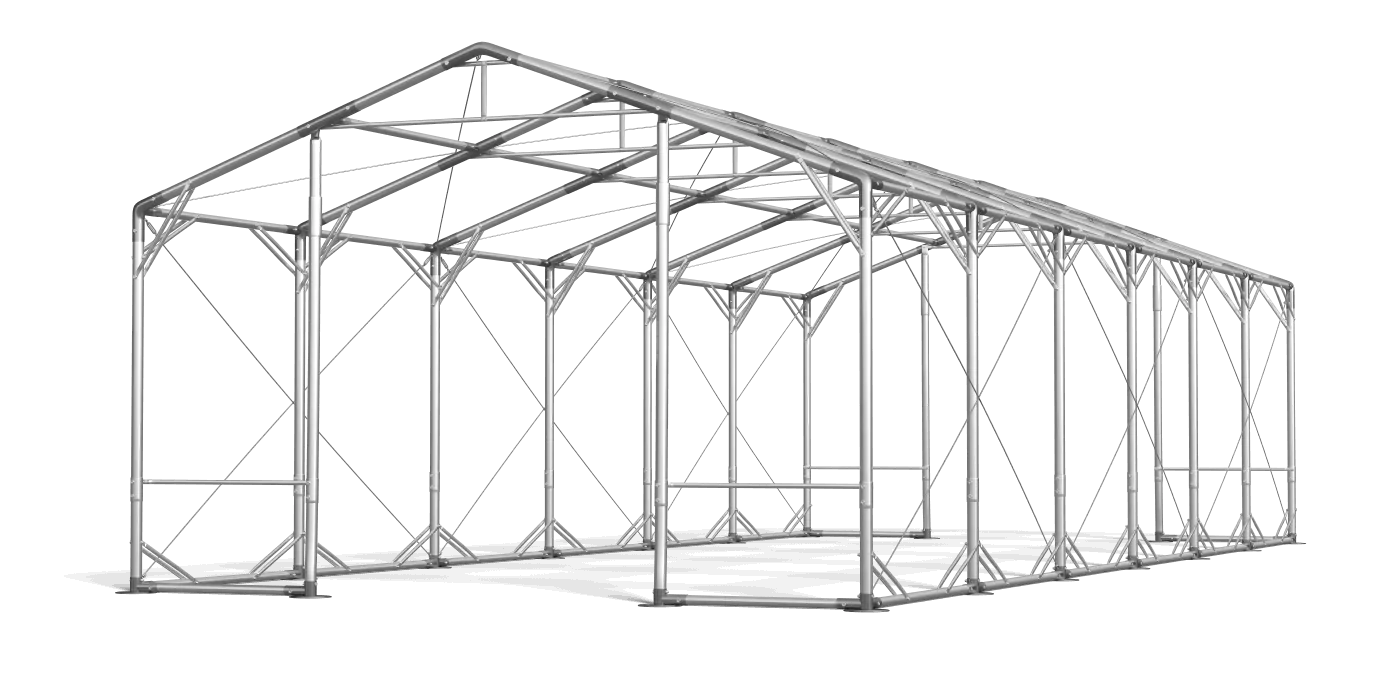

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,The tent can be moved very quickly where it is needed.

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Strong screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm
Strings roofing
Strings side
Double shots lower side
Double shots upper side
Double shots roofing

Maximum snow resistance

The roof structure is equipped with additional corner supports that relieve the main structure and take part of the weight of the snow. This is the best and most innovative system that currently exists on the market.

Maximum durability

Additional transverse upper and lower brackets were used on all side walls. Thanks to them, the tent is maximally resistant to strong and gusty gusts of wind. This is the most effective way to protect against this type of weather conditions.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

Increased immunity

The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.

expand section

TARPAULIN

Roof: MS 580 PVC Walls: SD 500 PVC

Roof

Full okay. 580 g

Sides

With lighting approx. 500 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

Tents with these walls are available from the height of the side wall 2.5m. Round windows measuring about 50 cm are placed in the upper side of the side walls. Thanks to this placement, the interior of the tent is illuminated, but invisible to outsiders.

Modular roof MS PVC (polyvinyl chloride) c. 580 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Lifting the side wall SD PVC Okay. 2 x 0.5 m(polyvinyl chloride) c. 500 g/m² - Lighting windows 39 cm diameter
ExchangeableMaskers with sealing turnips
Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m²
Additional Retention apron

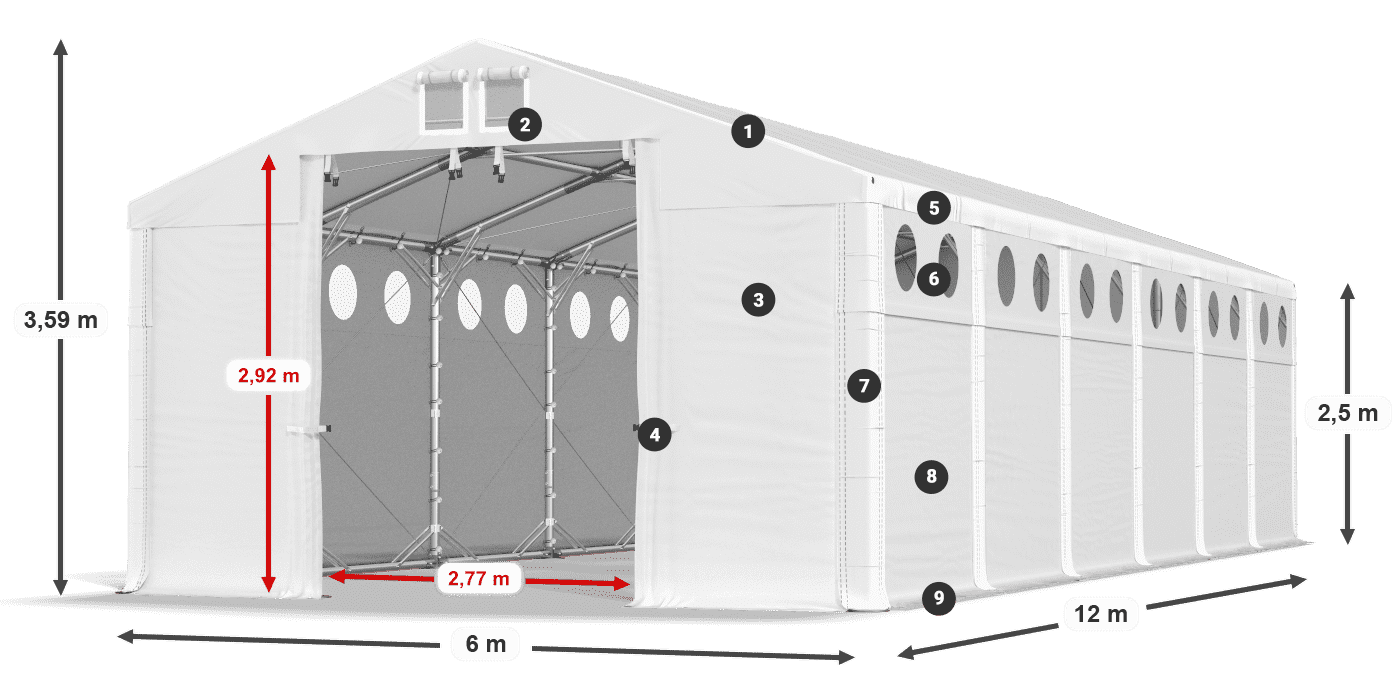

Roof: MS 580 PVC Walls: SD O 500 PVC 2.5m legend

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

expand section

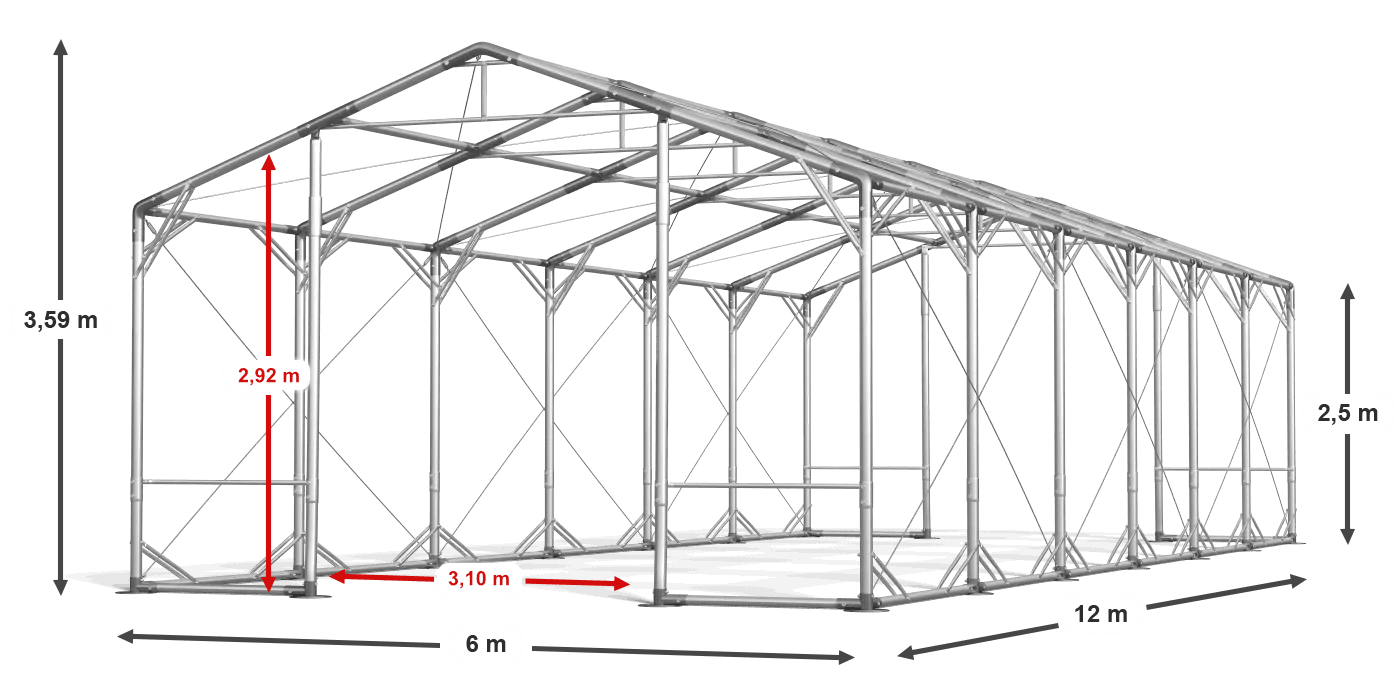

Technical data

General

Tarpaulins

Constructions

Packages

Width

6 m

Lenght

12 m

Side height

2,5 m

Apex height

3,59 m

Surface

72 m²

Gate A

3,1 m x 2,92 m

Gate B

3,1 m x 2,92 m

Side entrance

Yes (approx. 2 m x 2,5 m)

Volume

183,31 m³

Number of packages

Weigh

454,05 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 580 g/m²

Sides density

~ 500 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

approx. 2 mm (diameter of steel ropes)

Side pulls

approx. 2 mm (diameter of steel ropes)

Roof supports

approx. 25 mm

Side supports

Package

80.00cm × 200.00cm × 30.00cm - 187.45kg

Package

55.00cm × 65.00cm × 22.00cm - 38.00kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

20.00cm × 194.00cm × 13.50cm - 27.80kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

20.00cm × 194.00cm × 13.50cm - 27.80kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

45.00cm × 55.00cm × 16.00cm - 18.20kg

Package

7.00cm × 142.00cm × 7.00cm - 2.80kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg
