6x15 m Year-round tent hall

Name: Year-round tent hall
Brand: Das Company
SKU: 1D15B56106101501261212121
Price: 7133.34 EUR
Availability: OutOfStock

6x15m side 2,5m

see dimensions

Color of the plating:

more >

SPECIAL OFFER

7 133,34 €

Includes 23% VAT

Lowest price 30 days before the promotion: 8 392,16 €
Catalouge price: 8 392,16 €

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.

Strong covering with light windows allows for parking vehicles, storing goods and performing assembly work. The flame-retardant tarpaulin made of PVC is waterproof, tight and resistant to UV radiation. We can store crops, construction materials and raw materials in a dry and shaded storage tent. Round windows provide natural light. The tarpaulin has a quick length change system Multi-size.

Delivery and collection

Assembly and instructions

Configuration

Year-round tent hall

This tent will accommodate:

Number of EURO pallets approx. 90

Number of industrial pallets approx. 75

Number of custom palettes approx. 54

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 6-7 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

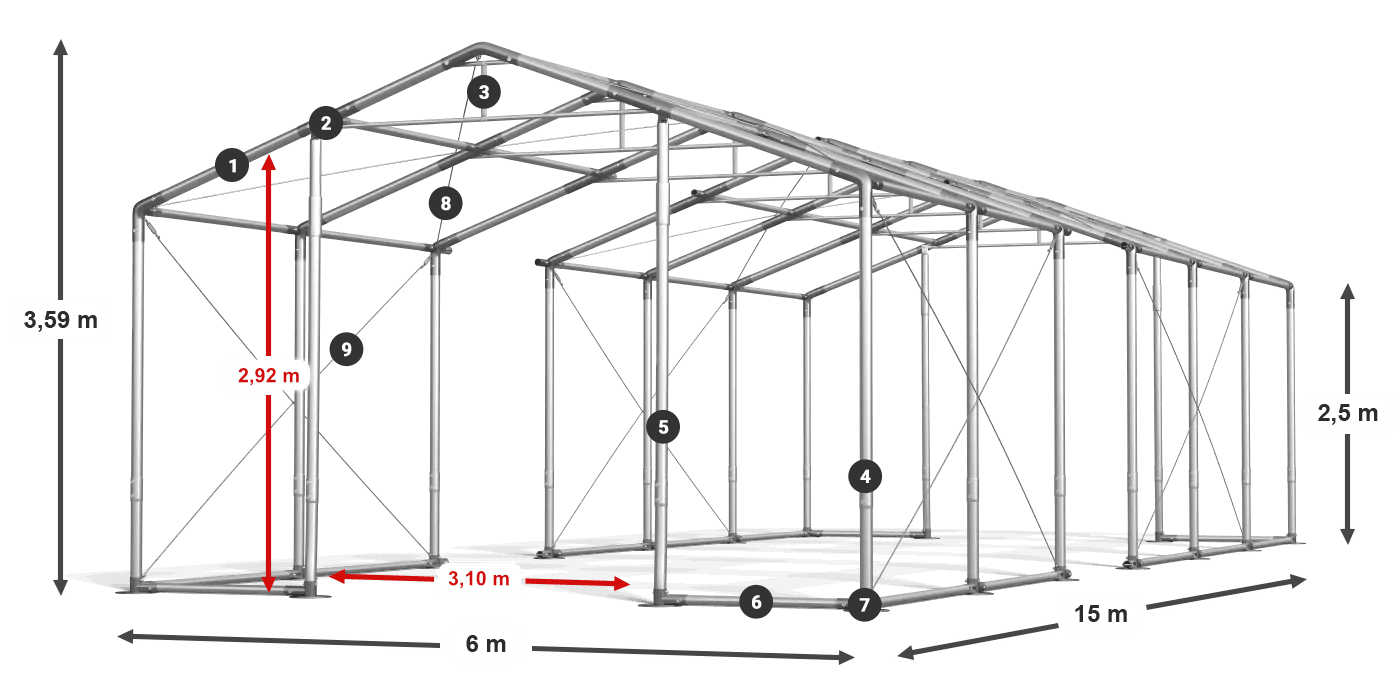

CONSTRUCTION

WINTER PLUS

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

Strings

Roof and side

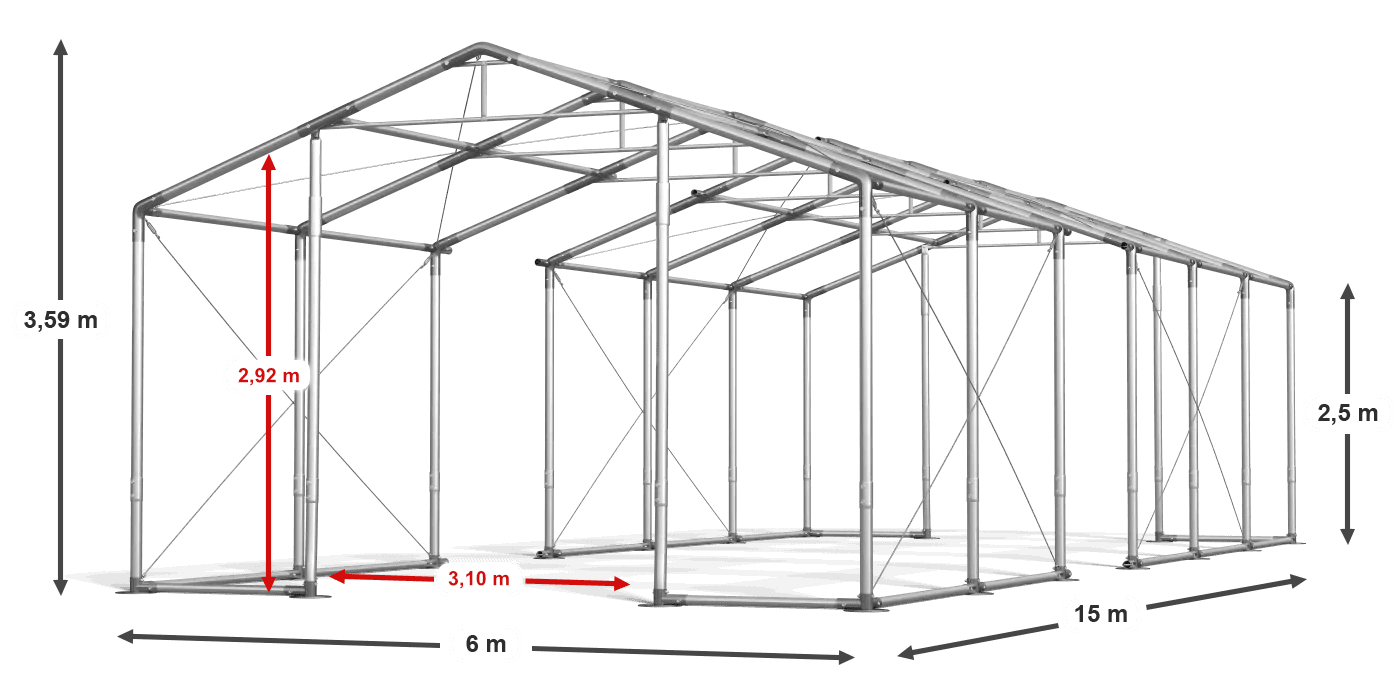

The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Strong screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm
Strings roofing
Strings side

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

Increased immunity

The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.

expand section

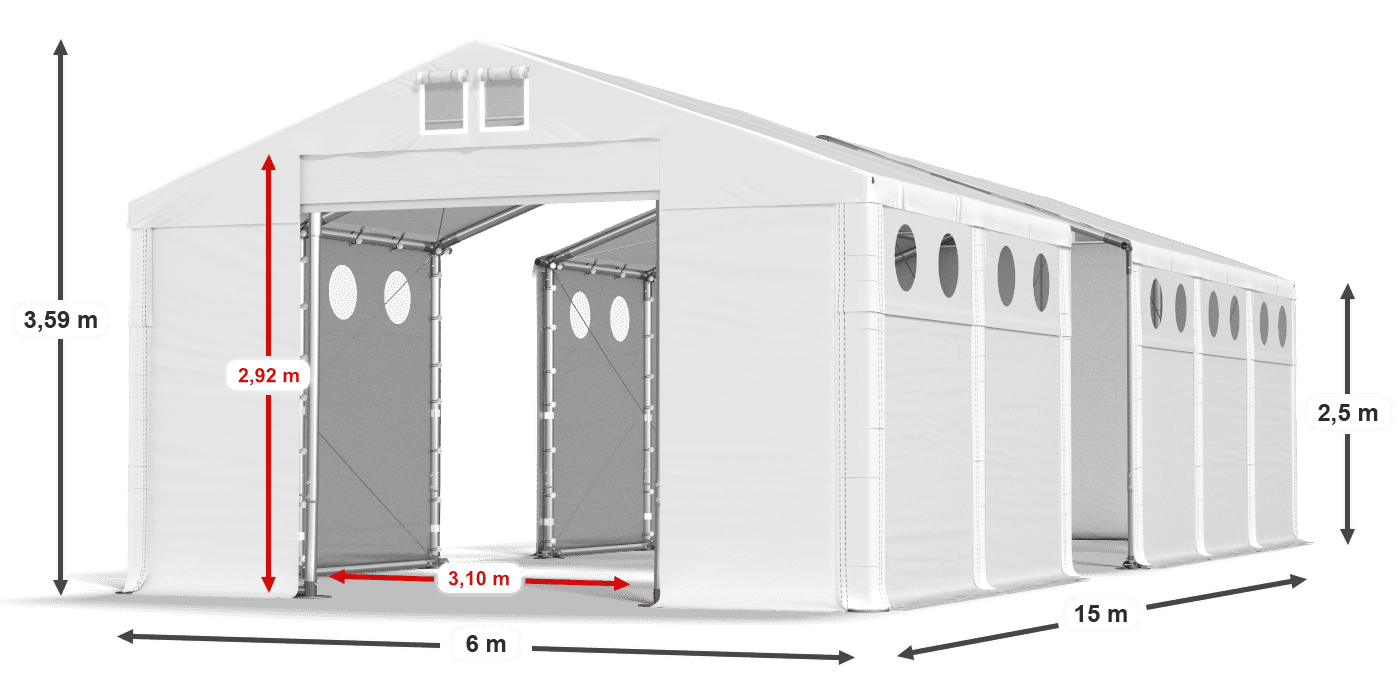

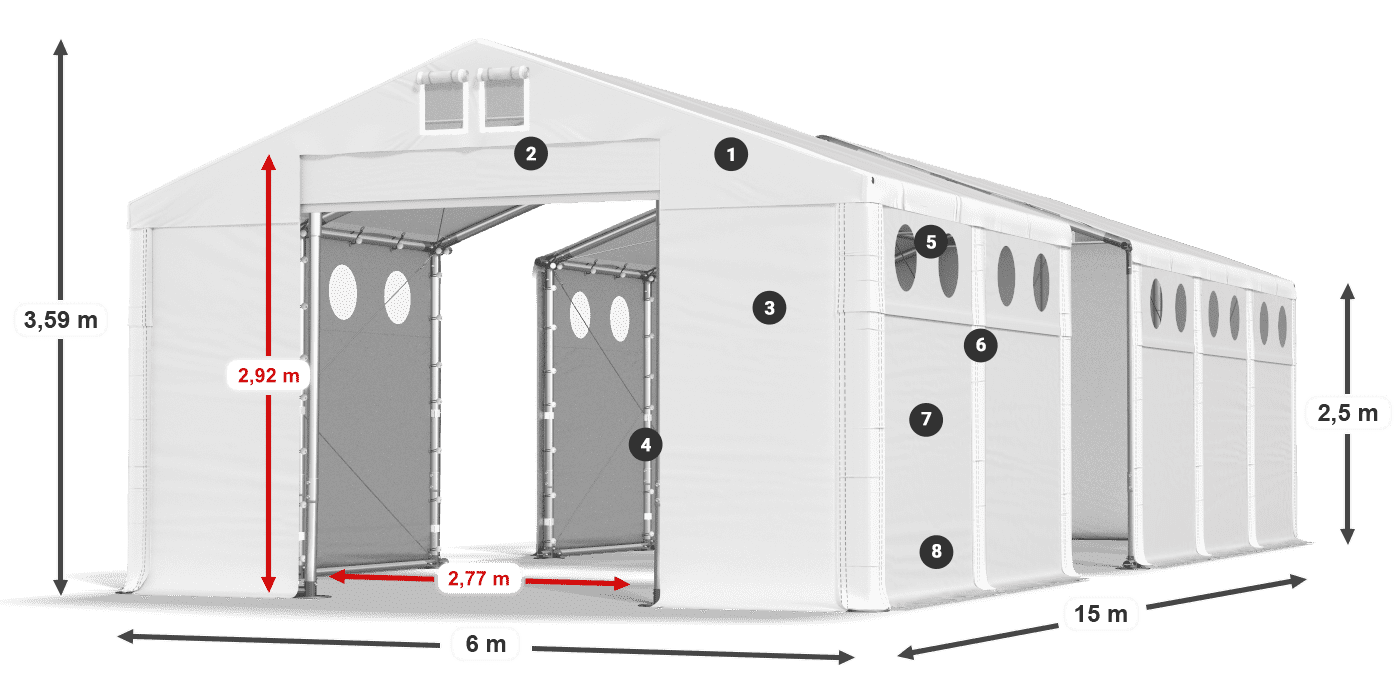

TARPAULIN

LUX O

Roof

Full okay. 620 g

Sides

Full ok. 620 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

Flammable

Yes.

These tents will work as a workshop tent, where, for example, welding works are held. In the upper part of the hull there are round windows, thanks to which there is a supply of daylight inside the tent.

Fireproof modular roof FR PVC (polyvinyl chloride) ~620 g/m²
Double ventilation of both sides
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Fireproof side wall lifting FR PVC ~2 x 2 m(polyvinyl chloride) ~620 g/m² - Lighting windows 39cm diameter
Exchangeable Maskers with sealing turnips
Fireproof side walls FR PVC 2 x 2 m (polyvinyl chloride) ~620 g/m²
Additional Retention apron

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Safety of use

The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Width

6 m

Lenght

15 m

Side height

2,5 m

Apex height

3,59 m

Surface

90 m²

Gate A

3,24 m x 2,5 m

Gate B

3,1 m x 2,92 m

Side entrance

Yes (approx. 2 m x 2,5 m)

Volume

229,14 m³

Number of packages

Weigh

561,27 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 620 g/m²

Sides density

~ 620 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Yes

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

approx. 2 mm (diameter of steel ropes)

Side pulls

approx. 2 mm (diameter of steel ropes)

Roof supports

Side supports

Package

80.00cm × 200.00cm × 30.00cm - 187.45kg

Package

59.00cm × 68.00cm × 27.00cm - 42.32kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

20.00cm × 194.00cm × 13.50cm - 27.80kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

20.00cm × 194.00cm × 13.50cm - 27.80kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

20.00cm × 194.00cm × 13.50cm - 27.80kg

Package

50.00cm × 50.00cm × 15.00cm - 8.25kg

Package

20.00cm × 191.00cm × 12.50cm - 22.00kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

11.00cm × 72.00cm × 11.00cm - 5.00kg

Package

30.00cm × 50.00cm × 7.00cm - 4.80kg

Package

27.00cm × 33.00cm × 11.00cm - 3.70kg

Package

50.00cm × 60.00cm × 8.00cm - 9.05kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

37.00cm × 73.00cm × 22.00cm - 1.30kg

Package

35.00cm × 70.00cm × 20.00cm - 1.30kg

Package

35.00cm × 70.00cm × 20.00cm - 1.30kg

Package

35.00cm × 70.00cm × 20.00cm - 1.30kg

Package

25.00cm × 30.00cm × 11.00cm - 1.85kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

43.00cm × 53.00cm × 16.00cm - 12.25kg

Package

43.00cm × 53.00cm × 16.00cm - 12.25kg

Package

43.00cm × 53.00cm × 16.00cm - 12.25kg

Package

45.00cm × 53.00cm × 14.00cm - 8.00kg

Package

8.00cm × 216.00cm × 8.00cm - 4.90kg

Package

11.00cm × 222.00cm × 9.00cm - 9.45kg

Package

11.00cm × 222.00cm × 9.00cm - 9.45kg

Package

11.00cm × 222.00cm × 9.00cm - 9.45kg

Package

7.00cm × 124.00cm × 8.00cm - 2.60kg

Package

50.00cm × 59.00cm × 12.00cm - 14.20kg

Package

50.00cm × 59.00cm × 10.00cm - 9.50kg

Package

50.00cm × 59.00cm × 10.00cm - 9.50kg

Package

33.00cm × 48.00cm × 10.00cm - 3.10kg

Package

38.00cm × 38.00cm × 13.00cm - 5.30kg

Package

38.00cm × 38.00cm × 10.00cm - 3.55kg

Package

38.00cm × 38.00cm × 10.00cm - 3.55kg

Package

38.00cm × 38.00cm × 7.00cm - 1.30kg

Package

24.00cm × 25.00cm × 5.00cm - 0.70kg

Package

20.00cm × 25.00cm × 5.00cm - 0.50kg

Package

20.00cm × 25.00cm × 5.00cm - 0.50kg

Package

24.00cm × 30.00cm × 5.00cm - 0.65kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 48 packs on a pallet with a total weight of 561,27 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
