Reinforced party tent | 6x16 m
pobierz pdf
Download PDF offer
Open entrance tent
tent construction

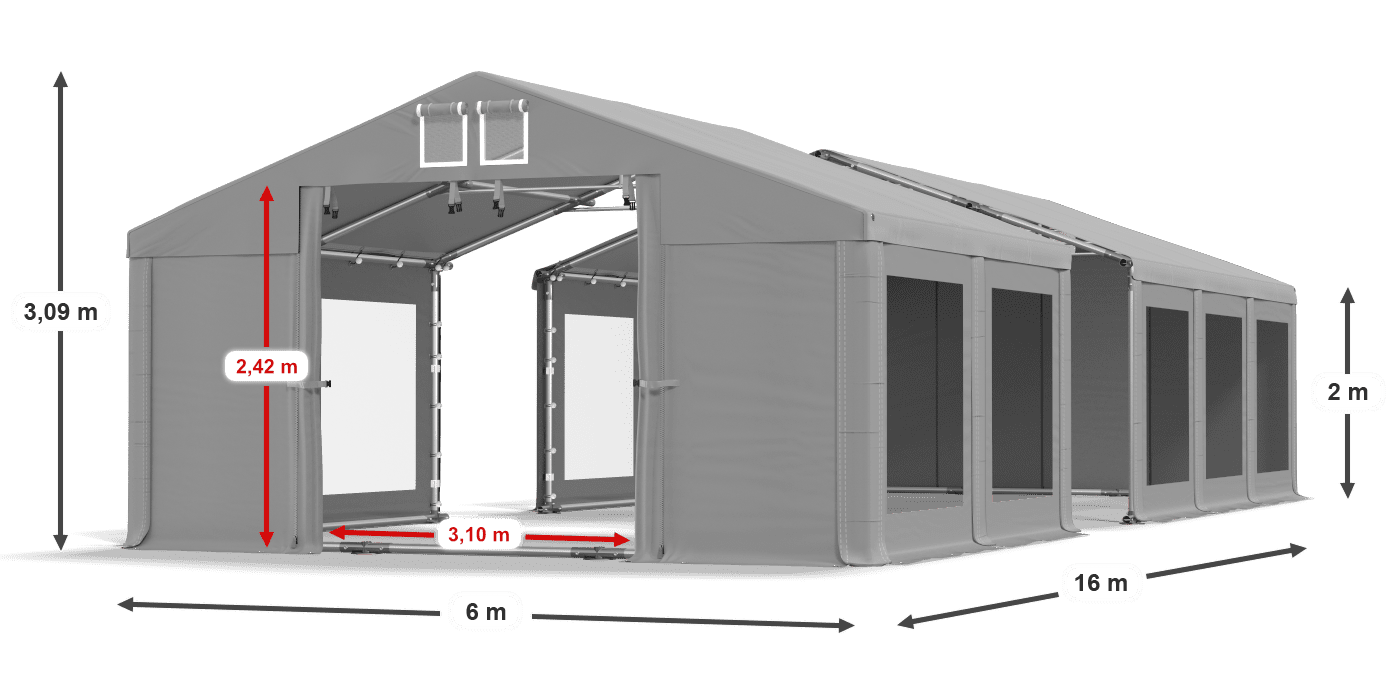

sheathing legend

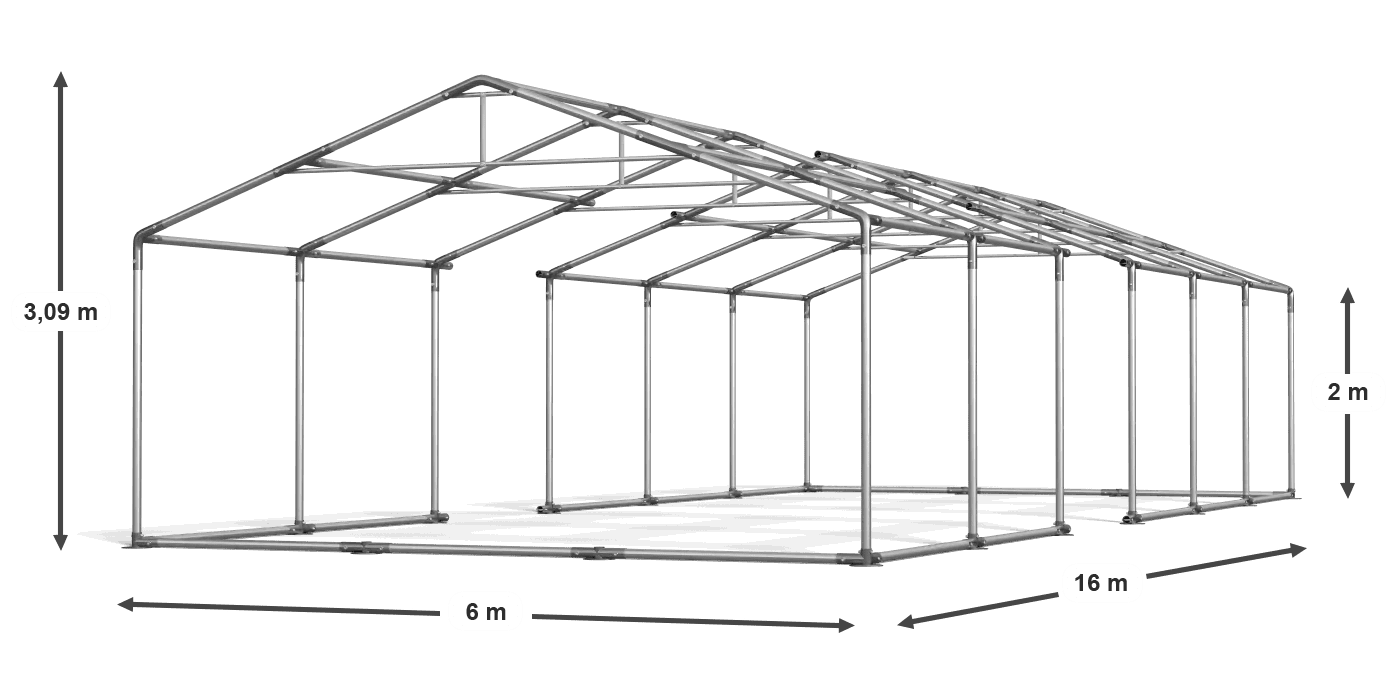

legend construction
front gate
Construction rates

article 1299642
6x16 m Reinforced party tent

6x16m side 2m
see dimensions
Color of the plating:
more >
4 105,64 €

Includes 23% VAT

contact info
Out of stock. Check the available offer or contact us.
Need help choosing?
Call us: info.ie@dascompany.com
FREE CONSULTATION
Description

The seasonal structure SUMMER PLUS is made of galvanized steel. This is the strongest summer frame, equipped with a lower frame and upper reinforcements.

The cover with transparent sides is made of high-weight PVC. The tarpaulin is waterproof and resistant to UV radiation, so it guarantees a dry and shaded space when organizing family events and business receptions. Transparent side walls provide excellent lighting for tables and buffets. It is also an excellent commercial tent and tent gazebo. The tarpaulin has a quick length change system Multi-size.

About the product
Construction
Tarpaulin
Technical data
Delivery and collection
Assembly and instructions
Configuration
Reinforced party tent
This tent will accommodate:
standing places

approx. 192 standing places

space for chairs

approx. 147 chair seats

places on the benches

approx. 128 seats on the benches

available configurations

Over 30,000 configurations

parts available

Access to parts for expansion and service

warranty on parts availability

10 years warranty for the availability of substitute elements

Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
Delivery time: 22 June already with you
Simple assembly:
Simple assembly: ok 6-7 hours / 5-6 people
Das Company - Party and storage tents
medal
We have been operating since
2012
advising
We advise on configuration, assembly and service
supply
We deliver to 10 countries in Europe

CONSTRUCTION

SUMMER PLUS
Pipes
Steel ca. fi 38 mm
Connectors
Steel ca. fi 42 mm
Rates
Steel fi 9 cm
Construction isdurable and easy to install.That way, except fast.folding,The tent can be easily moved where it is currently needed.

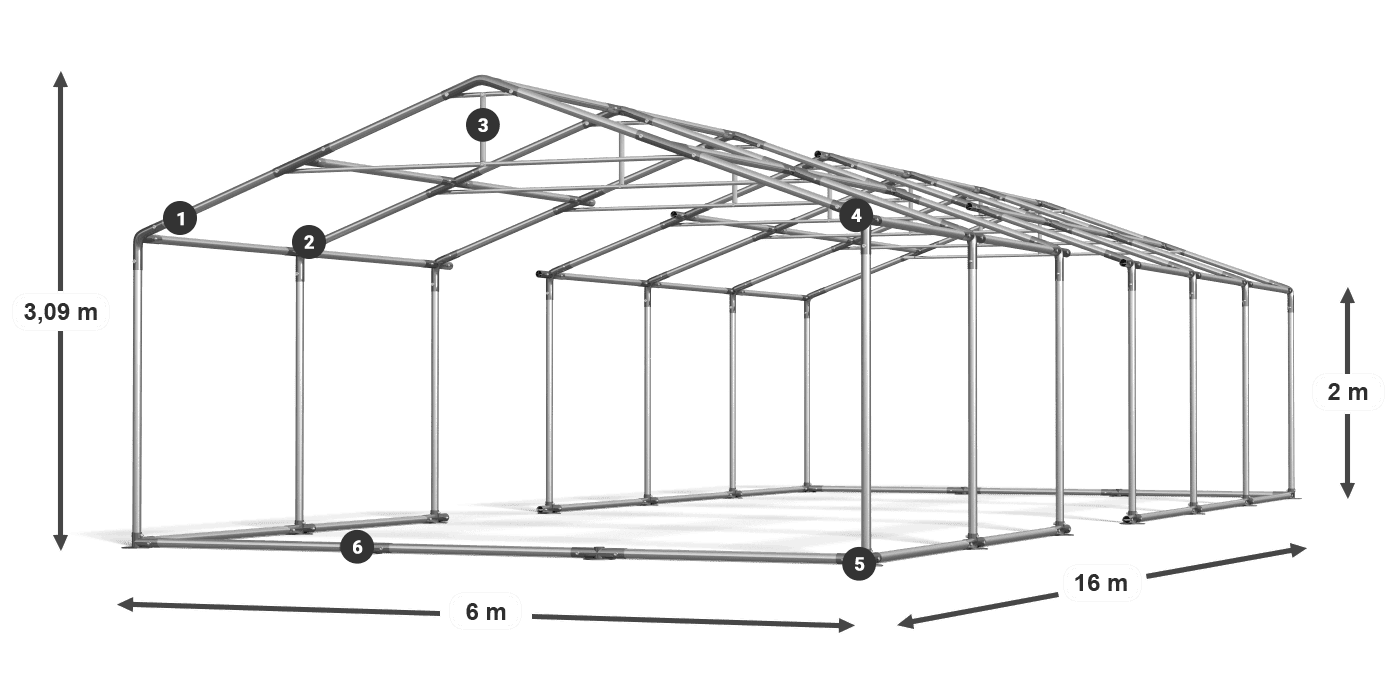

  1. Construction pipes approx. fi 38 mm
  2. Structure connectors approx. fi 42 mm
  3. Reinforced roof structure
  4. Strong screws, that go through
  5. Rate fi 9 cm
  6. Reinforced Floor construction
SUMMER PLUS legend
Increased durability
The additional structure consists of a lower frame and upper reinforcements. This solution provides greater load-bearing capacity and structure stiffness.
Roof and floor structure
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
A new way of connecting structures
Many years of operation
We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.
Strong galvanized pipes
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.
Through-hole screws
Stable construction
Stable feet with a diameter of 9 cm were installed in the lower part of the structure. Thanks to them, anchoring the tent is much more durable, regardless of the type of ground.
Strong feet, diameter 9 cm
expand section

TARPAULIN

Roof: FR 620 PVC Walls: MS 580 PVC
Roof
Full okay. 620 g
Sides
Transparent approx. 580 g
Air-control Double vents
Yes.
Hermetic Greater tightness
Yes.
Multi-size Easy to change length
Yes.
The single wall is equipped with a large, completely transparent window. Such a window shines very well inside the tent. This is therefore the right choice when we want our products or goods to be visible from the outside.
  1. Fireproof modular roof FR PVC (polyvinyl chloride) c. 620 g/m²
  2. Double ventilation placed on both sides of the tent
  3. Type-ins Slide & Roll
  4. Strong YKK locks at entrances
  5. Sealing turnips
  6. ExchangeableMaskers with sealing turnips
  7. Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m² - Transparent windows144 x 148 cm
  8. Additional Retention apron
Roof: FR 620 PVC Walls: MS 580 PVC 2m legend
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Roof system Multi-size
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
System Hermetic
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Retention Apron
Adjust the tent to your needs
You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.
Any combination of walls
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
System Air Control
Full illumination
The side wall is made of thick tarpaulin PVC approx. 580 g/m². Thanks to the transparent side wall, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent
Transparent windows
Any color selection
The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.
Color Mix system
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Material
(polyvinyl chloride)
Roof densityt
~ 620 g/m2
Sides density
~ 580 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
No
DELIVERY AND COLLECTION
Packages
Packages
Your order will be packed in 31 packs on a pallet with a total weight of 414,72 kg.
Delivery
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Person assembly
Editing with 5-6 people.
Assembly time
On average in 6-7 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
