Reinforced Storage Tent | 6x20 m

Download PDF offer

article 571626
6x20 m Reinforced Storage Tent

Name: Reinforced Storage Tent
Brand: Das Company
SKU: 1D20A35205200762762323232
Price: 3399.27 EUR
Availability: InStock

6x20m side 2m

see dimensions

Color of the plating:

more >

SPECIAL OFFER

3 399,27 €

Includes 23% VAT

Lowest price 30 days before the promotion: 3 999,14 €
Catalouge price: 3 999,14 €

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The seasonal structure SUMMER PLUS is made of galvanized steel. This is the strongest summer frame, equipped with a lower frame and upper reinforcements.

A full, gray tarpaulin made of high-weight PVC perfectly isolates goods and vehicles stored under a roof from weather conditions. The strong, year-round tarpaulin is equipped with an additional, smaller entrance, which is located next to the large entrance gate. This is an excellent storage tent and a solid garage tent. The waterproof and flame-retardant covering allows workshop and production work to be carried out in the tent hall.

Delivery and collection

Assembly and instructions

Configuration

Reinforced Storage Tent

This tent will accommodate:

Number of EURO pallets approx. 125

Number of industrial pallets approx. 100

Number of custom palettes approx. 75

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 1 July already with you

Simple assembly: ok 6-7 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

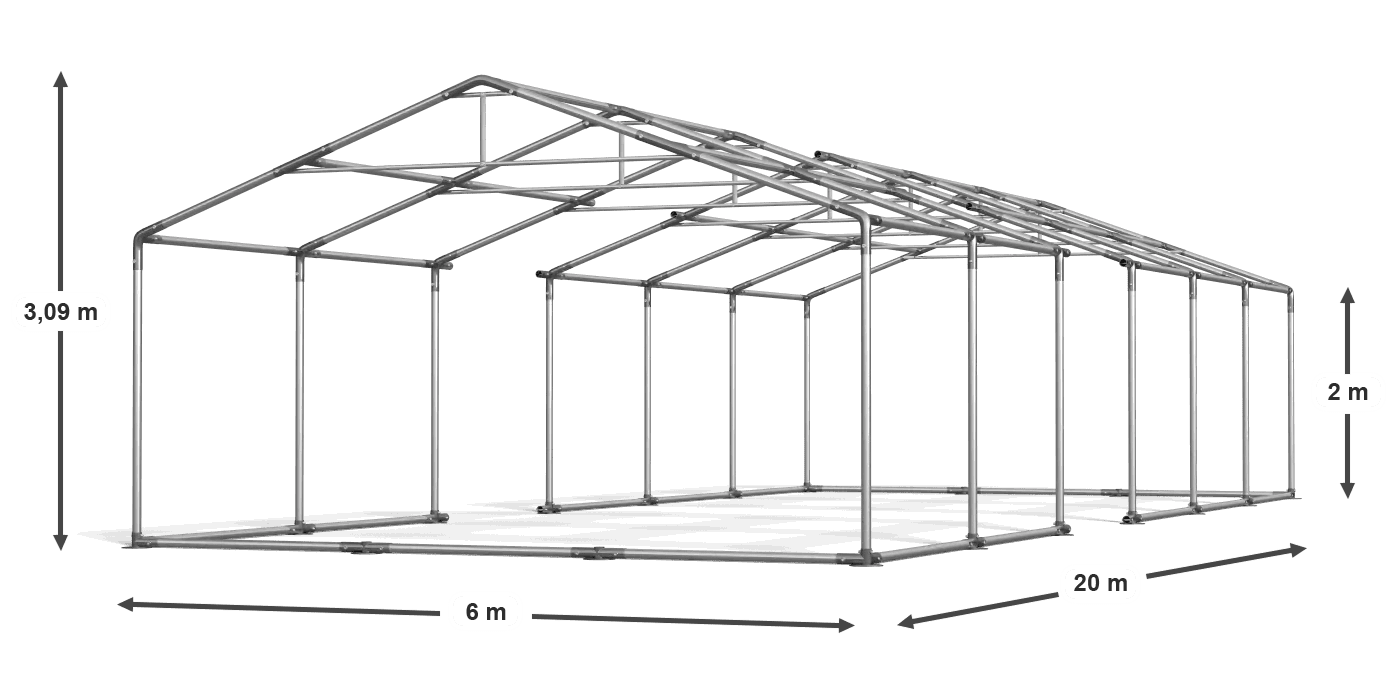

CONSTRUCTION

SUMMER PLUS

Pipes

Steel ca. fi 38 mm

Connectors

Steel ca. fi 42 mm

Rates

Steel fi 9 cm

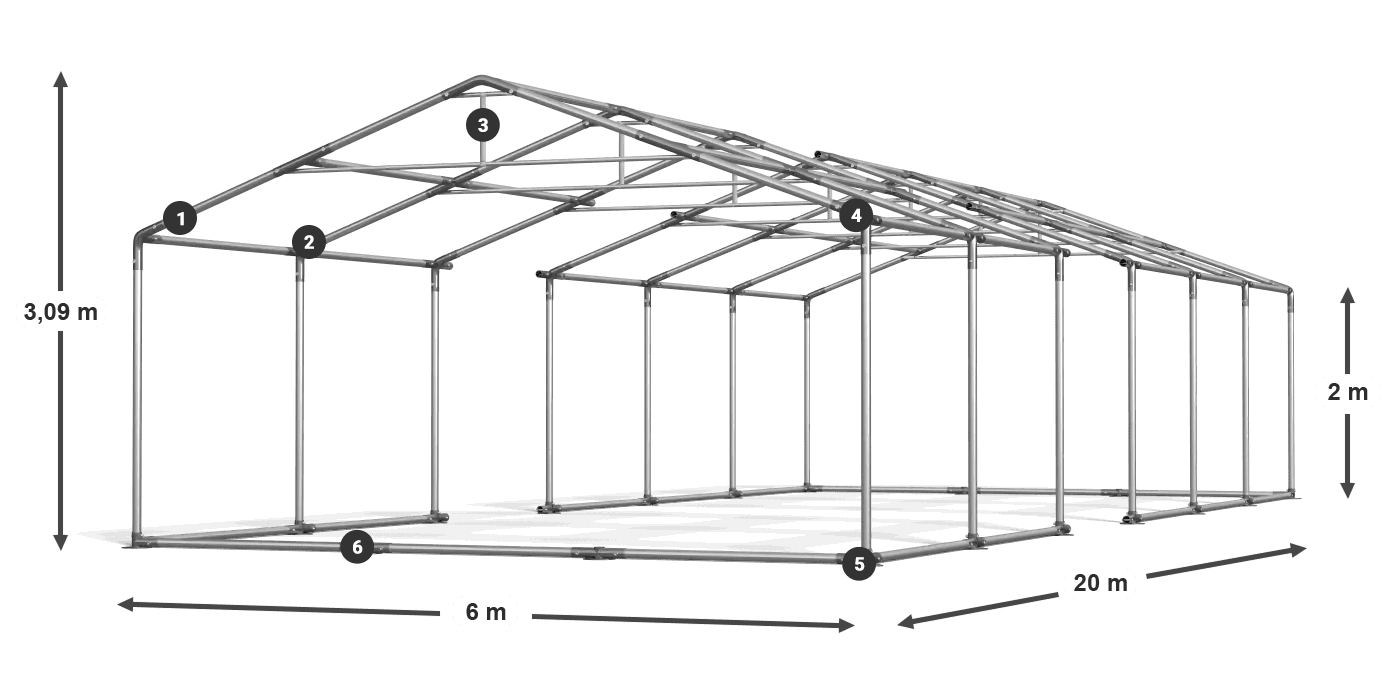

Construction isdurable and easy to install.That way, except fast.folding,The tent can be easily moved where it is currently needed.

Construction pipes approx. fi 38 mm
Structure connectors approx. fi 42 mm
Reinforced roof structure
Strong screws, that go through
Rate fi 9 cm
Reinforced Floor construction

Increased durability

The additional structure consists of a lower frame and upper reinforcements. This solution provides greater load-bearing capacity and structure stiffness.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Stable construction

Stable feet with a diameter of 9 cm were installed in the lower part of the structure. Thanks to them, anchoring the tent is much more durable, regardless of the type of ground.

expand section

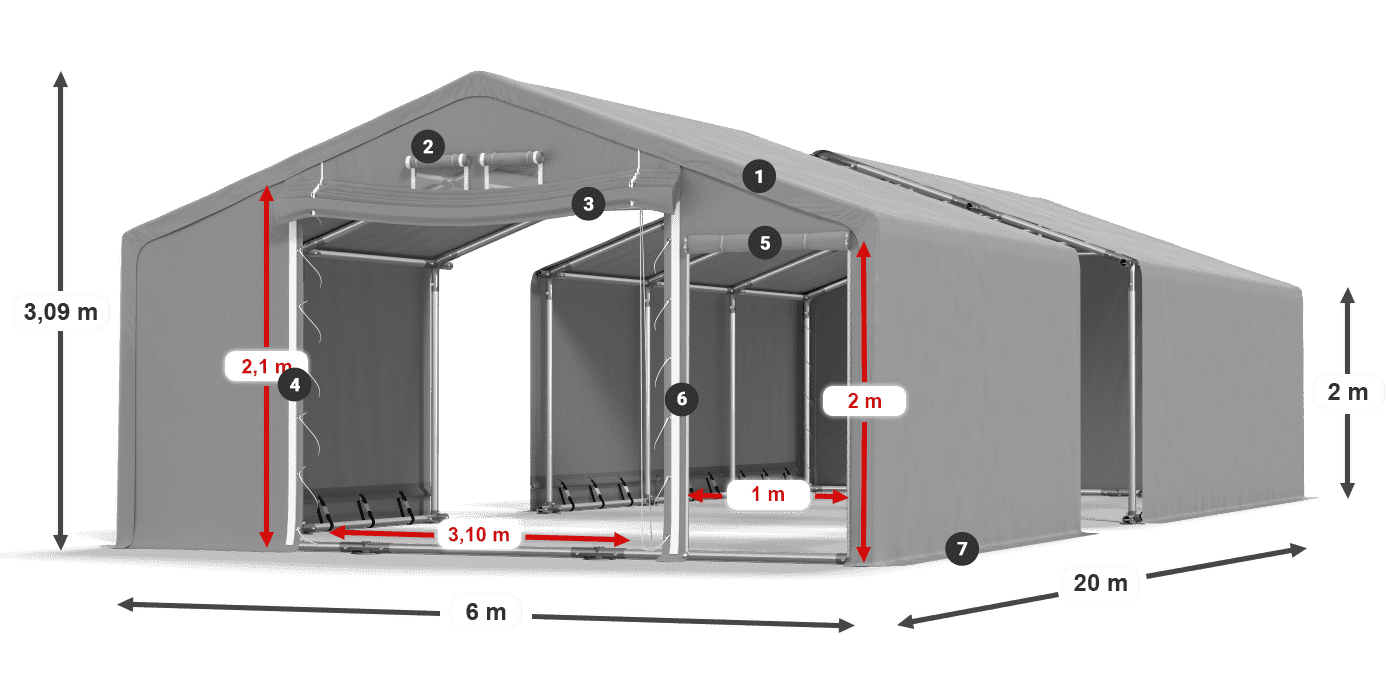

TARPAULIN

MAX

Roof

Full okay. 600 g

Sides

Full ok. 600 g

Air-control

Yes.

Hermetic

Yes.

Flammable

Yes.

The hull is made of one thick material PVC. Roofs and side walls are one part. An additional convenience is the smaller entrance, which is located next to the entrance gate. That way, you don't have to open a bigger entrance every time you want to go inside.

Fireproof hull SFR PVC (polyvinyl chloride) c. 600g/m²
Double ventilation placed on both sides of the tent
Entry roll-up
Sealing turnips entry
Additional quick entry
Strong YKK locks at the instant entrance
Additional Retention apron

Connecting tents

The 6m x20m 2m tent is composed of tents with dimensions: 6x12m, 6x8m.

You can combine tents at your convenience

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Safety of use

The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.

expand section

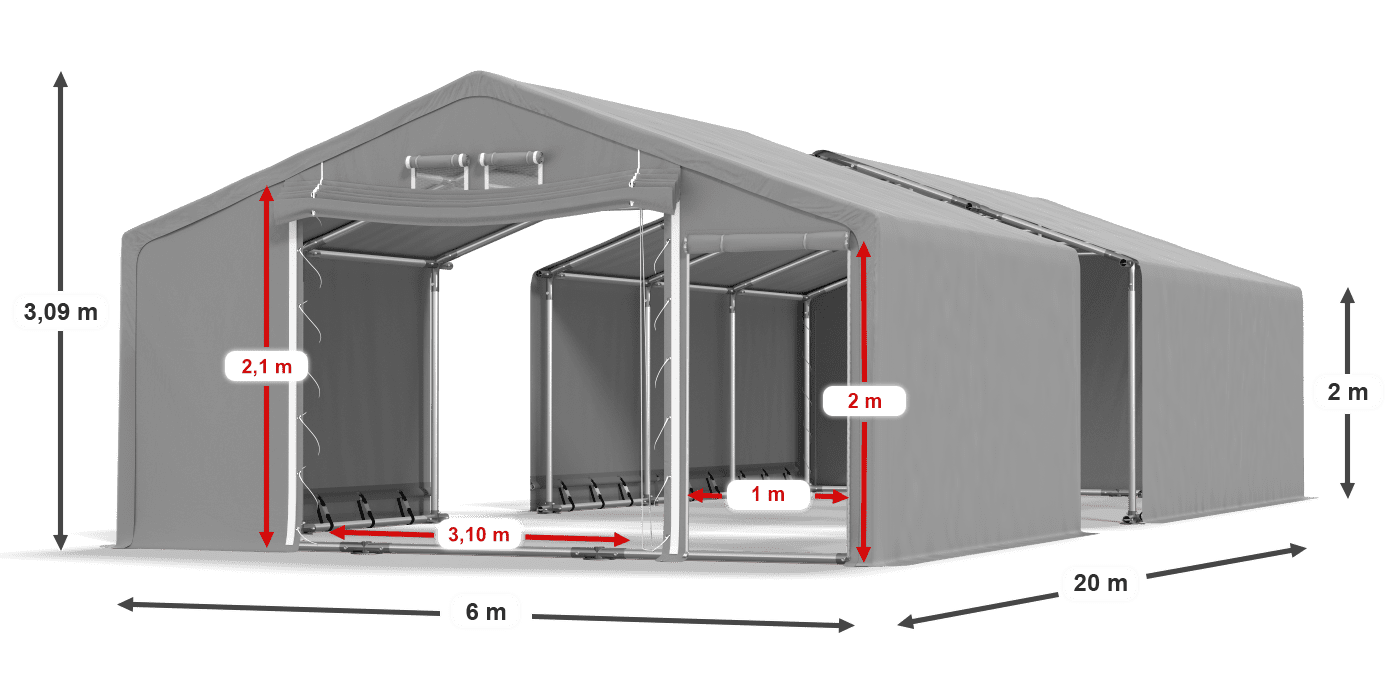

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05902973332643

Width

6 m

Lenght

20 m

Side height

2 m

Apex height

3,09 m

Surface

120 m²

Gate A

3,1 m x 2,1 m

Gate B

3,1 m x 2,1 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

305,51 m³

Number of packages

Weigh

474,30 kg

Spare parts

Yes

Material

PVC (polyvinyl chloride)

Roof densityt

~ 600 g/m²

Sides density

~ 600 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Fire retardant

Yes

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 38 mm

Diameter of fasteners

~ 42 mm

Feet

9 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Roof tensioners

Side pulls

Roof supports

Side supports

Package

55.00cm × 65.00cm × 23.00cm - 25.70kg

Package

30.00cm × 166.00cm × 12.00cm - 31.60kg

Package

19.50cm × 195.00cm × 11.00cm - 21.80kg

Package

19.50cm × 195.00cm × 11.00cm - 22.10kg

Package

23.50cm × 195.00cm × 11.00cm - 23.40kg

Package

55.00cm × 65.00cm × 23.00cm - 25.70kg

Package

30.00cm × 166.00cm × 12.00cm - 31.60kg

Package

19.50cm × 195.00cm × 11.00cm - 21.80kg

Package

19.50cm × 195.00cm × 11.00cm - 22.10kg

Package

23.50cm × 195.00cm × 11.00cm - 23.40kg

Package

60.00cm × 102.00cm × 25.00cm - 73.90kg

Package

58.00cm × 68.00cm × 27.00cm - 50.10kg

Package

31.00cm × 53.00cm × 10.00cm - 3.75kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 19.40kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 19.40kg

Package

20.00cm × 26.00cm × 13.00cm - 3.35kg

Package

7.00cm × 162.00cm × 7.00cm - 3.00kg

Package

59.00cm × 68.00cm × 14.00cm - 20.15kg

Package

23.00cm × 193.00cm × 8.00cm - 12.65kg

Package

17.00cm × 193.00cm × 7.00cm - 8.40kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 22 packs on a pallet with a total weight of 474,30 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
