Year-round tent hall | 6x20 m
pobierz pdf
Download PDF offer
Open entrance tent
tent construction
sheathing legend

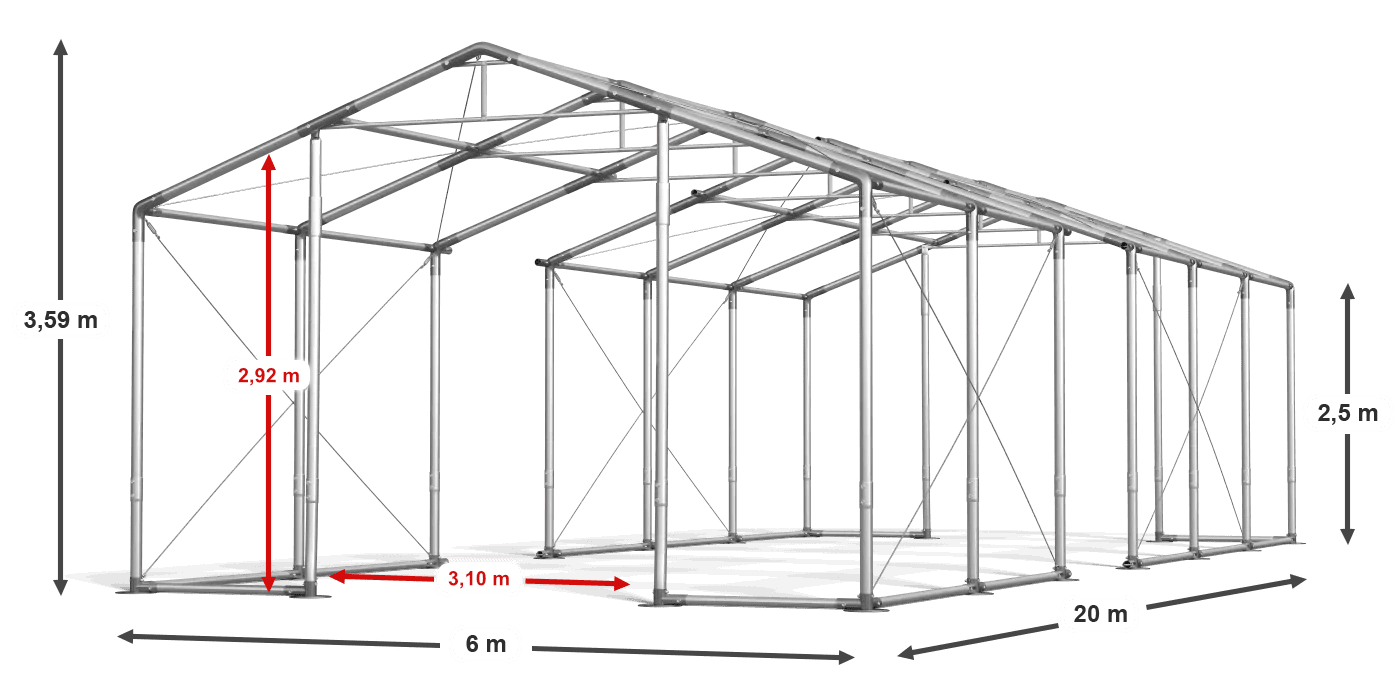

legend construction
front gate
Construction rates

article 1770404
6x20 m Year-round tent hall

6x20m side 2,5m
see dimensions
Color of the plating:
more >
8 184,97 €

Includes 23% VAT

contact info
Out of stock. Check the available offer or contact us.
Need help choosing?
Call us: info.ie@dascompany.com
FREE CONSULTATION
Description

The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.

A full tarpaulin made of strong PVC provides a dry and shaded space for storing goods, storing crops and parking vehicles. The covering is resistant to weather conditions and extremely tight. Assembly, sorting and production work can also be carried out in the workshop tent. A windowless tarpaulin protects the contents of the storage tent from the eyes of outsiders.

About the product
Construction
Tarpaulin
Technical data
Delivery and collection
Assembly and instructions
Configuration
Year-round tent hall
This tent will accommodate:
euro pallets

Number of EURO pallets approx. 125

industrial pallets

Number of industrial pallets approx. 100

imaginary palettes

Number of custom palettes approx. 75

available configurations

Over 30,000 configurations

parts available

Access to parts for expansion and service

warranty on parts availability

10 years warranty for the availability of substitute elements

Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
Delivery time: 22 June already with you
Simple assembly:
Simple assembly: ok 7-8 hours / 5-6 people
Das Company - Party and storage tents
medal
We have been operating since
2012
advising
We advise on configuration, assembly and service
supply
We deliver to 10 countries in Europe

CONSTRUCTION

WINTER PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.
  1. Construction pipes approx. fi 50 mm
  2. Structure connectors approx. fi 54 mm
  3. Reinforced roof structure
  4. Strong screws passing through
  5. Reinforcements entries
  6. Reinforced Floor construction
  7. Zoomed feet fi 14 cm
  8. Strings roofing
  9. Strings side

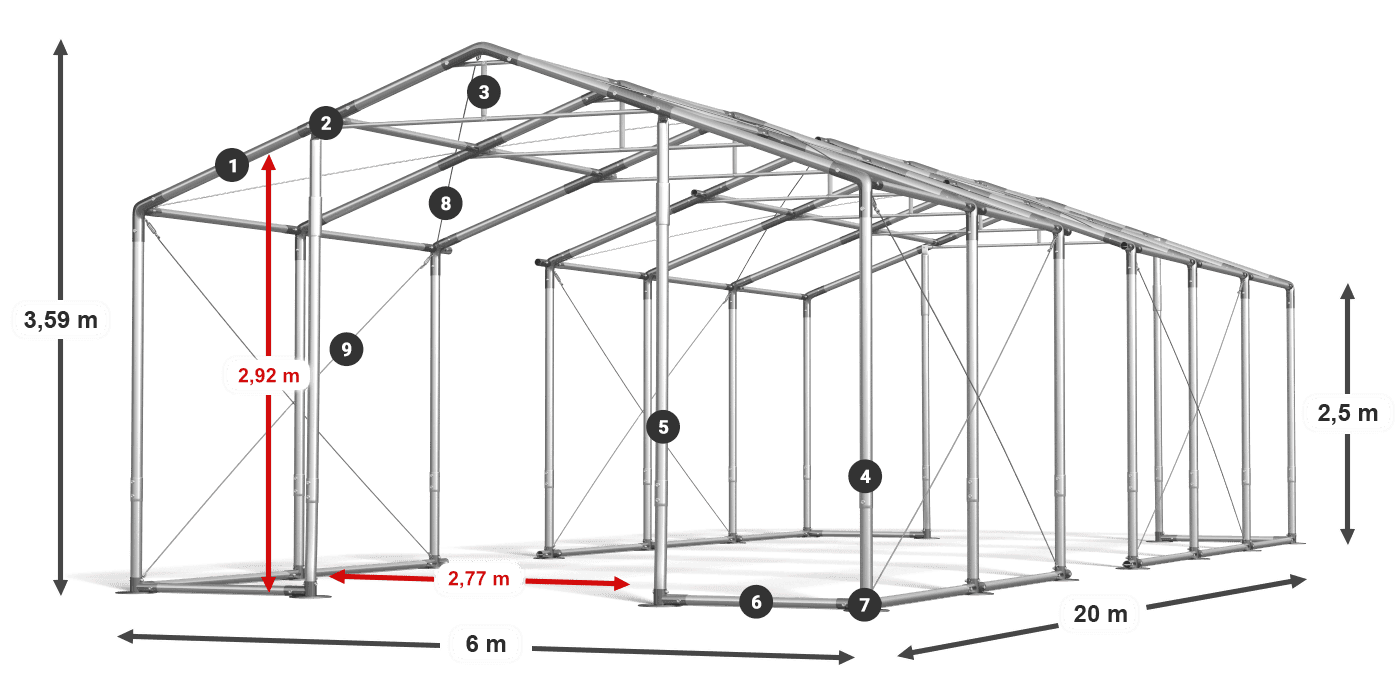

WINTER PLUS legend 2.5m-4m
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Additional reinforcements of entrances
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Roof and floor structure
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
A new way of connecting structures
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Thick pipes, diameter 50 mm
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Enlarged feet, diameter 14 cm
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Easy Up & Down system
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
Roof and side tensions
expand section

TARPAULIN

Roof: SD 560 PVC Walls: MS 580 PVC
Roof
Full okay. 560 g
Sides
Full ok. 580 g
Air-control Double vents
Yes.
Hermetic Greater tightness
Yes.
The side walls in this type of hull have a weight of about 580 g/m². It is resistant to strong gusts of wind or greater snowfall. The planks of this type can be used in year-round garage tents as well as as as long-term storage tents.
  1. Roof SD PVC (polyvinyl chloride) c. 560g/m²
  2. Double ventilation placed on both sides of the tent
  3. Type-ins Slide & Roll
  4. Strong YKK locks at entrances
  5. Sealing turnips
  6. Fireproof side wall liftingMS PVC Okay. 2 x 0.5 m (polyvinyl chloride) c. 580 g/m²
  7. Exchangeable Maskers with sealing turnips
  8. Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m²
  9. Additional Retention apron

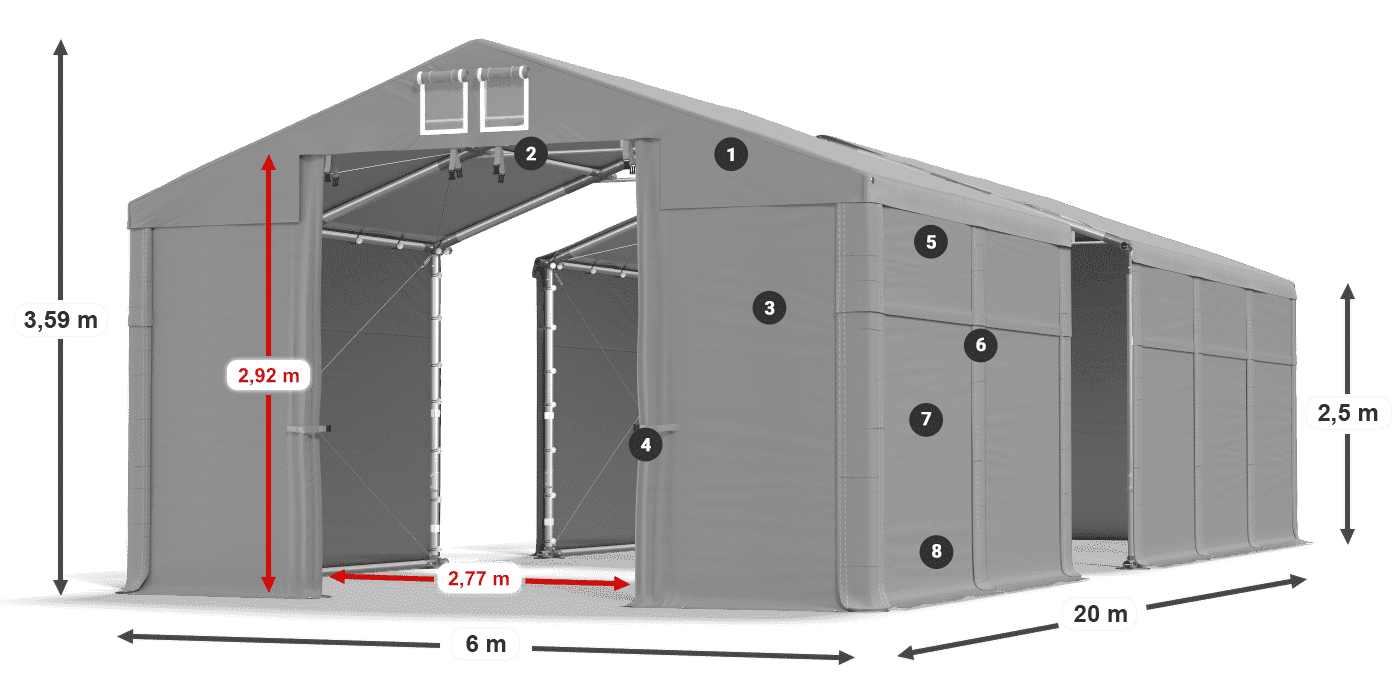

Roof: SD 560 PVC Walls: MS 580 PVC legend 2.5m
Connecting tents
The 6m x20m 2,5m tent is composed of tents with dimensions: 6x12m, 6x8m.
You can combine tents at your convenience
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
System Hermetic
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Retention Apron
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
System Air Control
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Material
(polyvinyl chloride)
Roof densityt
~ 560 g/m2
Sides density
~ 580 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
No
Fire retardant
No
DELIVERY AND COLLECTION
Packages
Packages
Your order will be packed in 46 packs on a pallet with a total weight of 679,30 kg.
Delivery
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Person assembly
Editing with 5-6 people.
Assembly time
On average in 7-8 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
Assembly instructions for connecting the sheathing
DOWNLOAD PDF FILE
