Durable workshop tent | 6x22 m

Download PDF offer

article 199
6x22 m Durable workshop tent

Name: Durable workshop tent
Brand: Das Company
SKU: 1D22A21101100611611111111
Price: 2783.23 EUR
Availability: InStock

6x22m side 2m

see dimensions

Color of the plating:

more >

2 783,23 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The seasonal SUMMER FLOOR frame is made of galvanized steel of the highest quality. The additional floor structure strengthens the tent and makes it more durable.

Canopies equipped with a full tarpaulin with PE are perfect seasonal storage tents. The waterproof and UV-resistant cover has no windows. Therefore, the contents of the garage tent are invisible from the outside to outsiders. The roof can also be used for periodic parking of the vehicle, storage of furniture and garden tools, or as a commercial space.

Delivery and collection

Assembly and instructions

Configuration

Durable workshop tent

This tent will accommodate:

Number of EURO pallets approx. 135

Number of industrial pallets approx. 110

Number of custom palettes approx. 81

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 5-6 hours / 5-6 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

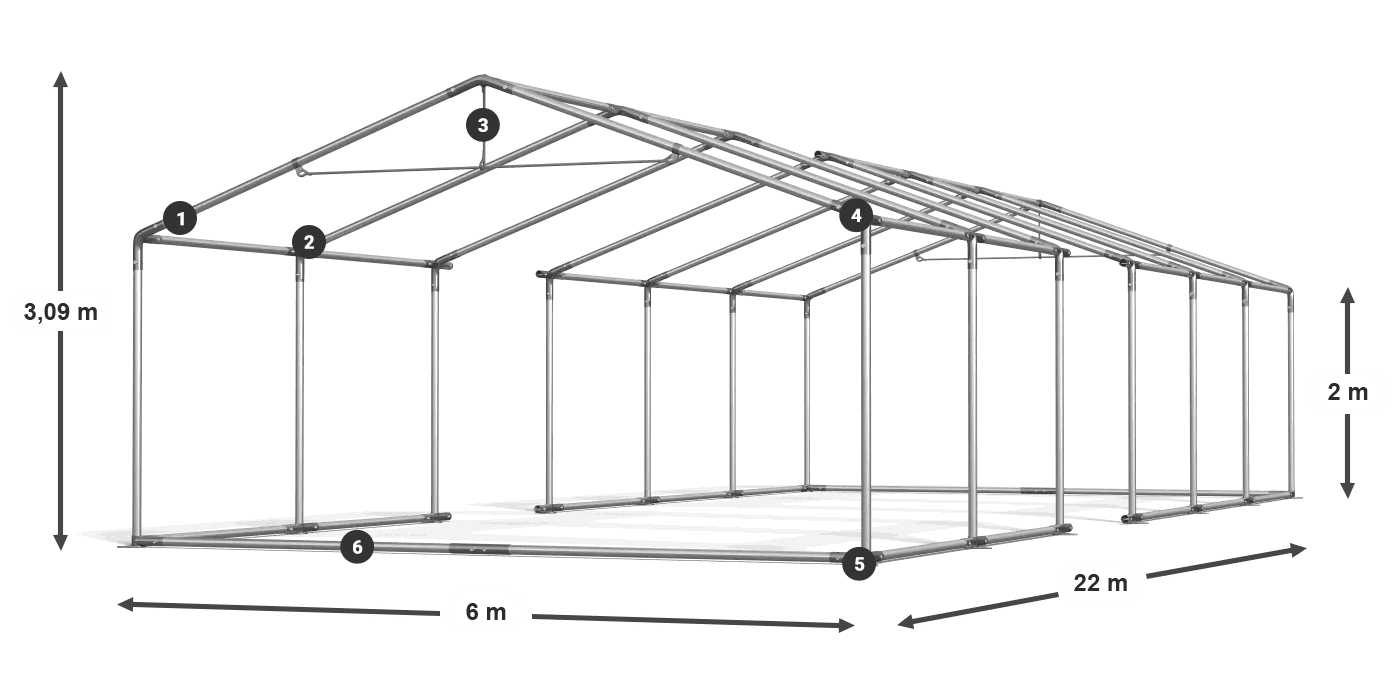

CONSTRUCTION

SUMMER FLOOR

Pipes

Steel ca. fi 38 mm

Connectors

Steel ca. fi 42 mm

Rates

Steel fi 6-9 cm

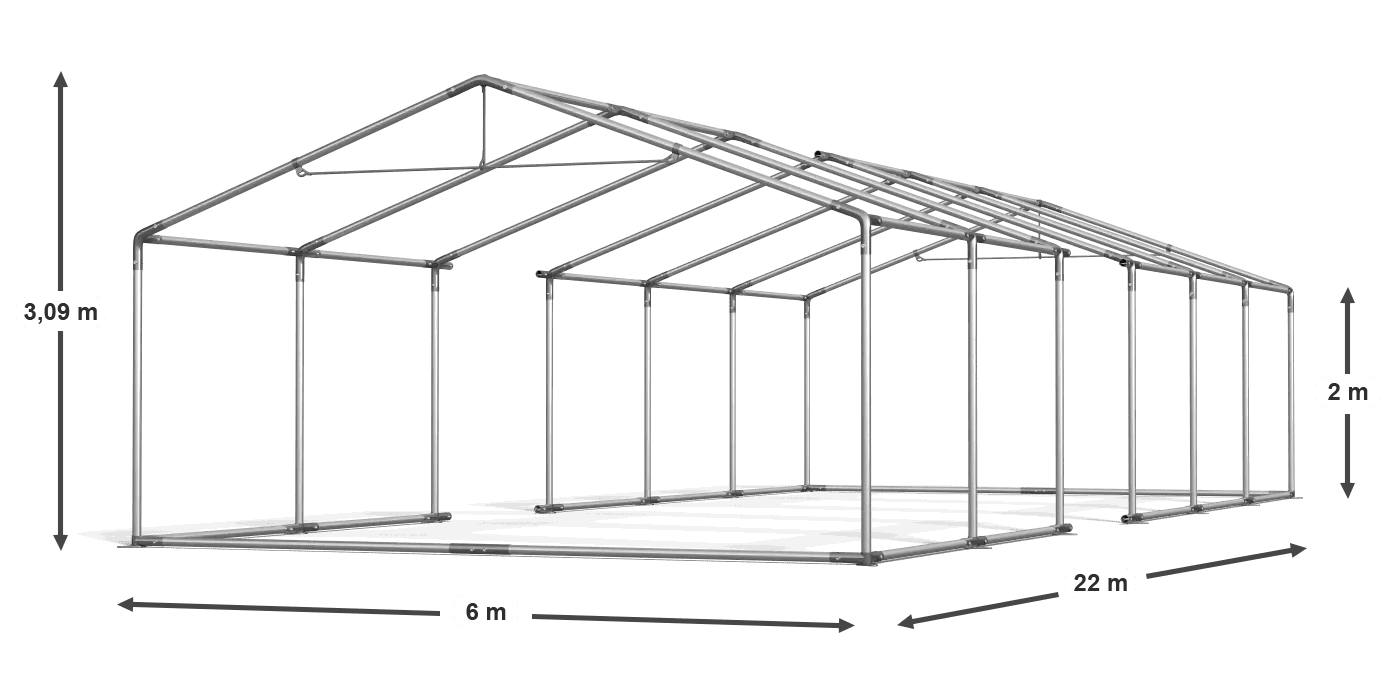

The tent construction issolid and easy to install. It's possible. freely move it where it is needed. Additional lower design increases stability The whole tent.

Construction pipes approx. fi 38 mm
Structure connectors approx. fi 42 mm
Steel rope on entrances
Strong screws, that go through
Rates 6 x 9 cm
Additional floor structure

Increased durability

The additional structure consists of a lower frame. This solution provides greater load-bearing capacity and structure stiffness. It also increases the durability of the tent.

Stiffer structure

Steel ropes are placed in the upper part of the structure. Thanks to them, the structure is stiffer and more stable. They also allow the entrances to be moved freely.

Many years of operation

We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Strong pipe connection

The pipes have thick connectors, approx. 42 mm in diameter. They are designed to maximize the strength of the structure.

Stable mounting

The stable structure of the tent on any surface is ensured by feet with anchor holes. They ensure that the tent is firmly attached to the ground.

expand section

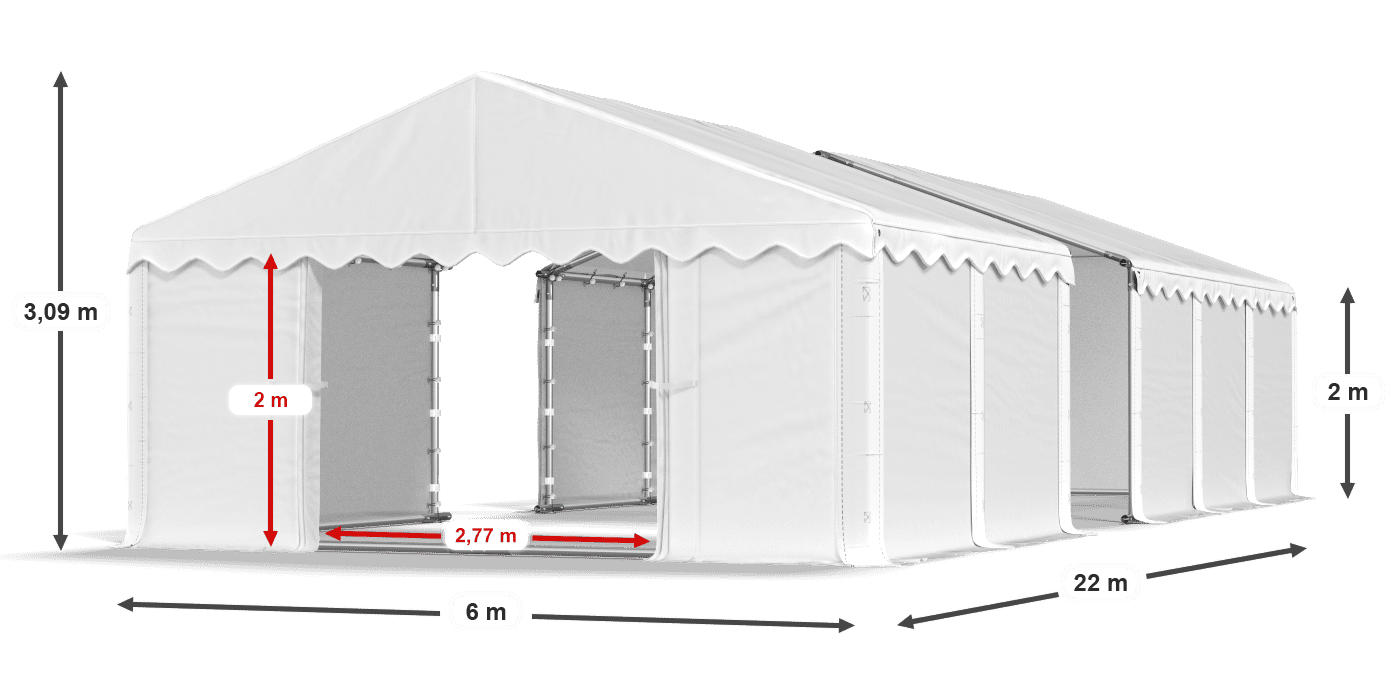

TARPAULIN

ECO M

Roof

Full okay. 240 g

Sides

Full ok. 240 g

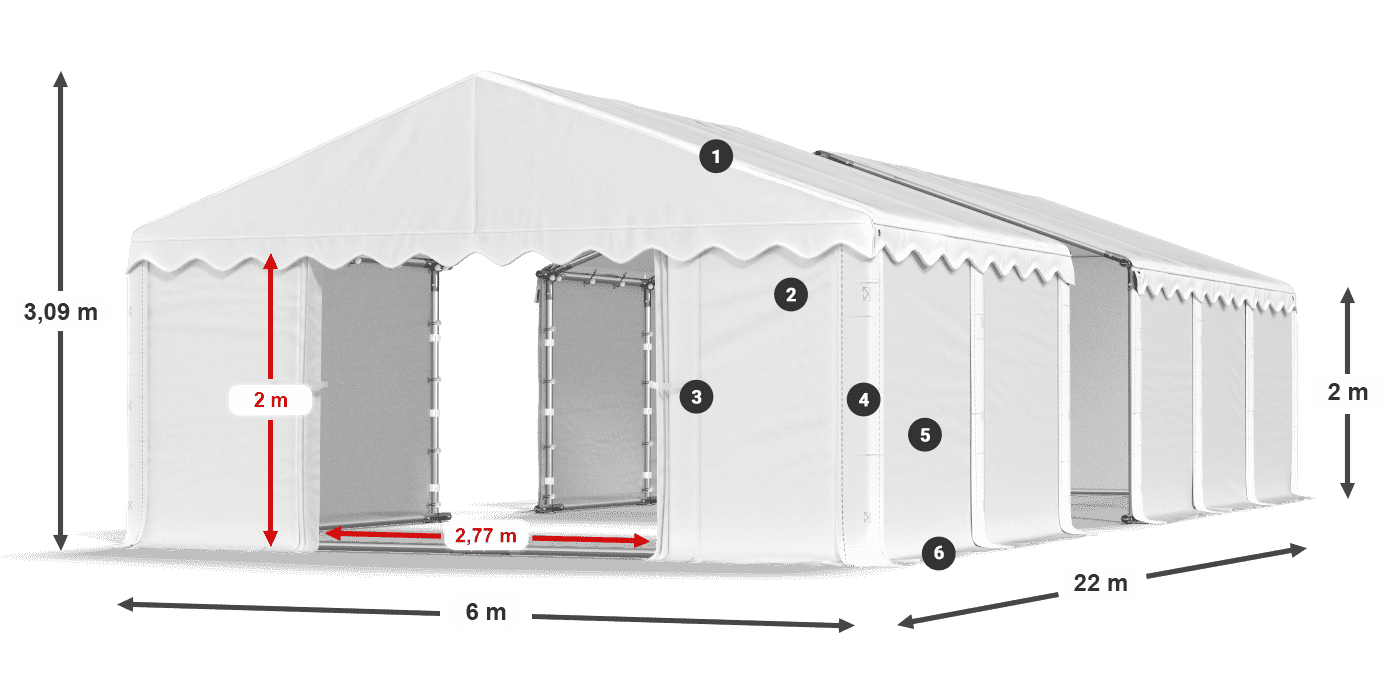

Tents with full walls PE They will work as storage facilities or temporary storage facilities. Thanks to them, everything inside the tent is completely obscured and protected from rain or dust.

Roof PE(polyethylene) c. 240 g/m²
Type gate curtain
Strong YKK locks at entrances
Exchangeable masks
Side walls PE 2 x 2 m (polyethylene) c. 240 g/m² - Full walls
Mounting meshes tarpaulin

Connecting tents

The 6m x22m 2m tent is composed of tents with dimensions: 6x12m, 6x10m.

You can combine tents at your convenience

Change Colors

The tent has sealing covers. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

The perfect warehouse

The side walls of the tent are made of PE approx. 240g/m². Tents with this type of walls work well as a warehouse, car wash or workshop. The height of the basic wall is 2m.

Adjust the tent to your needs

It is possible to order individual cladding elements in various variants, such as walls with windows or solid walls. This will personalize the tent and adapt it to your individual needs.

Any arrangement

The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05902426921172

Width

6 m

Lenght

22 m

Side height

2 m

Apex height

3,09 m

Surface

132 m²

Gate A

2,77 m x 2 m

Gate B

2,77 m x 2 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

336,07 m³

Number of packages

Weigh

343,00 kg

Spare parts

Yes

Material

(polyethylene)

Roof densityt

~ 240 g/m²

Sides density

~ 240 g/m²

Temperature range

from -5^o to +40^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Overlap System

System Hermetic

System Air-control

System Multi-size

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 38 mm

Diameter of fasteners

~ 42 mm

Feet

6-9 cm

Roof reinforcement

System Easy-Up

Roof tensioners

Side pulls

Roof supports

Side supports

Package

55.00cm × 65.00cm × 25.00cm - 27.90kg

Package

30.00cm × 146.00cm × 13.50cm - 32.35kg

Package

23.00cm × 195.00cm × 10.50cm - 25.45kg

Package

23.00cm × 195.00cm × 10.50cm - 28.30kg

Package

29.00cm × 197.00cm × 13.00cm - 30.85kg

Package

55.00cm × 65.00cm × 22.00cm - 24.10kg

Package

30.00cm × 146.00cm × 11.50cm - 28.00kg

Package

19.00cm × 195.00cm × 10.50cm - 22.00kg

Package

19.00cm × 195.00cm × 10.50cm - 23.40kg

Package

25.00cm × 197.00cm × 13.00cm - 28.15kg

Package

55.00cm × 65.00cm × 24.00cm - 23.80kg

Package

55.00cm × 65.00cm × 21.00cm - 20.95kg

Package

35.00cm × 43.00cm × 11.00cm - 2.30kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 18.00cm × 5.00cm - 0.60kg

Package

24.00cm × 18.00cm × 5.00cm - 0.60kg

Package

40.00cm × 50.00cm × 8.00cm - 5.85kg

Package

40.00cm × 50.00cm × 8.00cm - 5.85kg

Package

40.00cm × 50.00cm × 8.00cm - 5.85kg

Package

40.00cm × 50.00cm × 6.00cm - 4.15kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 22 packs on a pallet with a total weight of 343,00 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
