Durable workshop tent |
6x30 m
article 403
6x30 m Durable workshop tent
6x30m side 2m
see dimensions
Color of the plating:
more >
4 035,63 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The seasonal SUMMER FLOOR frame is made of galvanized steel of the highest quality. The additional floor structure strengthens the tent and makes it more durable.
Canopies equipped with a full tarpaulin with PE are perfect seasonal storage tents. The waterproof and UV-resistant cover has no windows. Therefore, the contents of the garage tent are invisible from the outside to outsiders. The roof can also be used for periodic parking of the vehicle, storage of furniture and garden tools, or as a commercial space.
Durable workshop tent
This tent will accommodate:
Number of EURO pallets approx. 185
Number of industrial pallets approx. 150
Number of custom palettes approx. 111
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
TO SHOPPING CART
Delivery time:
22 June already with you
Simple assembly:
ok 7-8 hours / 6-8 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

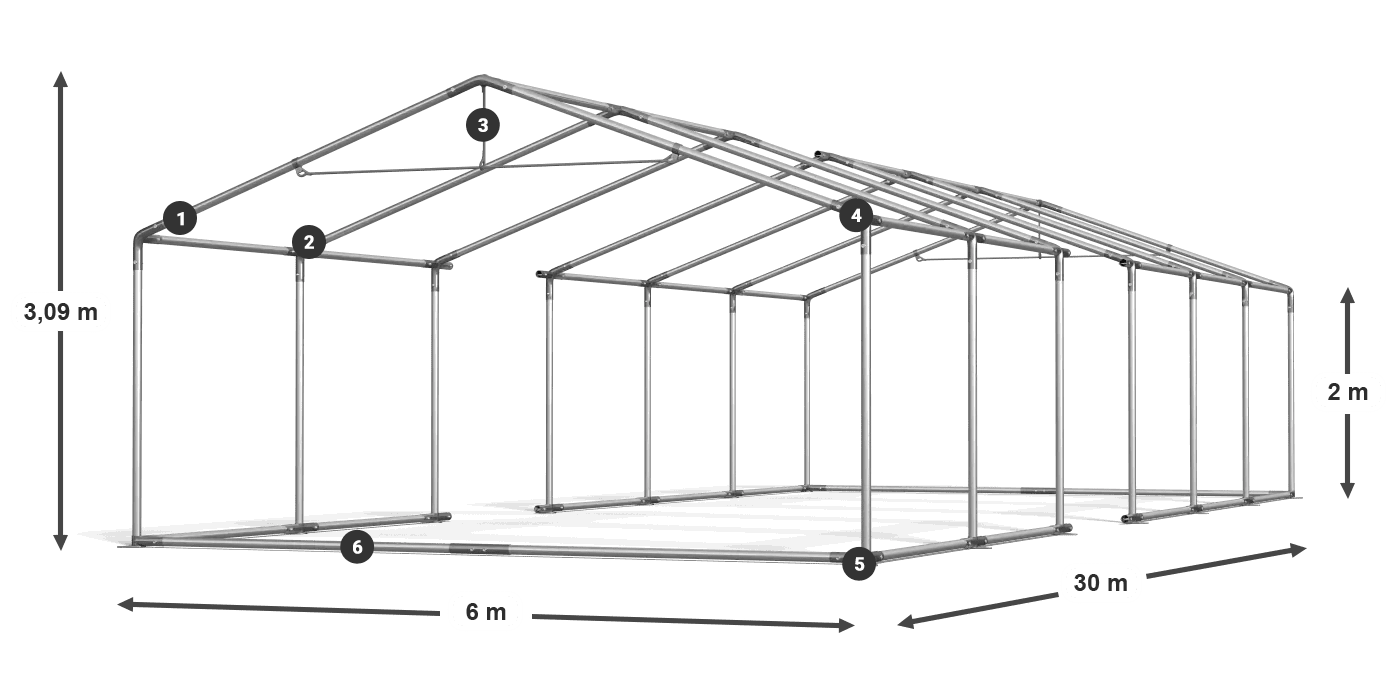

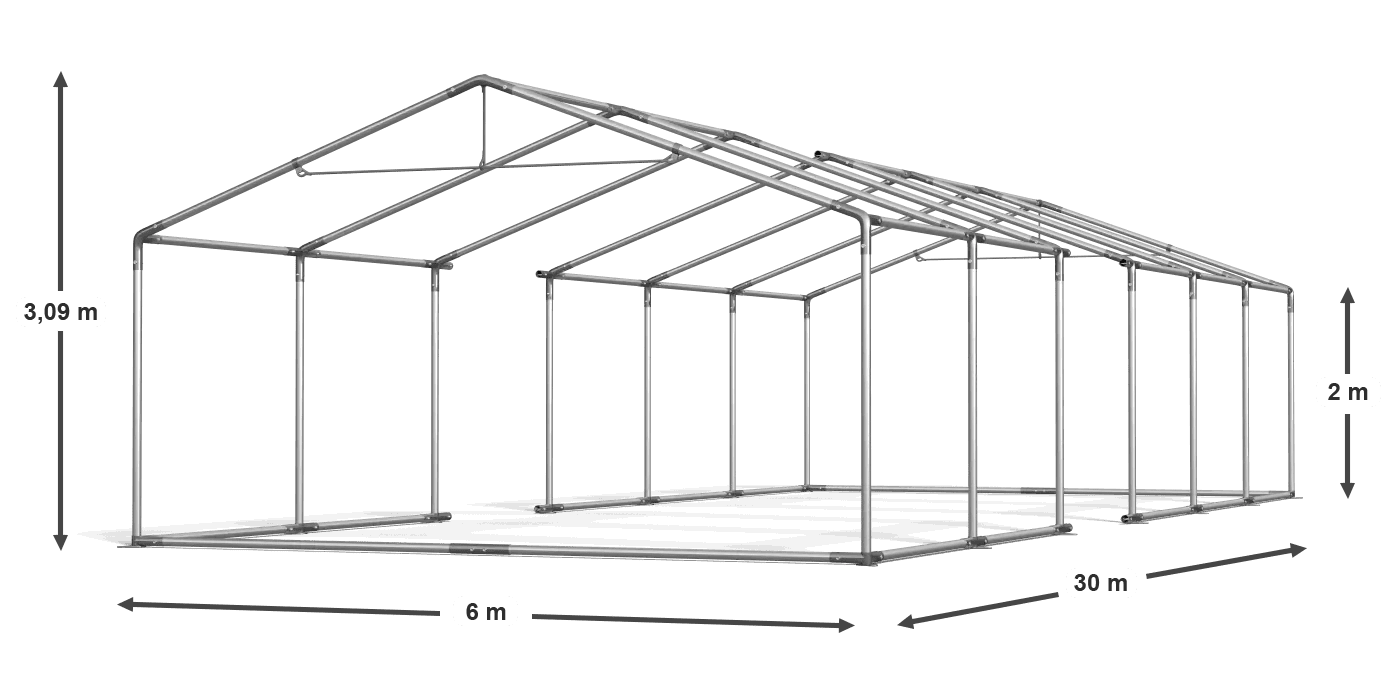

CONSTRUCTION
SUMMER FLOOR
Pipes
Steel ca. fi 38 mm
Connectors
Steel ca. fi 42 mm
Rates
Steel fi 6-9 cm
The tent construction issolid and easy to install. It's possible. freely move it where it is needed. Additional lower design increases stability The whole tent.
- Construction pipes approx. fi 38 mm
- Structure connectors approx. fi 42 mm
- Steel rope on entrances
- Strong screws, that go through
- Rates 6 x 9 cm
- Additional floor structure
Increased durability
The additional structure consists of a lower frame. This solution provides greater load-bearing capacity and structure stiffness. It also increases the durability of the tent.
Stiffer structure
Steel ropes are placed in the upper part of the structure. Thanks to them, the structure is stiffer and more stable. They also allow the entrances to be moved freely.
Many years of operation
We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.
Strong pipe connection
The pipes have thick connectors, approx. 42 mm in diameter. They are designed to maximize the strength of the structure.
Stable mounting
The stable structure of the tent on any surface is ensured by feet with anchor holes. They ensure that the tent is firmly attached to the ground.
expand section

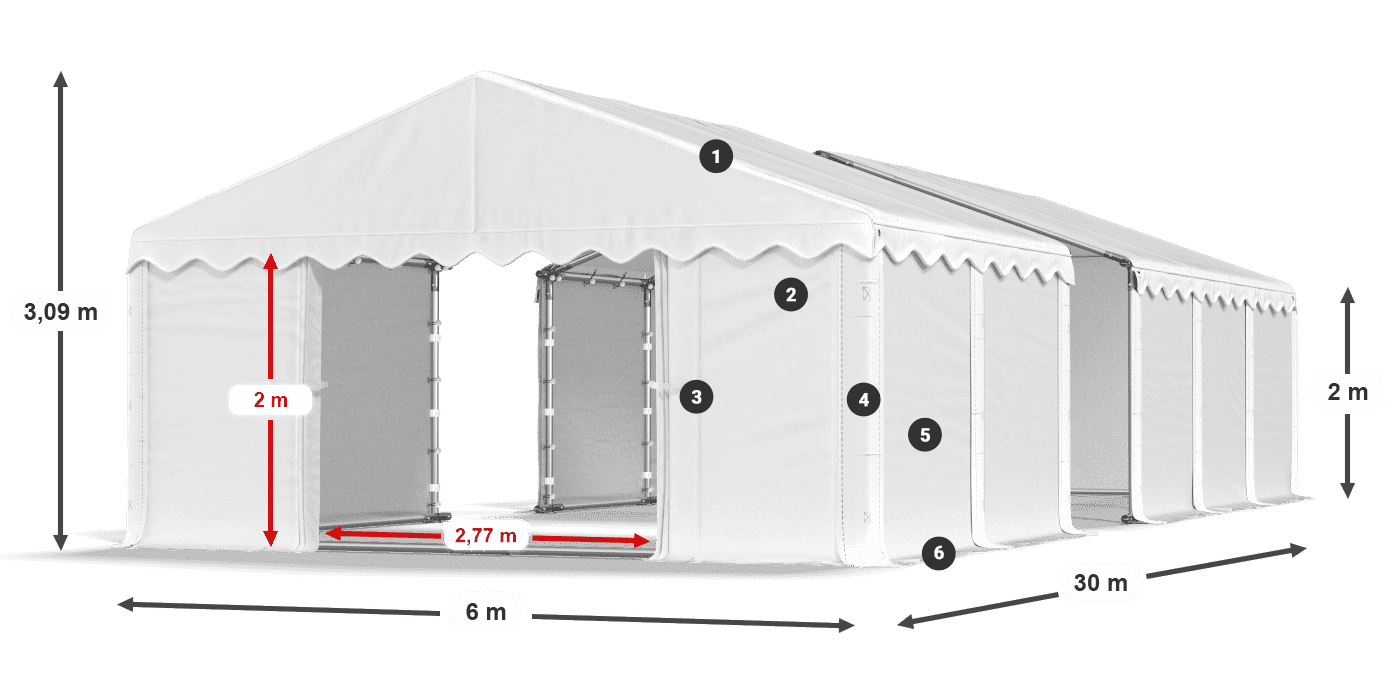

TARPAULIN
ECO M
Roof
Full okay. 240 g
Sides
Full ok. 240 g
Tents with full walls PE They will work as storage facilities or temporary storage facilities. Thanks to them, everything inside the tent is completely obscured and protected from rain or dust.
- Roof PE(polyethylene) c. 240 g/m²
- Type gate curtain
- Strong YKK locks at entrances
- Exchangeable masks
- Side walls PE 2 x 2 m (polyethylene) c. 240 g/m² - Full walls
- Mounting meshes tarpaulin
Connecting tents
The 6m x30m 2m tent is composed of tents with dimensions: 6x12m, 6x10m, 6x8m.
Change Colors
The tent has sealing covers. They are available in various color variants. This allows you to quickly and easily change the color of the tent.
The perfect warehouse
The side walls of the tent are made of PE approx. 240g/m². Tents with this type of walls work well as a warehouse, car wash or workshop. The height of the basic wall is 2m.
Adjust the tent to your needs
It is possible to order individual cladding elements in various variants, such as walls with windows or solid walls. This will personalize the tent and adapt it to your individual needs.
Any arrangement
The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.
expand section

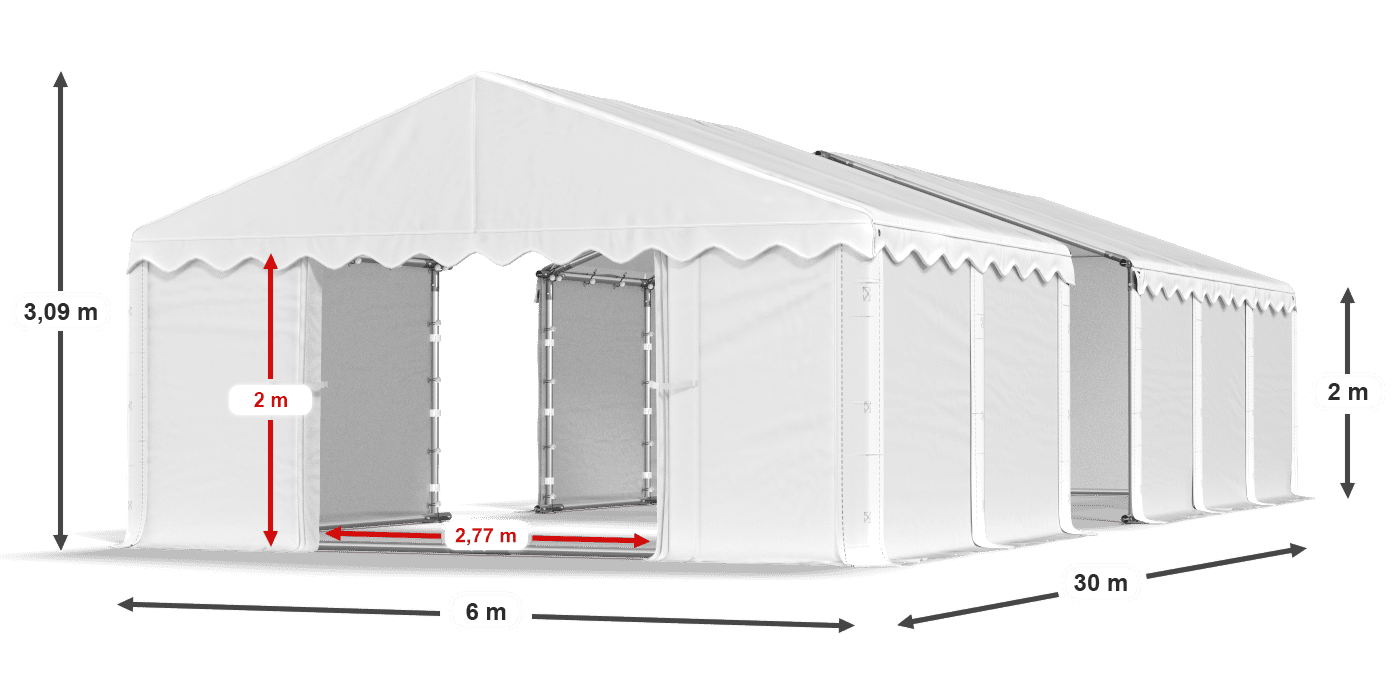

Technical data
General
Tarpaulins
Constructions
Packages
Item number
05902426923213
Width
6 m
Lenght
30 m
Side height
2 m
Apex height
3,09 m
Surface
180 m2
Gate A
2,77 m x 2 m
Gate B
2,77 m x 2 m
Side entrance
Yes (approx. 2 m x 2 m)
Volume
458,27 m3
Number of packages
30
Weigh
477,60 kg
Spare parts
Yes
Material
(polyethylene)
Roof densityt
~ 240 g/m2
Sides density
~ 240 g/m2
Temperature range
from -5o to +40o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
No
Overlap System
No
System Hermetic
No
System Air-control
No
System Multi-size
No
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 38 mm
Diameter of fasteners
~ 42 mm
Feet
6-9 cm
Roof reinforcement
No
System Easy-Up
No
Roof tensioners
No
Side pulls
No
Roof supports
No
Side supports
No
Package
55.00cm × 65.00cm × 25.00cm - 27.90kg
Package
30.00cm × 146.00cm × 13.50cm - 32.35kg
Package
23.00cm × 195.00cm × 10.50cm - 25.45kg
Package
23.00cm × 195.00cm × 10.50cm - 28.30kg
Package
29.00cm × 197.00cm × 13.00cm - 30.85kg
Package
55.00cm × 65.00cm × 22.00cm - 24.10kg
Package
30.00cm × 146.00cm × 11.50cm - 28.00kg
Package
19.00cm × 195.00cm × 10.50cm - 22.00kg
Package
19.00cm × 195.00cm × 10.50cm - 23.40kg
Package
25.00cm × 197.00cm × 13.00cm - 28.15kg
Package
55.00cm × 65.00cm × 18.00cm - 20.30kg
Package
26.00cm × 146.00cm × 10.50cm - 22.95kg
Package
30.00cm × 195.00cm × 11.50cm - 36.65kg
Package
25.00cm × 197.00cm × 13.00cm - 25.00kg
Package
55.00cm × 65.00cm × 24.00cm - 23.80kg
Package
55.00cm × 65.00cm × 21.00cm - 20.95kg
Package
55.00cm × 65.00cm × 18.00cm - 18.50kg
Package
35.00cm × 43.00cm × 11.00cm - 2.30kg
Package
35.00cm × 43.00cm × 11.00cm - 2.30kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 30 packs on a pallet with a total weight of 477,60 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 6-8 people.
On average in 7-8 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
Assembly instructions for connecting the sheathing
DOWNLOAD PDF FILE
