Year-round sales tent |
6x35 m
article 1380218
6x35 m Year-round sales tent
6x35m side 2m
see dimensions
Color of the plating:
more >
9 429,75 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.
The sheathing with stained glass windows is made of strong, waterproof PVC. The tarpaulin protects tables and buffets against moisture, wind and outdoor pollution. Elegant stained glass windows harmonize perfectly with wedding decorations. Party tents are used during corporate parties and family celebrations. Commercial tents with stained glass windows enable aesthetic display of goods and attract the attention of potential customers.
Year-round sales tent
This tent will accommodate:
approx. 420 standing places
approx. 323 chair seats
approx. 280 seats on the benches
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
22 June already with you
Simple assembly:
ok 8-10 hours / 6-8 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

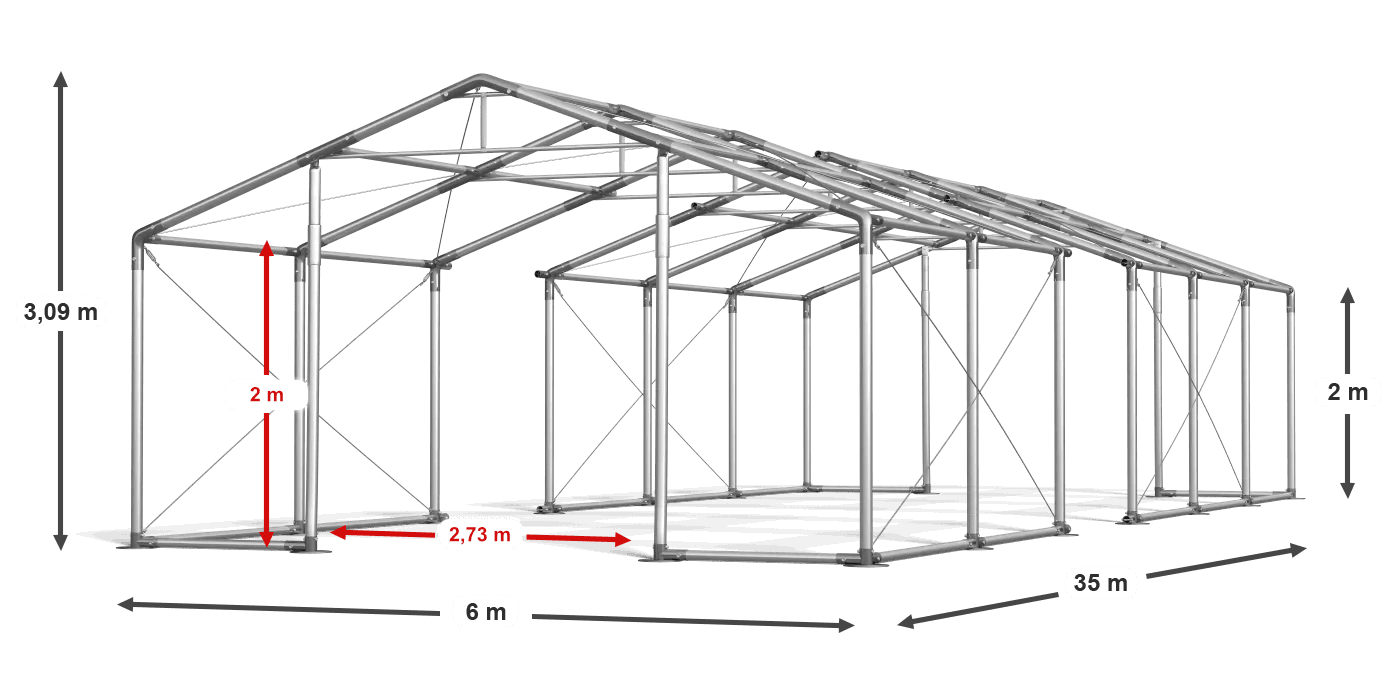

CONSTRUCTION
WINTER PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side

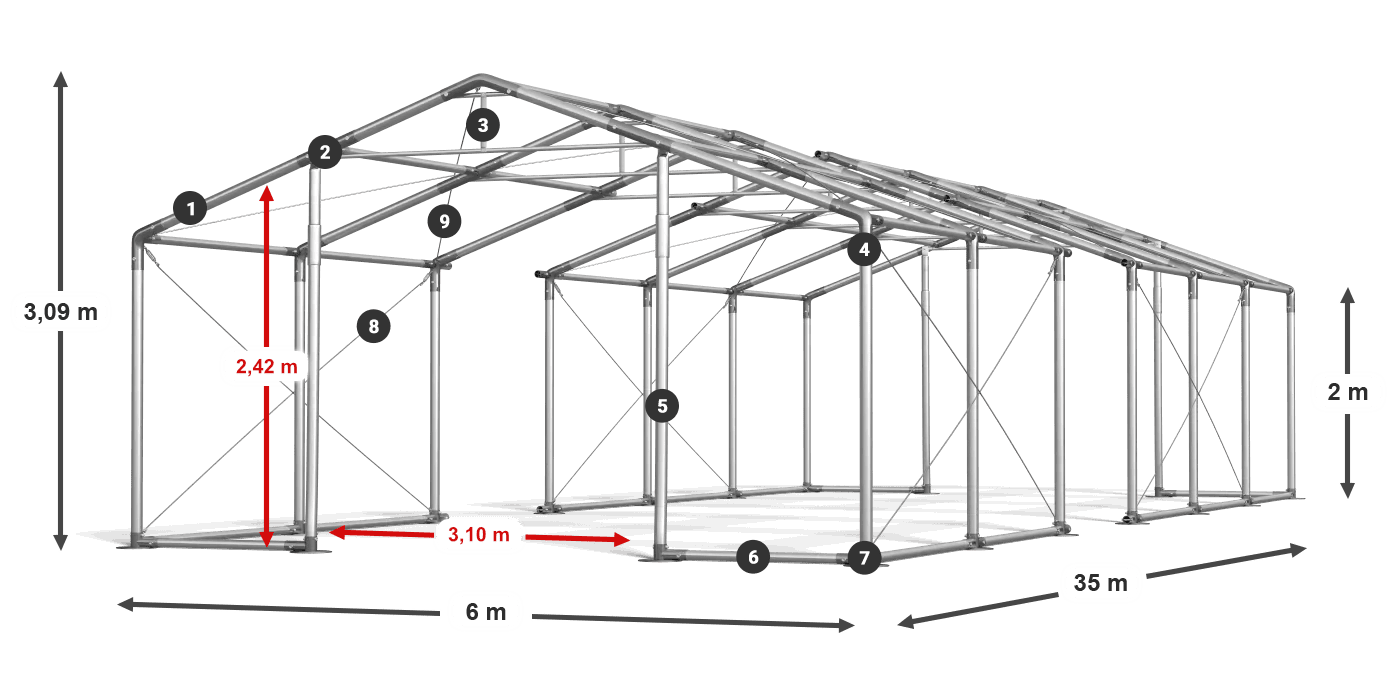

The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings side
- Strings roofing
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section
TARPAULIN
FLEX I
Roof
Full okay. 580 g
Sides
The stained glass is ok. 500 g
Air-control
Yes.
Hermetic
Yes.
Multi-size
Yes.

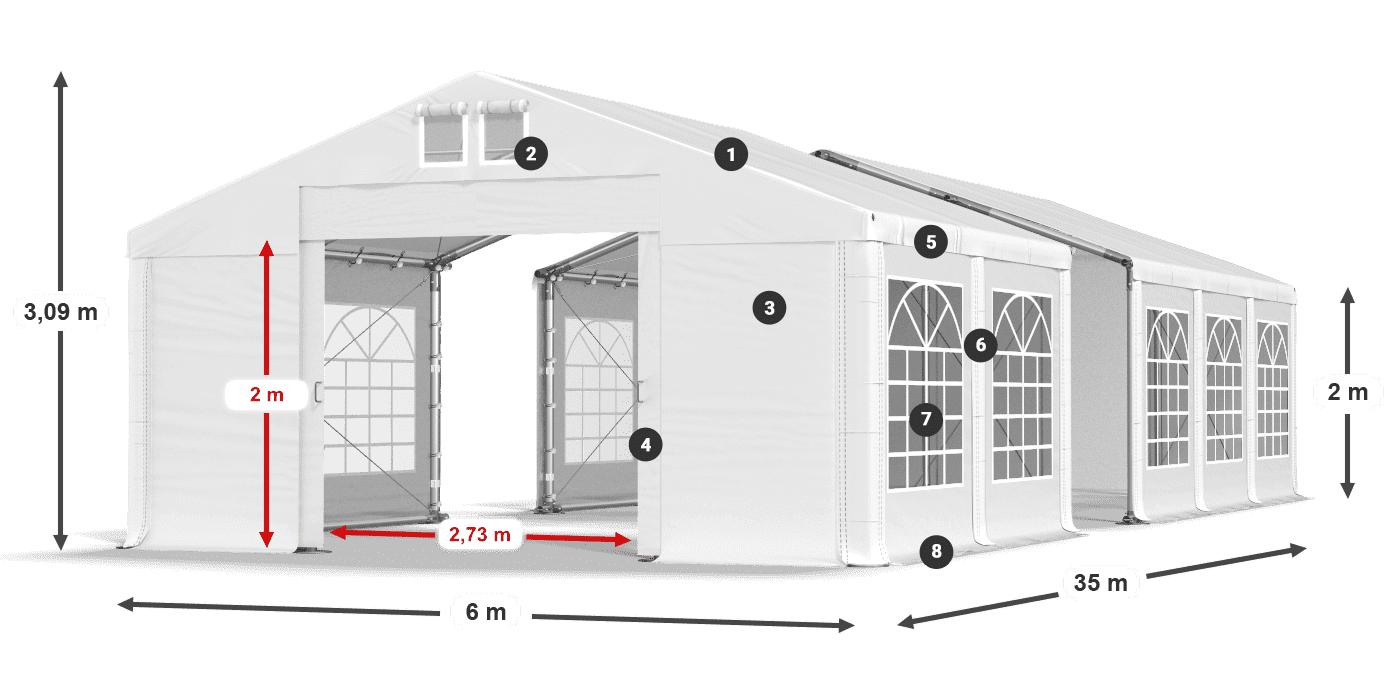

This type of tent is constructed of segmented roof and walls equipped with large stained glass windows. This is a great choice when we often organize events for different number of guests. Then once we can set up a smaller tent or add more segments and create more space.
- Segment roof MS PVC (polyvinyl chloride) c. 580 g/m²
- Double ventilation placed on both sides of the tent
- Type-ins Slide & Roll
- Strong YKK locks at entrances
- Sealing turnips
- Exchangeable Maskers with sealing turnips
- Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m² - stained glass windows 140 x 130 cm
- Additional Retention apron
Easy length change
Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Adjust the tent to your needs
You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
Attractive appearance
The side wall is made of thick tarpaulin PVC approx. 500 g/m² and large stained glass windows. The height of the basic wall is 2m. Thanks to the unique design, it is possible to easily raise the side wall by 0.5 m or 1 m. Thanks to the windows placed on each two-meter segment, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent.
Any color selection
The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Width
6 m
Lenght
35 m
Side height
2 m
Apex height
3,09 m
Surface
210 m2
Gate A
2,73 m x 2 m
Gate B
2,73 m x 2 m
Side entrance
Yes (approx. 2 m x 2 m)
Volume
534,65 m3
Number of packages
78
Weigh
1 106,50 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 580 g/m2
Sides density
~ 500 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
Yes
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
No
Side supports
No
Package
80.00cm × 200.00cm × 30.00cm - 187.45kg
Package
55.00cm × 65.00cm × 22.00cm - 38.00kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
20.00cm × 194.00cm × 13.50cm - 27.80kg
Package
50.00cm × 50.00cm × 15.00cm - 8.25kg
Package
20.00cm × 191.00cm × 12.50cm - 22.00kg
Package
55.00cm × 65.00cm × 11.00cm - 8.40kg
Package
55.00cm × 65.00cm × 11.00cm - 8.40kg
Package
43.00cm × 288.00cm × 12.00cm - 63.80kg
Package
43.00cm × 288.00cm × 12.00cm - 63.80kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
37.00cm × 73.00cm × 22.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
35.00cm × 70.00cm × 20.00cm - 1.25kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
55.00cm × 65.00cm × 10.00cm - 11.00kg
Package
40.00cm × 50.00cm × 13.00cm - 7.00kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 8.00cm - 6.45kg
Package
30.00cm × 45.00cm × 6.00cm - 2.50kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 78 packs on a pallet with a total weight of 1 106,50 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 6-8 people.
On average in 8-10 hours.
