Reinforced Storage and Garage Tent |
6x38 m
article 285
6x38 m Reinforced Storage and Garage Tent
6x38m side 2m
see dimensions
Color of the plating:
more >
5 871,05 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The seasonal structure SUMMER PLUS is made of galvanized steel. This is the strongest summer frame, equipped with a lower frame and upper reinforcements.
Canopies equipped with a full tarpaulin with PE are perfect seasonal storage tents. The waterproof and UV-resistant cover has no windows. Therefore, the contents of the garage tent are invisible from the outside to outsiders. The roof can also be used for periodic parking of the vehicle, storage of furniture and garden tools, or as a commercial space.
Reinforced Storage and Garage Tent
This tent will accommodate:
Number of EURO pallets approx. 235
Number of industrial pallets approx. 190
Number of custom palettes approx. 141
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
TO SHOPPING CART
Delivery time:
22 June already with you
Simple assembly:
ok 8-10 hours / 6-8 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

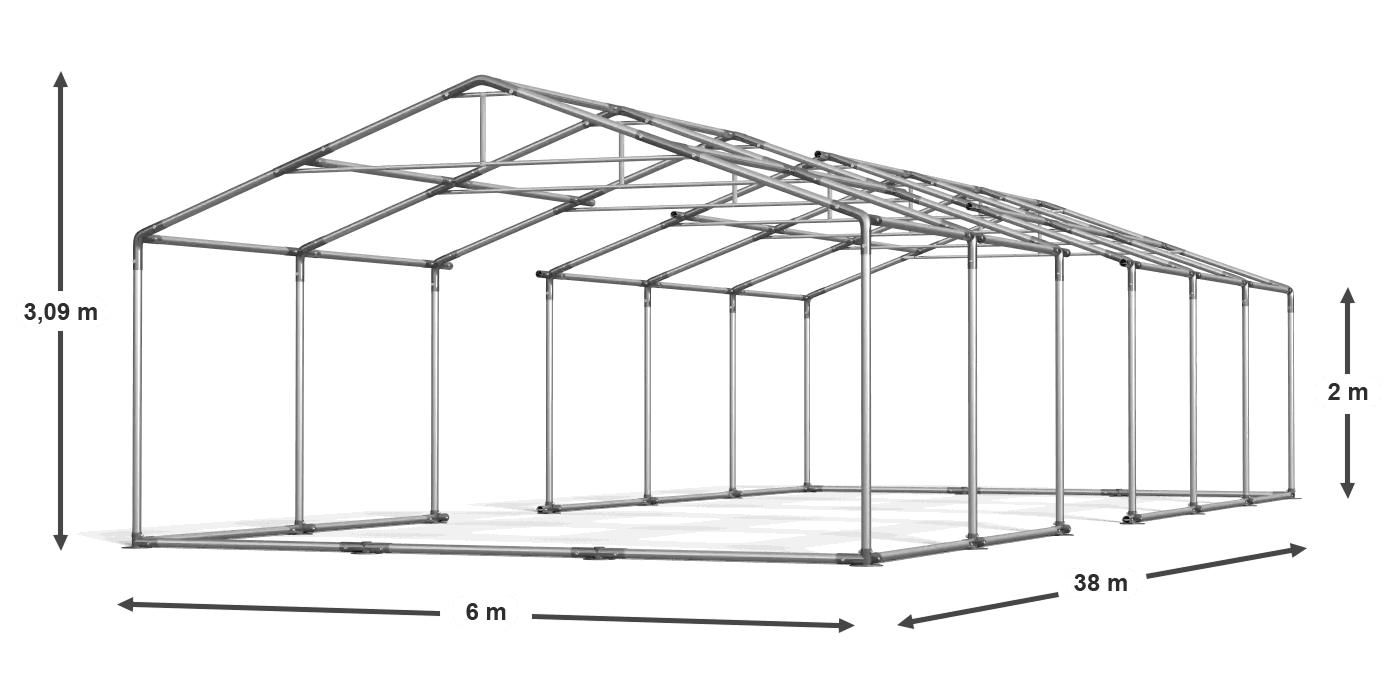

CONSTRUCTION
SUMMER PLUS
Pipes
Steel ca. fi 38 mm
Connectors
Steel ca. fi 42 mm
Rates
Steel fi 9 cm
Construction isdurable and easy to install.That way, except fast.folding,The tent can be easily moved where it is currently needed.

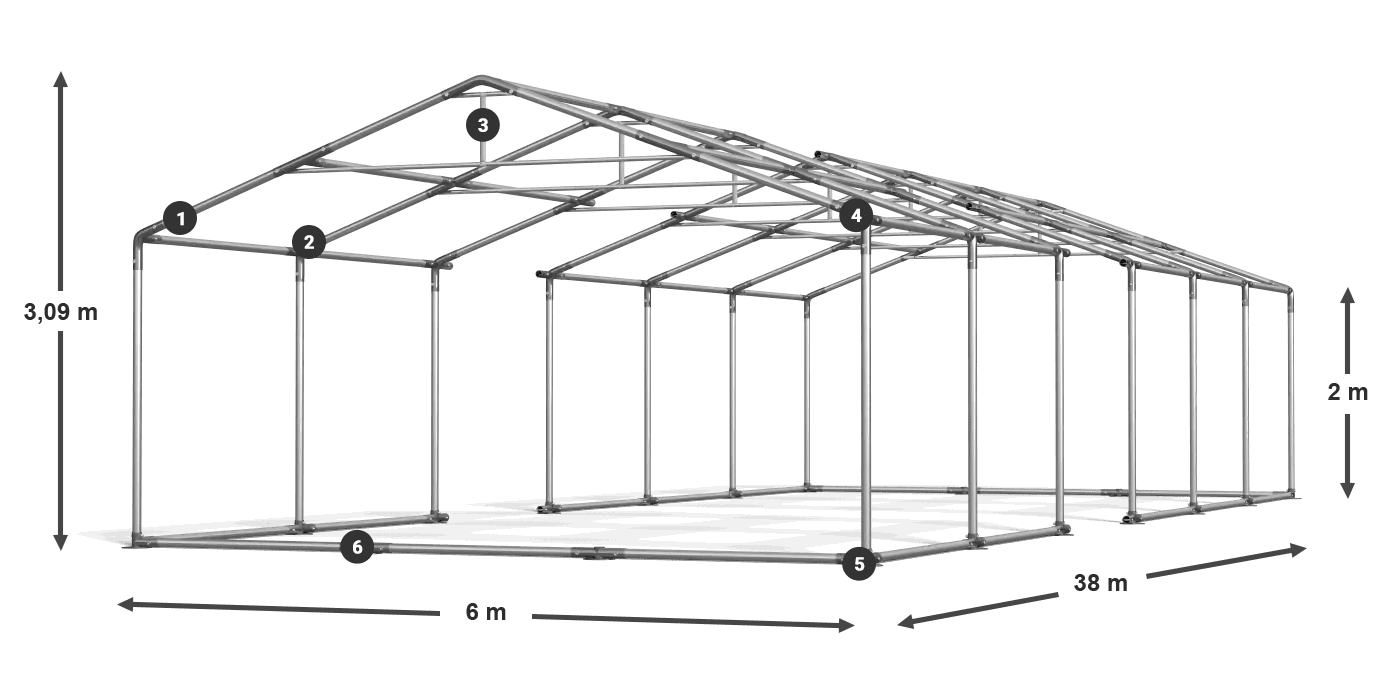

- Construction pipes approx. fi 38 mm
- Structure connectors approx. fi 42 mm
- Reinforced roof structure
- Strong screws, that go through
- Rate fi 9 cm
- Reinforced Floor construction
Increased durability
The additional structure consists of a lower frame and upper reinforcements. This solution provides greater load-bearing capacity and structure stiffness.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.
Stable construction
Stable feet with a diameter of 9 cm were installed in the lower part of the structure. Thanks to them, anchoring the tent is much more durable, regardless of the type of ground.
expand section

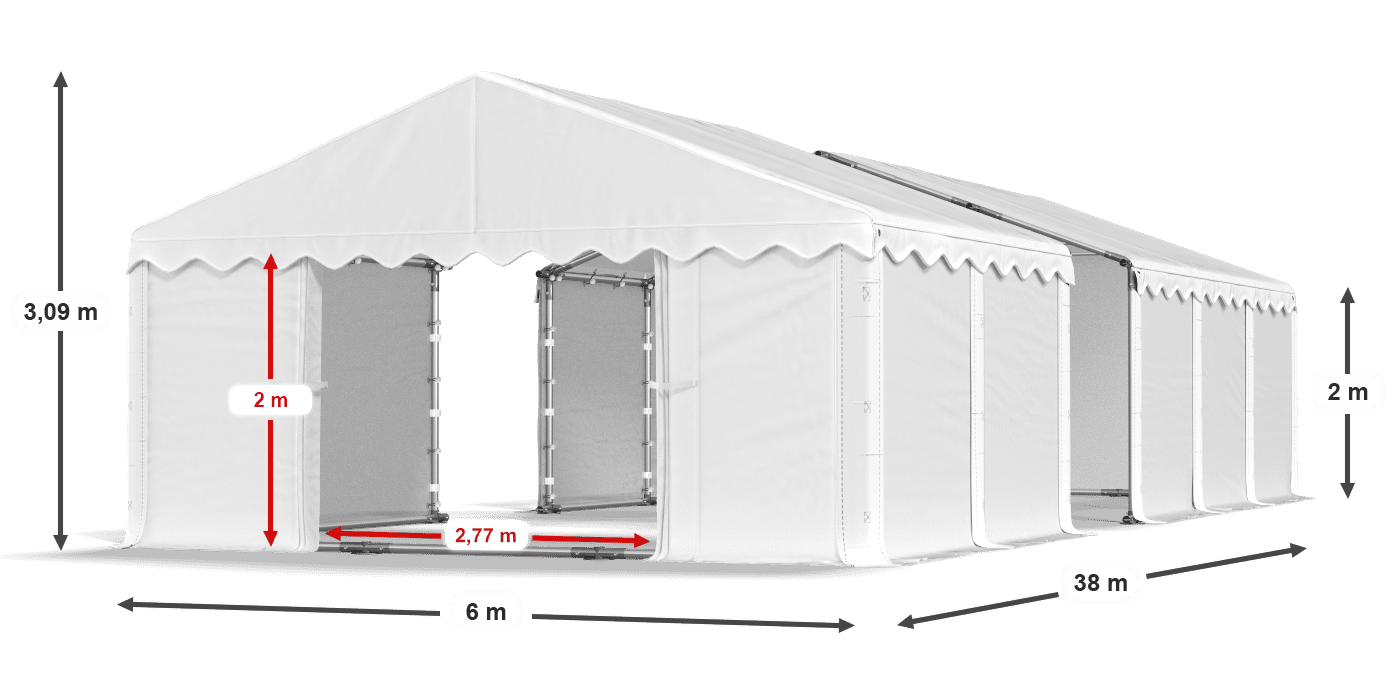

TARPAULIN
ECO M
Roof
Full okay. 240 g
Sides
Full ok. 240 g
Tents with full walls PE They will work as storage facilities or temporary storage facilities. Thanks to them, everything inside the tent is completely obscured and protected from rain or dust.

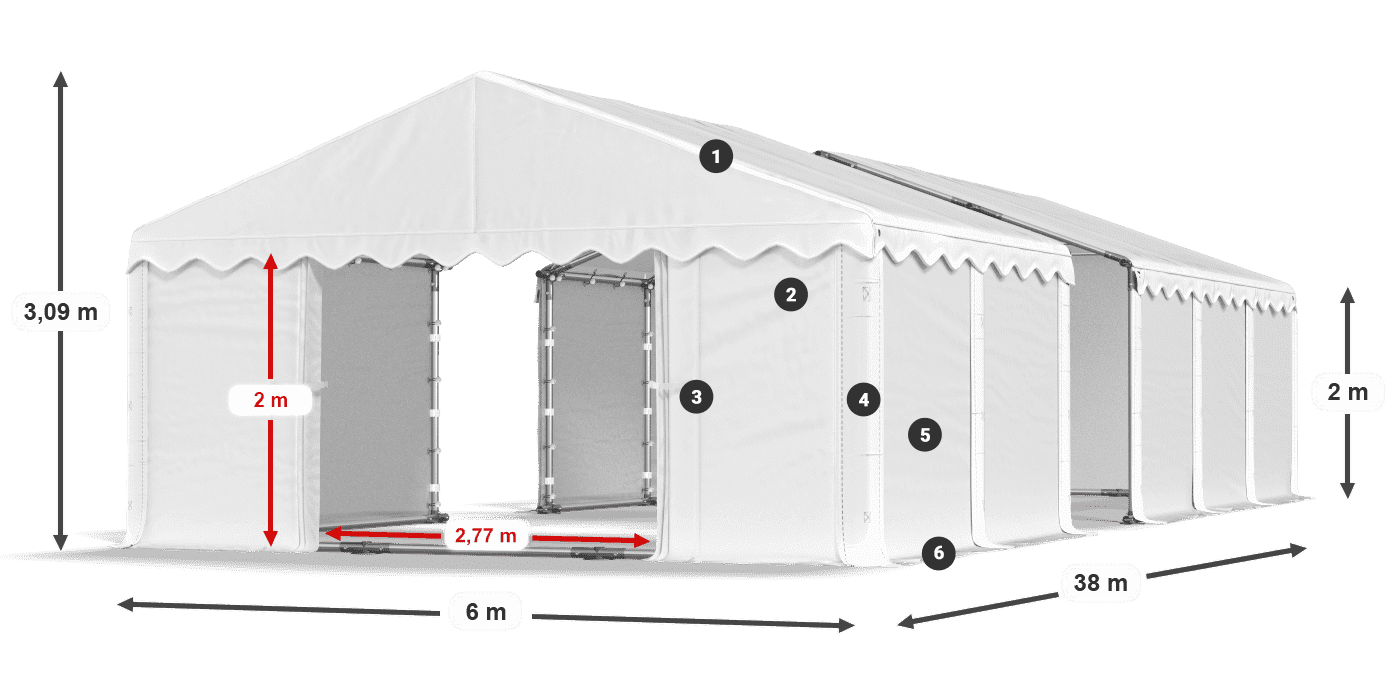

- Roof PE(polyethylene) c. 240 g/m²
- Type gate curtain
- Strong YKK locks at entrances
- Exchangeable masks
- Side walls PE 2 x 2 m (polyethylene) c. 240 g/m² - Full walls
- Mounting meshes tarpaulin
Connecting tents
The 6m x38m 2m tent is composed of tents with dimensions: 6x12m, 6x10m, 6x8m.
Change Colors
The tent has sealing covers. They are available in various color variants. This allows you to quickly and easily change the color of the tent.
The perfect warehouse
The side walls of the tent are made of PE approx. 240g/m². Tents with this type of walls work well as a warehouse, car wash or workshop. The height of the basic wall is 2m.
Adjust the tent to your needs
It is possible to order individual cladding elements in various variants, such as walls with windows or solid walls. This will personalize the tent and adapt it to your individual needs.
Any arrangement
The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Item number
05902426922032
Width
6 m
Lenght
38 m
Side height
2 m
Apex height
3,09 m
Surface
228 m2
Gate A
2,77 m x 2 m
Gate B
2,77 m x 2 m
Side entrance
Yes (approx. 2 m x 2 m)
Volume
580,48 m3
Number of packages
48
Weigh
705,85 kg
Spare parts
Yes
Material
(polyethylene)
Roof densityt
~ 240 g/m2
Sides density
~ 240 g/m2
Temperature range
from -5o to +40o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
No
Overlap System
No
System Hermetic
No
System Air-control
No
System Multi-size
No
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 38 mm
Diameter of fasteners
~ 42 mm
Feet
9 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
No
Roof tensioners
No
Side pulls
No
Roof supports
No
Side supports
No
Package
55.00cm × 65.00cm × 23.00cm - 25.70kg
Package
30.00cm × 166.00cm × 12.00cm - 31.60kg
Package
19.50cm × 195.00cm × 11.00cm - 21.80kg
Package
19.50cm × 195.00cm × 11.00cm - 22.10kg
Package
23.50cm × 195.00cm × 11.00cm - 23.40kg
Package
55.00cm × 65.00cm × 23.00cm - 25.70kg
Package
30.00cm × 166.00cm × 12.00cm - 31.60kg
Package
19.50cm × 195.00cm × 11.00cm - 21.80kg
Package
19.50cm × 195.00cm × 11.00cm - 22.10kg
Package
23.50cm × 195.00cm × 11.00cm - 23.40kg
Package
55.00cm × 65.00cm × 23.00cm - 25.70kg
Package
30.00cm × 166.00cm × 12.00cm - 31.60kg
Package
19.50cm × 195.00cm × 11.00cm - 21.80kg
Package
19.50cm × 195.00cm × 11.00cm - 22.10kg
Package
23.50cm × 195.00cm × 11.00cm - 23.40kg
Package
55.00cm × 65.00cm × 23.00cm - 25.70kg
Package
30.00cm × 166.00cm × 12.00cm - 31.60kg
Package
19.50cm × 195.00cm × 11.00cm - 21.80kg
Package
19.50cm × 195.00cm × 11.00cm - 22.10kg
Package
23.50cm × 195.00cm × 11.00cm - 23.40kg
Package
55.00cm × 65.00cm × 24.00cm - 23.80kg
Package
55.00cm × 65.00cm × 21.00cm - 20.95kg
Package
55.00cm × 65.00cm × 18.00cm - 18.50kg
Package
55.00cm × 65.00cm × 18.00cm - 18.50kg
Package
35.00cm × 43.00cm × 11.00cm - 2.30kg
Package
35.00cm × 43.00cm × 11.00cm - 2.30kg
Package
35.00cm × 43.00cm × 11.00cm - 2.30kg
Package
40.00cm × 40.00cm × 15.00cm - 5.50kg
Package
19.00cm × 195.00cm × 10.50cm - 19.40kg
Package
40.00cm × 40.00cm × 15.00cm - 5.50kg
Package
19.00cm × 195.00cm × 10.50cm - 19.40kg
Package
40.00cm × 40.00cm × 15.00cm - 5.50kg
Package
19.00cm × 195.00cm × 10.50cm - 19.40kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 25.00cm × 5.00cm - 0.85kg
Package
24.00cm × 18.00cm × 5.00cm - 0.60kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 8.00cm - 5.85kg
Package
40.00cm × 50.00cm × 6.00cm - 4.15kg
Package
40.00cm × 50.00cm × 6.00cm - 4.15kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 48 packs on a pallet with a total weight of 705,85 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 6-8 people.
On average in 8-10 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
Assembly instructions for connecting the sheathing
DOWNLOAD PDF FILE
