Year-round sales tent |
8x18 m
article 1457218
8x18 m Year-round sales tent
8x18m side 2,5m
see dimensions
Color of the plating:
more >
7 231,76 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.
The cover with transparent sides guarantees excellent illumination of the interior and allows you to admire the natural landscape while staying under the party tent. The tarpaulin is made of waterproof and UV-resistant material PVC. Thanks to this, it guarantees a dry and shaded space for tables and buffets. It is used during outdoor events and as a commercial space. Aesthetic covering attracts the attention of potential customers and allows the goods to be displayed.
Year-round sales tent
This tent will accommodate:
approx. 288 standing places
approx. 221 chair seats
approx. 192 seats on the benches
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
TO SHOPPING CART
Delivery time:
22 June already with you
Simple assembly:
ok 7-9 hours / 6-8 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe
CONSTRUCTION
WINTER PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings roofing
- Strings side
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section

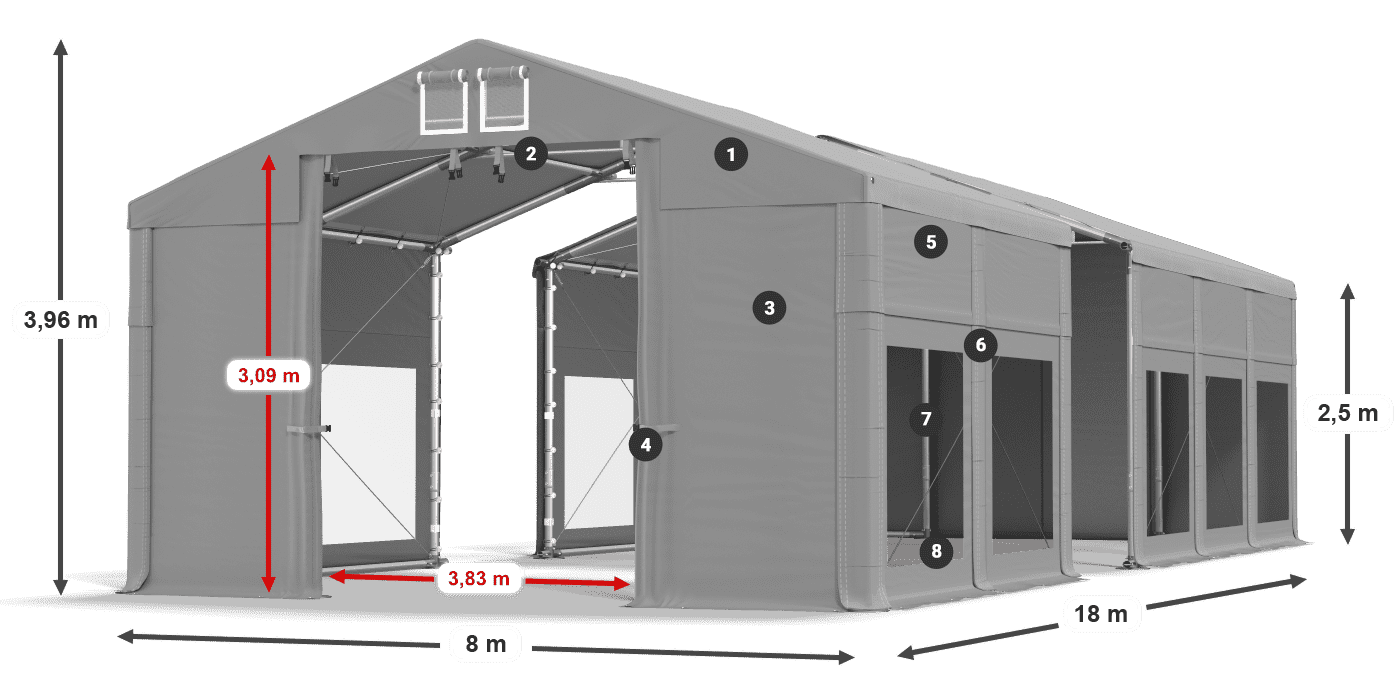

TARPAULIN
PRO T
Roof
Full okay. 560 g
Sides
Transparent approx. 580 g
Air-control
Yes.
Hermetic
Yes.
The hull will work great when organizing any outdoor event, banquet or festival. It provides perfect protection catering and invited guests during weddings, communion, picnics and other occasional events. It will also be used as gazebo, garden tent be terrace. The tent can also be used as commercial surfaces and additional seat In his place.
- Roof SD PVC (polyvinyl chloride) c. 560 g/m²
- Double ventilation placed on both sides of the tent
- Type-ins Slide & Roll
- Strong YKK locks at entrances
- Sealing turnips
- Lifting the side wall MS PVC Okay. 2 x 0.5 m (polyvinyl chloride) c. 580 g/m²
- ExchangeableMaskers with sealing turnips
- Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m² - Transparent windows 144 x 148 cm
- Additional Retention apron
Connecting tents
The 8m x18m 2,5m tent is composed of tents with dimensions: 8x8m, 8x10m.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
Full illumination
The side wall is made of thick tarpaulin PVC approx. 580 g/m². Thanks to the transparent side wall, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent
expand section

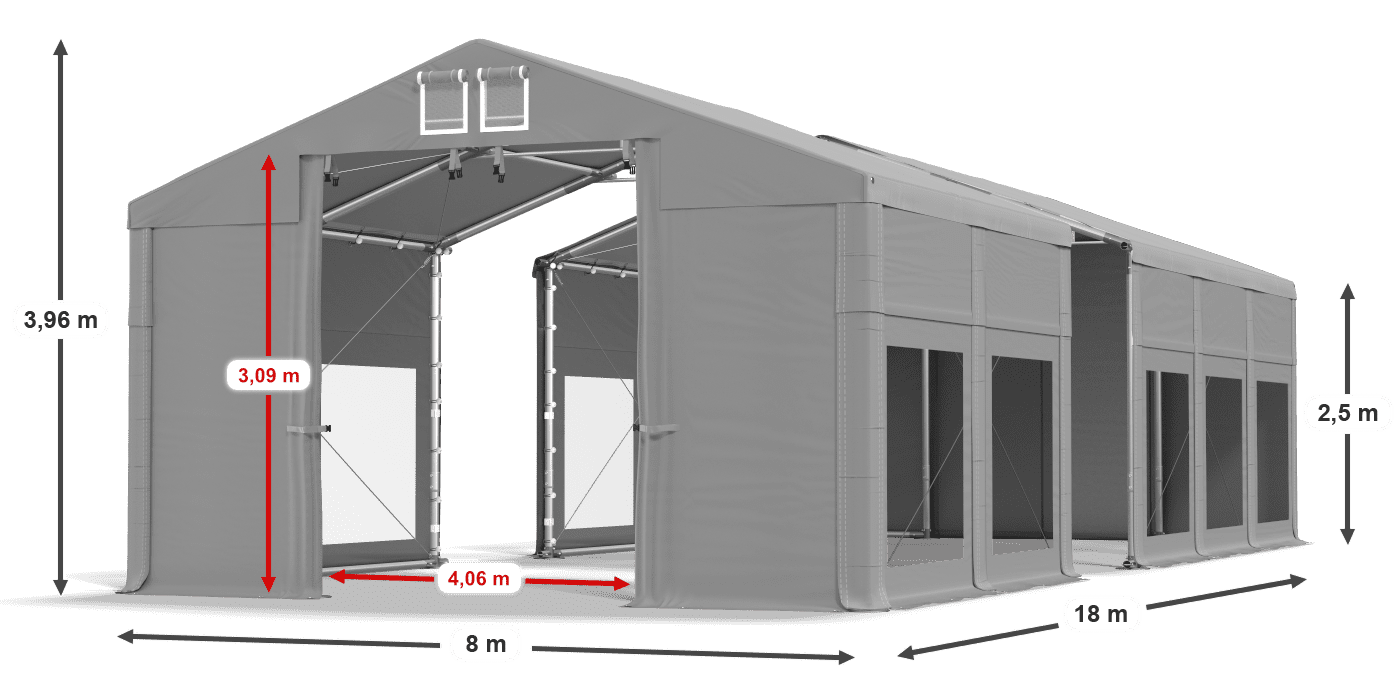

Technical data
General
Tarpaulins
Constructions
Packages
Width
8 m
Lenght
18 m
Side height
2,5 m
Apex height
3,96 m
Surface
144 m2
Gate A
4,06 m x 3,09 m
Gate B
3,73 m x 2,5 m
Side entrance
Yes (approx. 2 m x 2,5 m)
Volume
392,82 m3
Number of packages
39
Weigh
798,55 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 560 g/m2
Sides density
~ 580 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
No
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
No
Side supports
No
Package
80.00cm × 200.00cm × 30.00cm - 214.45kg
Package
80.00cm × 200.00cm × 30.00cm - 214.45kg
Package
55.00cm × 65.00cm × 26.00cm - 52.15kg
Package
55.00cm × 65.00cm × 22.00cm - 43.00kg
Package
33.00cm × 44.00cm × 10.00cm - 4.55kg
Package
33.00cm × 43.00cm × 7.00cm - 1.10kg
Package
25.00cm × 33.50cm × 7.00cm - 0.70kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
25.00cm × 198.00cm × 11.50cm - 31.60kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
55.00cm × 65.00cm × 8.00cm - 11.65kg
Package
55.00cm × 65.00cm × 13.00cm - 14.30kg
Package
42.00cm × 261.00cm × 16.00cm - 81.50kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
45.00cm × 55.00cm × 15.00cm - 15.50kg
Package
35.00cm × 35.00cm × 16.00cm - 5.10kg
Package
35.00cm × 35.00cm × 16.00cm - 5.10kg
Package
35.00cm × 35.00cm × 16.00cm - 5.10kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
20.00cm × 25.00cm × 5.00cm - 0.50kg
Package
20.00cm × 25.00cm × 5.00cm - 0.50kg
Package
24.00cm × 30.00cm × 5.00cm - 0.65kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 39 packs on a pallet with a total weight of 798,55 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 6-8 people.
On average in 7-9 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
Assembly instructions for connecting the sheathing
DOWNLOAD PDF FILE
