Year-round sales tent | 8x20 m

Download PDF offer

article 1967346
8x20 m Year-round sales tent

Name: Year-round sales tent
Brand: Das Company
SKU: 1F20A53106110121501212121
Price: 9877.45 EUR
Availability: OutOfStock

8x20m side 2m

see dimensions

Color of the plating:

more >

9 877,45 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The year-round structure WINTER PLUS is made of strong steel pipes. It has numerous reinforcements and additional tensions. This makes it exceptionally durable and suitable for use in various conditions.

The strong tarpaulin is made of high-weight PVC. It has aesthetic stained glass windows that provide plenty of daylight. The elegant cover is used in party tents, catering tents and commercial tents. The waterproof and UV-resistant tarpaulin protects tables and buffets, ensuring a dry and shaded space for guests. A tent with stained glass windows is also a perfect garden gazebo.

Delivery and collection

Assembly and instructions

Configuration

Year-round sales tent

This tent will accommodate:

approx. 320 standing places

approx. 246 chair seats

approx. 208 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

Call us: info.ie@dascompany.com

FREE CONSULTATION

Delivery time: 22 June already with you

Simple assembly: ok 7-8 hours / 6-8 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

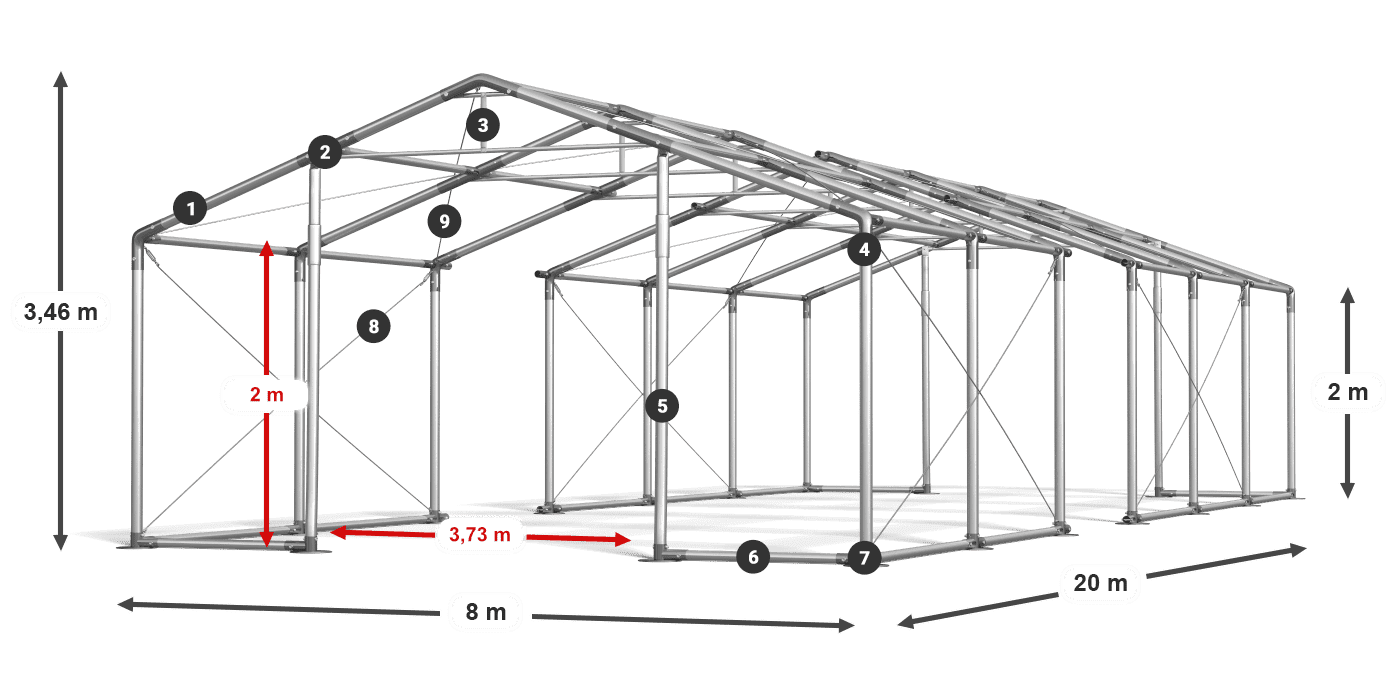

CONSTRUCTION

WINTER PLUS

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

Strings

Roof and side

The structure is built of a strong and solid frame, made of galvanized pipes approx. 50 mm. The rack is easy to mount. In addition to quick installation, the tent can be moved very quickly where it is needed.

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Strong screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm
Strings side
Strings roofing

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

Increased immunity

The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.

expand section

TARPAULIN

Roof: SD 560 PVC Walls: FR 620 PVC

Roof

Full okay. 560 g

Sides

The stained glass is ok. 620 g

Air-control

Yes.

Hermetic

Yes.

The hull will be perfect during the organization of any outdoor event, banquet or festival. It provides ideal protection for catering and invited guests during weddings, communions, picnics and other occasional events. It will also be used as a gazebo, garden or terrace tent. The tent can also be used as commercial space and an additional place in its premises.

Roof SD PVC (polyvinyl chloride) c. 560g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Exchangeable Maskers with sealing turnips
Side walls FR PVC 2 x 2 m (polyvinyl chloride) c. 620 g/m² - Glassware 140 x 130 cm
Additional Retention apron

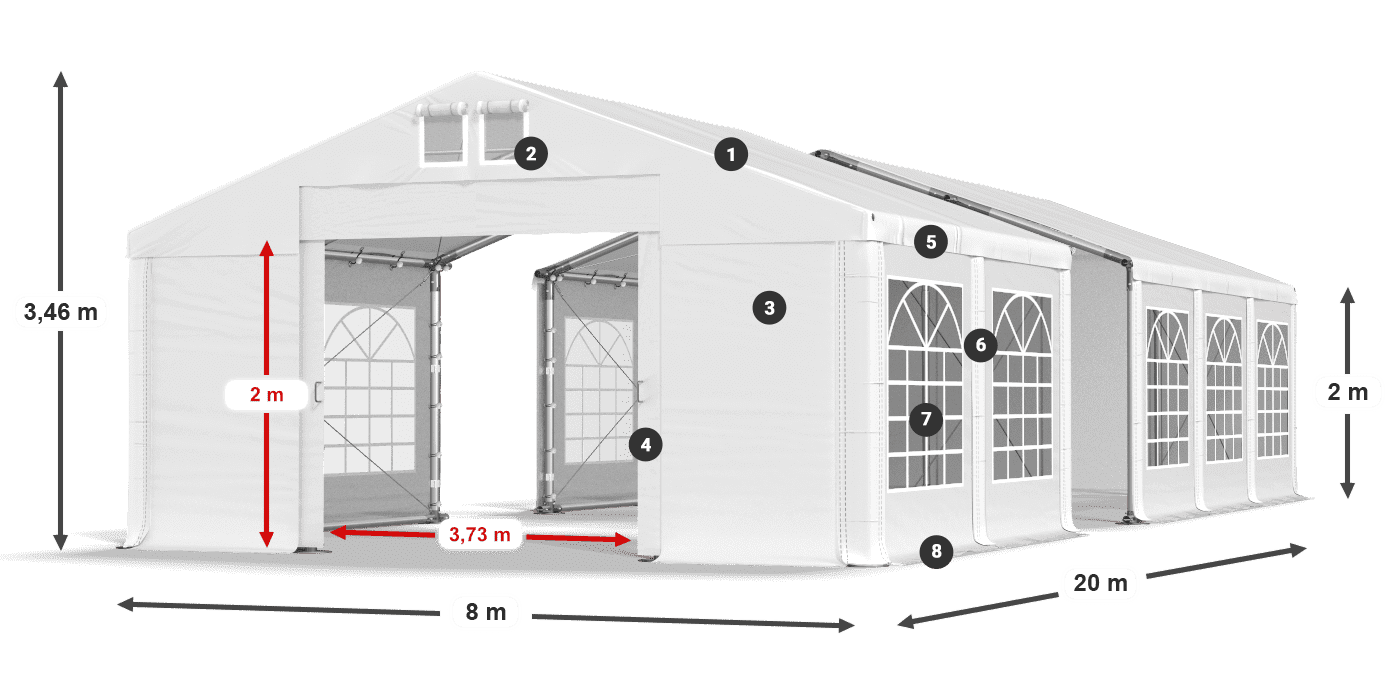

Roof: SD 560 PVC Walls: FR 620 PVC legend 2m

Connecting tents

The 8m x20m 2m tent is composed of tents with dimensions: 8x12m, 8x8m.

You can combine tents at your convenience

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Adjust the tent to your needs

You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Any color selection

The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

Safety of use

The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Width

8 m

Lenght

20 m

Side height

2 m

Apex height

3,46 m

Surface

160 m²

Gate A

3,73 m x 2 m

Gate B

4,42 m x 2,15 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

436,47 m³

Number of packages

Weigh

768,50 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 560 g/m²

Sides density

~ 620 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

approx. 2 mm (diameter of steel ropes)

Side pulls

approx. 2 mm (diameter of steel ropes)

Roof supports

Side supports

Package

80.00cm × 200.00cm × 30.00cm - 214.45kg

Package

80.00cm × 200.00cm × 30.00cm - 214.45kg

Package

55.00cm × 65.00cm × 30.00cm - 59.00kg

Package

55.00cm × 65.00cm × 22.00cm - 43.00kg

Package

33.00cm × 44.00cm × 10.00cm - 4.55kg

Package

33.00cm × 43.00cm × 7.00cm - 1.10kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

25.00cm × 198.00cm × 11.50cm - 31.60kg

Package

50.00cm × 50.00cm × 15.00cm - 8.20kg

Package

25.00cm × 198.00cm × 11.50cm - 31.60kg

Package

55.00cm × 65.00cm × 12.00cm - 12.15kg

Package

41.00cm × 275.00cm × 14.00cm - 72.40kg

Package

30.00cm × 50.00cm × 9.00cm - 5.75kg

Package

27.00cm × 33.00cm × 11.00cm - 3.70kg

Package

37.00cm × 73.00cm × 22.00cm - 1.40kg

Package

37.00cm × 73.00cm × 22.00cm - 1.40kg

Package

37.00cm × 73.00cm × 22.00cm - 1.40kg

Package

37.00cm × 73.00cm × 22.00cm - 1.40kg

Package

37.00cm × 73.00cm × 22.00cm - 1.40kg

Package
