Year-round shopping pavilion |
8x28 m
article 2148277
8x28 m Year-round shopping pavilion
8x28m side 2,5m
see dimensions
Color of the plating:
more >
14 683,53 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The POLAR design can be used regardless of the season. It is made of solid steel elements. Additional reinforcements, tensions and struts ensure the strength of the frame.
A tarpaulin with windows equipped with mosquito nets ensures the flow of fresh air on hot days. The cover is resistant to moisture and UV radiation, so it can be used when organizing outdoor family and corporate parties. Mosquito nets are extremely airy and at the same time protect tables and buffets against flying insects. If it gets cold, we can cover the windows with blinds to seal the party tent.
Year-round shopping pavilion
This tent will accommodate:
approx. 448 standing places
approx. 344 chair seats
approx. 296 seats on the benches
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
Call us: info.ie@dascompany.com
FREE CONSULTATION
Delivery time:
22 June already with you
Simple assembly:
ok 9-12 hours / 6-8 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe

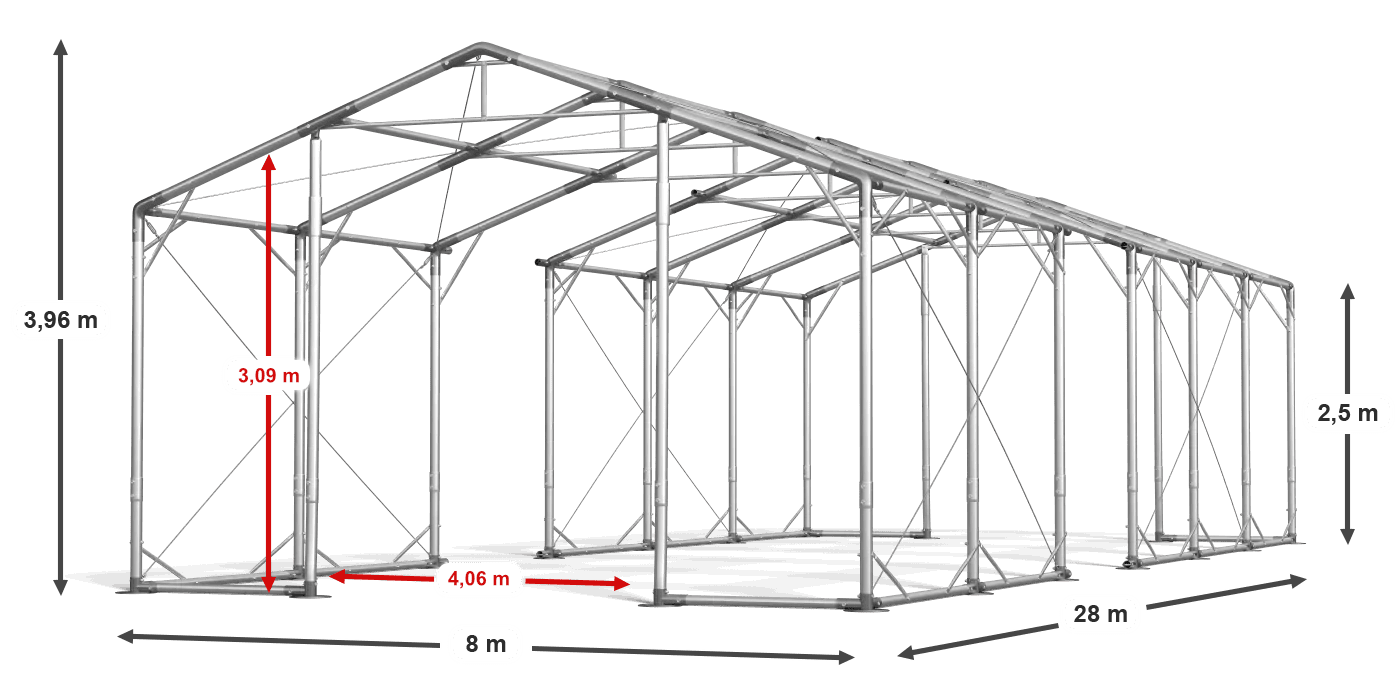

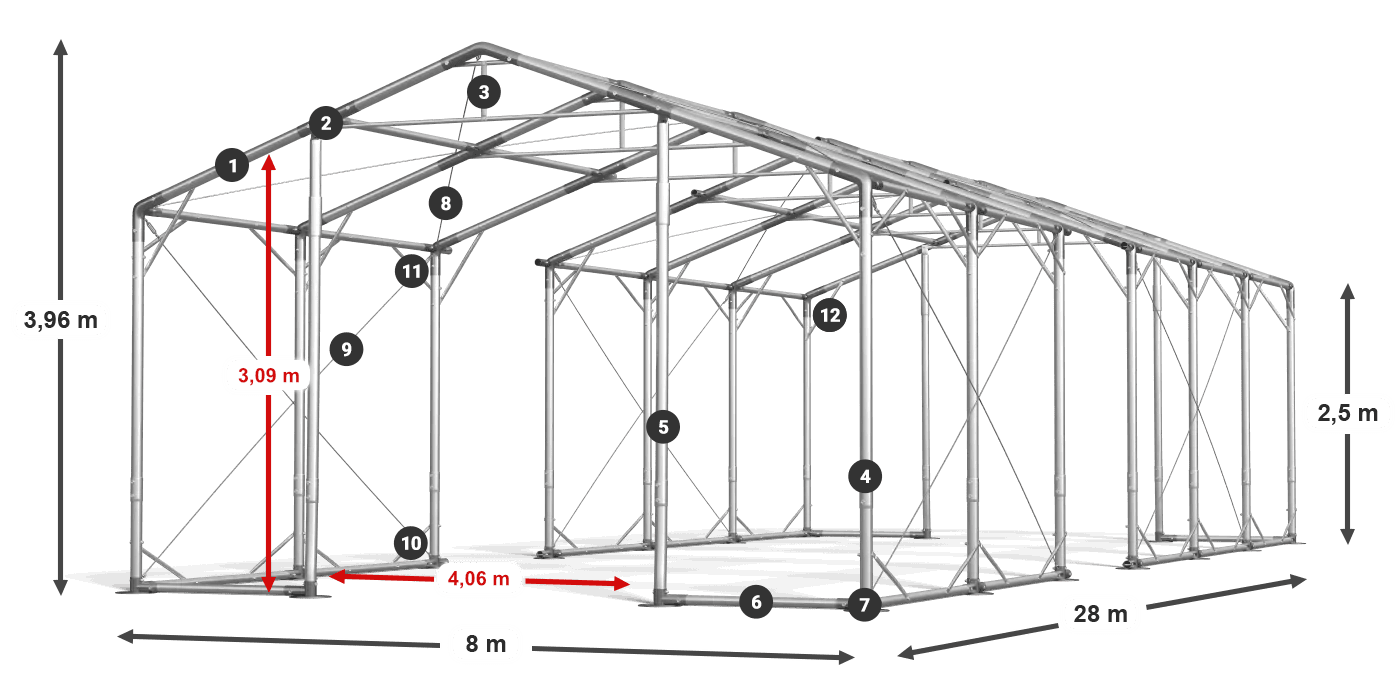

CONSTRUCTION
POLAR
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
Shots
Single roof and side
The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,The tent can be moved very quickly where it is needed.
- Construction pipes approx. fi 50 mm
- Structure connectors approx. fi 54 mm
- Reinforced roof structure
- Strong screws passing through
- Reinforcements entries
- Reinforced Floor construction
- Zoomed feet fi 14 cm
- Strings roofing
- Strings side
- Shots lower side
- Shots upper side
- Shots roofing
Greater snow resistance
Corner supports placed at the corners of the tent strengthen the structure and support the weight of snow on the roof.
Increased durability
Additional transverse upper and lower brackets were used on all side walls. Thanks to them, the tent is protected against stronger gusts of wind.
Stronger construction
In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.
Easy height change
The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
expand section
TARPAULIN
PRO R
Roof
Full okay. 560 g
Sides
The blinds are ok. 500 g
Air-control
Yes.
Hermetic
Yes.
The hull is made of tarp PVC. The roof is approximately 560 g/m² and the side walls are about 500g/m². Each side wall has a window built of a mosquito net allowing air. There is a blind above each window, which can be rolled and closed tightly, which protects the interior of the tent from rain, snow or dust.
- Roof SD PVC (polyvinyl chloride) c. 560g/m²
- Double ventilation placed on both sides of the tent
- Type-ins Slide & Roll
- Strong YKK locks at entrances
- Sealing turnips
- Lifting the side wall SD PVC Okay. 2 x 0.5 m (polyvinyl chloride) c. 500 g/m²
- Exchangeable Maskers with sealing turnips
- Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m² - Moscow. 140 x 130 cm
- Additional Retention apron
Connecting tents
The 8m x28m 2,5m tent is composed of tents with dimensions: 8x12m, 8x8m.
Any arrangement
The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.
Greater tightness and durability
The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
expand section

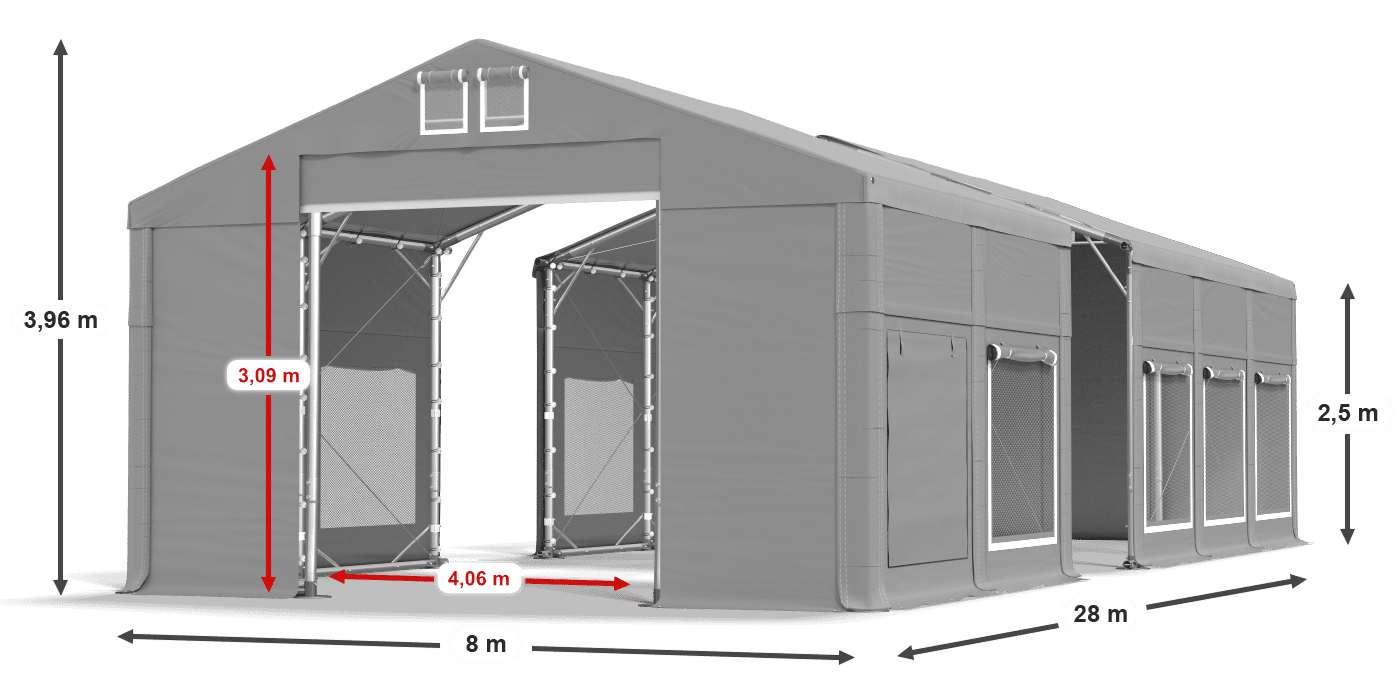

Technical data
General
Tarpaulins
Constructions
Packages
Width
8 m
Lenght
28 m
Side height
2,5 m
Apex height
3,96 m
Surface
224 m2
Gate A
4,42 m x 2,65 m
Gate B
4,06 m x 3,09 m
Side entrance
Yes (approx. 2 m x 2,5 m)
Volume
611,06 m3
Number of packages
86
Weigh
1 106,00 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 560 g/m2
Sides density
~ 500 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
No
Fire retardant
No
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 50 mm
Diameter of fasteners
~ 54 mm
Feet
14 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
Yes
Roof tensioners
approx. 2 mm (diameter of steel ropes)
Side pulls
approx. 2 mm (diameter of steel ropes)
Roof supports
approx. 25 mm
Side supports
No
Package
80.00cm × 200.00cm × 30.00cm - 214.45kg
Package
80.00cm × 200.00cm × 30.00cm - 214.45kg
Package
80.00cm × 200.00cm × 30.00cm - 214.45kg
Package
55.00cm × 65.00cm × 30.00cm - 59.00kg
Package
55.00cm × 65.00cm × 22.00cm - 43.00kg
Package
55.00cm × 65.00cm × 22.00cm - 43.00kg
Package
33.00cm × 44.00cm × 10.00cm - 4.55kg
Package
33.00cm × 44.00cm × 10.00cm - 4.55kg
Package
33.00cm × 43.00cm × 7.00cm - 1.10kg
Package
33.00cm × 43.00cm × 7.00cm - 1.10kg
Package
25.00cm × 33.50cm × 7.00cm - 0.70kg
Package
25.00cm × 33.50cm × 7.00cm - 0.70kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
25.00cm × 198.00cm × 11.50cm - 31.60kg
Package
50.00cm × 50.00cm × 15.00cm - 8.20kg
Package
25.00cm × 198.00cm × 11.50cm - 31.60kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
16.50cm × 72.00cm × 11.00cm - 8.00kg
Package
11.00cm × 72.00cm × 11.00cm - 5.00kg
Package
30.00cm × 50.00cm × 10.00cm - 6.45kg
Package
27.00cm × 33.00cm × 11.00cm - 3.70kg
Package
55.00cm × 65.00cm × 8.00cm - 11.65kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
37.00cm × 73.00cm × 22.00cm - 1.40kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
10.00cm × 66.00cm × 7.00cm - 2.00kg
Package
7.00cm × 66.00cm × 7.00cm - 1.50kg
Package
7.00cm × 66.00cm × 7.00cm - 1.50kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
35.00cm × 70.00cm × 20.00cm - 1.30kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 11.00cm - 1.85kg
Package
25.00cm × 30.00cm × 10.00cm - 1.30kg
Package
30.00cm × 30.00cm × 10.00cm - 1.50kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 12.00cm - 9.40kg
Package
45.00cm × 55.00cm × 8.00cm - 6.45kg
Package
35.00cm × 35.00cm × 13.00cm - 4.05kg
Package
35.00cm × 35.00cm × 13.00cm - 4.05kg
Package
35.00cm × 35.00cm × 13.00cm - 4.05kg
Package
35.00cm × 35.00cm × 13.00cm - 4.05kg
Package
35.00cm × 35.00cm × 9.00cm - 2.80kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
24.00cm × 25.00cm × 5.00cm - 0.70kg
Package
20.00cm × 25.00cm × 5.00cm - 0.50kg
Package
24.00cm × 30.00cm × 5.00cm - 0.65kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 86 packs on a pallet with a total weight of 1 106,00 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 6-8 people.
On average in 9-12 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
Assembly instructions for connecting the sheathing
DOWNLOAD PDF FILE
