Year-round Industrial Hall | 8x32 m
pobierz pdf
Download PDF offer
Open entrance tent
tent construction

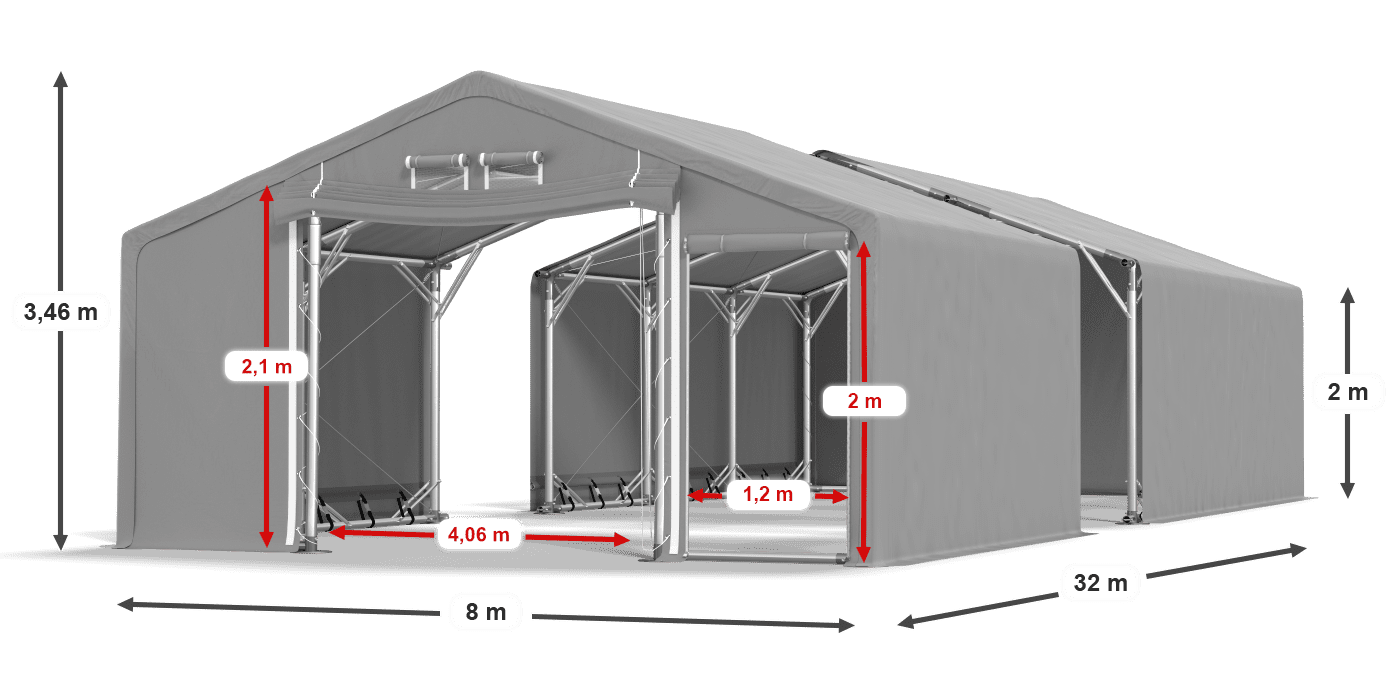

sheathing legend

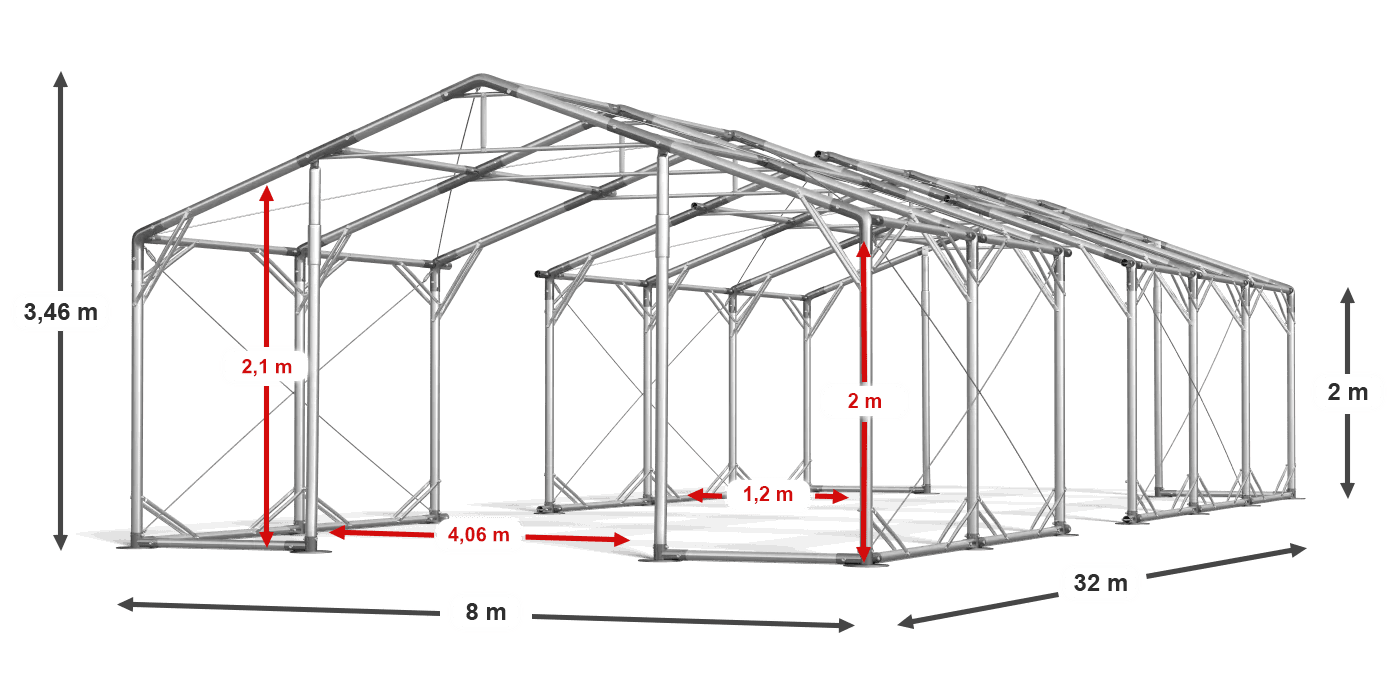

legend construction
front gate
Construction rates

article 575006
8x32 m Year-round Industrial Hall

8x32m side 2m
see dimensions
Color of the plating:
more >
SPECIAL OFFER
10 567,09 €

Includes 23% VAT

Lowest price 30 days before the promotion: 12 431,86 €
Catalouge price: 12 431,86 €

Need help choosing?
Call us: info.ie@dascompany.com
FREE CONSULTATION
Description

POLAR PLUS construction is an exceptionally durable all-season structure that consists of strong steel elements. The frame has reinforcements, tensions and double braces.

A full, gray tarpaulin made of high-weight PVC perfectly isolates goods and vehicles stored under a roof from weather conditions. The strong, year-round tarpaulin is equipped with an additional, smaller entrance, which is located next to the large entrance gate. This is an excellent storage tent and a solid garage tent. The waterproof and flame-retardant covering allows workshop and production work to be carried out in the tent hall.

About the product
Construction
Tarpaulin
Technical data
Delivery and collection
Assembly and instructions
Configuration
Year-round Industrial Hall
This tent will accommodate:
euro pallets

Number of EURO pallets approx. 260

industrial pallets

Number of industrial pallets approx. 208

imaginary palettes

Number of custom palettes approx. 160

available configurations

Over 30,000 configurations

parts available

Access to parts for expansion and service

warranty on parts availability

10 years warranty for the availability of substitute elements

Order now
TO SHOPPING CART
Delivery time:
Delivery time: 22 June already with you
Simple assembly:
Simple assembly: ok 9-12 hours / 6-8 people
Das Company - Party and storage tents
medal
We have been operating since
2012
advising
We advise on configuration, assembly and service
supply
We deliver to 10 countries in Europe

CONSTRUCTION

POLAR PLUS
Pipes
Steel ca. fi 50 mm
Connectors
Steel ca. fi 54 mm
Rates
Steel fi 14 cm
Strings
Roof and side
Shots
Double roof and side
The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,The tent can be moved very quickly where it is needed.

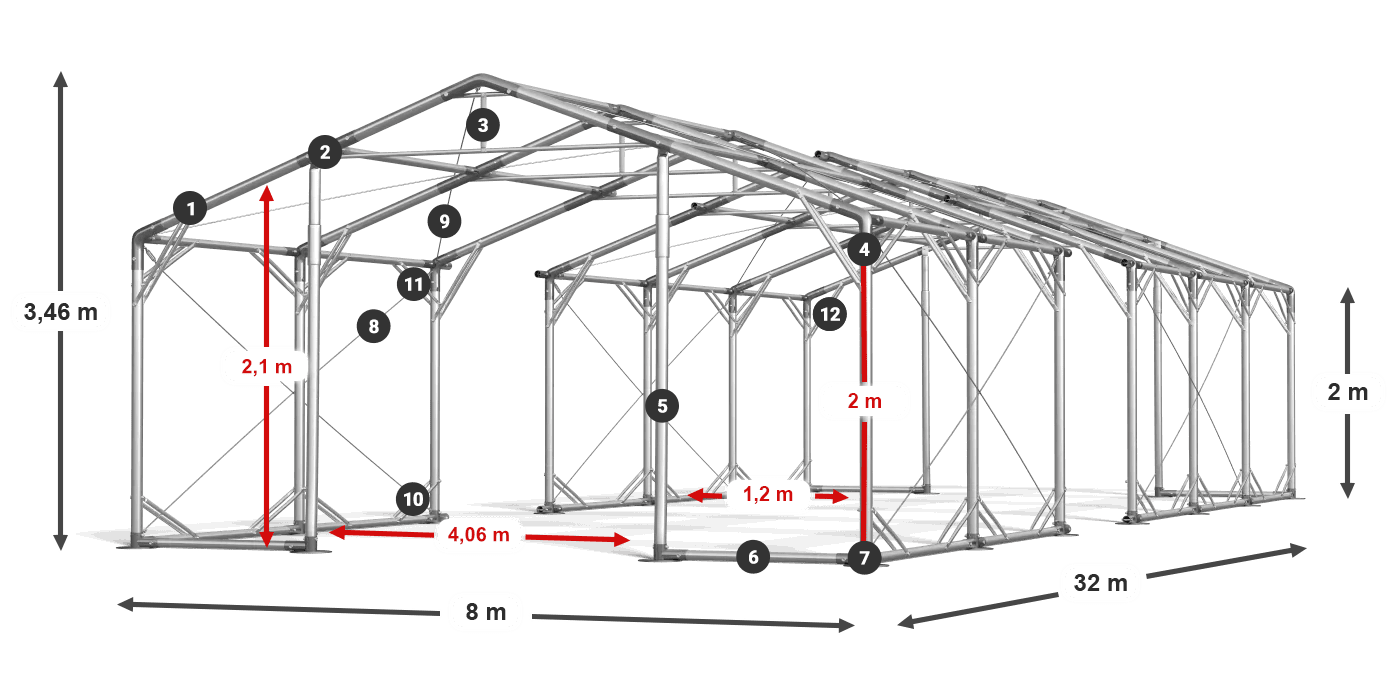

  1. Construction pipes approx. fi 50 mm
  2. Structure connectors approx. fi 54 mm
  3. Reinforced roof structure
  4. Strong screws passing through
  5. Reinforcements entries
  6. Reinforced Floor construction
  7. Zoomed feet fi 14 cm
  8. Strings side
  9. Strings roofing
  10. Double shots lower side
  11. Double shots upper side
  12. Double shots roofing
POLAR PLUS legend 2m
Maximum snow resistance
The roof structure is equipped with additional corner supports that relieve the main structure and take part of the weight of the snow. This is the best and most innovative system that currently exists on the market.
Additional roof supports x 2
Maximum durability
Additional transverse upper and lower brackets were used on all side walls. Thanks to them, the tent is maximally resistant to strong and gusty gusts of wind. This is the most effective way to protect against this type of weather conditions.
Additional side supports x 2
Year-round use
The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.
Roof and floor structure
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.
A new way of connecting structures
Reliable connection of elements
In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.
Through-hole screws
Many years of operation
The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.
Thick pipes, diameter 50 mm
Stronger construction
Horizontal pipes at the entrances have been eliminated to make it easier to enter the tent. Instead, thick vertical pipes were used to stiffen the entrances and additionally prevent mechanical damage to the tarpaulin.
Additional reinforcements of entrances
Exceptional stability
Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.
Enlarged feet, diameter 14 cm
Easy height change
The modular structure of the “P50” system allows you to easily increase or decrease the height of the tent. To raise the tent, we use 0.5 m or 1 m lifting modules. The maximum height of the tent side is 3m.
Easy Up & Down system
Increased immunity
The roof and side tensioning system consists of thick steel ropes with turnbuckles. This results in extraordinary durability of the structure, which does not deform and remains compact throughout the entire period of use.
Roof and side tensions
expand section

TARPAULIN

MAX
Roof
Full okay. 600 g
Sides
Full ok. 600 g
Air-control Double vents
Yes.
Hermetic większa szczelnośći width=
Yes.
Flammable
Yes.
The hull is made of one thick material PVC. Roofs and side walls are one part. An additional convenience is the smaller entrance, which is located next to the entrance gate. That way, you don't have to open a bigger entrance every time you want to go inside.

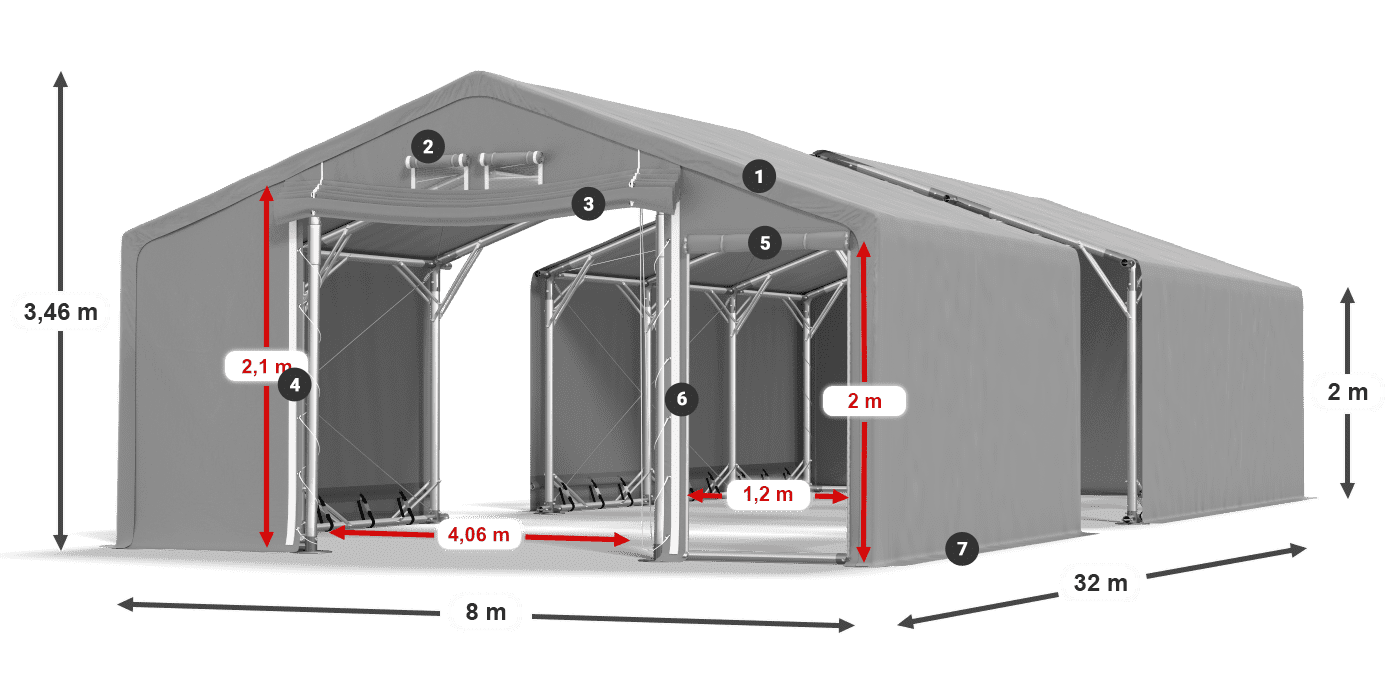

  1. Fireproof hull SFR PVC (polyvinyl chloride) c. 600g/m²
  2. Double ventilation placed on both sides of the tent
  3. Entry roll-up
  4. Sealing turnips entry
  5. Additional quick entry
  6. Strong YKK locks at the instant entrance
  7. Additional Retention apron
SFR 600 PVC legend
Connecting tents
The 8m x32m 2m tent is composed of tents with dimensions: 8x8m, 8x12m.
You can combine tents at your convenience
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
System Air Control
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Retention Apron
Safety of use
The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Material
(polyvinyl chloride)
Roof densityt
~ 600 g/m2
Sides density
~ 600 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
No
Fire retardant
Yes
DELIVERY AND COLLECTION
Packages
Packages
Your order will be packed in 94 packs on a pallet with a total weight of 1 246,95 kg.
Delivery
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Person assembly
Editing with 6-8 people.
Assembly time
On average in 9-12 hours.
The roof assembly manual
DOWNLOAD PDF FILE
The construction assembly manual
DOWNLOAD PDF FILE
