Year-round tent hall | 4x8 m

Download PDF offer

article 573170
4x8 m Year-round tent hall

Name: Year-round tent hall
Brand: Das Company
SKU: 1B08A45205200762762323232
Price: 1530.71 EUR
Availability: InStock

4x8m side 2m

see dimensions

Color of the plating:

more >

SPECIAL OFFER

1 530,71 €

Includes 23% VAT

Lowest price 30 days before the promotion: 1 800,84 €
Catalouge price: 1 800,84 €

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The WINTER design is intended for year-round use. The frame is made of the highest quality steel. Additional reinforcements make the structure durable and stable.

A full, gray tarpaulin made of high-weight PVC perfectly isolates goods and vehicles stored under a roof from weather conditions. The strong, year-round tarpaulin is equipped with an additional, smaller entrance, which is located next to the large entrance gate. This is an excellent storage tent and a solid garage tent. The waterproof and flame-retardant covering allows workshop and production work to be carried out in the tent hall.

Delivery and collection

Assembly and instructions

Configuration

Year-round tent hall

This tent will accommodate:

Number of EURO pallets approx. 30

Number of industrial pallets approx. 24

Number of custom palettes approx. 20

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 3-4 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

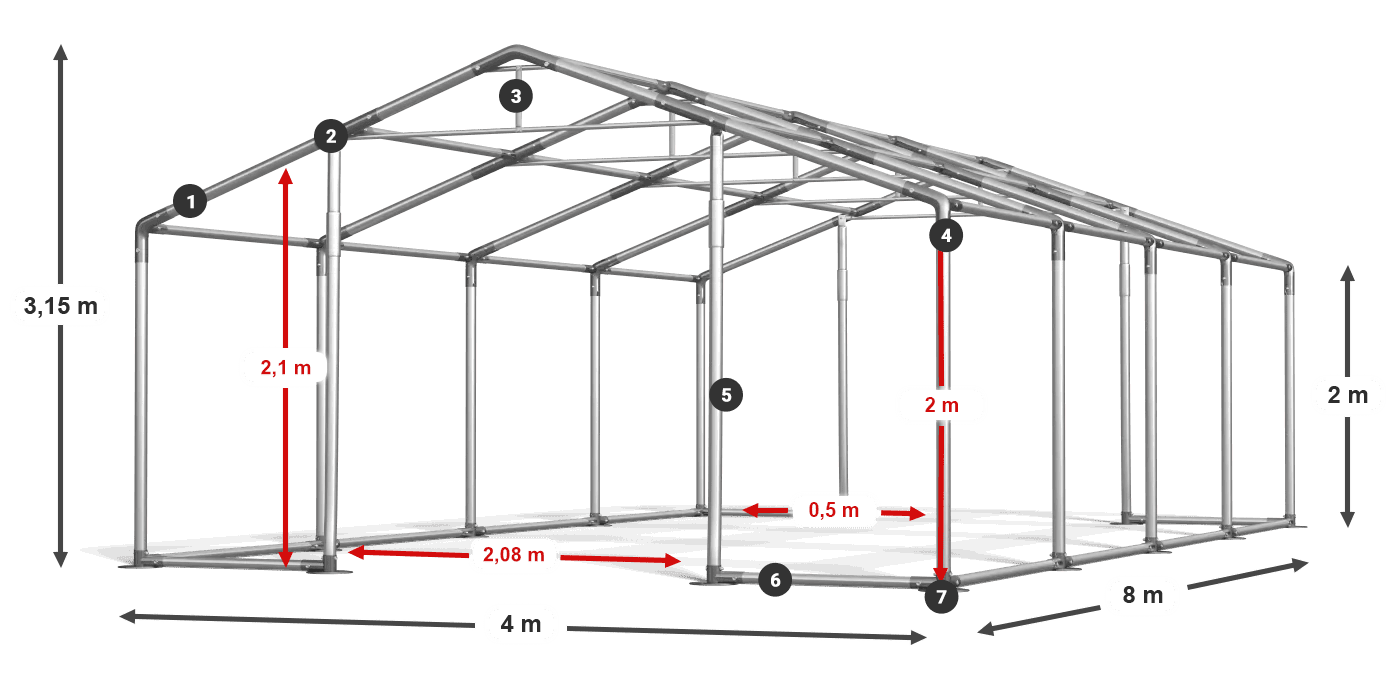

CONSTRUCTION

WINTER

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

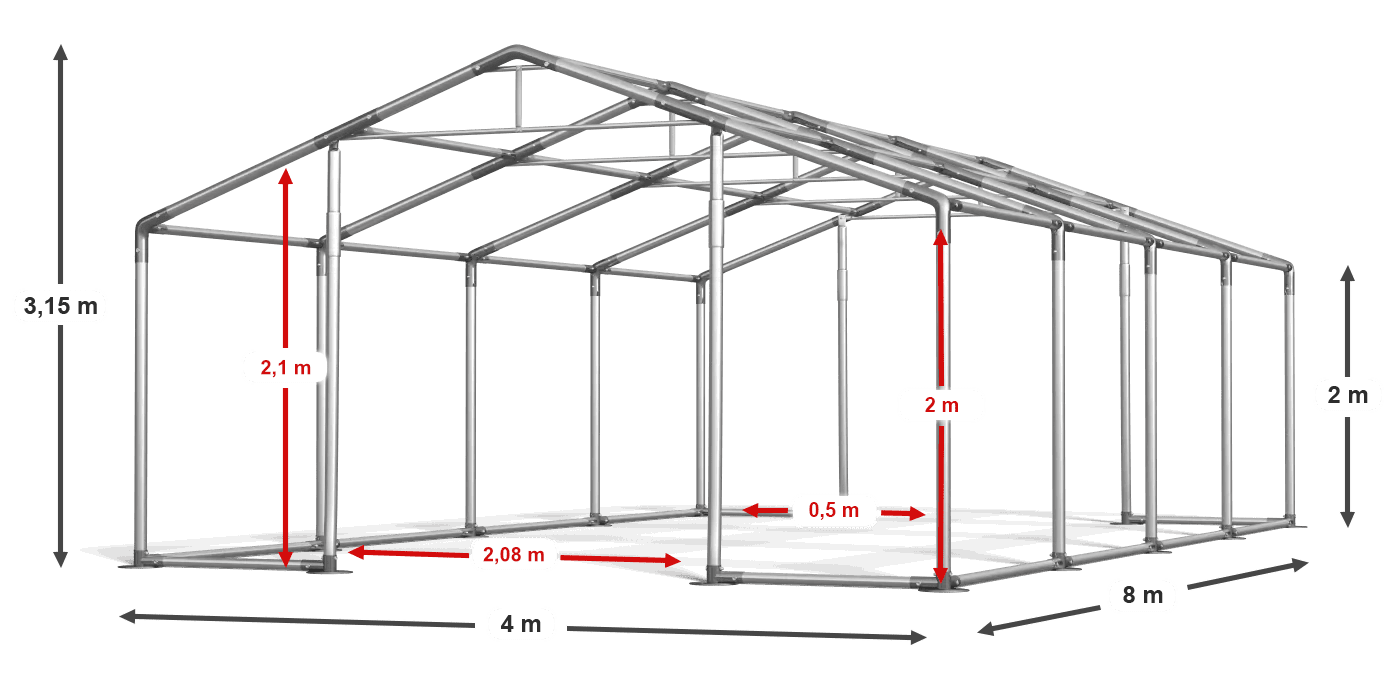

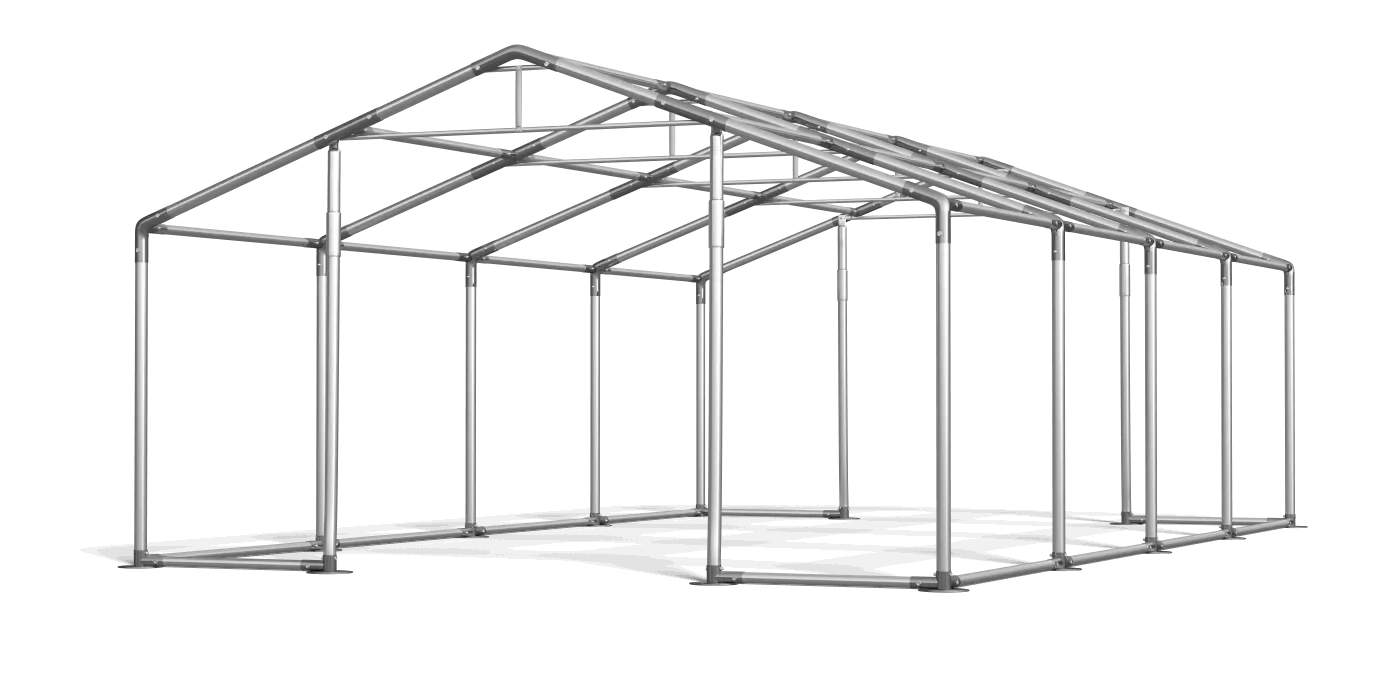

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,the tent can be moved very quickly where it is needed

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Solid screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Easy height change

The modular structure of the “P50” system allows you to easily increase or decrease the height of the tent. To raise the tent, we use 0.5 m or 1 m lifting modules. The maximum height of the tent side is 3m.

expand section

TARPAULIN

MAX

Roof

Full okay. 600 g

Sides

Full ok. 600 g

Air-control

Yes.

Hermetic

Yes.

Flammable

Yes.

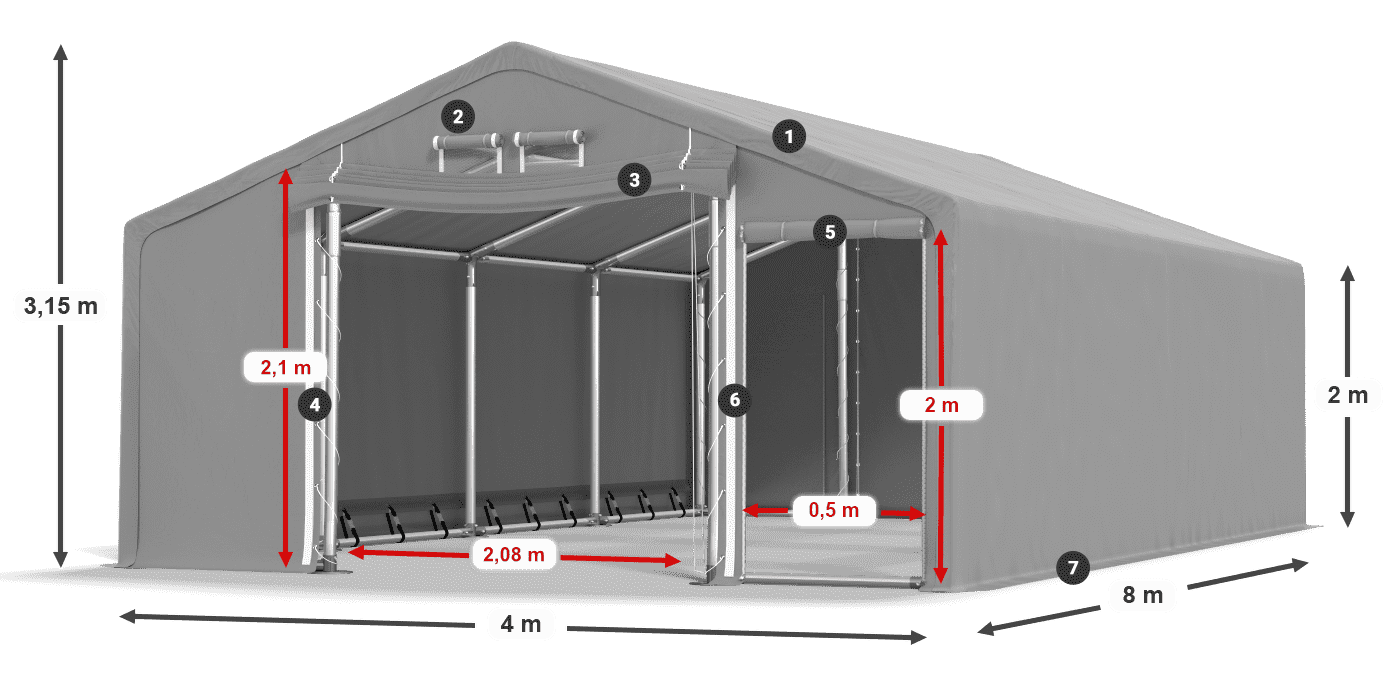

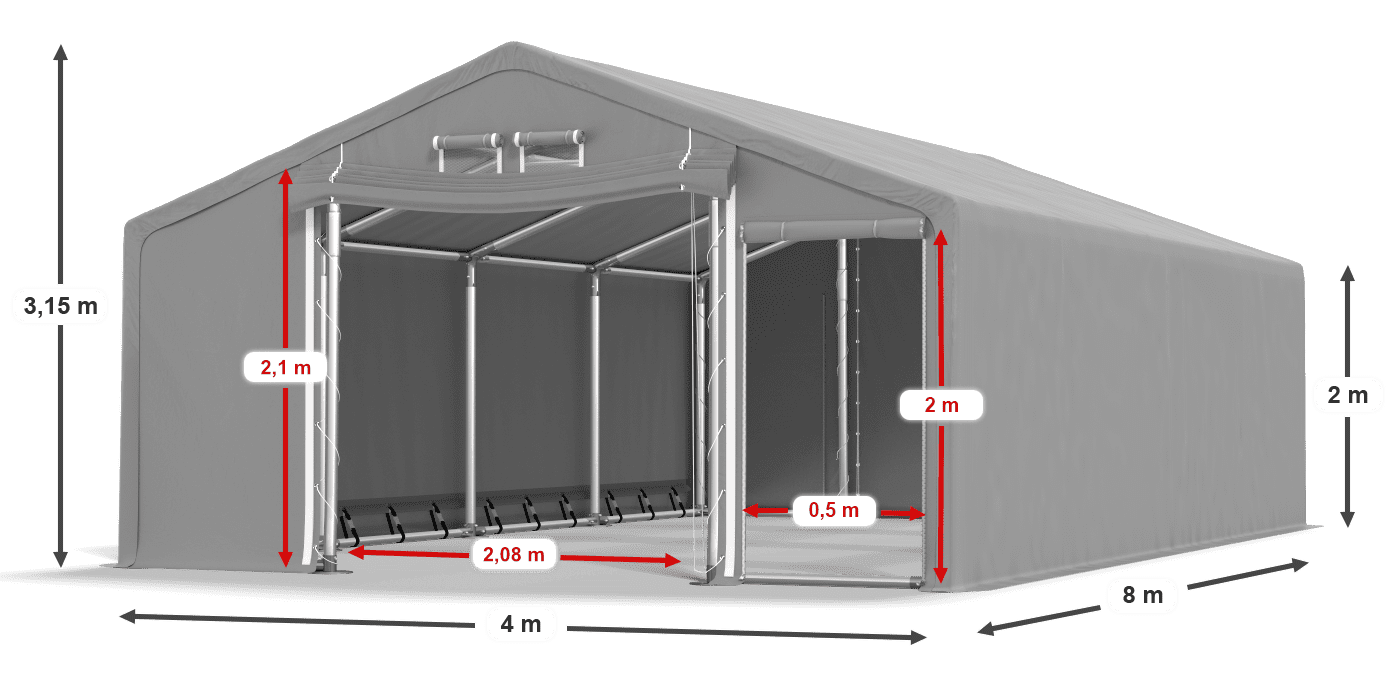

The hull is made of one thick material PVC. Roofs and side walls are one part. An additional convenience is the smaller entrance, which is located next to the entrance gate. That way, you don't have to open a bigger entrance every time you want to go inside.

Fireproof hull SFR PVC (polyvinyl chloride) c. 600g/m²
Double ventilation placed on both sides of the tent

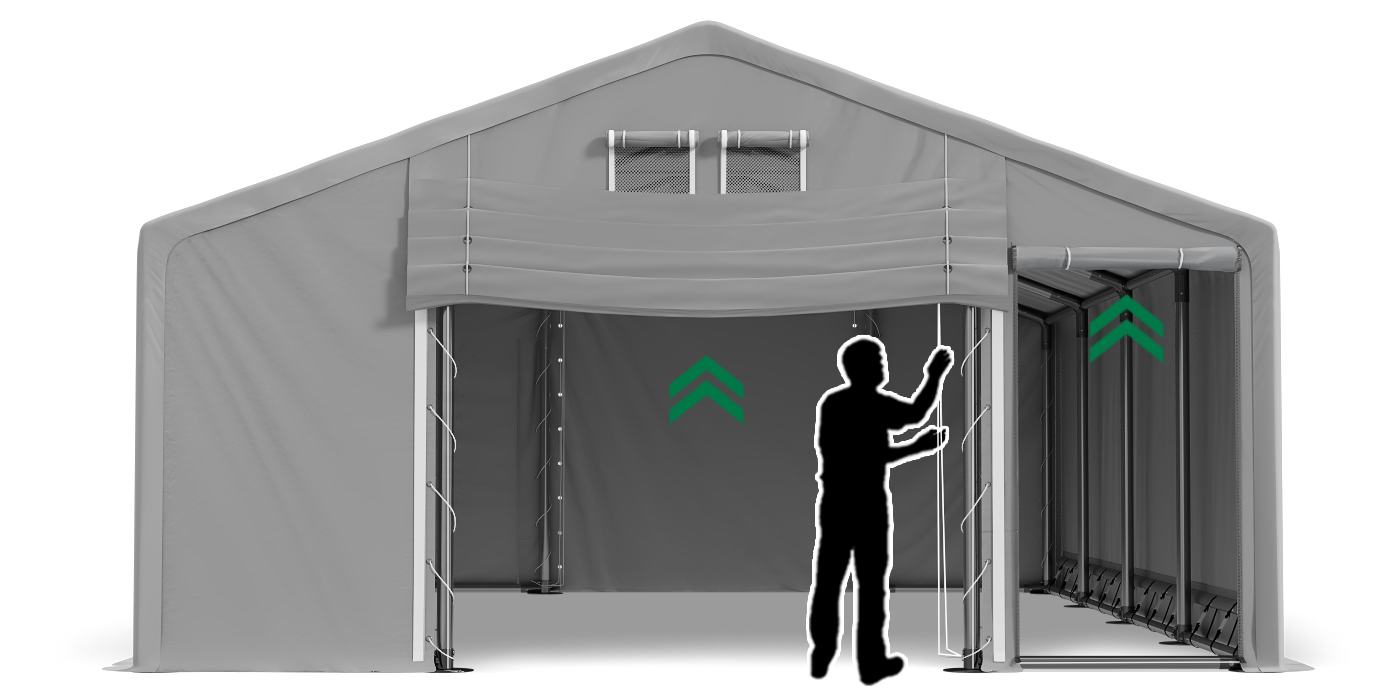

Entry roll-up
Sealing turnips entry
Additional quick entry
Strong YKK locks at the instant entrance
Additional Retention apron

Prevents water condensation

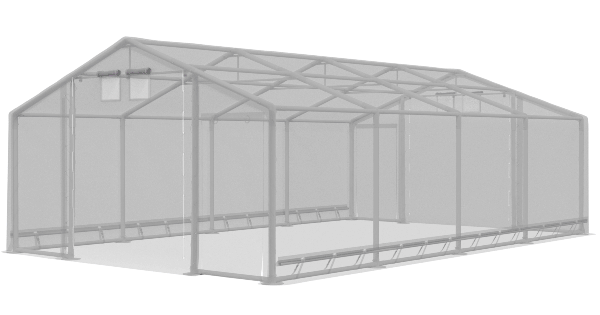

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

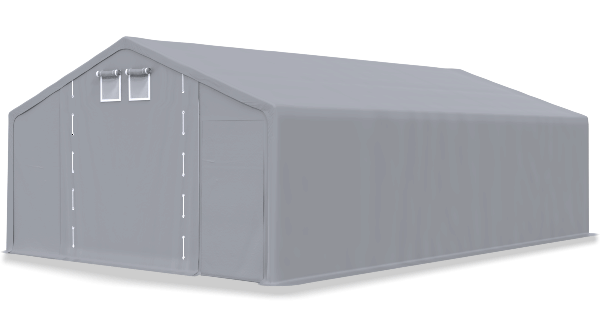

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Safety of use

The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05902973330021

Width

4 m

Lenght

8 m

Side height

2 m

Apex height

3,15 m

Surface

32 m²

Gate A

2,08 m x 2,1 m

Gate B

2,08 m x 2,1 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

82,48 m³

Number of packages

Weigh

238,83 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 600 g/m²

Sides density

~ 600 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Fire retardant

Yes

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

Side pulls

Roof supports

Side supports

Package

60.00cm × 67.00cm × 26.00cm - 31.35kg

Package

35.00cm × 101.00cm × 20.00cm - 33.30kg

Package

27.00cm × 194.00cm × 15.00cm - 34.20kg

Package

20.00cm × 191.00cm × 16.50cm - 36.40kg

Package

61.00cm × 68.00cm × 25.00cm - 43.05kg

Package

50.00cm × 50.00cm × 15.00cm - 8.15kg

Package

26.50cm × 200.00cm × 10.50cm - 24.00kg

Package

21.50cm × 26.00cm × 14.00cm - 3.23kg

Package

8.00cm × 113.00cm × 8.00cm - 2.10kg

Package

59.00cm × 68.00cm × 11.00cm - 14.65kg

Package

17.00cm × 193.00cm × 7.00cm - 8.40kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 11 packs on a pallet with a total weight of 238,83 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
