Year-round tent hall | 4x8 m

Download PDF offer

article 482029
4x8 m Year-round tent hall

Name: Year-round tent hall
Brand: Das Company
SKU: 1B08B44204201222222222222
Price: 2081.30 EUR
Availability: InStock

4x8m side 2,5m

see dimensions

Color of the plating:

more >

2 081,30 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The WINTER design is intended for year-round use. The frame is made of the highest quality steel. Additional reinforcements make the structure durable and stable.

A durable PVC tarpaulin, which is equipped with light windows, guarantees the supply of natural light when working under a roof. The waterproof lining protects the interior of the tent against moisture, UV radiation and pollution from the outside. Thanks to this, we can store crops, commercial goods, raw materials and construction materials in a storage tent. It is also an excellent workshop tent, providing space for repairs and servicing of equipment.

A tarpaulin with round light windows is perfect for repairs and workshop work because it provides natural daylight. The covering is made of strong PVC, which is resistant to moisture and UV radiation. Small windows are located in the upper part of the side walls, so they limit the visibility of the tent interior to other people. This is a perfect storage tent and garage tent.

Delivery and collection

Assembly and instructions

Configuration

Year-round tent hall

This tent will accommodate:

Number of EURO pallets approx. 30

Number of industrial pallets approx. 24

Number of custom palettes approx. 20

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 4-5 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

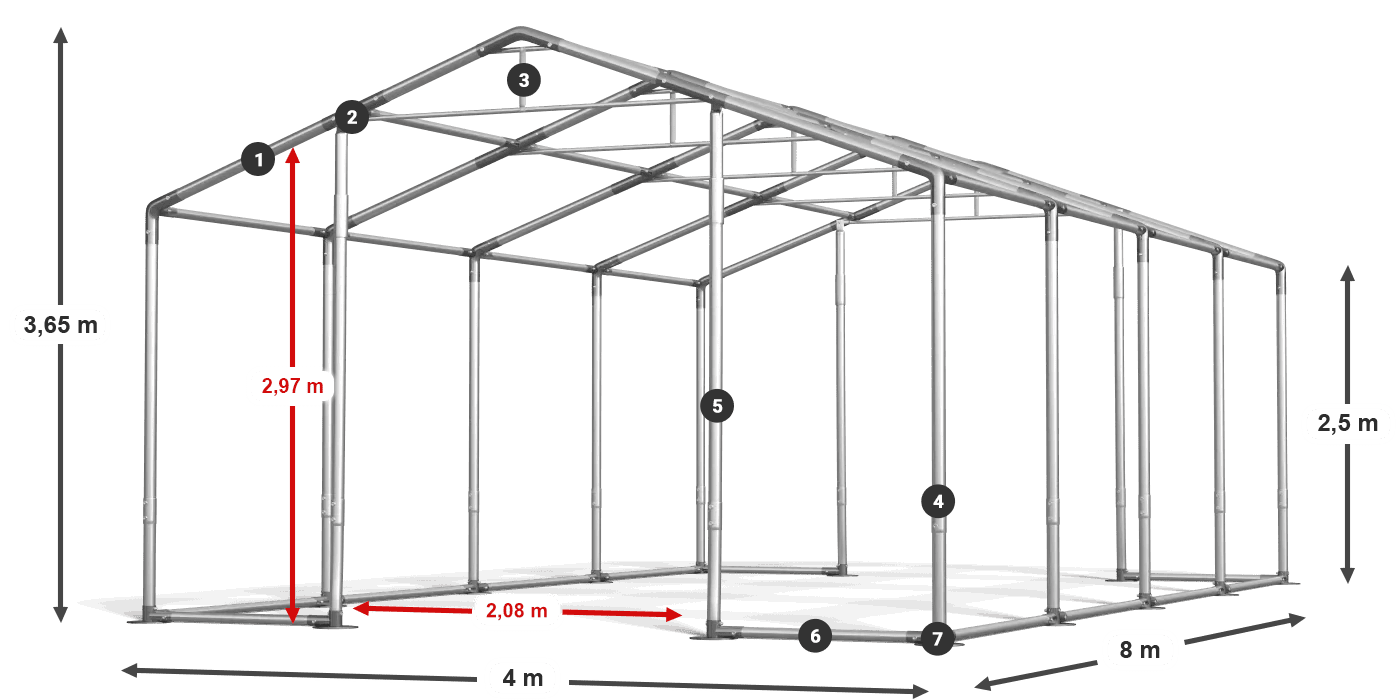

CONSTRUCTION

WINTER

Pipes

Steel ca. fi 50 mm

Connectors

Steel ca. fi 54 mm

Rates

Steel fi 14 cm

The structure is built witha strong and solid frame,made fromgalvanized pipes ok. fi 50 mm. The rack is easy to mount.That way, except fast.installation,the tent can be moved very quickly where it is needed

Construction pipes approx. fi 50 mm
Structure connectors approx. fi 54 mm
Reinforced roof structure
Solid screws passing through
Reinforcements entries
Reinforced Floor construction
Zoomed feet fi 14 cm

Stronger construction

In the lower part of the tent structure, at the entrances, the pipes have been removed, which allows for free entry and exit of the vehicle. Instead, vertical pipes were added to stiffen the tent.

Year-round use

The additional structure consists of a lower frame, upper reinforcements and horizontal and vertical roof struts. This solution provides greater load-bearing capacity and structure stiffness. This also allows the tent to be used during unfavorable weather conditions.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

The thick steel pipes we use, with a diameter of approximately 50 mm, are protected against corrosion by galvanizing. The tent connectors have a diameter of approx. 54 mm.

Exceptional stability

Standard feet measuring 9 cm have been enlarged by as much as 55%. The new 14 cm foot increases the stability of the tent and facilitates assembly.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through screws. This is the only reliable method of fastening. Additionally, the legs lifting the structure are connected with double screws.

Easy height change

The heights in warehouse and party tents can be quickly changed, thanks to the modular structure that allows the tent to be raised by 0.5 m or 1 m. The lowest possible height of the side wall is 2m and the highest is 4m.

expand section

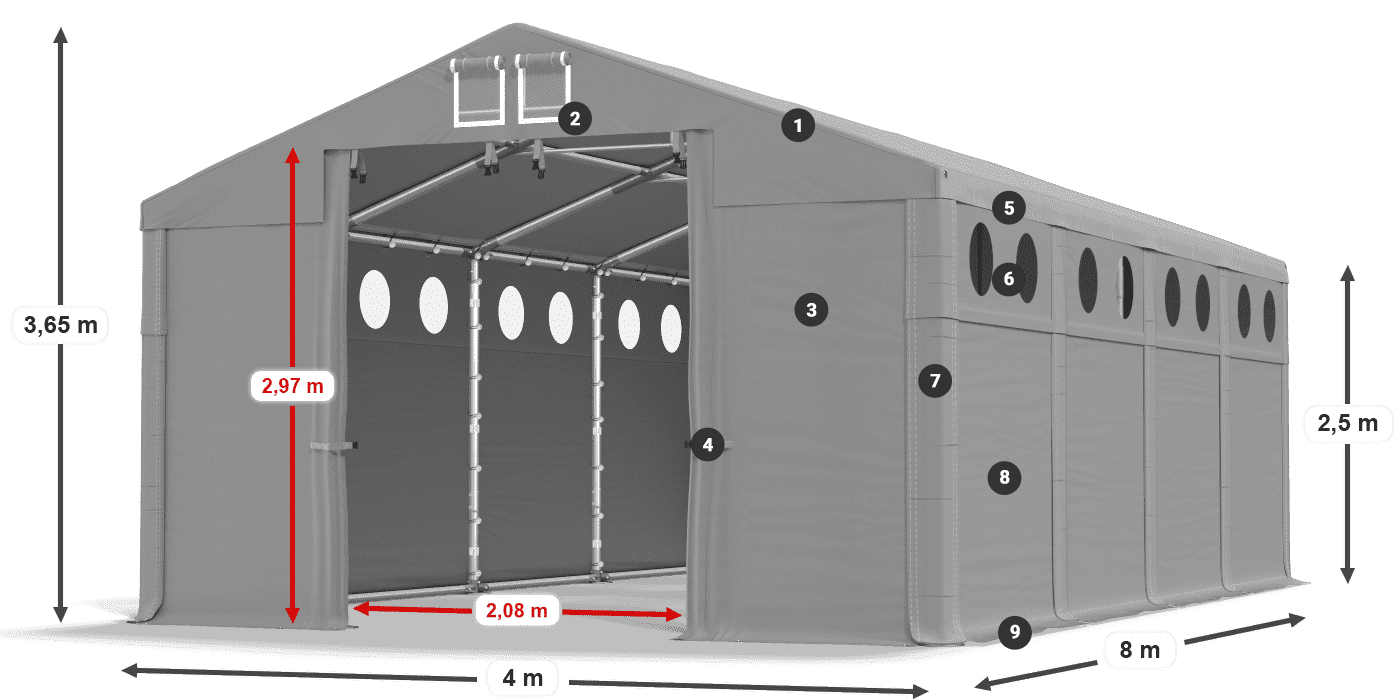

TARPAULIN

FLEX O

Roof

Full okay. 580 g

Sides

Full ok. 580 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

This type of hull is available from a height of 2.5 m. Round windows are placed at the top of the tent. This is a great solution for workshop tents, where lighting is needed, but we do not want what we do to be visible to outsiders.

Modular roof MS PVC (polyvinyl chloride) c. 580 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Lifting the side wall MS PVC Okay. 2 x 0.5 m(polyvinyl chloride) c. 580 g/m² - I'm sorry. Lighting windows 39cm diameter
ExchangeableMaskers with sealing turnips
Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m²
Additional Retention apron

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05903425088972

Width

4 m

Lenght

8 m

Side height

2,5 m

Apex height

3,65 m

Surface

32 m²

Gate A

2,08 m x 2,97 m

Gate B

2,08 m x 2,97 m

Side entrance

Yes (approx. 2 m x 2,5 m)

Volume

82,48 m³

Number of packages

Weigh

264,90 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 580 g/m²

Sides density

~ 580 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 50 mm

Diameter of fasteners

~ 54 mm

Feet

14 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Yes

Roof tensioners

Side pulls

Roof supports

Side supports

Package

60.00cm × 67.00cm × 26.00cm - 31.35kg

Package

35.00cm × 101.00cm × 20.00cm - 33.30kg

Package

27.00cm × 194.00cm × 15.00cm - 34.20kg

Package

20.00cm × 191.00cm × 16.50cm - 36.40kg

Package

55.00cm × 65.00cm × 14.00cm - 18.00kg

Package

50.00cm × 50.00cm × 15.00cm - 8.15kg

Package

26.50cm × 200.00cm × 10.50cm - 24.00kg

Package

16.50cm × 72.00cm × 11.00cm - 8.00kg

Package

11.00cm × 72.00cm × 11.00cm - 5.00kg

Package

11.00cm × 72.00cm × 11.00cm - 5.00kg

Package

45.00cm × 55.00cm × 12.00cm - 13.40kg

Package

25.00cm × 30.00cm × 11.00cm - 1.85kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

40.00cm × 50.00cm × 11.00cm - 8.00kg

Package

40.00cm × 50.00cm × 11.00cm - 8.00kg

Package

45.00cm × 55.00cm × 10.00cm - 10.50kg

Package

45.00cm × 55.00cm × 10.00cm - 10.50kg

Package

35.00cm × 35.00cm × 11.00cm - 3.20kg

Package

35.00cm × 35.00cm × 11.00cm - 3.20kg

Package

24.00cm × 25.00cm × 5.00cm - 0.70kg

Package

24.00cm × 30.00cm × 5.00cm - 0.65kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 21 packs on a pallet with a total weight of 264,90 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
