Solid Garden Tent | 4x10 m

Download PDF offer

article 771046
4x10 m Solid Garden Tent

Name: Solid Garden Tent
Brand: Das Company
SKU: 1B10A11101130611611111111
Price: 1038.54 EUR
Availability: InStock

4x10m side 2m

see dimensions

Color of the plating:

more >

1 038,54 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The steel structure SUMMER is easy and quick to install. The mobile frame allows you to move the tent to any place. The frame is intended for summer use.

The airy PE tarpaulin is equipped with large windows with mosquito nets. The roof is perfect for the summer because it will provide fresh air flow and at the same time protect tables and buffets against flying insects. Okna posiadają rozwijane rolety, którymi możemy uszczelnić moskitiery w razie ochłodzenia. We can use a tent with mosquito nets to organize outdoor events, family picnics and business parties.

Delivery and collection

Assembly and instructions

Configuration

Solid Garden Tent

This tent will accommodate:

approx. 80 standing places

approx. 61 chair seats

approx. 48 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 1-2 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

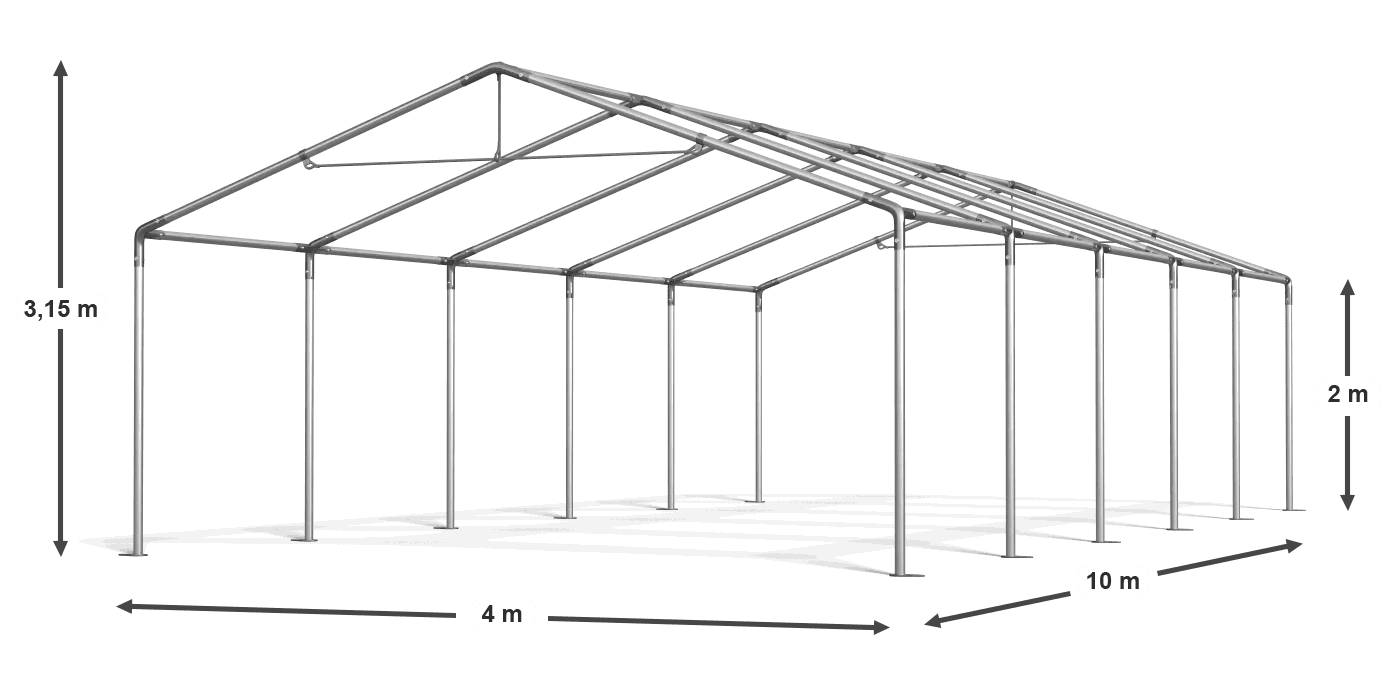

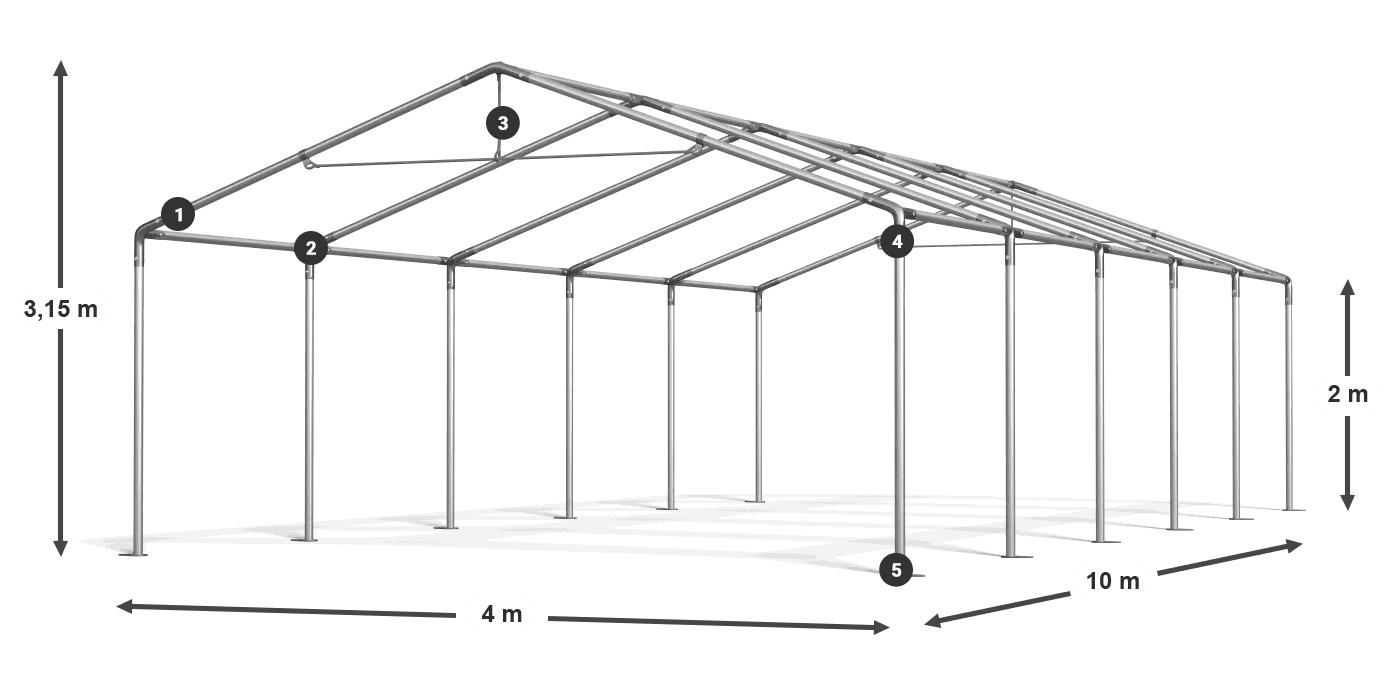

CONSTRUCTION

SUMMER

Pipes

Steel ca. fi 38 mm

Connectors

Steel ca.fi 42 mm

Rates

Steel fi 6-9 cm

Construction is robust and easy to install. That way, except fast. distribution, tent very easy to move in any place.

Construction pipes approx. fi 38 mm
Structure connectors approx. fi 42 mm
Steel rope on entrances
Strong screws, that go through
Rate 6 x 9 cm

Stiffer structure

Steel ropes are placed in the upper part of the structure. Thanks to them, the structure is stiffer and more stable. They also allow the entrances to be moved freely.

Many years of operation

We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Strong pipe connection

The pipes have thick connectors, approx. 42 mm in diameter. They are designed to maximize the strength of the structure.

Stable mounting

The stable structure of the tent on any surface is ensured by feet with anchor holes. They ensure that the tent is firmly attached to the ground.

expand section

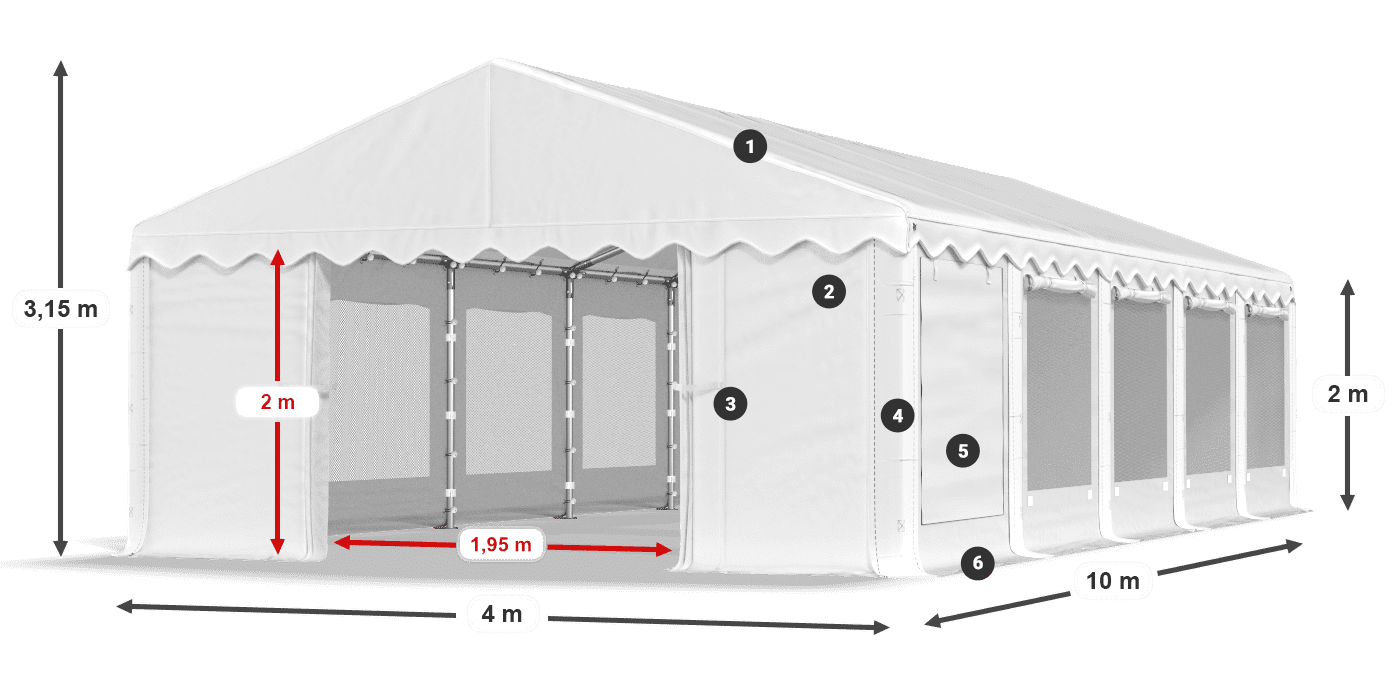

TARPAULIN

ECO R

Roof

Full okay. 240 g

Sides

The blinds are ok. 240 g

Side walls have grid windows that let air through. There is a Velcro blind at each of these windows, which can be developed at any time and covered with it, for example during rain or when you want to cover the interior of the tent.

Roof PE (polyethylene) c. 240 g/m²
Type gate curtain
Strong YKK locks at entrances
Exchangeable masks
Side walls PE 2 x 2 m (polyethylene) c. 240 g/m²- Moscow.140 x 130 cm
Mounting meshes tarpaulin

Universal side walls

NOVELTY! The latest solution on the market. Now you can adjust the tent according to your needs. Aesthetically designed with attention to detail, the side walls with mosquito net are equipped with roll-up blinds, masking panels and Velcro fasteners. Perfect protection against insects, sun, wind and rain.

Change Colors

The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

Modern tent connections

It is possible to connect tents using a special gutter.

You can combine tents at your convenience

Any arrangement

The side walls are mounted to the structure every two meters, using special rubber bands with a ball. Thanks to this, the tent can be freely arranged, depending on your needs.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05903425049508

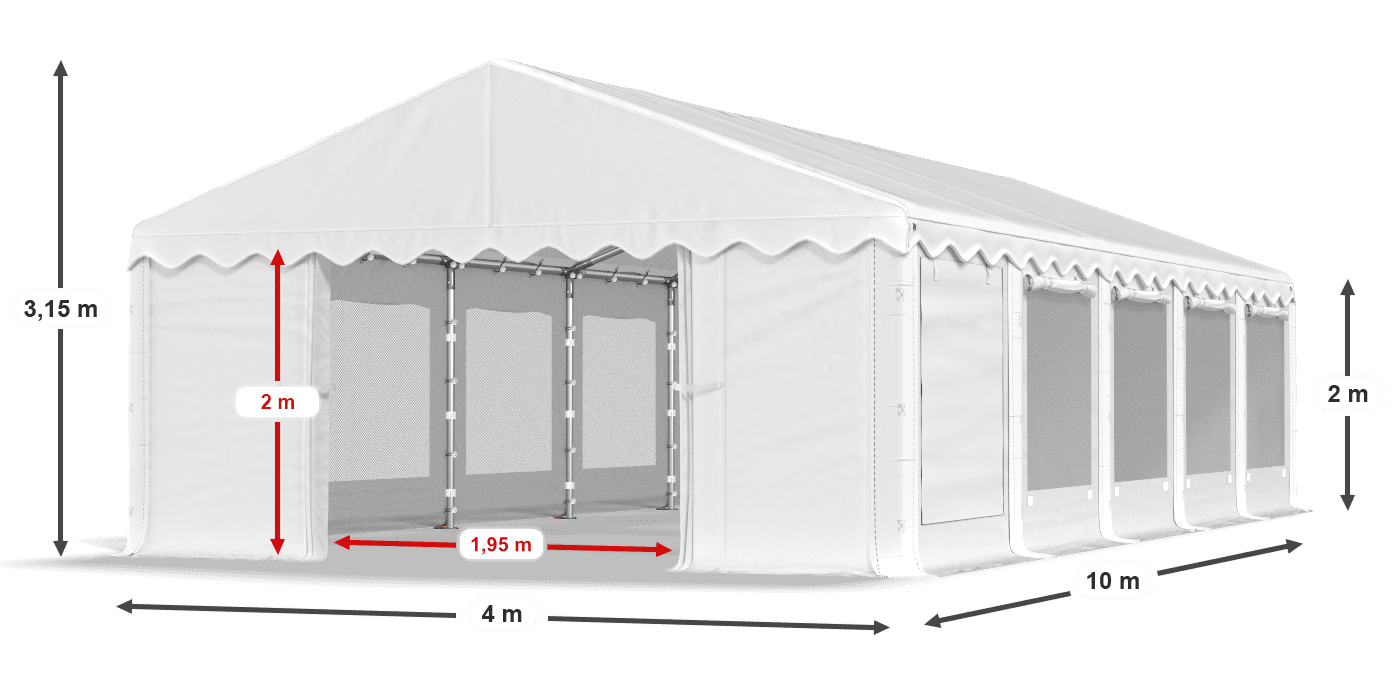

Width

4 m

Lenght

10 m

Side height

2 m

Apex height

3,15 m

Surface

40 m²

Gate A

1,95 m x 2 m

Gate B

1,95 m x 2 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

103,09 m³

Number of packages

Weigh

111,58 kg

Spare parts

Yes

Material

(polyethylene)

Roof densityt

~ 240 g/m²

Sides density

~ 240 g/m²

Temperature range

from -5^o to +40^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Overlap System

System Hermetic

System Air-control

System Multi-size

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 38 mm

Diameter of fasteners

~ 42 mm

Feet

6-9 cm

Roof reinforcement

System Easy-Up

Roof tensioners

Side pulls

Roof supports

Side supports

Package

55.00cm × 65.00cm × 15.00cm - 13.95kg

Package

23.00cm × 211.00cm × 11.00cm - 24.70kg

Package

23.00cm × 195.00cm × 11.00cm - 22.85kg

Package

55.00cm × 65.00cm × 18.00cm - 25.33kg

Package

30.00cm × 35.00cm × 16.00cm - 3.50kg

Package

12.00cm × 211.00cm × 8.50cm - 10.65kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

24.00cm × 25.00cm × 5.00cm - 0.85kg

Package

40.00cm × 50.00cm × 8.00cm - 5.25kg

Package

40.00cm × 50.00cm × 6.00cm - 3.65kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 10 packs on a pallet with a total weight of 111,58 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.

ASSEMBLY AND INSTRUCTIONS
