5x8 m Solid storage and garage tent

Name: Solid storage and garage tent
Brand: Das Company
SKU: 1C08A14104100221221212121
Price: 1207.18 EUR
Availability: InStock

5x8m side 2m

see dimensions

Color of the plating:

more >

1 207,18 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The steel structure SUMMER is easy and quick to install. The mobile frame allows you to move the tent to any place. The frame is intended for summer use.

Full, extremely tight covering protects goods, crops and vehicles stored in the warehouse tent. The tarpaulin is made of solid, high-weight PVC material. The cover is equipped with an easy length change system Multi-size. The tarpaulin isolates the contents of the storage tent from atmospheric factors such as wind, moisture, UV radiation, and pollution. Full covering without windows prevents unauthorized persons from seeing into the tent.

Delivery and collection

Assembly and instructions

Configuration

Solid storage and garage tent

This tent will accommodate:

Number of EURO pallets approx. 40

Number of industrial pallets approx. 32

Number of custom palettes approx. 24

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 1-2 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

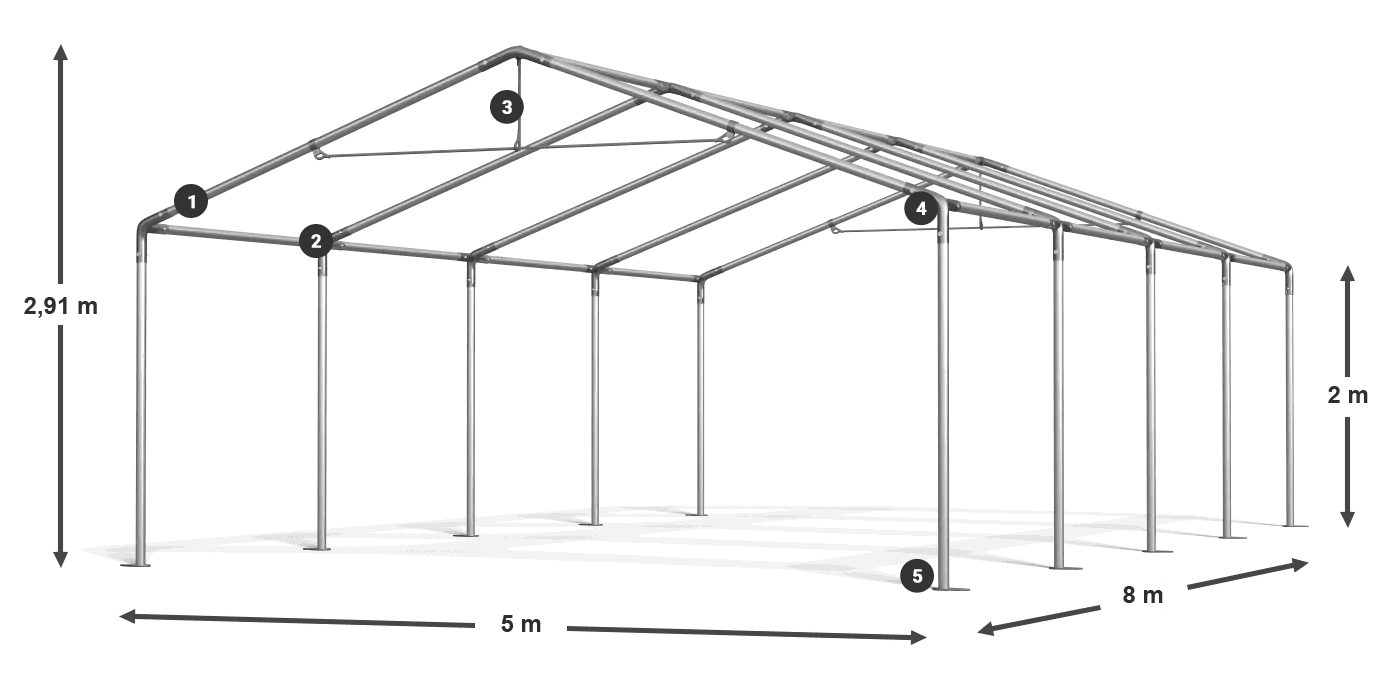

CONSTRUCTION

SUMMER

Pipes

Steel ca. fi 38 mm

Connectors

Steel ca.fi 42 mm

Rates

Steel fi 6-9 cm

Construction is robust and easy to install. That way, except fast. distribution, tent very easy to move in any place.

Construction pipes approx. fi 38 mm
Structure connectors approx. fi 42 mm
Steel rope on entrances
Strong screws, that go through
Rate 6 x 9 cm

Stiffer structure

Steel ropes are placed in the upper part of the structure. Thanks to them, the structure is stiffer and more stable. They also allow the entrances to be moved freely.

Many years of operation

We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Strong pipe connection

The pipes have thick connectors, approx. 42 mm in diameter. They are designed to maximize the strength of the structure.

Stable mounting

The stable structure of the tent on any surface is ensured by feet with anchor holes. They ensure that the tent is firmly attached to the ground.

expand section

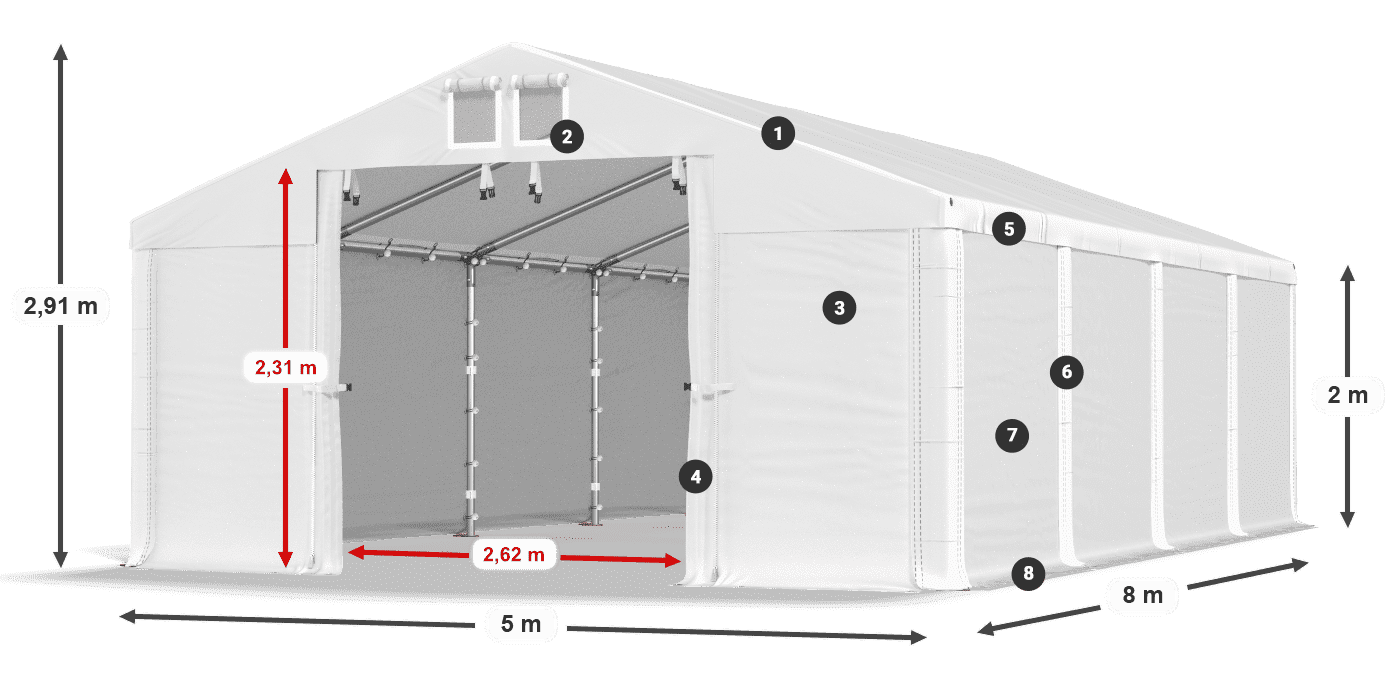

TARPAULIN

FLEX M

Roof

Full okay. 580 g

Sides

Full ok. 580 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

The roof and side walls in this type of hull are approximately 580 g/m². It is resistant to strong gusts of wind or greater snowfall. The planks of this type can be used in year-round garage tents as well as as as long-term storage tents.

System roof MS PVC (polyvinyl chloride) c. 580 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Solid YKK locks at entrances
Sealing turnips
ExchangeableMaskers with sealing turnips
Side walls MS PVC 2 x 2 m (polyvinyl chloride) c. 580 g/m²
Additional Retention apron

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Adjust the tent to your needs

You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Change colors

The covers that connect the side walls and seal the tent are available in many colors. Thanks to the fact that they are mounted with Velcro, you can quickly change them and give the tents a new color.

expand section

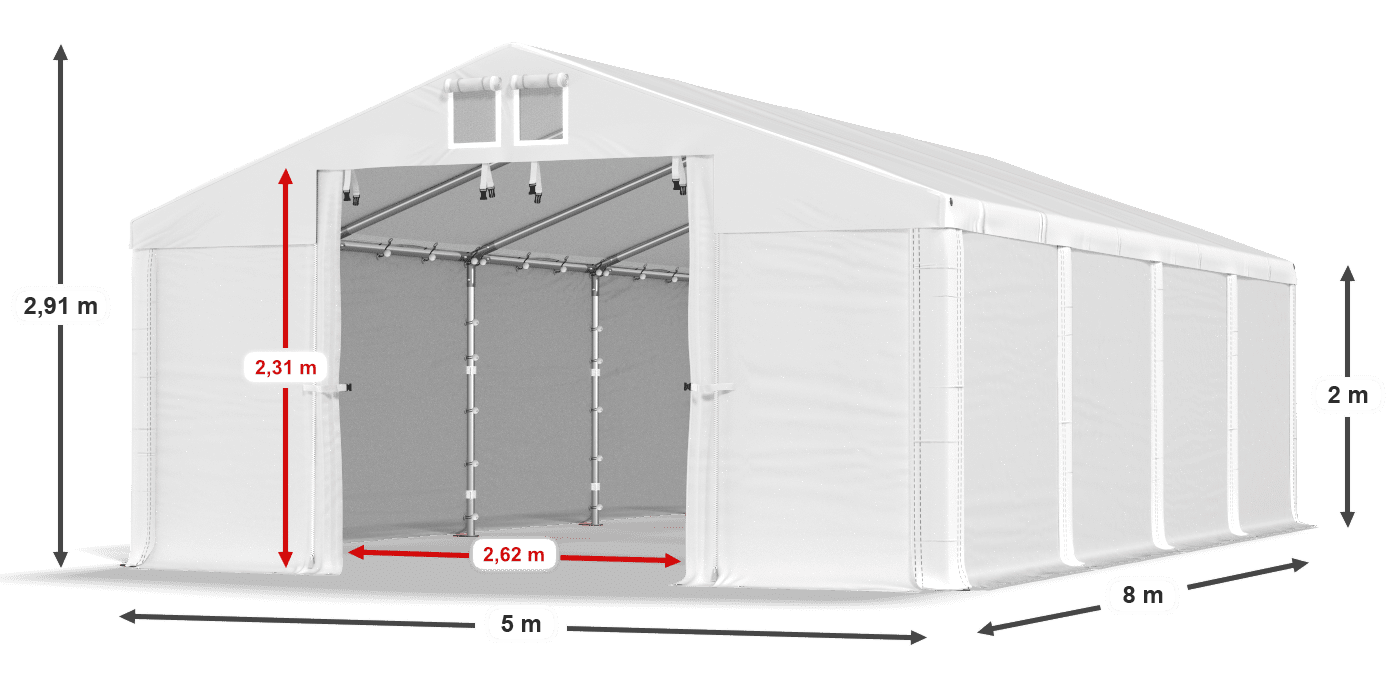

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05902613804486

Width

5 m

Lenght

8 m

Side height

2 m

Apex height

2,91 m

Surface

40 m²

Gate A

2,62 m x 2,31 m

Gate B

2,62 m x 2,31 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

98,20 m³

Number of packages

Weigh

136,45 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 580 g/m²

Sides density

~ 580 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 38 mm

Diameter of fasteners

~ 42 mm

Feet

6-9 cm

Roof reinforcement

System Easy-Up

Roof tensioners

Side pulls

Roof supports

Side supports

Package

55.00cm × 65.00cm × 15.00cm - 16.45kg

Package

27.50cm × 195.00cm × 11.50cm - 24.95kg

Package

23.50cm × 195.00cm × 11.50cm - 24.40kg

Package

55.00cm × 65.00cm × 18.00cm - 26.00kg

Package

45.00cm × 55.00cm × 10.00cm - 11.30kg

Package

25.00cm × 30.00cm × 11.00cm - 1.85kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

40.00cm × 50.00cm × 13.00cm - 9.00kg

Package

45.00cm × 55.00cm × 10.00cm - 10.50kg

Package

45.00cm × 55.00cm × 10.00cm - 10.50kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 10 packs on a pallet with a total weight of 136,45 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
