Reinforced party tent | 5x12 m

Download PDF offer

article 97895
5x12 m Reinforced party tent

Name: Reinforced party tent
Brand: Das Company
SKU: 1C12A34103110221221212121
Price: 2179.50 EUR
Availability: InStock

5x12m side 2m

see dimensions

Color of the plating:

more >

2 179,50 €

Includes 23% VAT

Need help choosing?

Call us: info.ie@dascompany.com

FREE CONSULTATION

Description

The seasonal structure SUMMER PLUS is made of galvanized steel. This is the strongest summer frame, equipped with a lower frame and upper reinforcements.

The sheathing with stained glass windows is made of strong, waterproof PVC. The tarpaulin protects tables and buffets against moisture, wind and outdoor pollution. Elegant stained glass windows harmonize perfectly with wedding decorations. Party tents are used during corporate parties and family celebrations. Commercial tents with stained glass windows enable aesthetic display of goods and attract the attention of potential customers.

Delivery and collection

Assembly and instructions

Configuration

Reinforced party tent

This tent will accommodate:

approx. 120 standing places

approx. 92 chair seats

approx. 80 seats on the benches

Over 30,000 configurations

Access to parts for expansion and service

10 years warranty for the availability of substitute elements

Order now

TO SHOPPING CART

Delivery time: 22 June already with you

Simple assembly: ok 4-5 hours / 4-5 people

We have been operating since
2012

We advise on configuration, assembly and service

We deliver to 10 countries in Europe

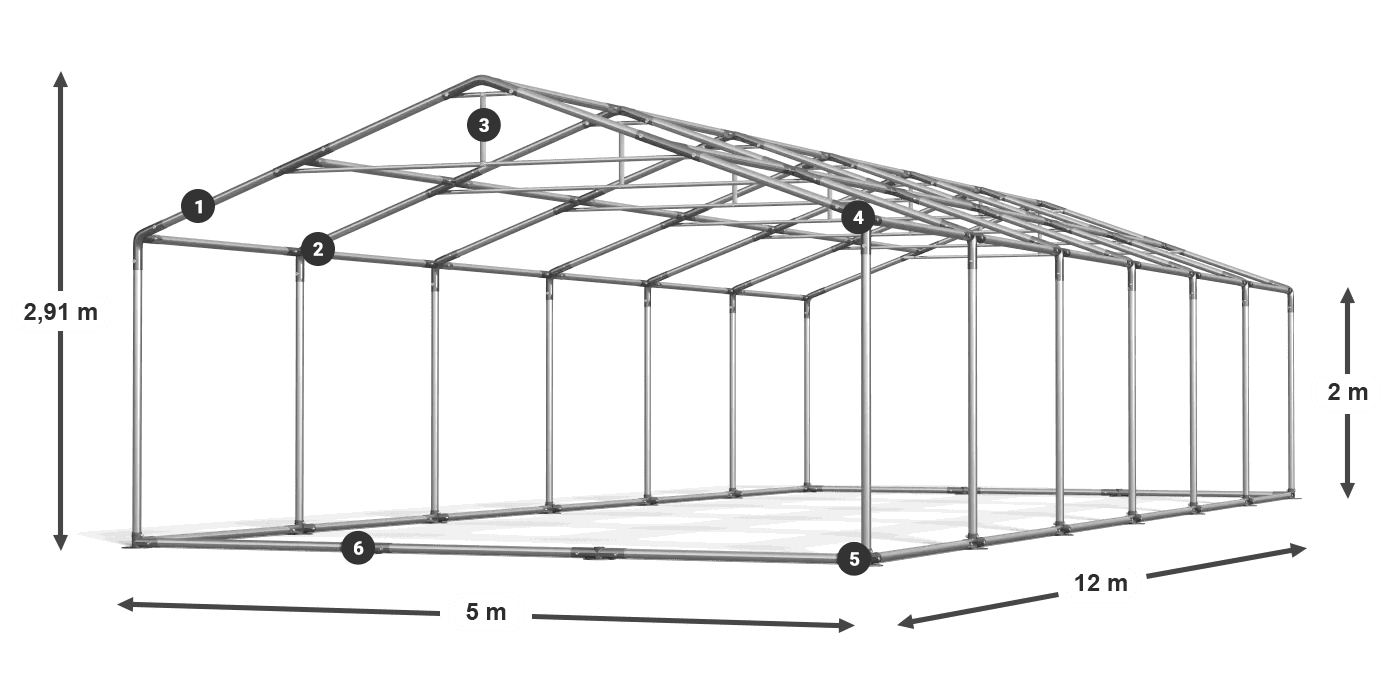

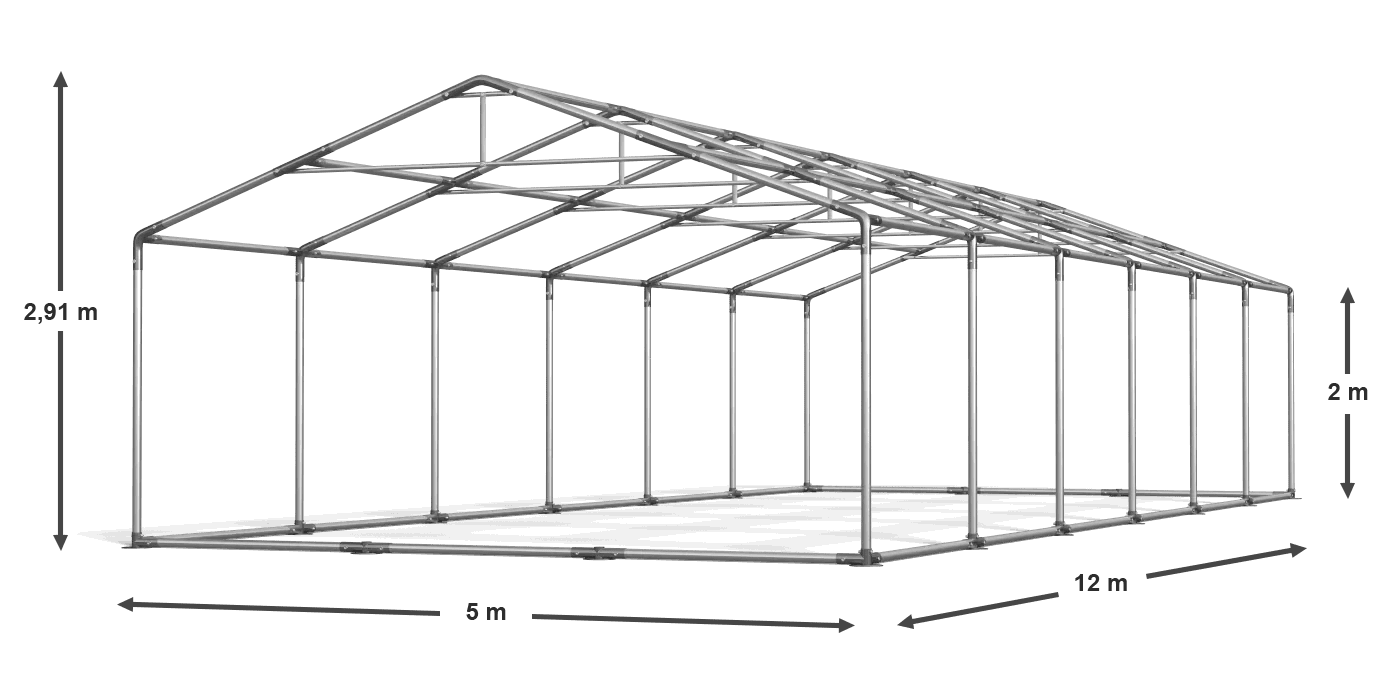

CONSTRUCTION

SUMMER PLUS

Pipes

Steel ca. fi 38 mm

Connectors

Steel ca. fi 42 mm

Rates

Steel fi 9 cm

Construction isdurable and easy to install.That way, except fast.folding,The tent can be easily moved where it is currently needed.

Construction pipes approx. fi 38 mm
Structure connectors approx. fi 42 mm
Reinforced roof structure
Strong screws, that go through
Rate fi 9 cm
Reinforced Floor construction

Increased durability

The additional structure consists of a lower frame and upper reinforcements. This solution provides greater load-bearing capacity and structure stiffness.

Reliability

In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 25 mm, which significantly increased the reliability of the structure. In the new model, the horizontal pipe is attached to the bottom of the connector, ensuring greater structural stiffness.

Many years of operation

We use the highest quality steel, additionally protected against corrosion by galvanizing, which increases the strength of the structure elements and ensures long-term operation. The tent's supporting pipes have a diameter of approx. 38 mm, while the connectors have been enlarged to approx. 42 mm.

Reliable connection of elements

In our tents, we use the most reliable method of connecting pipes with through-hole screws. This is the only reliable way to connect elements.

Stable construction

Stable feet with a diameter of 9 cm were installed in the lower part of the structure. Thanks to them, anchoring the tent is much more durable, regardless of the type of ground.

expand section

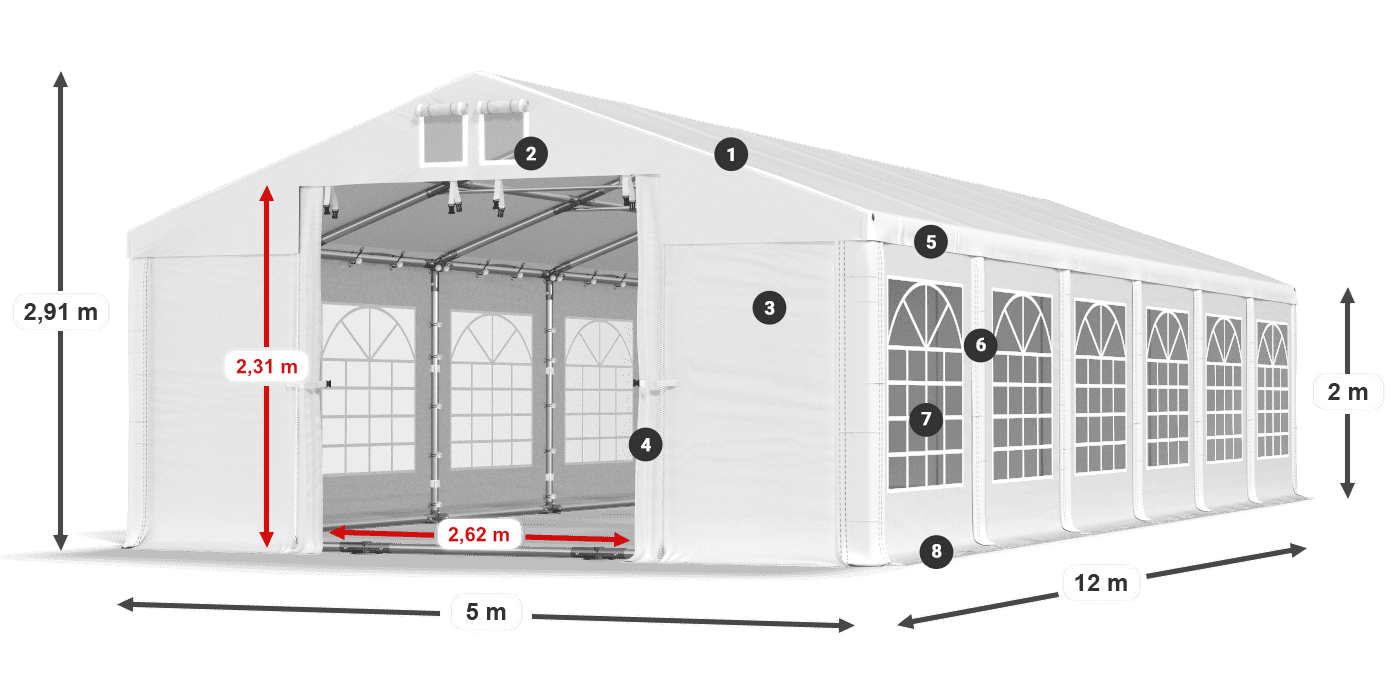

TARPAULIN

FLEX I

Roof

Full okay. 580 g

Sides

The stained glass is ok. 500 g

Air-control

Yes.

Hermetic

Yes.

Multi-size

Yes.

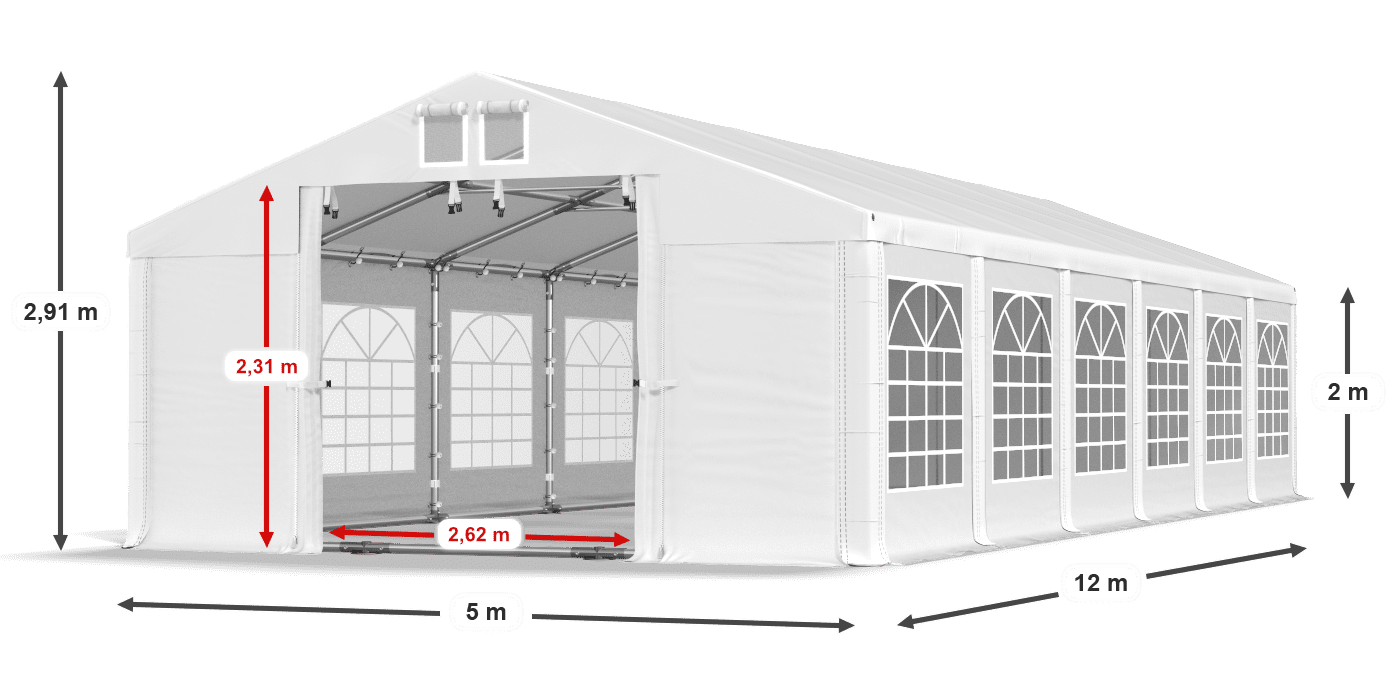

This type of tent is constructed of segmented roof and walls equipped with large stained glass windows. This is a great choice when we often organize events for different number of guests. Then once we can set up a smaller tent or add more segments and create more space.

Segment roof MS PVC (polyvinyl chloride) c. 580 g/m²
Double ventilation placed on both sides of the tent
Type-ins Slide & Roll
Strong YKK locks at entrances
Sealing turnips
Exchangeable Maskers with sealing turnips
Side walls SD PVC 2 x 2 m (polyvinyl chloride) c. 500 g/m² - stained glass windows 140 x 130 cm
Additional Retention apron

Easy length change

Thanks to the Multi-size system, you can easily change the length of the tent. It can be lengthened or shortened. Extension sets are 1m or 2m long.

Greater tightness and durability

The additional Velcro system prevents heat from escaping and ensures the aesthetic appearance of the tent. They make the walls fit perfectly together, creating a coherent whole. Moreover, it prevents dust, raindrops and snow from entering.

Increases protection

The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.

Adjust the tent to your needs

You can adjust the side walls, depending on your needs. It is possible to combine solid walls, walls with stained glass windows or transparent walls in one tent.

Prevents water condensation

Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.

Attractive appearance

The side wall is made of thick tarpaulin PVC approx. 500 g/m² and large stained glass windows. The height of the basic wall is 2m. Thanks to the unique design, it is possible to easily raise the side wall by 0.5 m or 1 m. Thanks to the windows placed on each two-meter segment, the tent looks aesthetically pleasing. It is perfect as a commercial, exhibition or party tent.

Any color selection

The tent has sealing covers mounted on Velcro. They are available in various color variants. This allows you to quickly and easily change the color of the tent.

expand section

Technical data

General

Tarpaulins

Constructions

Packages

Item number

05902426068136

Width

5 m

Lenght

12 m

Side height

2 m

Apex height

2,91 m

Surface

60 m²

Gate A

2,62 m x 2,31 m

Gate B

2,62 m x 2,31 m

Side entrance

Yes (approx. 2 m x 2 m)

Volume

147,30 m³

Number of packages

Weigh

248,90 kg

Spare parts

Yes

Material

(polyvinyl chloride)

Roof densityt

~ 580 g/m²

Sides density

~ 500 g/m²

Temperature range

from -40^o to +60^o

Fixing

Elastic rubbers + velcros

UV resistant

Yes

Waterproof

100%

Retention apron

Yes

Overlap System

Yes

System Hermetic

Yes

System Air-control

Yes

System Multi-size

Yes

Fire retardant

Material

Galvanized steel

Rust protection

Galvanized

Fixing

Bolts through

Tube diamiter

~ 38 mm

Diameter of fasteners

~ 42 mm

Feet

9 cm

Roof reinforcement

Vertical and transverse

System Easy-Up

Roof tensioners

Side pulls

Roof supports

Side supports

Package

55.00cm × 65.00cm × 17.00cm - 20.75kg

Package

22.50cm × 140.00cm × 13.00cm - 19.90kg

Package

22.50cm × 195.00cm × 10.50cm - 24.40kg

Package

22.50cm × 195.00cm × 11.50cm - 24.10kg

Package

55.00cm × 65.00cm × 18.00cm - 26.00kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 18.50kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 18.50kg

Package

40.00cm × 40.00cm × 15.00cm - 5.50kg

Package

19.00cm × 195.00cm × 10.50cm - 18.50kg

Package

45.00cm × 55.00cm × 10.00cm - 11.30kg

Package

25.00cm × 30.00cm × 11.00cm - 1.85kg

Package

25.00cm × 30.00cm × 10.00cm - 1.30kg

Package

30.00cm × 30.00cm × 10.00cm - 1.50kg

Package

40.00cm × 50.00cm × 13.00cm - 9.00kg

Package

40.00cm × 50.00cm × 13.00cm - 9.00kg

Package

40.00cm × 50.00cm × 13.00cm - 9.00kg

Package

45.00cm × 55.00cm × 12.00cm - 9.40kg

Package

45.00cm × 55.00cm × 12.00cm - 9.40kg

DELIVERY AND COLLECTION

Packages

Your order will be packed in 20 packs on a pallet with a total weight of 248,90 kg.

Delivery

Deliveries are handled by the courier company Raben. Prepare a place to place the packages.

Personal pick up in our premises

If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.

ASSEMBLY AND INSTRUCTIONS
