The strongest tent hall |
10x12 m
article 580776
10x12 m The strongest tent hall
10x12m side 3m
see dimensions
Color of the plating:
more >
11 426,51 €
Includes 23% VAT
Need help choosing?
Call us: info.ie@dascompany.com
Description
The ARCTIC structure is the strongest all-season structure, which is only compatible with the ARCTIC series cover. It is made of strong steel pipes and structural connectors, which are protected against corrosion by galvanizing.
The full ARCTIC tarpaulin is made of strong, high-weight PVC. Thanks to its exceptional tightness, it can be used regardless of the season. This is an excellent storage tent that provides a dry and shaded space for storing goods and parking vehicles. It is also used in industry and logistics. The waterproof tarpaulin has no windows and protects the contents of the roof from other people's eyes.
The strongest tent hall
This tent will accommodate:
Number of EURO pallets approx. 120
Number of industrial pallets approx. 100
Number of custom palettes approx. 75
Over 30,000 configurations
Access to parts for expansion and service
10 years warranty for the availability of substitute elements
Order now
TO SHOPPING CART
Delivery time:
22 June already with you
Simple assembly:
ok 5-6 hours / 4-5 people
We have been operating since
2012
2012
We advise on configuration, assembly and service
We deliver to 10 countries in Europe
CONSTRUCTION
ARCTIC
Pipes
Steel ca. fi 78 mm
Connectors
Steel ca. fi 78 mm
Rates
Steel fi 30 cm

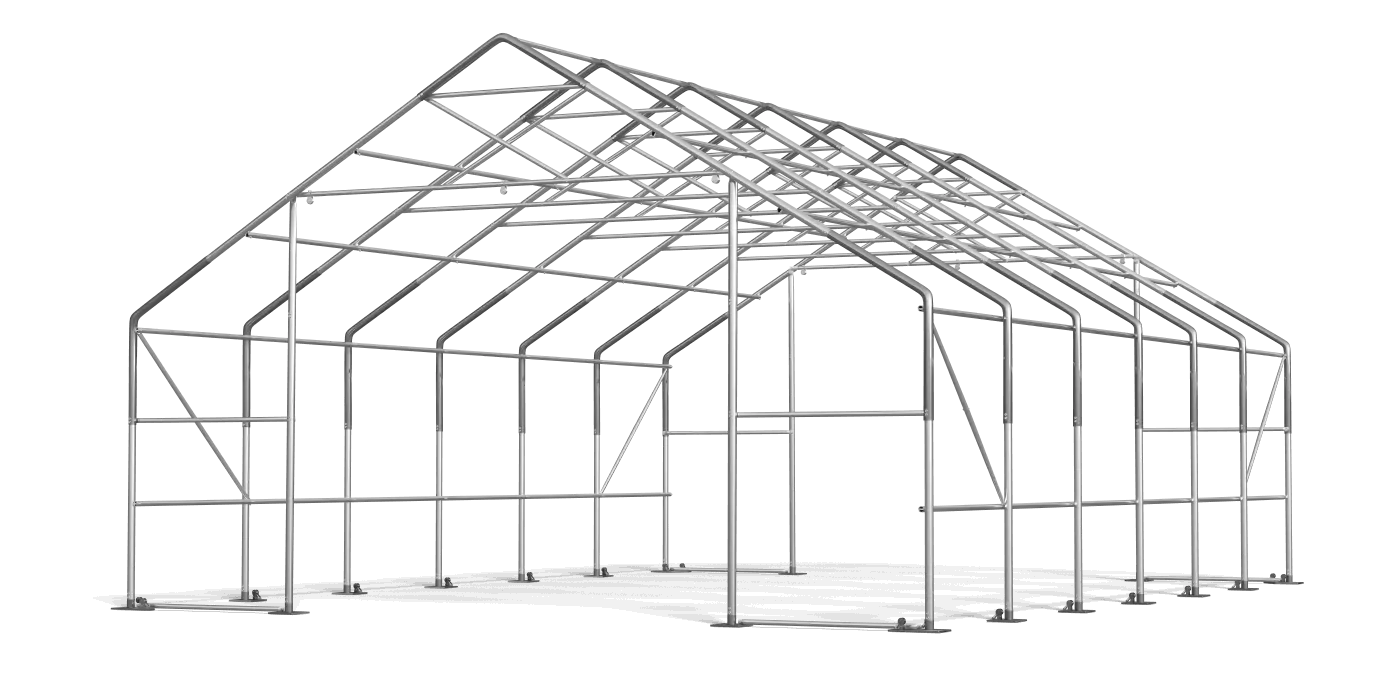

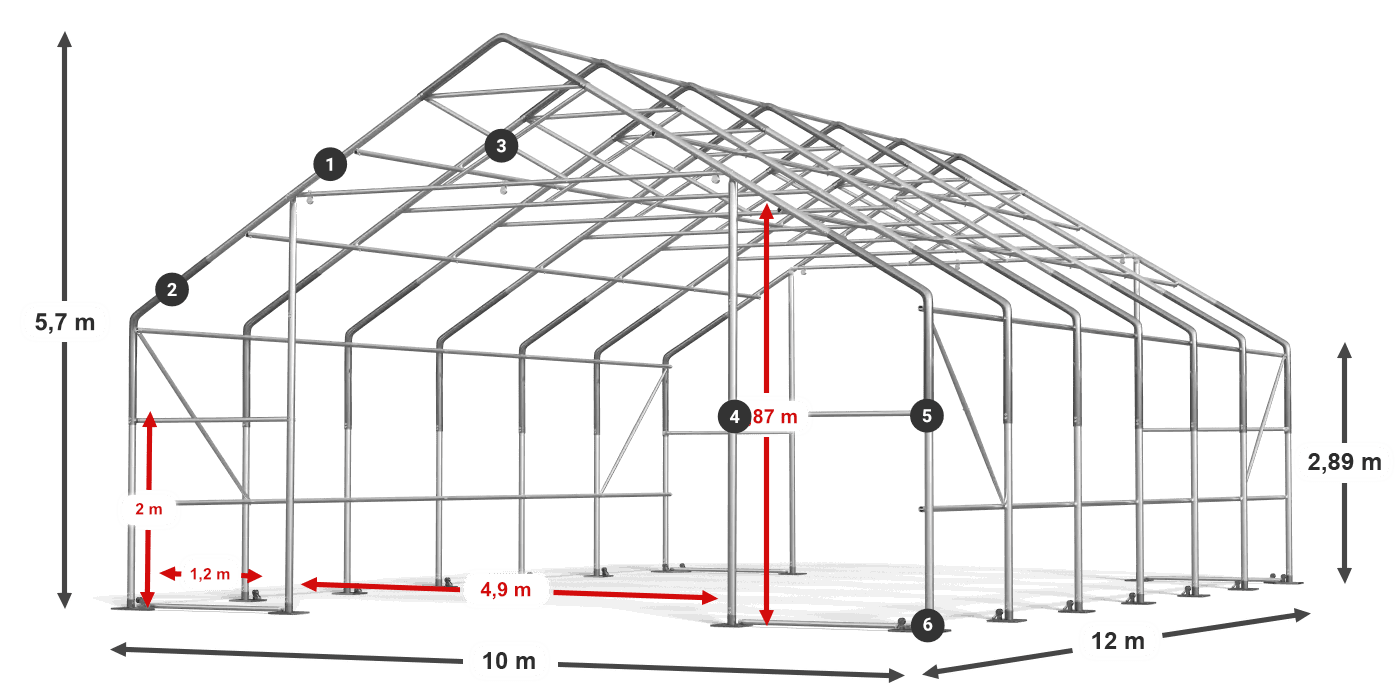

This structure is only compatible with the hull Arctic. It is constructed of tubes of approx. 78 mm and fittings of the same diameter. There are additional reinforcements on the roof and on the sides. The corner feet have dimensions of 30 cm x 40 cm and the other 30 cm x 30 cm. There are double-guns on the roof to strengthen immunity. This design will be used in agriculture or as an industrial tent.
- Construction pipes approx. fi 78 mm
- Structure connectors approx. fi 78 mm
- Strengthening roof structure
- Reinforcements entries
- Horizontal strengthening side

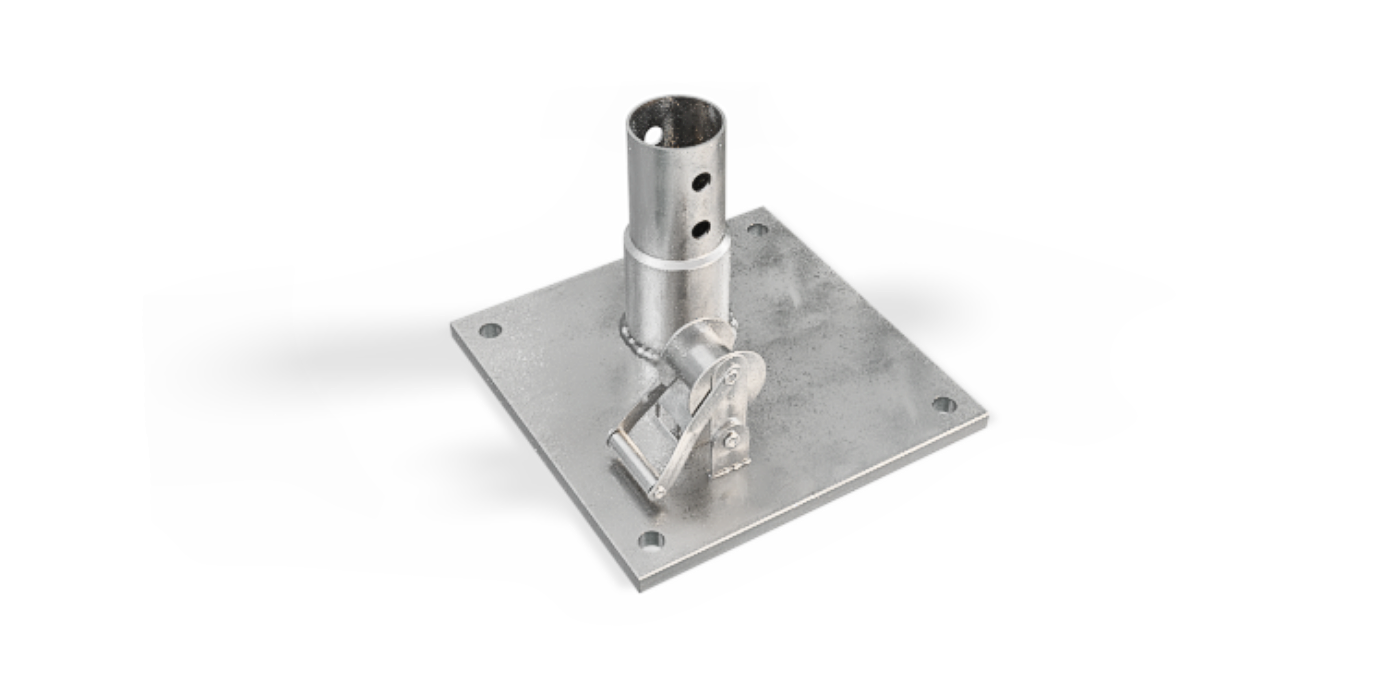

- Rates 30 x 30 cm and corner feet 30 x 40 cm
Reliability
In the gable connectors, the welded elements were replaced with horizontal pipes of approximately 38 mm and vertical ones arranged crosswise, which significantly increased the reliability of the structure.
Exceptional stability

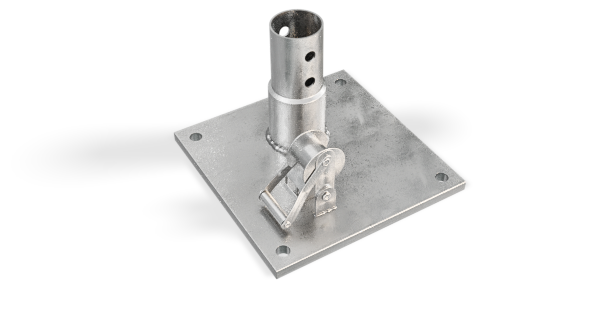

Standard feet measuring 14 cm have been replaced by large square feet with an increased support point of 30x30 cm and corner feet of 30x40 cm. The feet have 4 anchor holes to the ground.
Many years of operation

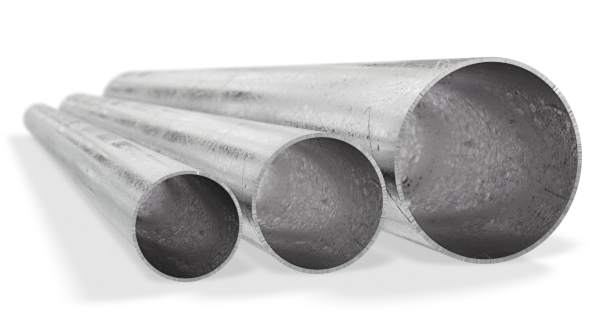

The thick steel pipes we use with a diameter of approx. 78 mm are protected against corrosion by galvanizing. The central connectors of the tent have a diameter of approximately 78 mm.

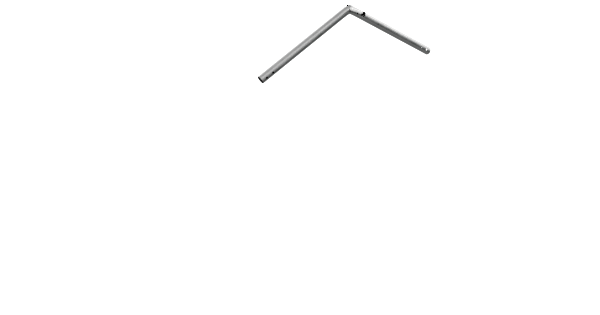

Reliable connection of elements

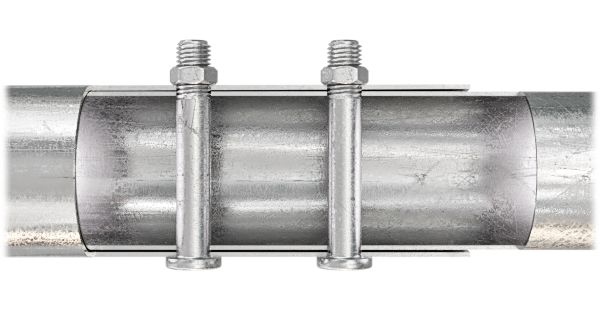

In our tents, we use the most reliable method of connecting pipes with double screws going through.
expand section
TARPAULIN
ARCTIC
Roof
Full okay. 720 g
Sides
Full ok. 720 g
Air-control
Yes.
Hermetic
Yes.
Flammable
Yes.

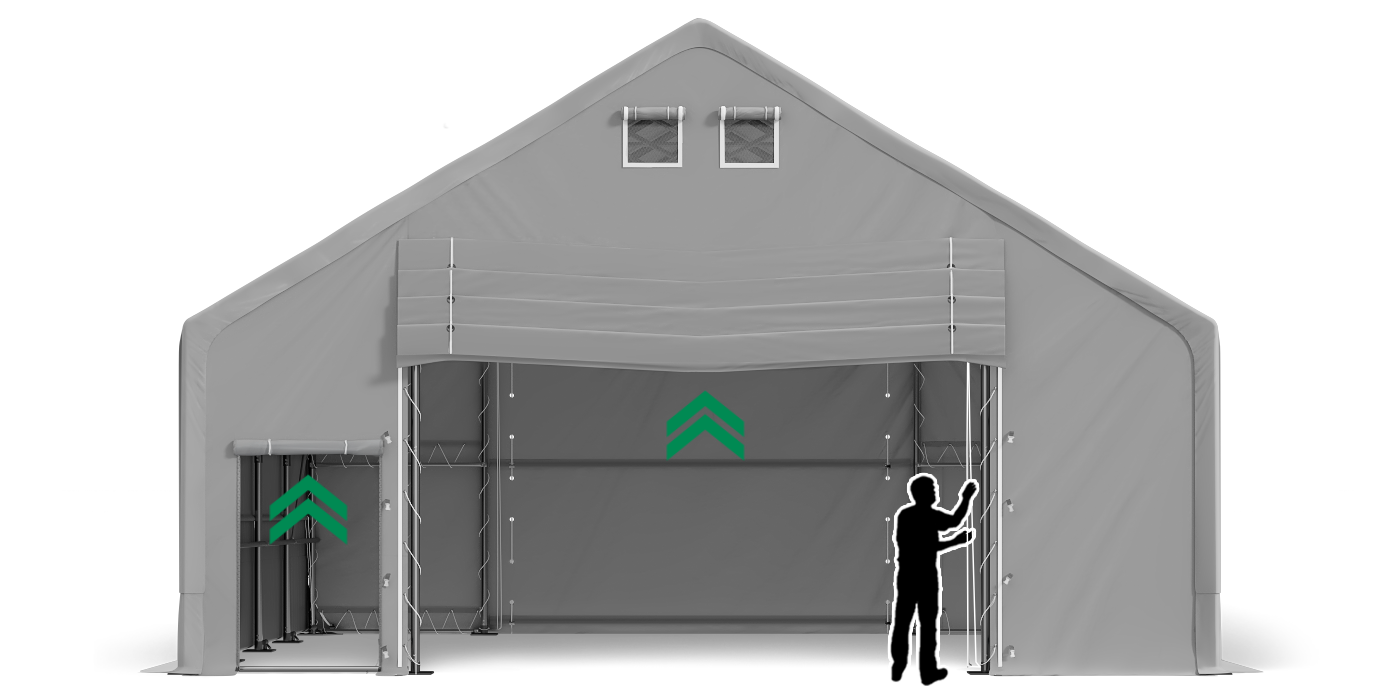

The hull in this tent hall is fireproof and forms one part. The hull and structure form an integral whole here. In addition to the large entrance there is a side entrance, a smaller entrance, which can be rolled up and conveniently entered inside the tent.

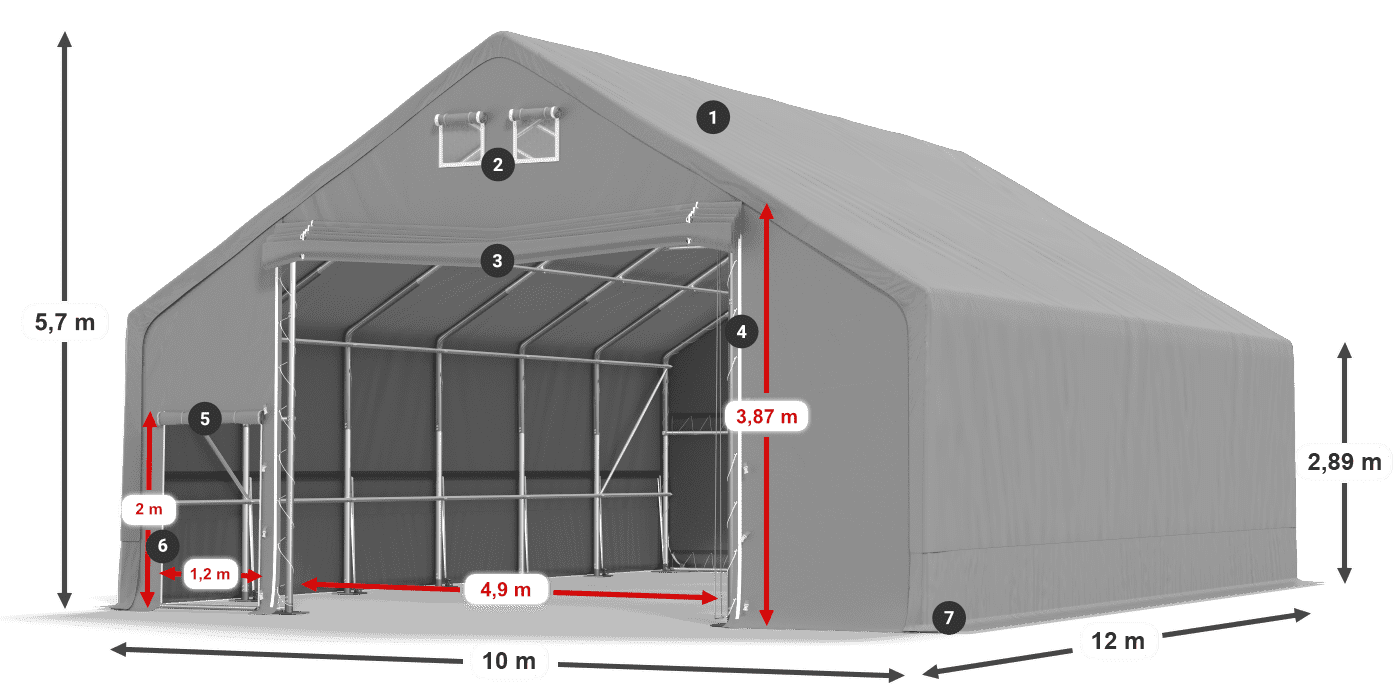

- Fireproof hull F72 PVC(polyvinyl chloride) c. 720g/m²
- Double ventilation placed on both sides of the tent
- Entry roll-up
- Strong ropes for opening the gate
- Additional quick entry
- Strong YKK locks at the entrance
- Additional Retention apron
Prevents water condensation
Double vents with roll-up shutters placed on both sides of the roof allow for proper ventilation inside the tent. They prevent the sauna effect and water condensation.
Increases protection
The increased width of the retention apron increased the efficiency of the discharged water. This ensures a dry interior of the tent during rains.
Modern tent connections

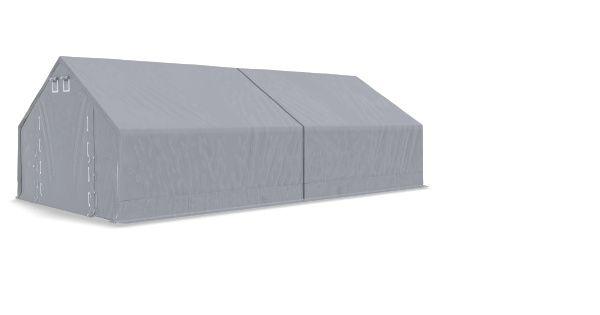

It is possible to connect tents using a special gutter.
Safety of use
The side walls and entrances are made of fireproof tarpaulin. They meet the EN 13501 standards. This significantly increases the safety of using the tent.
expand section
Technical data
General
Tarpaulins
Constructions
Packages
Item number
05903425049607

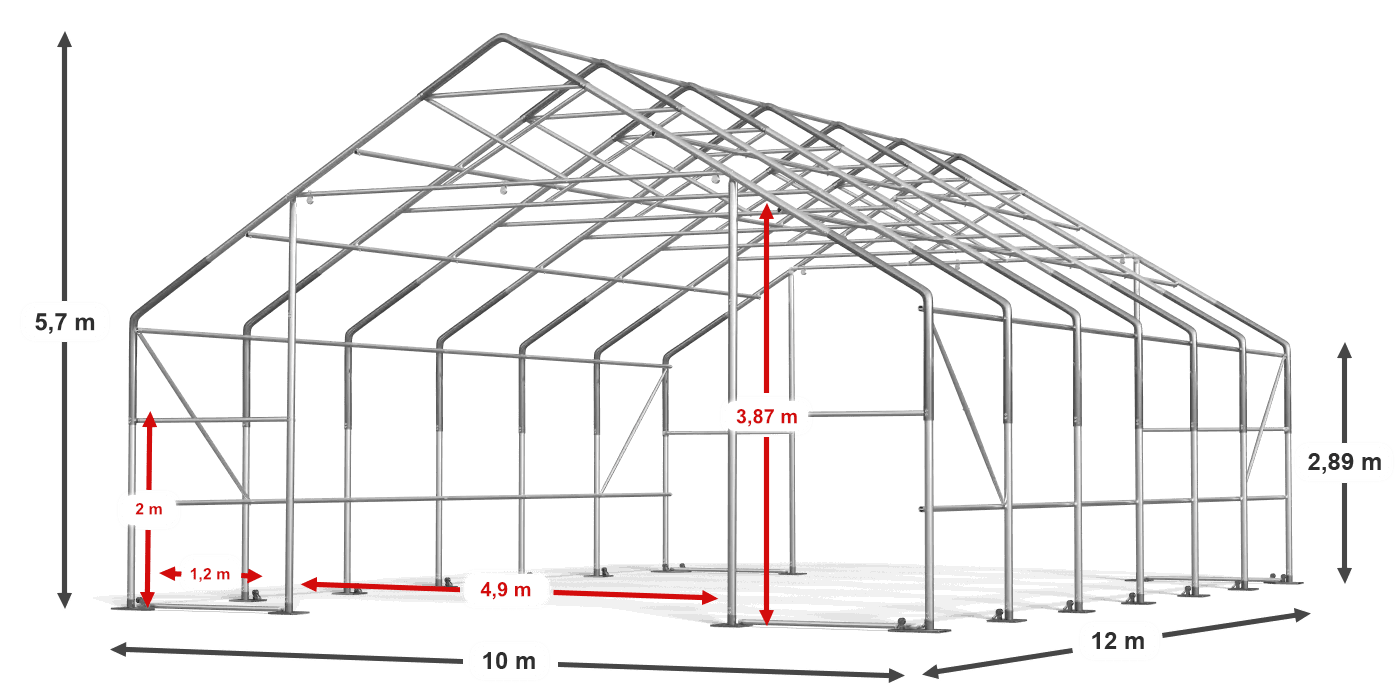

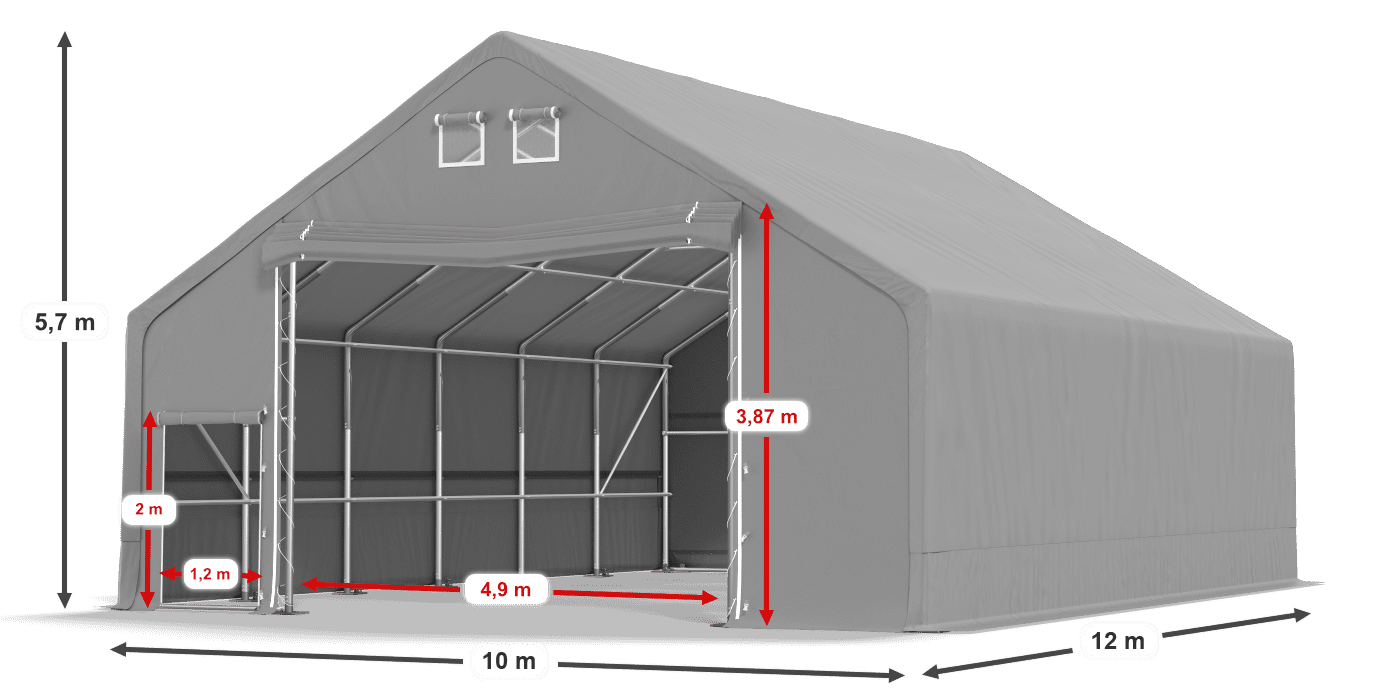

Width
10 m
Lenght
12 m
Side height
3 m
Apex height
5,70 m
Surface
120 m2
Gate A
4,9 m x 3,87 m
Gate B
4,9 m x 3,87 m
Side entrance
Yes (approx. 2 m x 3 m)
Volume
522,21 m3
Number of packages
10
Weigh
1 130,05 kg
Spare parts
Yes
Material
(polyvinyl chloride)
Roof densityt
~ 720 g/m2
Sides density
~ 720 g/m2
Temperature range
from -40o to +60o
Fixing
Elastic rubbers + velcros
UV resistant
Yes
Waterproof
100%
Retention apron
Yes
Overlap System
Yes
System Hermetic
Yes
System Air-control
Yes
System Multi-size
No
Fire retardant
Yes
Material
Galvanized steel
Rust protection
Galvanized
Fixing
Bolts through
Tube diamiter
~ 78 mm
Diameter of fasteners
~ 78 mm
Feet
30 cm
Roof reinforcement
Vertical and transverse
System Easy-Up
No
Roof tensioners
No
Side pulls
No
Roof supports
No
Side supports
No
Package
33.00cm × 194.00cm × 16.00cm - 41.05kg
Package
34.00cm × 194.00cm × 16.00cm - 41.35kg
Package
99.00cm × 214.00cm × 99.00cm - 700.00kg
Package
66.00cm × 124.00cm × 41.00cm - 132.50kg
Package
59.00cm × 69.00cm × 24.00cm - 23.05kg
Package
55.00cm × 123.00cm × 35.00cm - 72.90kg
Package
43.00cm × 53.00cm × 27.00cm - 29.05kg
Package
35.00cm × 194.00cm × 12.00cm - 30.45kg
Package
33.00cm × 126.00cm × 18.00cm - 30.20kg
Package
33.00cm × 178.00cm × 14.00cm - 29.50kg
DELIVERY AND COLLECTION
Packages
Your order will be packed in 10 packs on a pallet with a total weight of 1 130,05 kg.
Delivery
Deliveries are handled by the courier company Raben. Prepare a place to place the packages.
Personal pick up in our premises
If you want, you can pick it up in person. For personal collection, please visit our sales point ul. Przemysłowa 10, 32-540 Trzebinia, within the time indicated on the order summary.
ASSEMBLY AND INSTRUCTIONS
Editing with 4-5 people.
On average in 5-6 hours.
The construction assembly manual
DOWNLOAD PDF FILE
